Sealey - SFC500COMBO - Subframe Cradle and 500kg Transmission Jack Combo

Package Includes: 500TTJ - 0.5 Tonne Vertical Telescopic Transmission Jack. SFC01 - Subframe/Engine Load Adaptor for TTJ Transmission Jacks. These items are heavy. Extra assistance must be provided at the delivery point to help safe delivery.

Package Includes:

500TTJ - 0.5 Tonne Vertical Telescopic Transmission Jack.

SFC01 - Subframe/Engine Load Adaptor for TTJ Transmission Jacks

These items are heavy. Extra assistance must be provided at the delivery point to help safe delivery.

Model No. SFC500COMBO

TELESCOPIC RAM - A two-stage ram reduces the clearance.

HIGH SPEED LIFT - Quick lift, when unladen, reducing the foot pumps required to meet the load. But when laden slows to give control and accuracy.

FOOT PEDAL OPERATION - Keeping hands free for fixings and adjustments.

SAFE - Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.

HIGHLY MANOEUVRABLE - Large, smooth running castors, make positioning quick and easy.

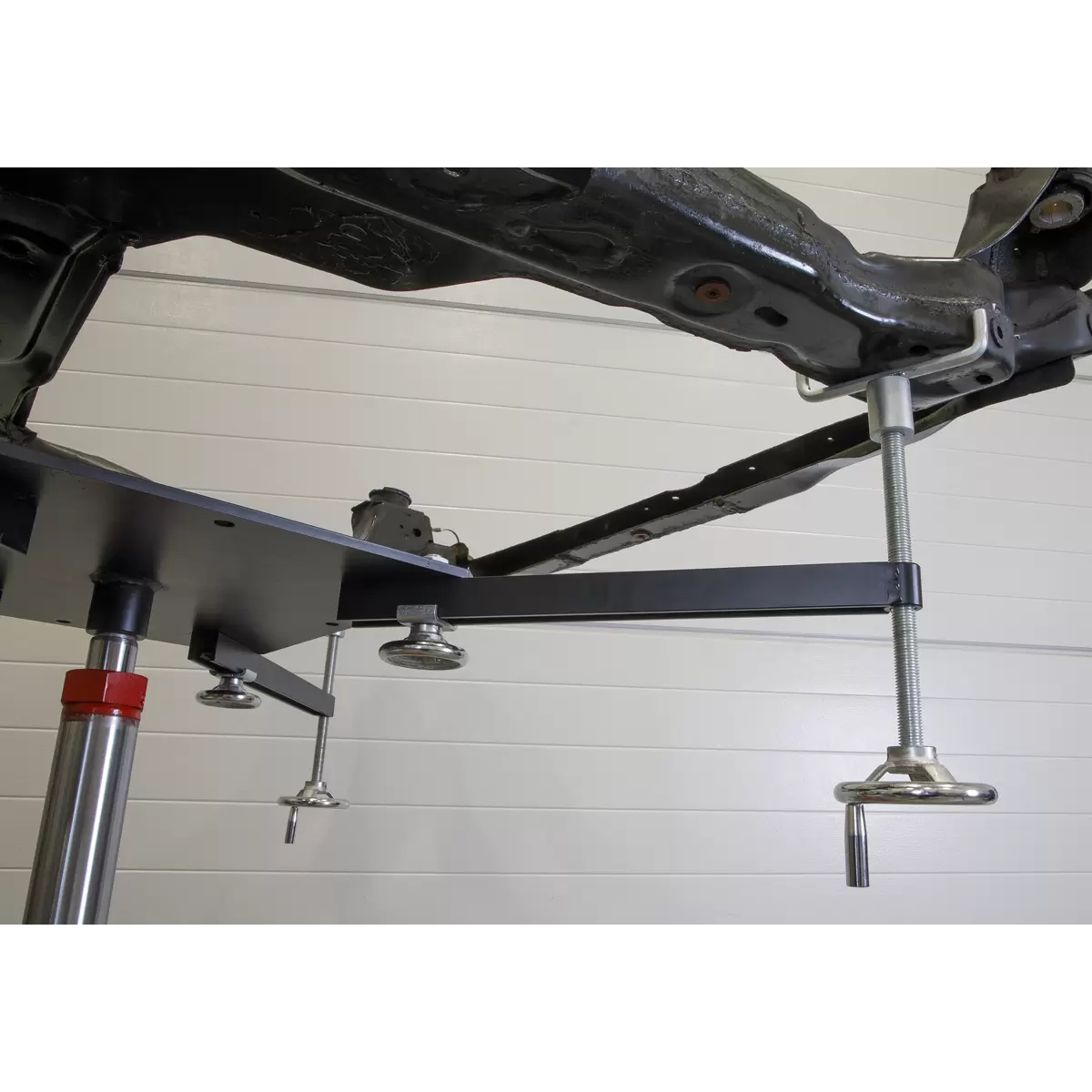

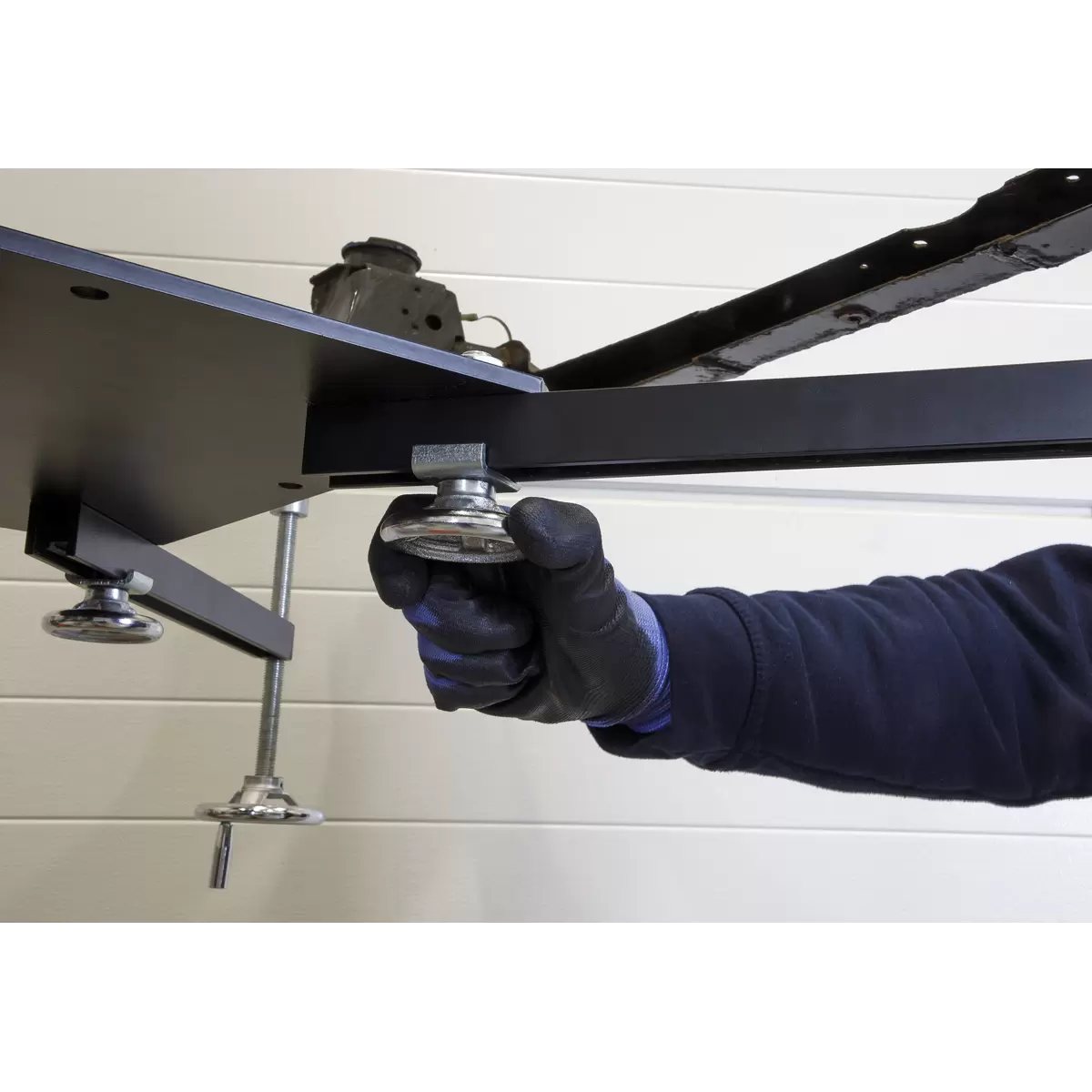

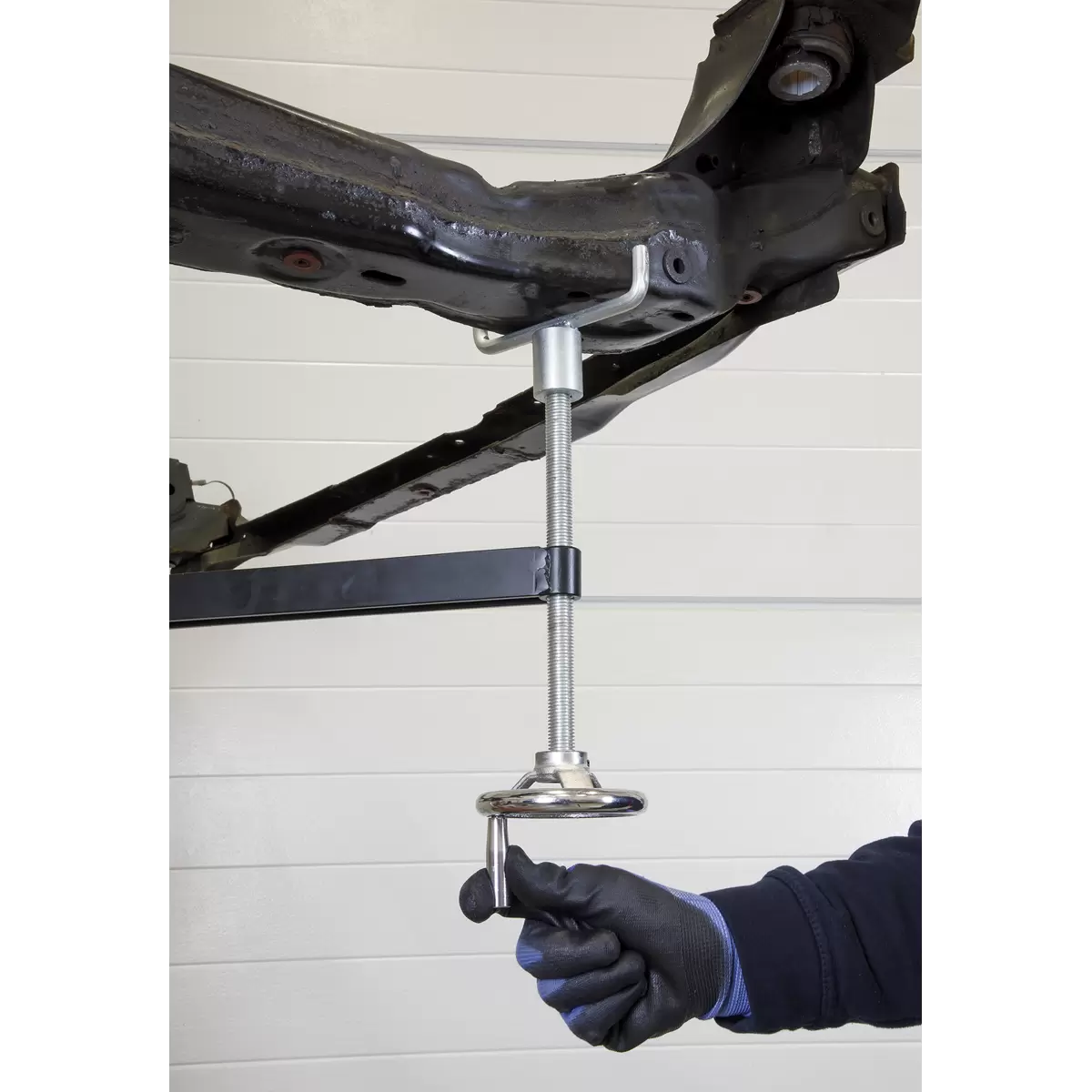

VERSATILE ADAPTOR - Fully adjustable Subframe/Engine support and supplied with various designs of fittings to suit different applications.

WILL ASSIST - In the removal and fitting of complete engine assemblies, rear axles, gearboxes, fuel tanks, exhaust systems and other awkward loads.

LABOUR SAVING DESIGN - Allows many jobs to be carried out by one person.

EASY ASSEMBLY - The adaptor can be fitted and removed from the transmission jack with ease as required.

Model No SFC500COMBO
Base Size: 1000 x 1000mm
Brand: Sealey
Capacity: 500TTJ - 500kg and SFC01 - 450kg
Fixed/Adjustable Saddle: Adjustable
Maximum Saddle Height: 1875mm
Minimum Saddle Height: 890mm
Nett Weight: 95.5kg
Optional Accessories: N/A
Pump Strokes to Maximum Height: N/A
Ram Extensions: 2
Saddle Adjustment - Left-to-Right: 65mm
Saddle Tilt - Backward: 22°
Saddle Tilt - Forward: 28°

Warranty Period = 1 year years

Commodity code = 8425410000

Country of Origin = CHN
