Home > Workshop Equipment > Jacking & Lifting > Sealey - YAJ20-60LR - Viking Long Reach/Low Profile Air Operated Telescopic Jack 20-60 Tonne
Sealey - YAJ20-60LR - Viking Long Reach/Low Profile Air Operated Telescopic Jack 20-60 Tonne
SKU: YAJ20-60LR
Part Number: YAJ20-60LR
Barcode: 5054630313585
Country of Origin: CHN
Weight: 73.00 Kg
Our Price
£1,807.97 (inc VAT) £1,506.64 (ex VAT)
RRP £2,219.94 £1,849.95
Save
£411.97
£343.31
3 years Warranty included.
Description

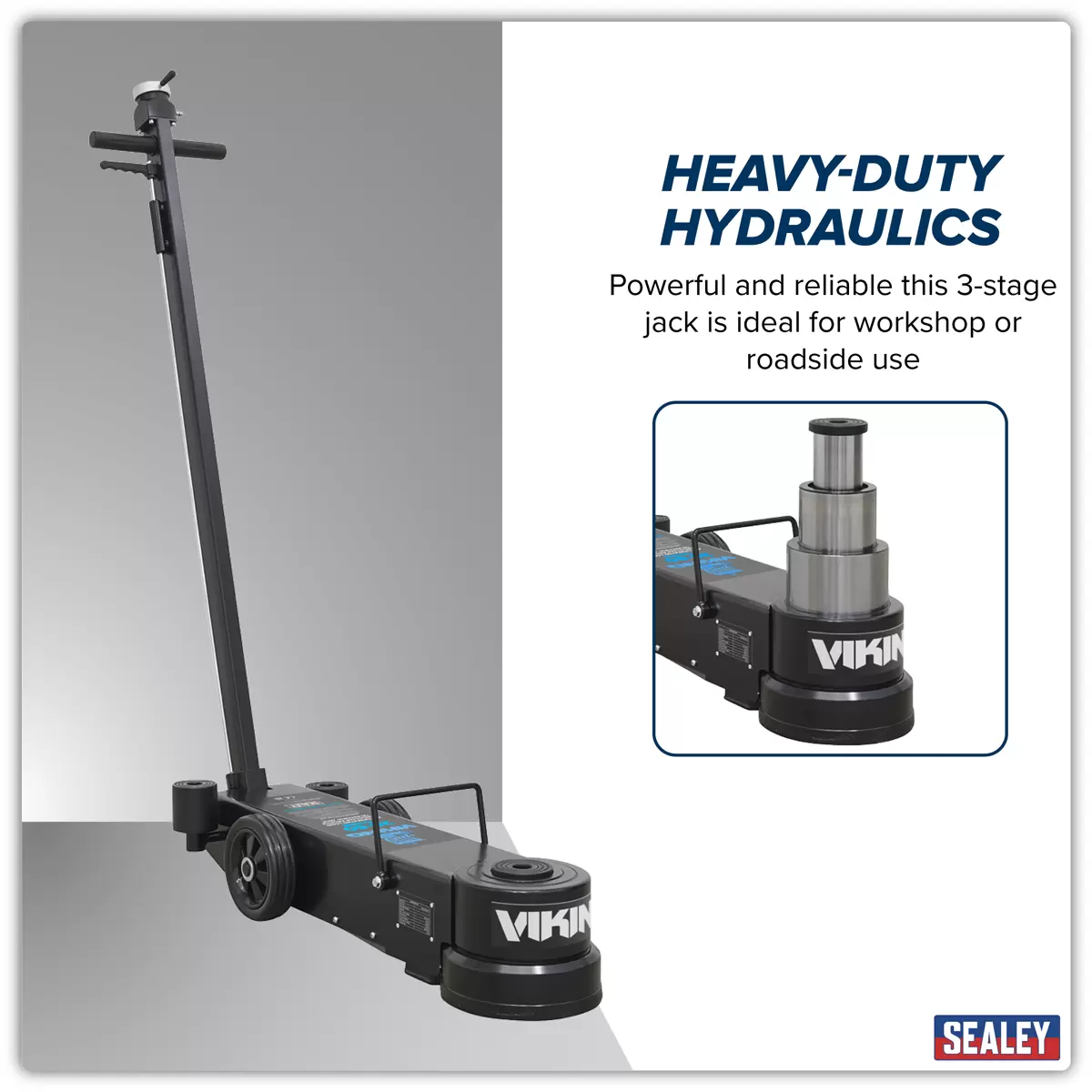

Ideal for workshop or roadside use, these jacks take the effort out of lifting heavy plant, tractors and commercial vehicles. For extra safety, features dead man’s handle which also aids controlled lowering speed. Supplied with extensions that close the gap between the saddle of the jack and the jacking point. See chart below for detailed specification.

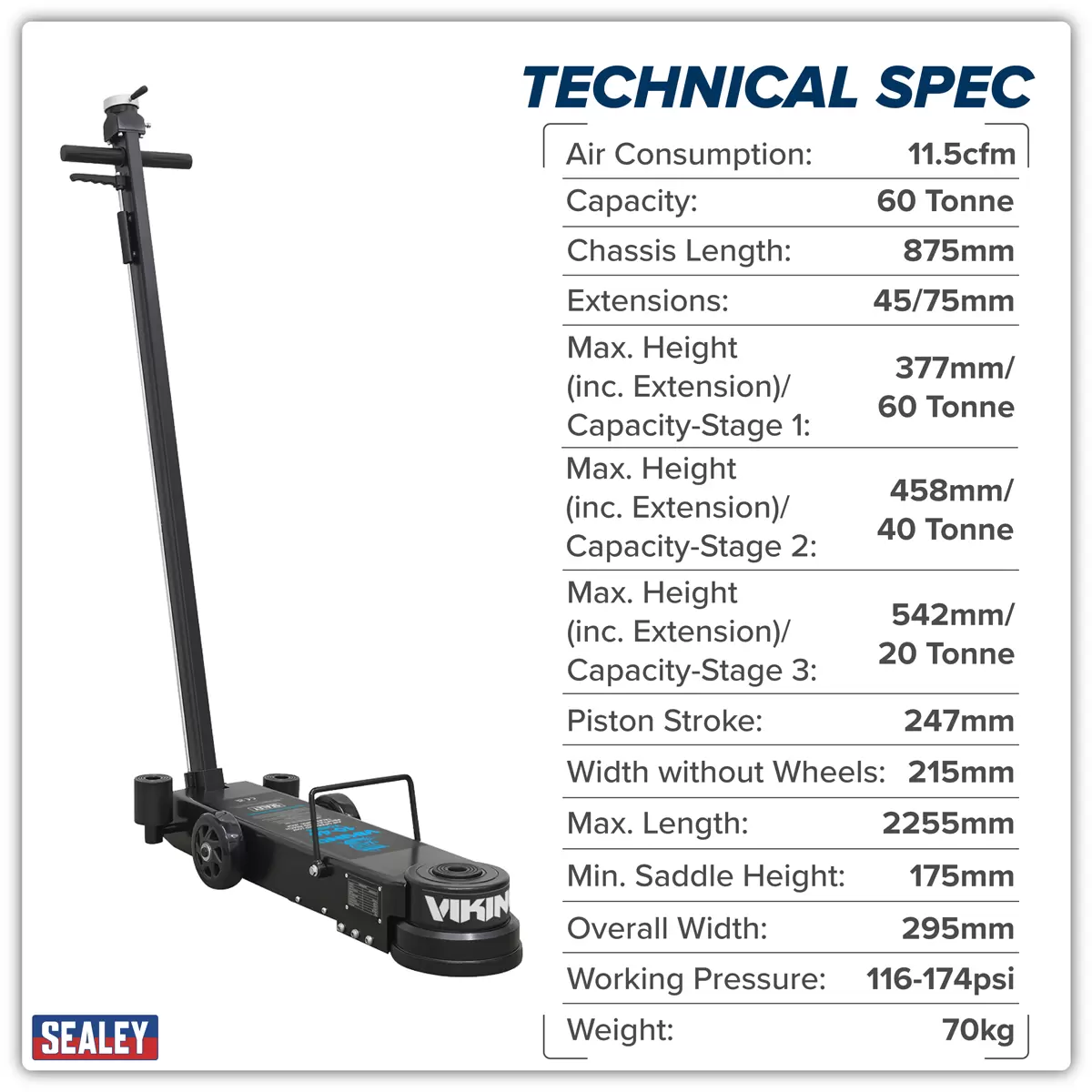

Features
Model No YAJ20-60LR
Air Consumption: 11.5cfm
Brand: Viking
Capacity: 60 Tonne
Chassis Length: 875mm
Extensions: 45/75mm
Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 377/60
Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): 458/40
Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): 542/20
Maximum Length: 2255mm
Minimum Saddle Height: 175mm
Nett Weight: 70kg
Overall Width: 295mm
Piston Stroke: 247mm
Screw Extension: n/a
Width without Wheels: 215mm
Working Pressure: 116-174psi
Air Consumption: 11.5cfm
Brand: Viking
Capacity: 60 Tonne
Chassis Length: 875mm
Extensions: 45/75mm
Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 377/60
Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): 458/40
Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): 542/20
Maximum Length: 2255mm
Minimum Saddle Height: 175mm
Nett Weight: 70kg
Overall Width: 295mm
Piston Stroke: 247mm
Screw Extension: n/a
Width without Wheels: 215mm
Working Pressure: 116-174psi
Specification
Workshopping Says
Warranty Period = 3 years years
Commodity code = 8425490000
Country of Origin = CHN
