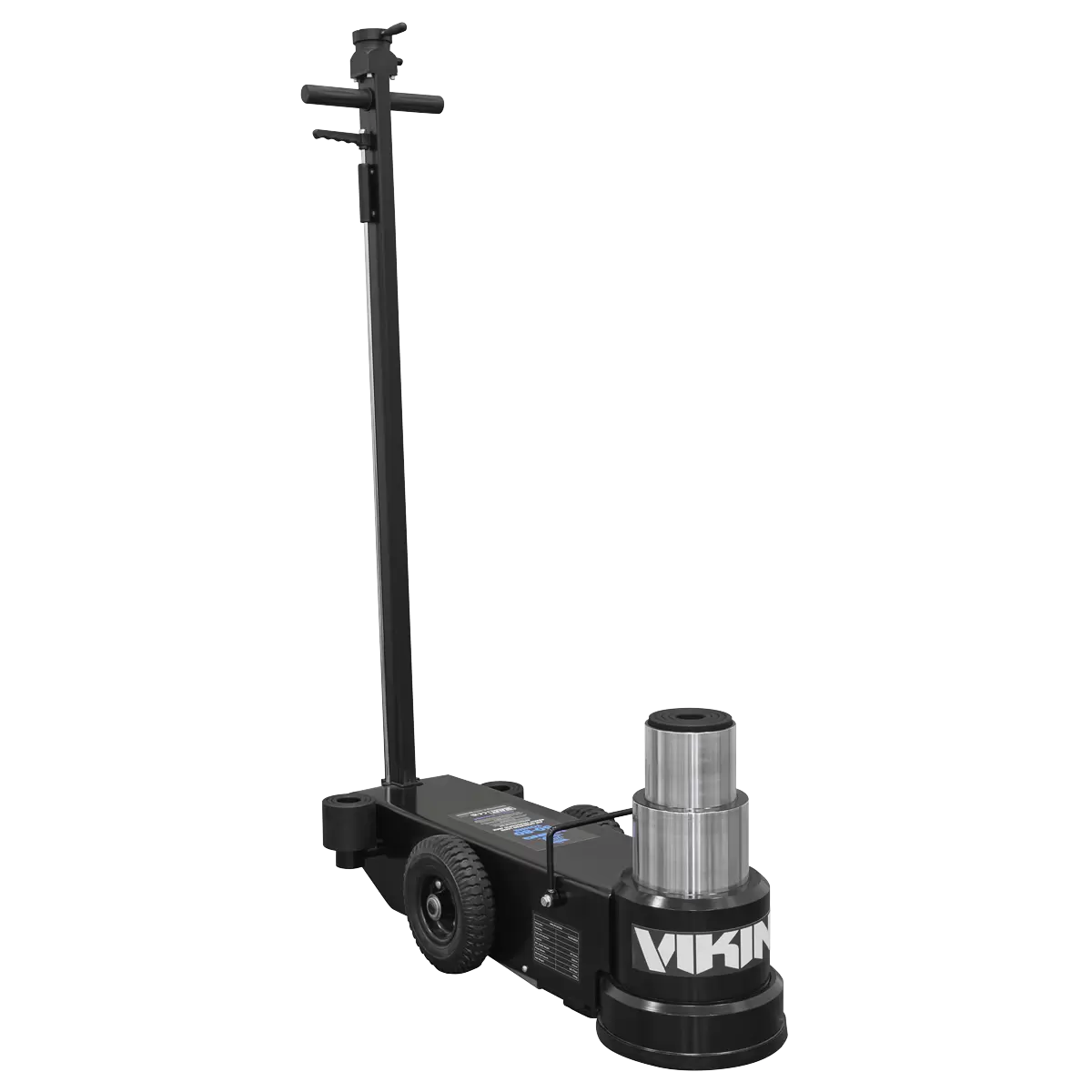

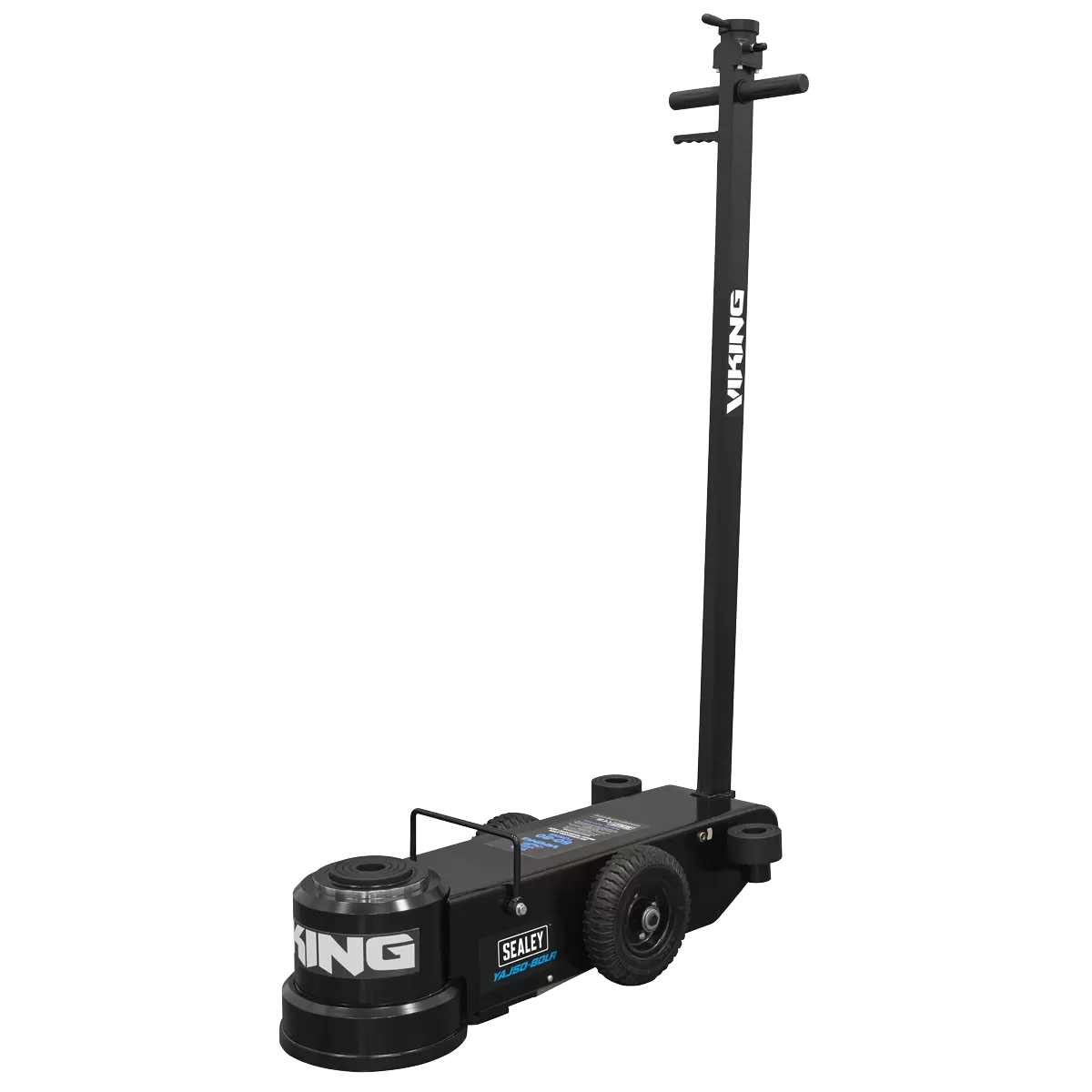

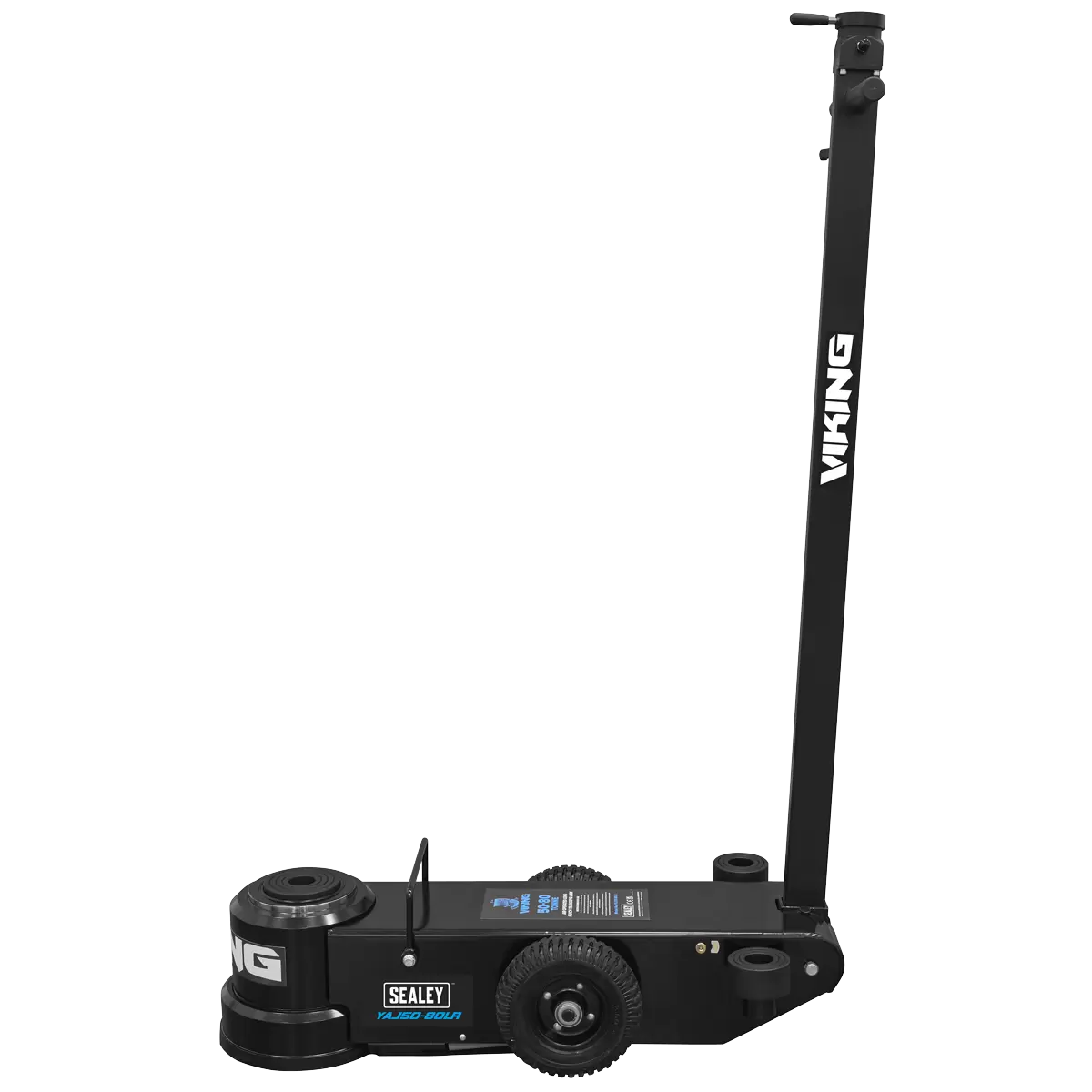

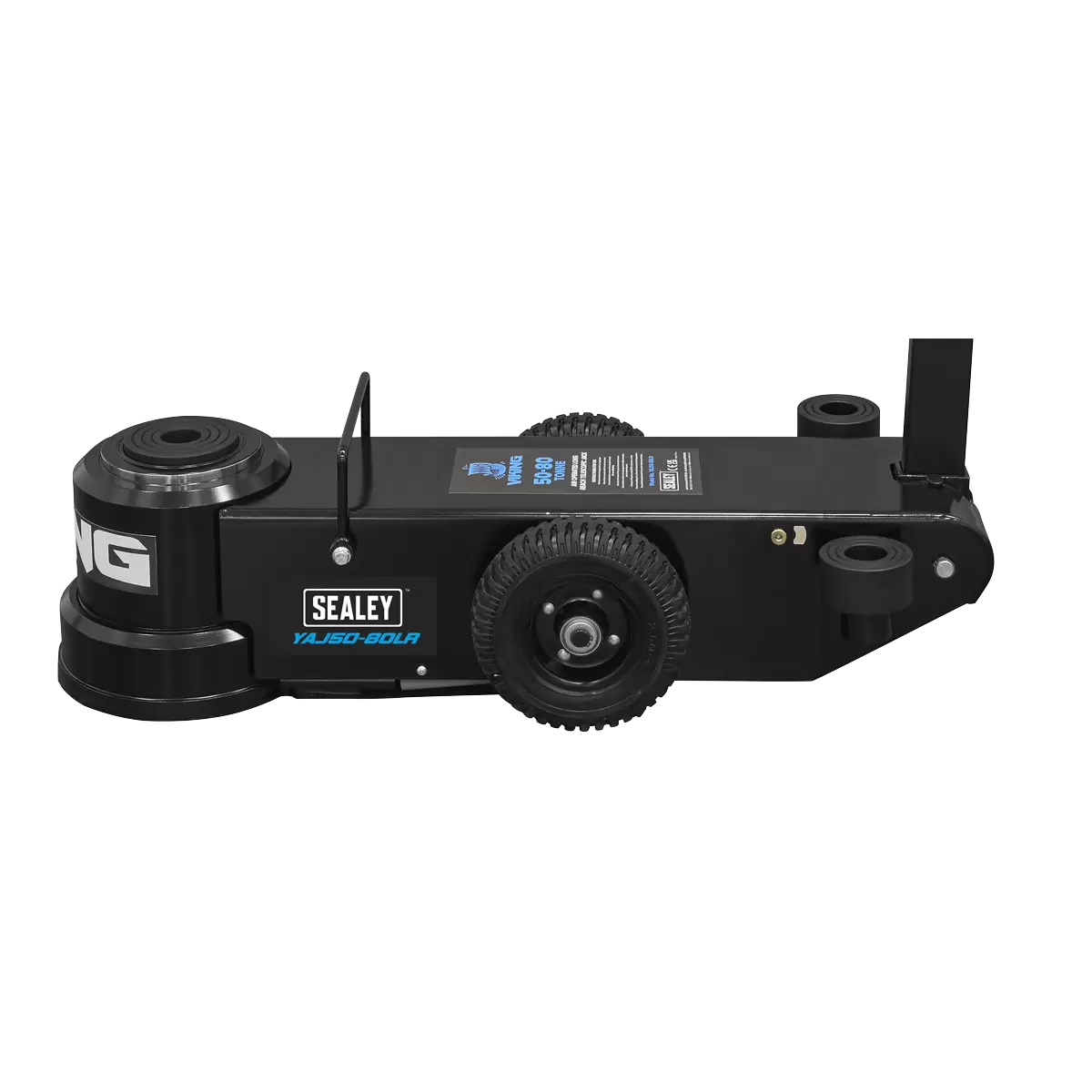

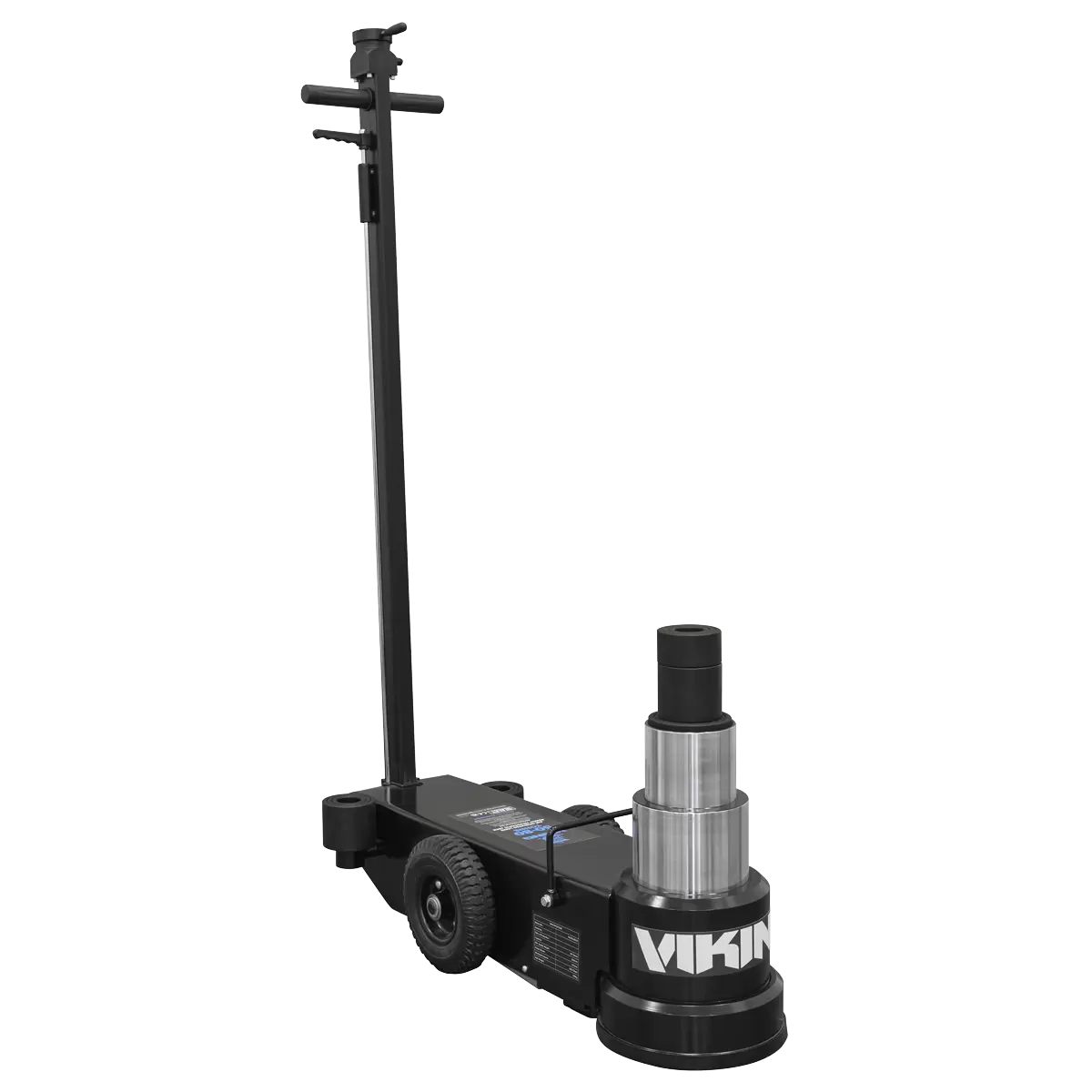

Sealey - YAJ50-80LR - Viking Air Operated Telescopic Long Reach Jack 50-80 Tonne
SKU: YAJ50-80LR
Part Number: YAJ50-80LR
Barcode: 5054630617195
Country of Origin: CHN
Weight: 118.80 Kg
Our Price
£2,269.14 (inc VAT) £1,890.95 (ex VAT)
RRP £2,639.94 £2,199.95
Save
£370.80
£309.00
3 years Warranty included.
Description

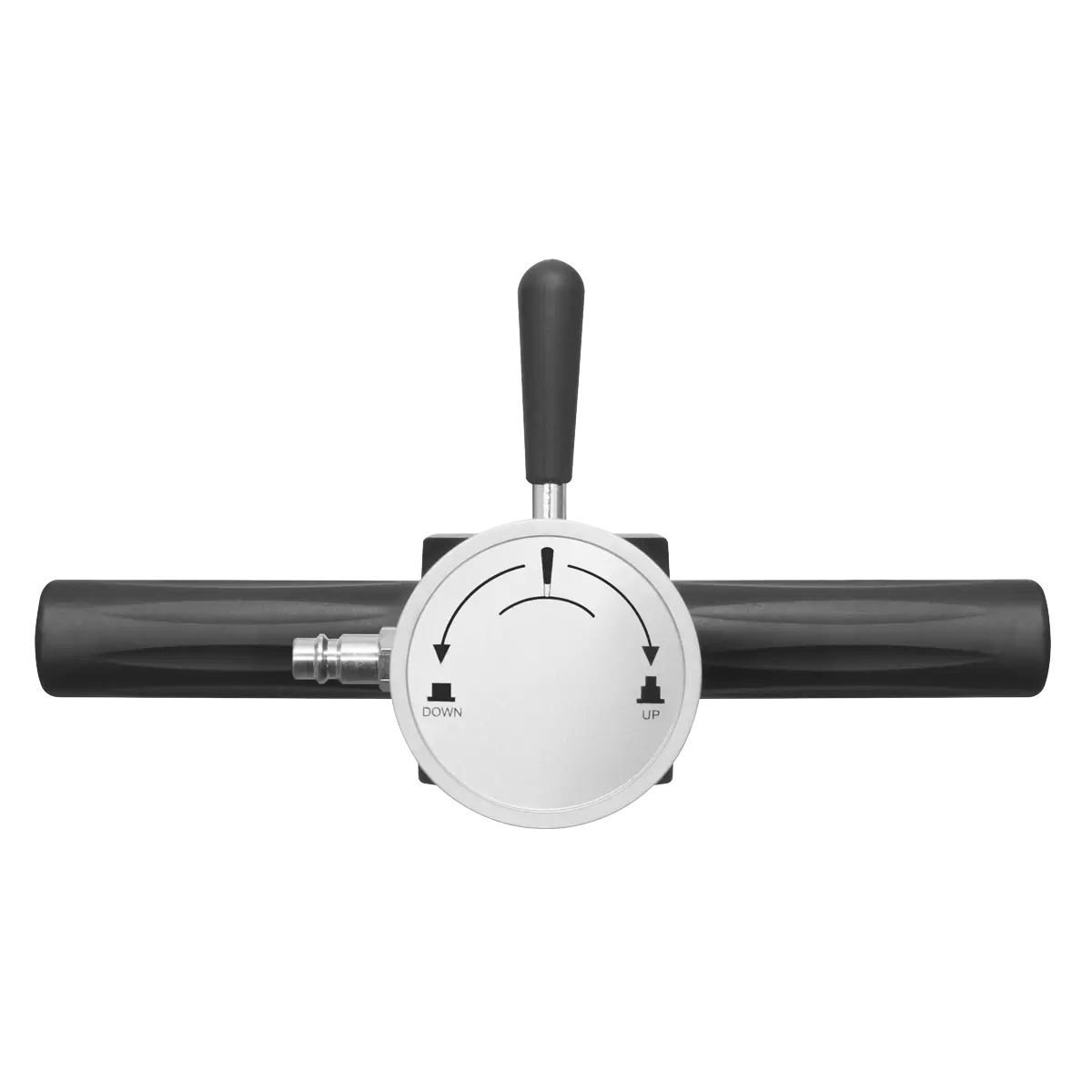

Ideal for workshop or roadside use, this jack takes the effort out of lifting heavy plant, tractors and commercial vehicles. For extra safety, features dead man’s handle which also aids controlled lowering speed. Supplied with extensions that close the gap between the saddle of the jack and the jacking point. See table for detailed specification.
Features
Model No YAJ50-80LR
Brand: Viking
Capacity: 80 Tonne
Chassis Length: 930mm

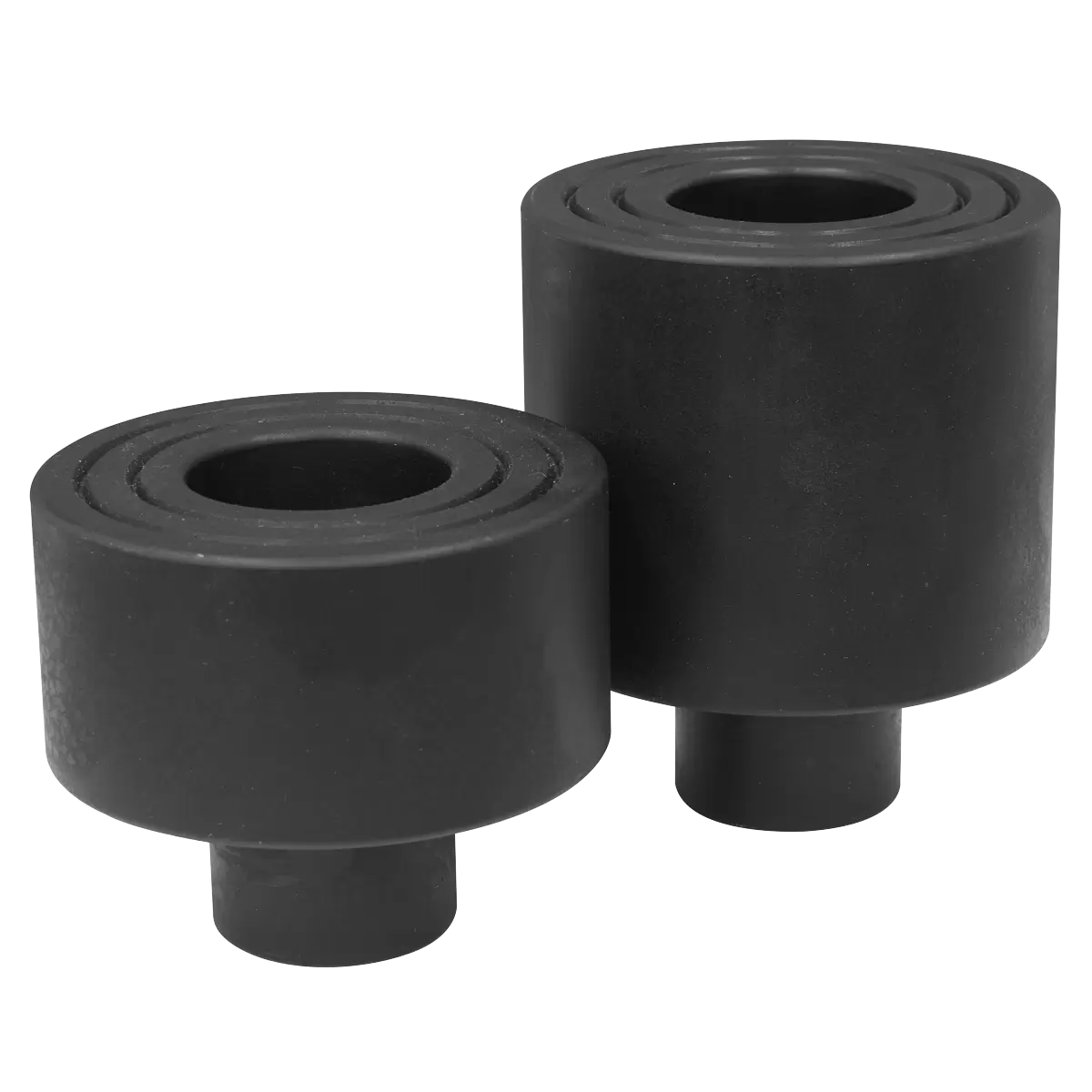

Extensions: 45/75mm
Maximum Air Pressure: 174psi
Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 461/80
Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): 563/50
Maximum Length: 2300mm
Minimum Saddle Height: 230mm
Nett Weight: 105kg
Overall Width: 342mm
Piston Stroke: 213mm
Screw Extension: N/A
Width without Wheels: 254mm
Working Pressure: 130-174psi
Brand: Viking
Capacity: 80 Tonne
Chassis Length: 930mm
Extensions: 45/75mm
Maximum Air Pressure: 174psi
Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 461/80
Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): 563/50
Maximum Length: 2300mm
Minimum Saddle Height: 230mm
Nett Weight: 105kg
Overall Width: 342mm
Piston Stroke: 213mm
Screw Extension: N/A
Width without Wheels: 254mm
Working Pressure: 130-174psi
