Home > Hardware / Consumables > Lighting & Power > Draper Tools - 30620 - 110V Portable Transformer, 5.0kVA
Draper Tools - 30620 - 110V Portable Transformer, 5.0kVA
SKU: 30620
Part Number: DPT5000A
Barcode: 5059482076732
Country of Origin: CN
Weight: 31.75 Kg
Our Price
£176.05 (inc VAT) £146.71 (ex VAT)
RRP £196.00 £163.33
Save
£19.95
£16.62
12 months Warranty included.
Description

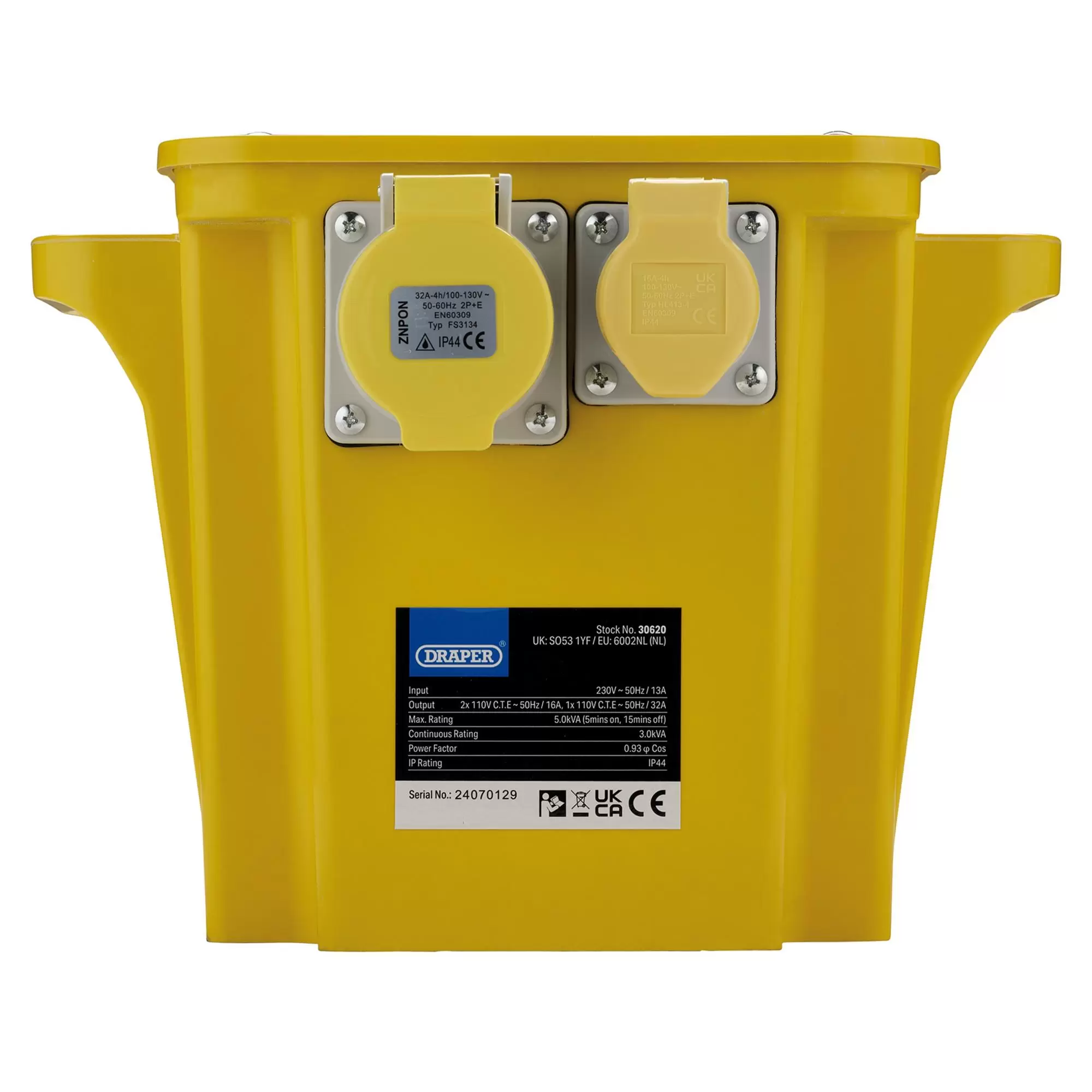

This portable site transformer converts 230V electrical supply to a 110V output, centre tapped earth. Suitable for intermittent running of power tools up to 3,000vA and continuous use with lighting products up to 5,000vA. It features a robust IP44 GRP casing and is insulated to Class I standards. The transformer is equipped with thermostatic overload protection and includes 2 x 16A 110V and 1 x 32A 110V IP44 socket outlets.
Features
Specification
Input voltage 230V AC
Input frequency 50Hz
Input amperage 13A
Output voltage 110V AC
Output amperage 16A/32A
Max rated output 3,000vA (intermittent) 5,000vA (continous)
Insulation class Class I
Output sockets 2 x 16A/110V, 1 x 32A/110V
IP rating IP44
Power cord length 2m
Weight 29kg
Input frequency 50Hz
Input amperage 13A
Output voltage 110V AC
Output amperage 16A/32A
Max rated output 3,000vA (intermittent) 5,000vA (continous)
Insulation class Class I
Output sockets 2 x 16A/110V, 1 x 32A/110V
IP rating IP44
Power cord length 2m
Weight 29kg
Workshopping Says
⚠️ Electrical Supply Required
This product requires a 16A (or 32A) industrial electrical supply and cannot be plugged into a standard UK 13A 3-pin socket without the appropriate electrical installation or approved adaptor where applicable. Please check the product specification before ordering.
This product requires a 16A (or 32A) industrial electrical supply and cannot be plugged into a standard UK 13A 3-pin socket without the appropriate electrical installation or approved adaptor where applicable. Please check the product specification before ordering.
Description
This portable site transformer converts 230V electrical supply to a 110V output, centre tapped earth. Suitable for intermittent running of power tools up to 3,000vA and continuous use with lighting products up to 5,000vA. It features a robust IP44 GRP casing and is insulated to Class I standards. The transformer is equipped with thermostatic overload protection and includes 2 x 16A 110V and 1 x 32A 110V IP44 socket outlets.
Features
Specification
Input voltage 230V AC
Input frequency 50Hz
Input amperage 13A
Output voltage 110V AC
Output amperage 16A/32A
Max rated output 3,000vA (intermittent) 5,000vA (continous)
Insulation class Class I
Output sockets 2 x 16A/110V, 1 x 32A/110V
IP rating IP44
Power cord length 2m
Weight 29kg
Input frequency 50Hz
Input amperage 13A
Output voltage 110V AC
Output amperage 16A/32A
Max rated output 3,000vA (intermittent) 5,000vA (continous)
Insulation class Class I
Output sockets 2 x 16A/110V, 1 x 32A/110V
IP rating IP44
Power cord length 2m
Weight 29kg
Workshopping Says
⚠️ Electrical Supply Required
This product requires a 16A (or 32A) industrial electrical supply and cannot be plugged into a standard UK 13A 3-pin socket without the appropriate electrical installation or approved adaptor where applicable. Please check the product specification before ordering.
This product requires a 16A (or 32A) industrial electrical supply and cannot be plugged into a standard UK 13A 3-pin socket without the appropriate electrical installation or approved adaptor where applicable. Please check the product specification before ordering.
