Home > Hardware / Consumables > Lubrication > SIP - 06807 - 230v Diesel Transfer Pump with Fuel Meter
SIP - 06807 - 230v Diesel Transfer Pump with Fuel Meter
SKU: SIP06807
Part Number: 06807
Barcode: 5012713068074
Country of Origin: CN
Weight: 16.90 Kg
Our Price
£239.39 (inc VAT) £199.49 (ex VAT)
RRP £299.99 £249.99
Save
£60.60
£50.50
SIP 2-YEAR Warranty included.
Description

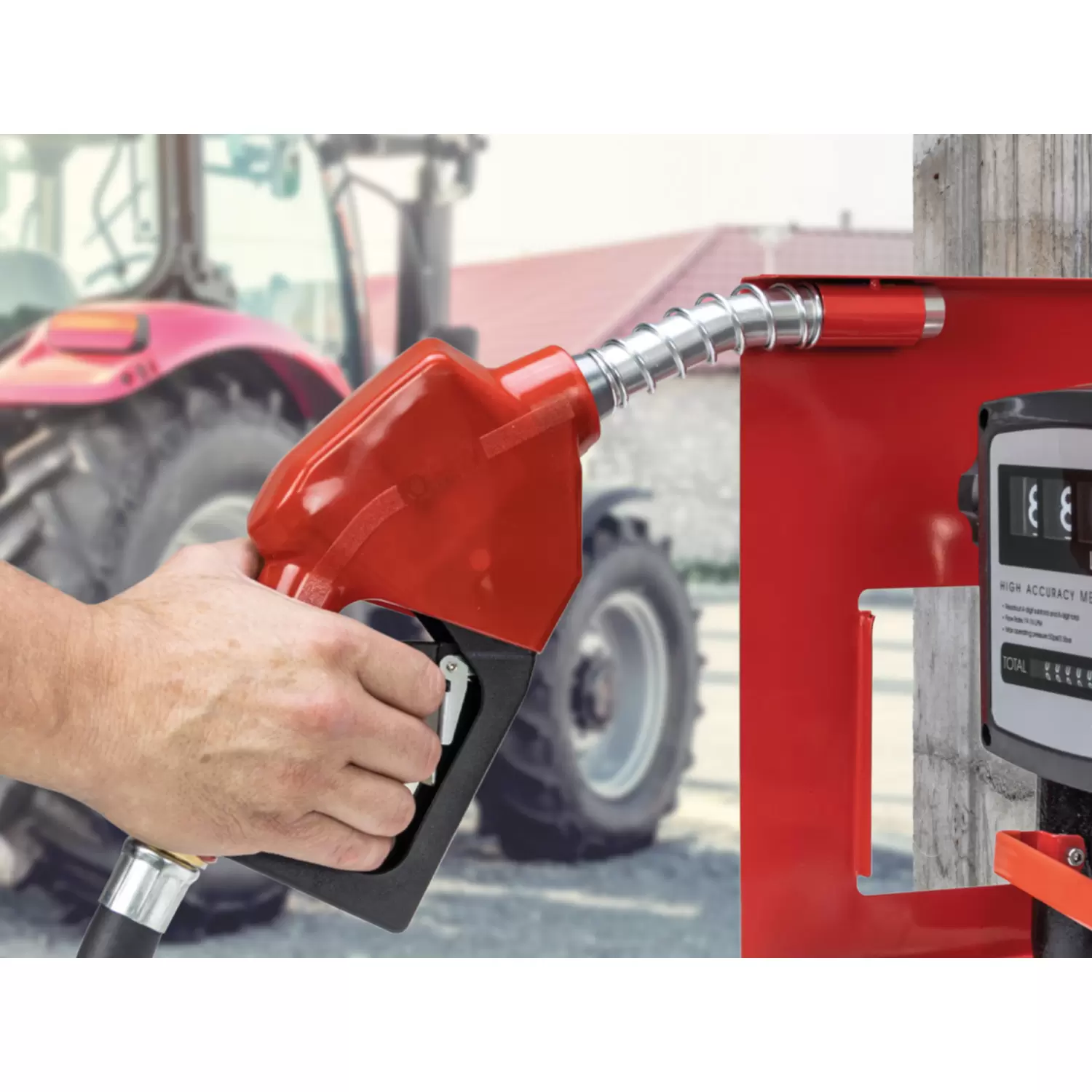

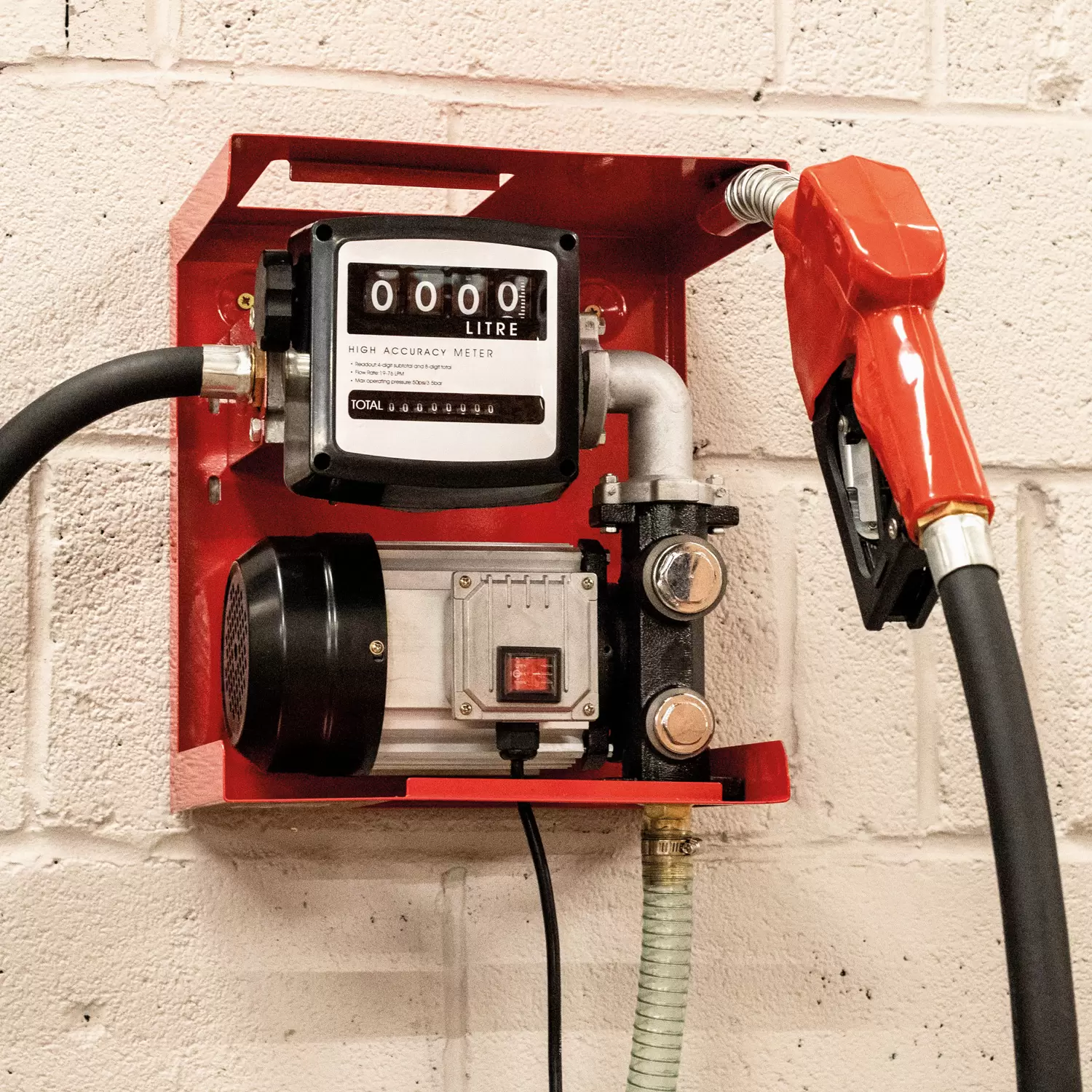

The SIP 230v Diesel Transfer Pump with Fuel Meter is a robust electric diesel transfer pump designed with a reliable, well-constructed fuel meter display plus 15mtr pumping head and 2mtr suction head. This makes it ideal for safe dispensing of diesel and fuel oils, and provides high accuracy and speed-of-use.
This compact fuel transfer pump with meter is ideal for a variety of applications including the easy refuelling of vehicles, fleets and other industrial machinery.
Features
• Compact design with wall-mountable bracket
• Meter with 4 digit subtotal and 8 digit grand total
• Powerful 550w AC motor with copper-wound armatures

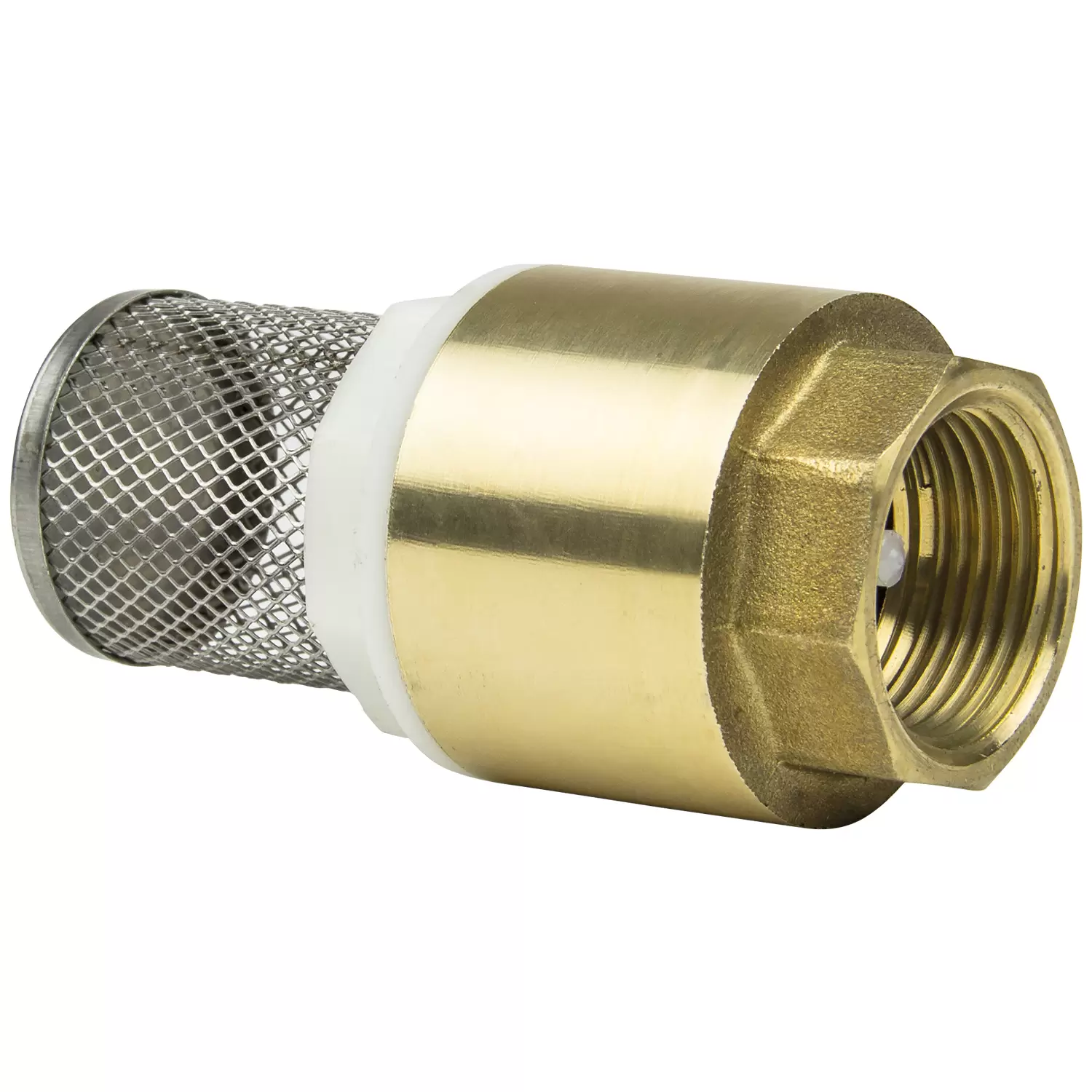

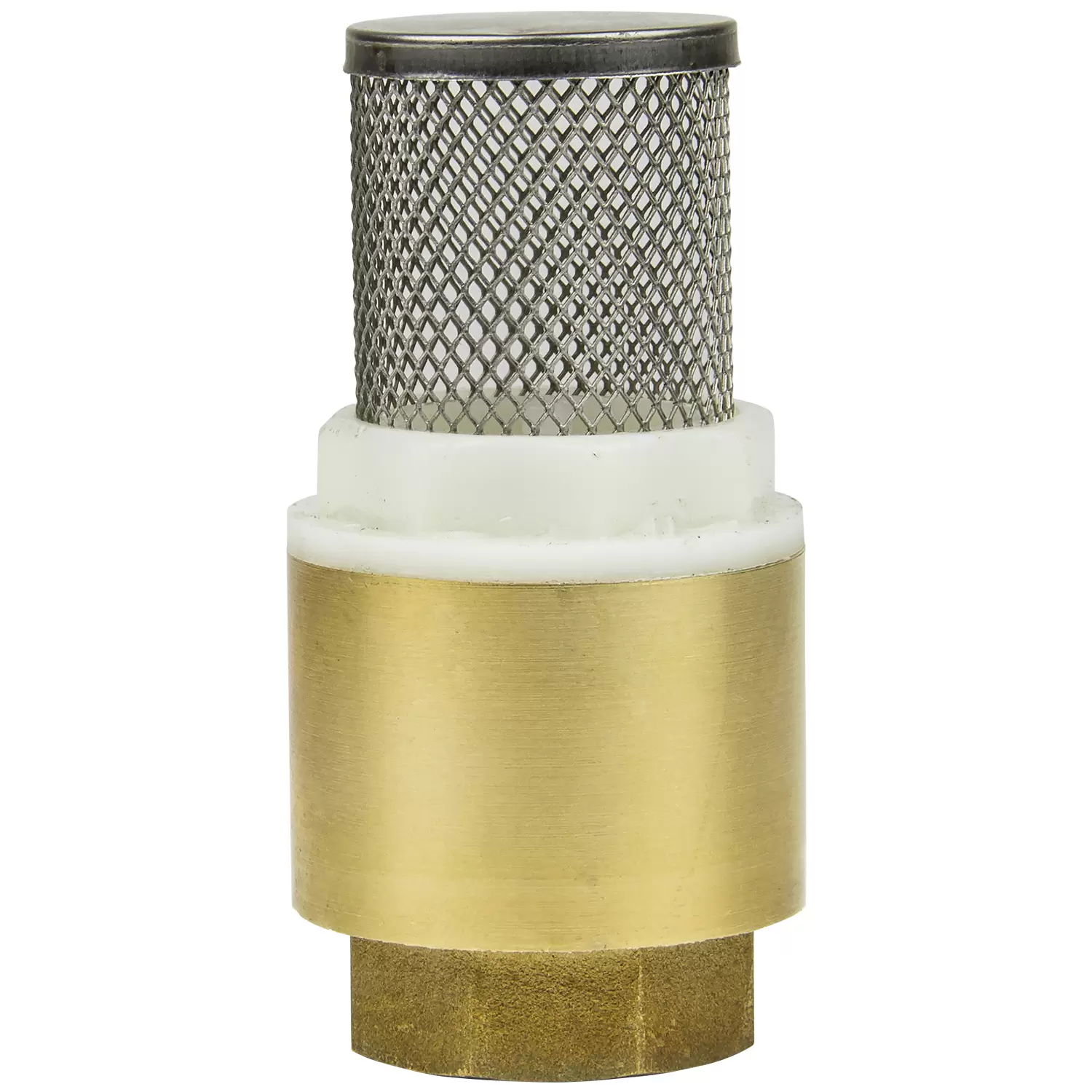

• Supplied with non-return valve to aid self-priming
• 15mtr pumping head and 2mtr suction head
• Meter with 4 digit subtotal and 8 digit grand total
• Powerful 550w AC motor with copper-wound armatures
• Supplied with non-return valve to aid self-priming
• 15mtr pumping head and 2mtr suction head
Specification
ITEM NO. 06807
Input Voltage: 230v AC
Motor Power: 550w
Max. Pumping Head: 15mtr
Max. Flow Rate: 60ltr/min
Speed: 2850rpm
Max. Working Pressure: 22psi (1.5bar)
Duty Cycle: 30min
Connection: 1" BSP
Protection: IPX4
Suction Hose Length: 2mtr
Delivery Hose Length: 4mtr
