Home > Workshop Equipment > Machine Shop > SIP - 01530 - 15" Swivel Head Manual & Auto-Cut Metal Bandsaw

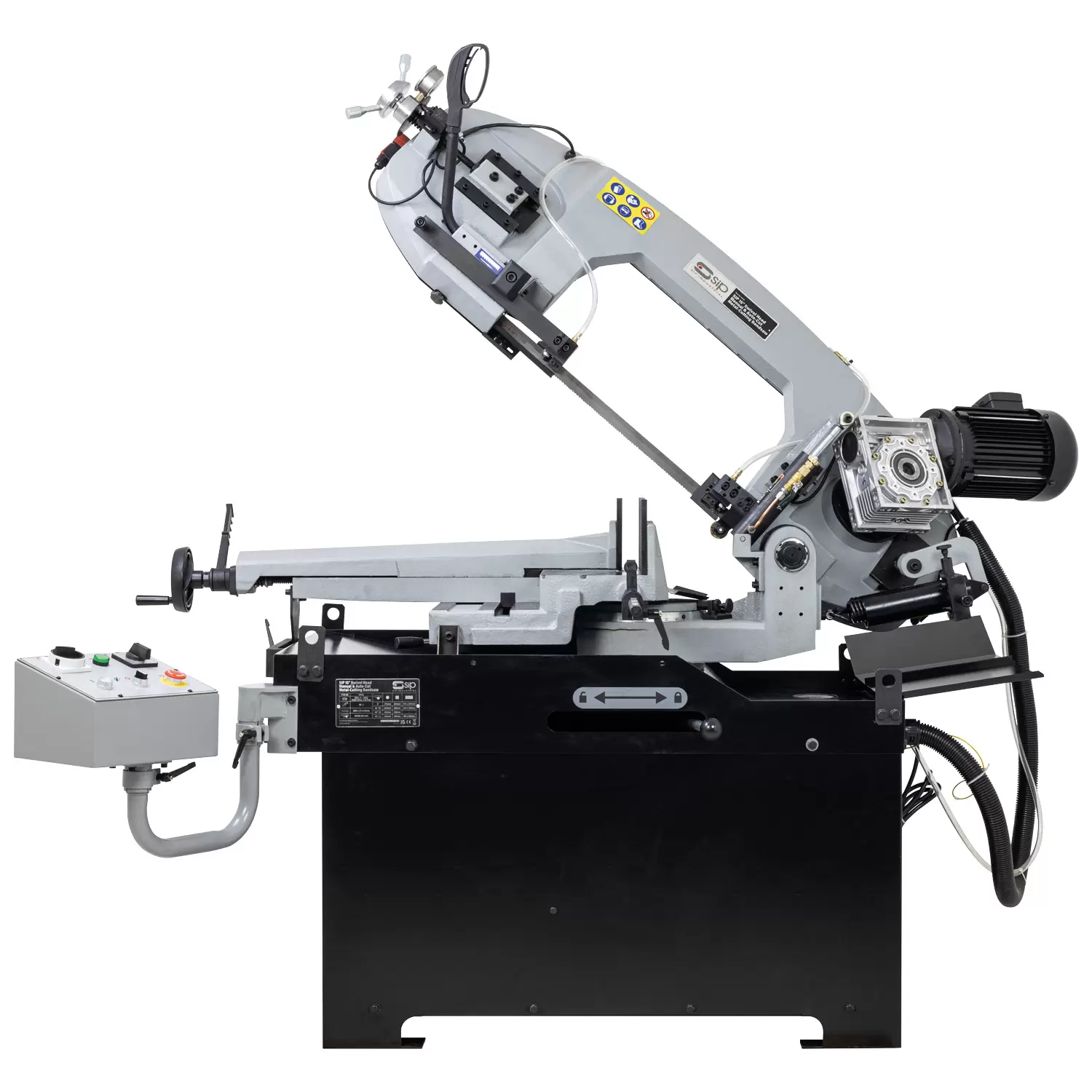

SIP - 01530 - 15" Swivel Head Manual & Auto-Cut Metal Bandsaw
SKU: SIP01530
Part Number: 01530
Barcode: 5012713015306
Country of Origin: CN
Weight: 365.00 Kg
Our Price
£5,087.99 (inc VAT) £4,239.99 (ex VAT)
RRP £5,999.99 £4,999.99
Save
£912.00
£760.00
SIP 2-YEAR Warranty included.
Description
The SIP 15" Swivel Head Manual & Auto-Cut Metal Bandsaw is a powerful and accurate auto-cutting bandsaw ideal for cutting bar, tube and profile workpieces using a range of metal types. This includes mild steel, stainless steel, aluminium, copper, brass and alloys.
SIP Metal-Cutting Bandsaws are highly efficient, easy to use and safely cut metal to a high standard, helping to avoid use of manual cutting operations. They are an essential machine for metal and engineering workshops.
Features
• Dual swivel head function
• Two-speed motor (1.1kW - 1.5kW)
• Direct drive motor gearbox transmission
• Semi-automatic and manual cut-down functions

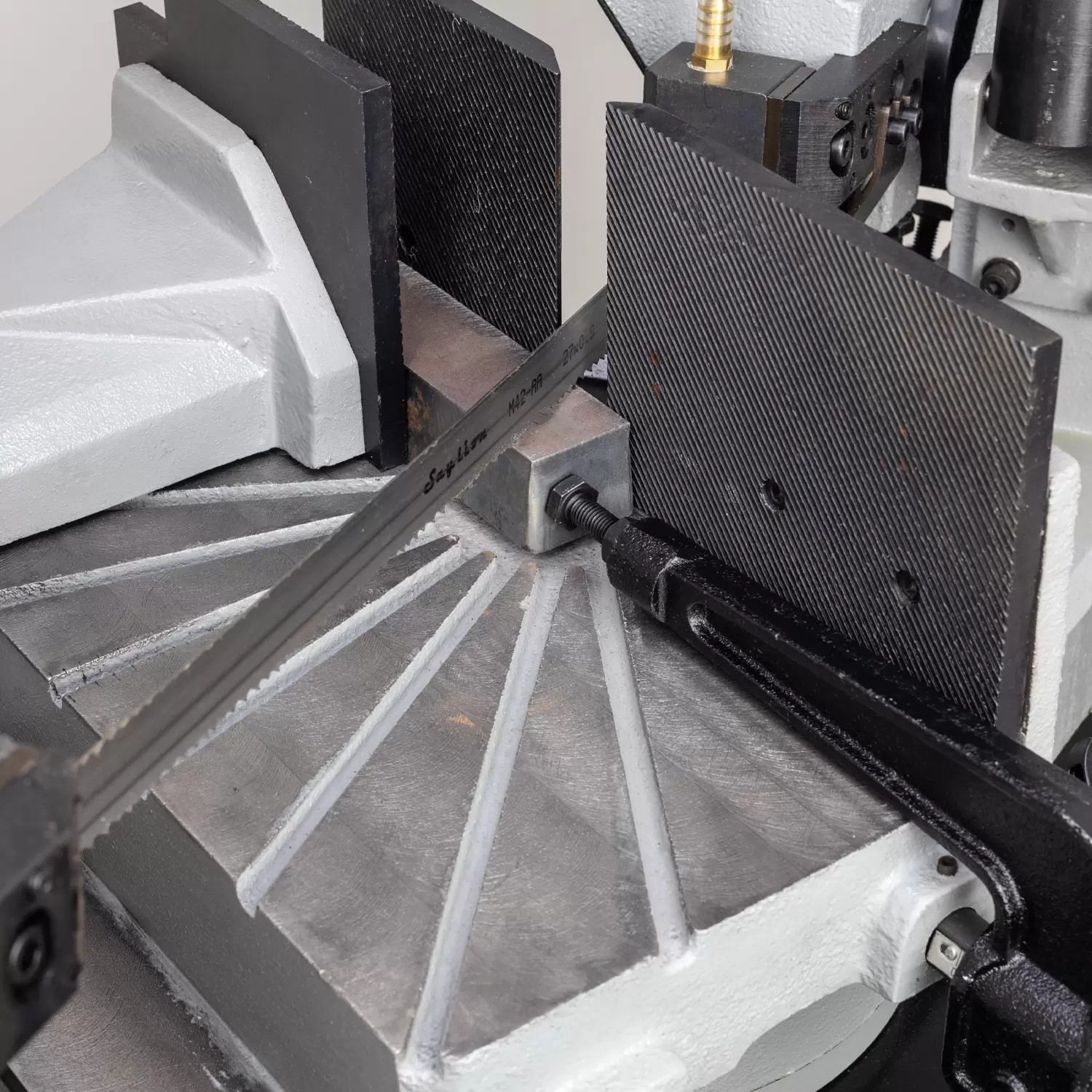

• Adjustable cast iron vice
• Two-speed motor (1.1kW - 1.5kW)
• Direct drive motor gearbox transmission
• Semi-automatic and manual cut-down functions
• Adjustable cast iron vice
Specification
ITEM NO. 01530
Input Supply: 400v 3-PHASE
Motor Power: 1.5kW (2hp)
Transmission: 2-Speed Direct Drive Gearbox
Blade Speed Range: 34mtr/min / 68mtr/min
Blade Size: 3160mm x 27mm x 0.9mm
Coolant System: Yes
Angle Range: 45°, 30°, 15° (left), 0°, 15°, 30°, 45°, 60° (right)
Cutting Capacity @ 0°: 270mm (circle) / 260mm (square) / 220mm x 370mm (rectangle)
Cutting Capacity @ 45°: 240mm (circle) / 180mm (square) / 160mm x 240mm (rectangle)
Cutting Capacity @ 60°: 160mm (circle) / 100mm (square) / N/A (rectangle)
Cutting Capacity @ 45° (L): 210mm (circle) / 180mm (square) / 150mm x 180mm (rectangle)
Workshopping Says
Ideal for professional metal fabrication and engineering workshops. Suitable for cutting mild steel, stainless steel, aluminium, copper, brass and alloys. Cleanly cuts bar, tube and profile workpieces.
