SIP - 03695 - 30 TON Shop Floor Press
SKU: SIP03695
Part Number: 03695
Barcode: 5012713036950
Country of Origin: CN
Weight: 171.00 Kg
Our Price
£1,319.99 (inc VAT) £1,099.99 (ex VAT)
RRP £1,559.99 £1,299.99
Save
£240.00
£200.00
SIP 2-YEAR Warranty included.
Description
The SIP 30 TON Shop Floor Press is perfect for garage and workshop applications, such as bending, straightening, riveting or bonding, forming and assembling. It is particularly suited for easy removal and installation of bearings, wrist pins, universal joints and pulleys.
A heavy-duty steel frame with pneumatically-assisted press provides exceptional durability and long service life, while a fully adjustable workbed offers increased versatility.
Features
• 151mm to 1031mm work range and a 150mm ram stroke
• Ideal for bending, bonding, straightening applications
• Bearing, wrist pin, universal joint or pulley removal

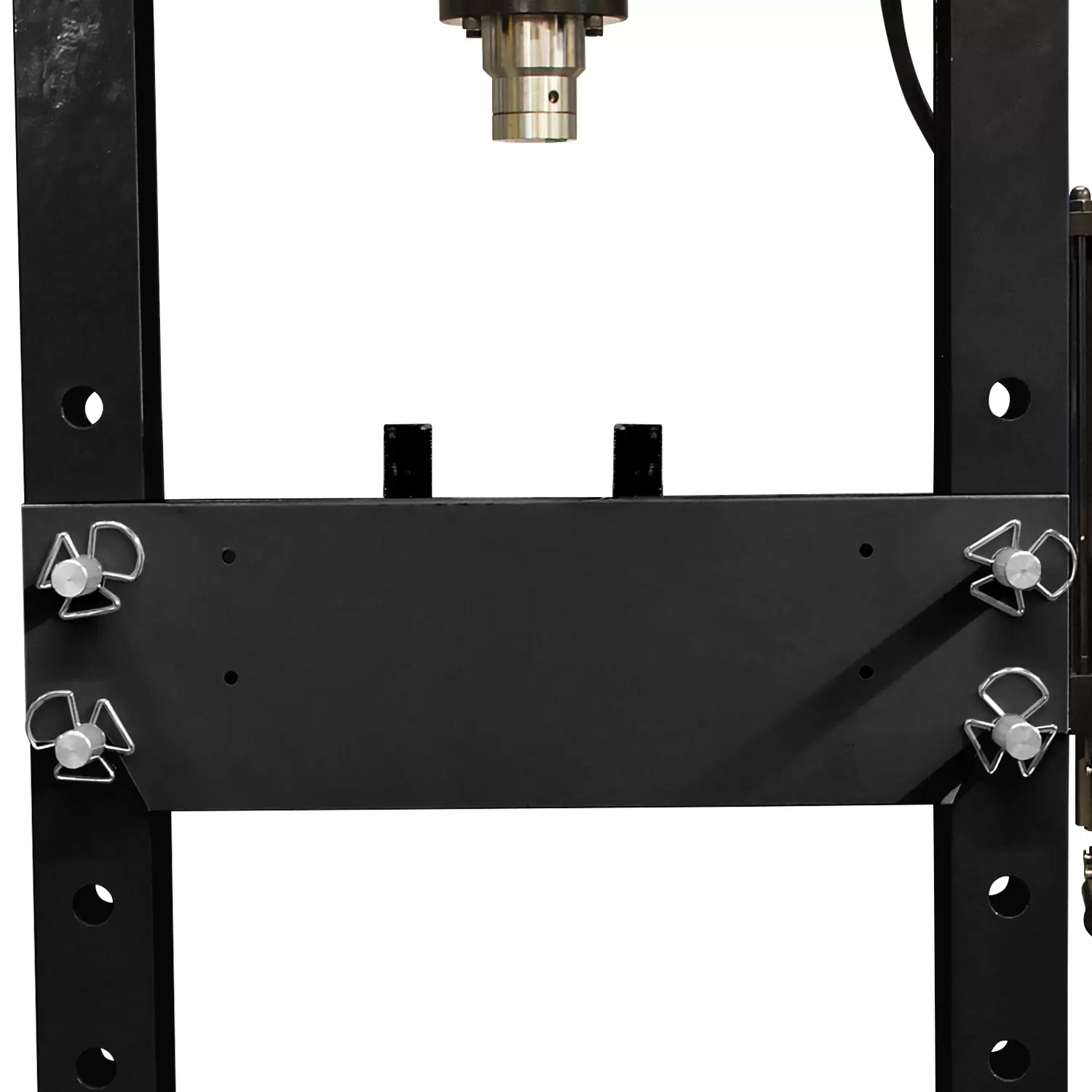

• Fully adjustable workbed for improved versatility

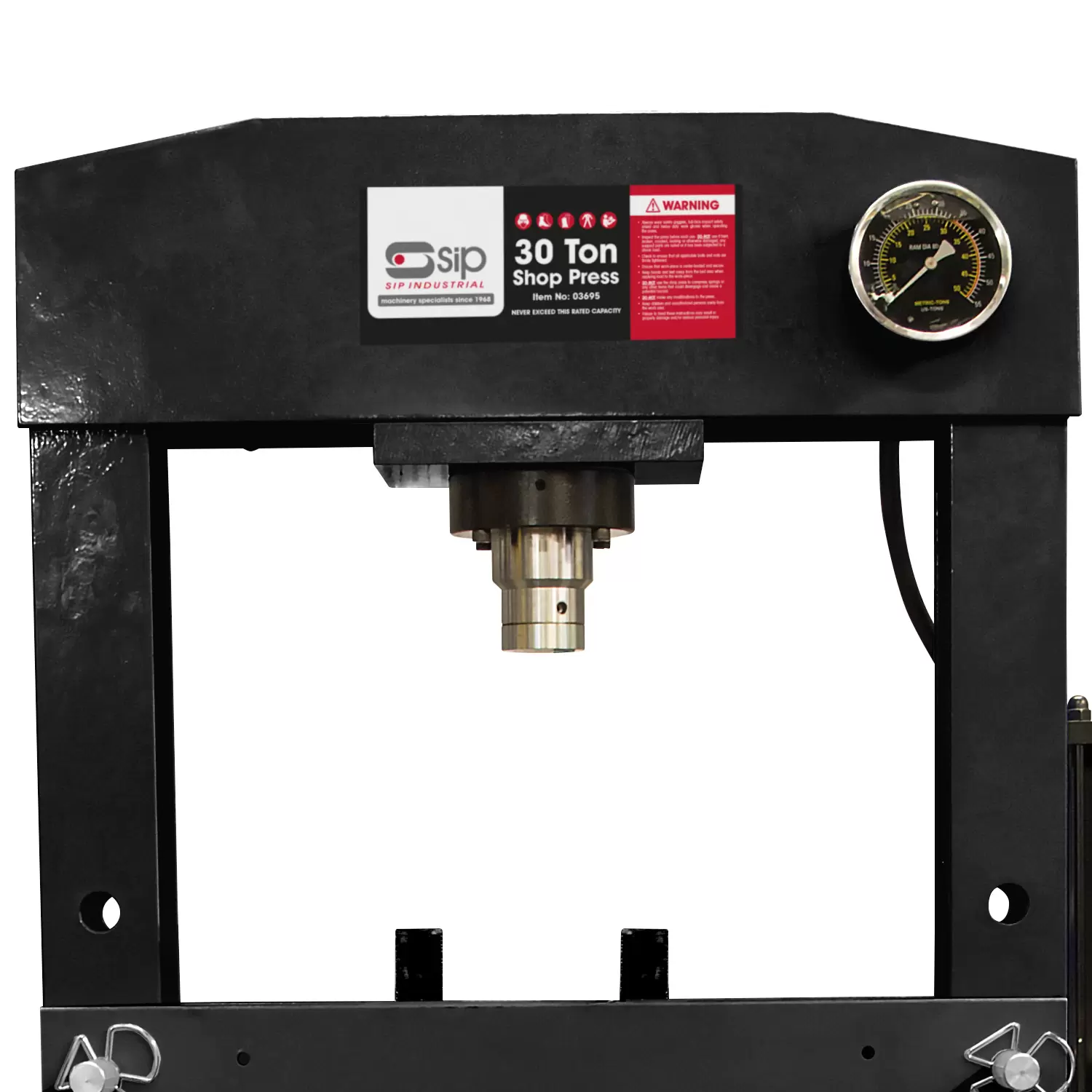

• Integrated Glycerine-filled manometer
• Ideal for bending, bonding, straightening applications
• Bearing, wrist pin, universal joint or pulley removal
• Fully adjustable workbed for improved versatility
• Integrated Glycerine-filled manometer
Specification
ITEM NO. 03695
Press Capacity: 30 TON
Press Type: FLOOR

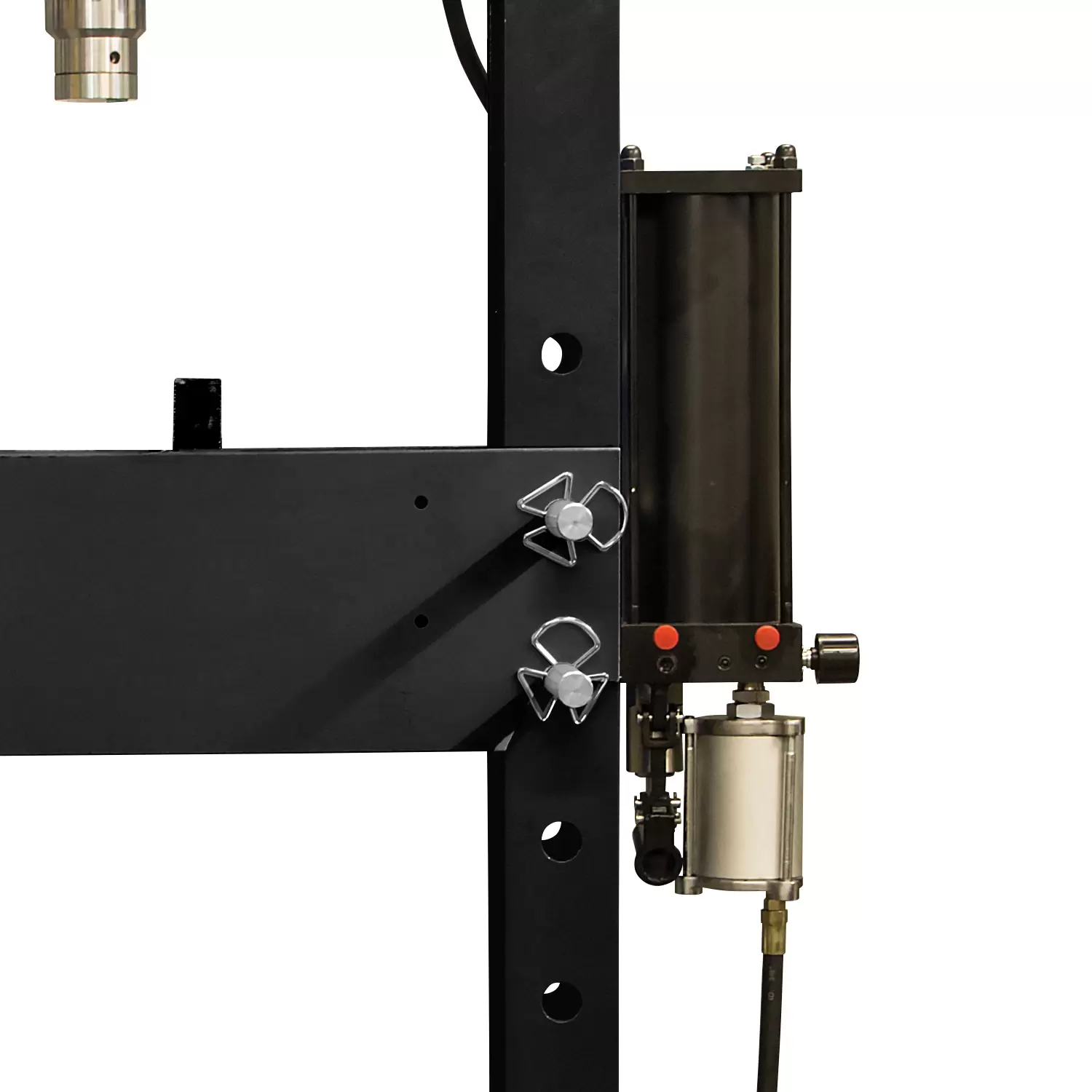

Press Operation: Pneumatic
Working Range: 151mm - 1031mm
Press Height: 1830mm
Press Width: 915mm
Press Depth: 700mm
Ram Stroke: 150mm
Bed Width: 535mm
