Home > Workshop Equipment > Machine Shop > SIP - 03696 - 75 TON Shop Floor Press
SIP - 03696 - 75 TON Shop Floor Press
SKU: SIP03696
Part Number: 03696
Barcode: 5012713036967
Country of Origin: CN
Weight: 451.00 Kg
Our Price
£3,732.47 (inc VAT) £3,110.39 (ex VAT)
RRP £4,319.99 £3,599.99
Save
£587.52
£489.60
SIP 2-YEAR Warranty included.
Description
The SIP 75 TON Shop Floor Press is perfect for garage and workshop applications, such as bending, straightening, riveting or bonding, forming and assembling. It is particularly suited for easy removal and installation of bearings, wrist pins, universal joints and pulleys.
A heavy-duty steel frame with pneumatically-assisted press provides exceptional durability and long service life, while a fully adjustable workbed offers increased versatility.
Features
• 160mm to 880mm work range and a 250mm ram stroke
• Ideal for bending, bonding, straightening applications
• Bearing, wrist pin, universal joint or pulley removal
• Fully adjustable workbed for improved versatility

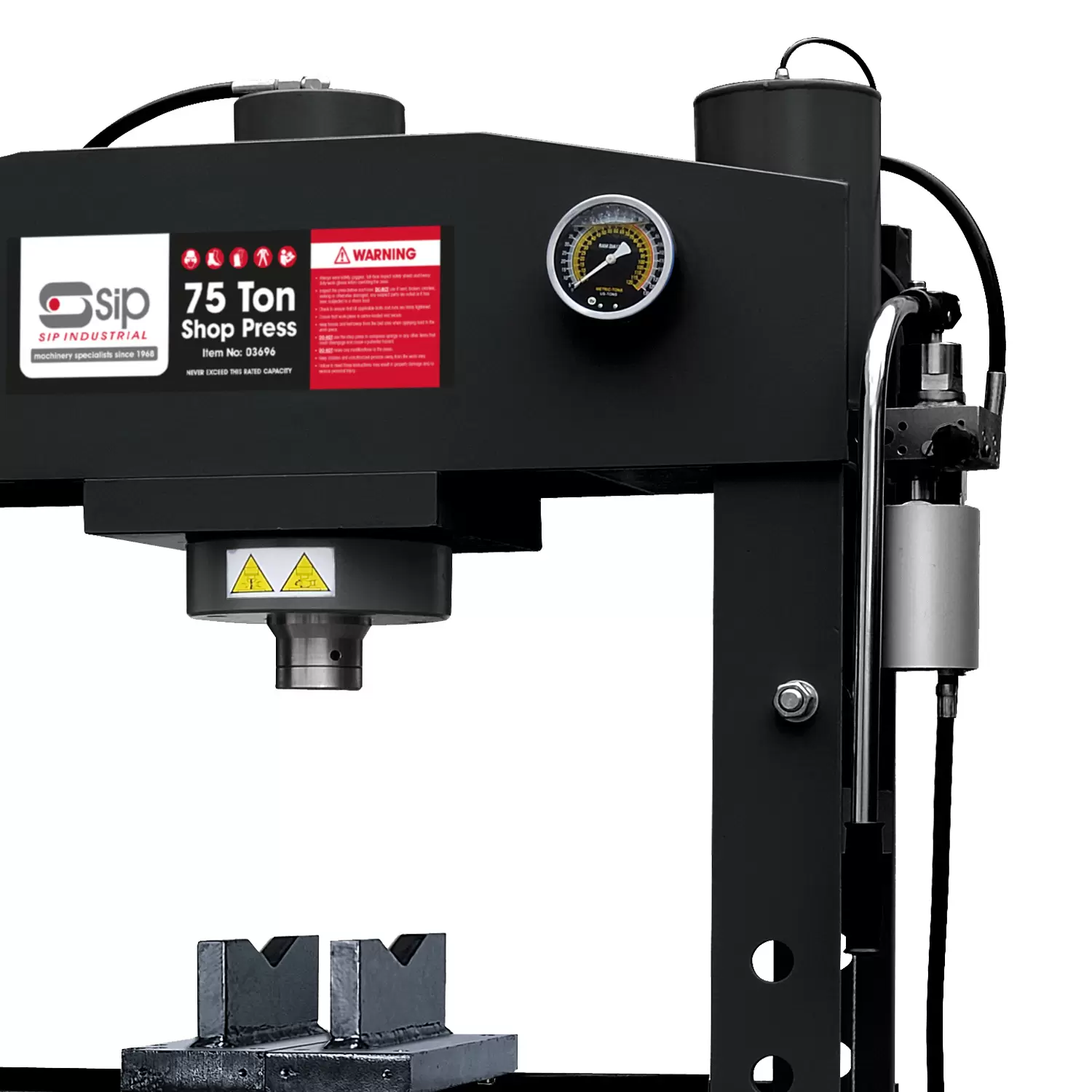

• Integrated Glycerine-filled manometer
• Ideal for bending, bonding, straightening applications
• Bearing, wrist pin, universal joint or pulley removal
• Fully adjustable workbed for improved versatility
• Integrated Glycerine-filled manometer
Specification
ITEM NO. 03696
Press Capacity: 75 TON
Press Type: FLOOR
Press Operation: Pneumatic
Working Range: 160mm - 880mm
Press Height: 1940mm
Press Width: 1150mm
Press Depth: 800mm
Ram Stroke: 250mm
Bed Width: 800mm
