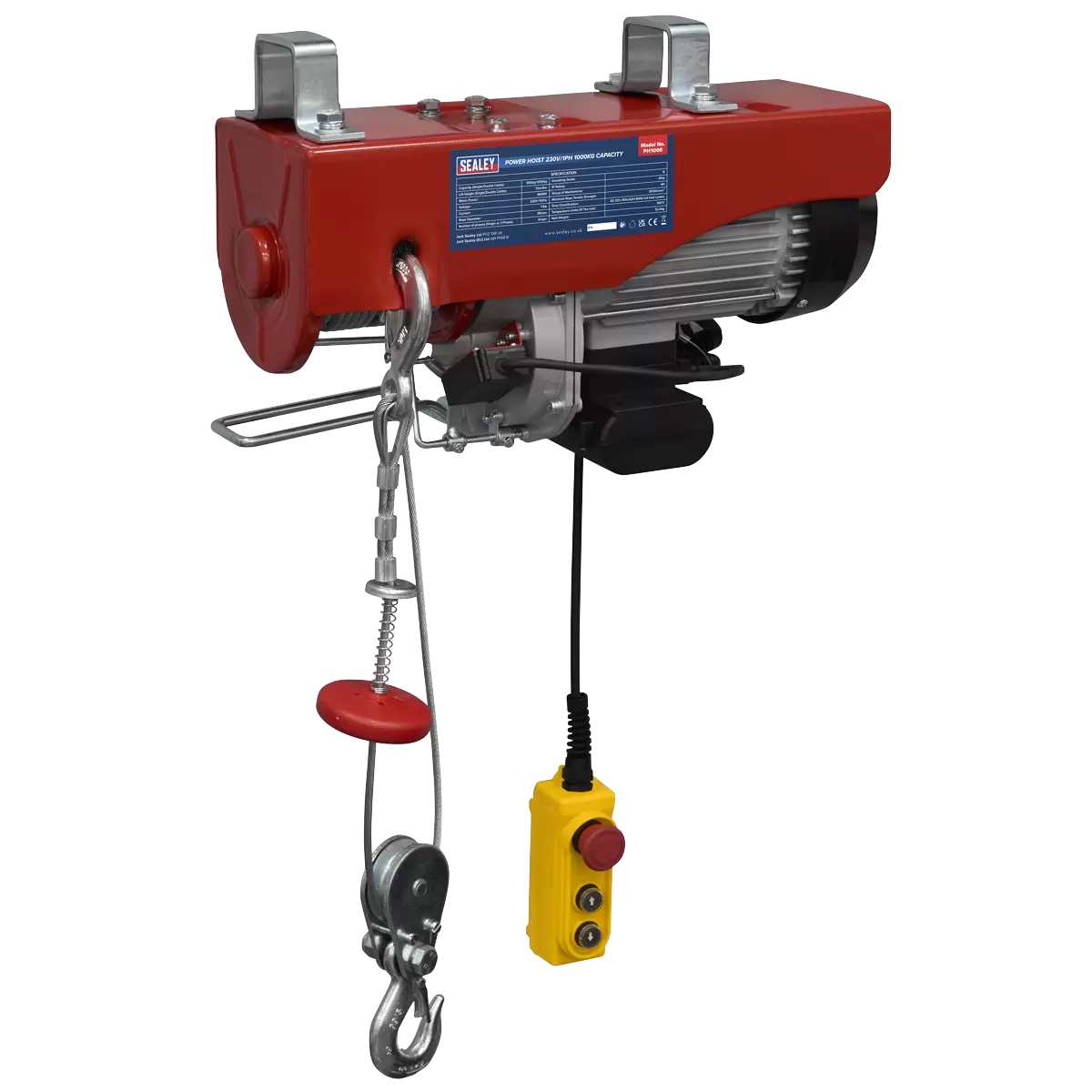

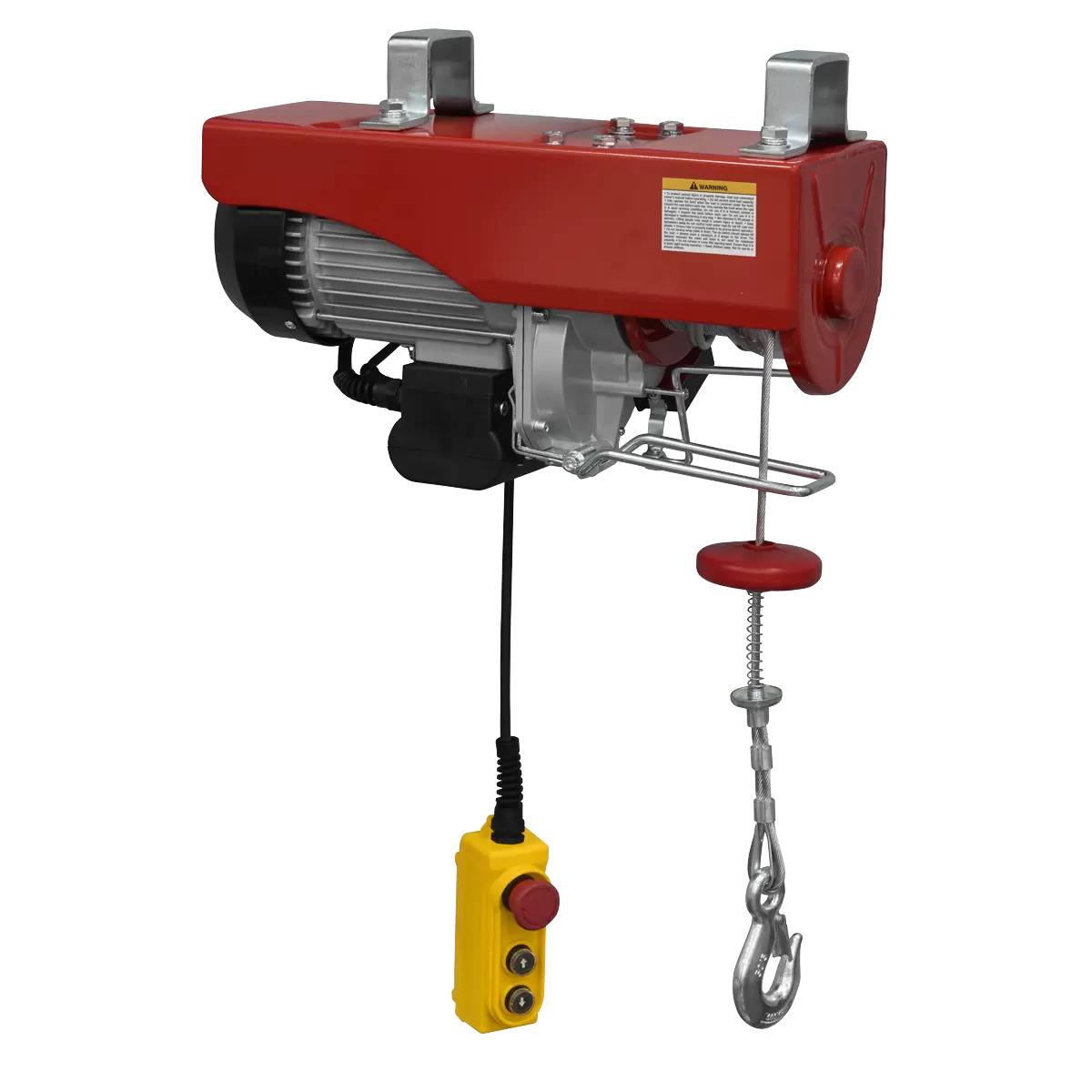

Sealey - PH1000 - Power Hoist 230V/1ph 1000kg Capacity
SKU: PH1000
Part Number: PH1000
Barcode: 5054630586682
Country of Origin: CHN
Weight: 33.00 Kg
Our Price
£319.97 (inc VAT) £266.64 (ex VAT)
RRP £395.94 £329.95
Save
£75.97
£63.31
Out of stock
1 year Warranty included.
Description

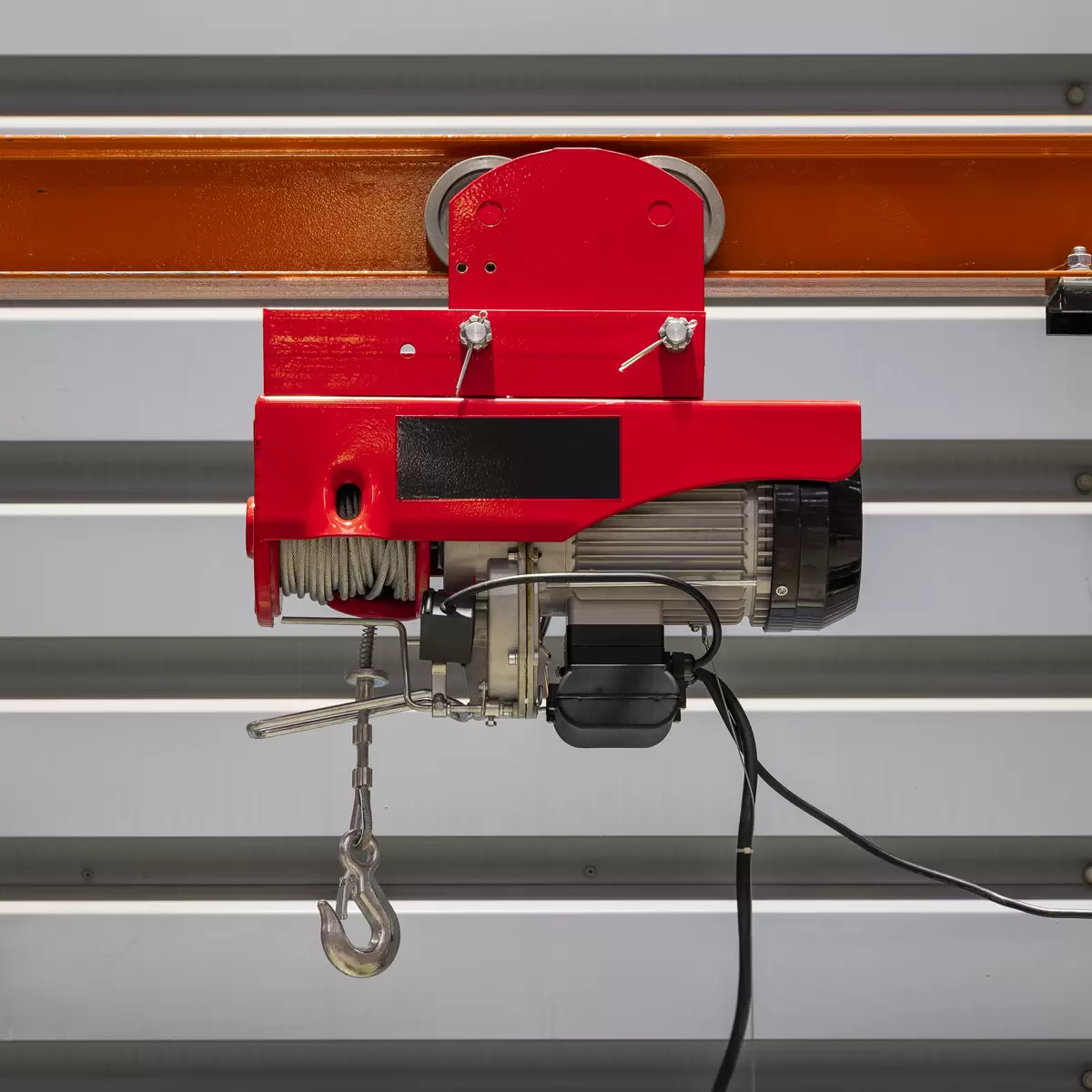

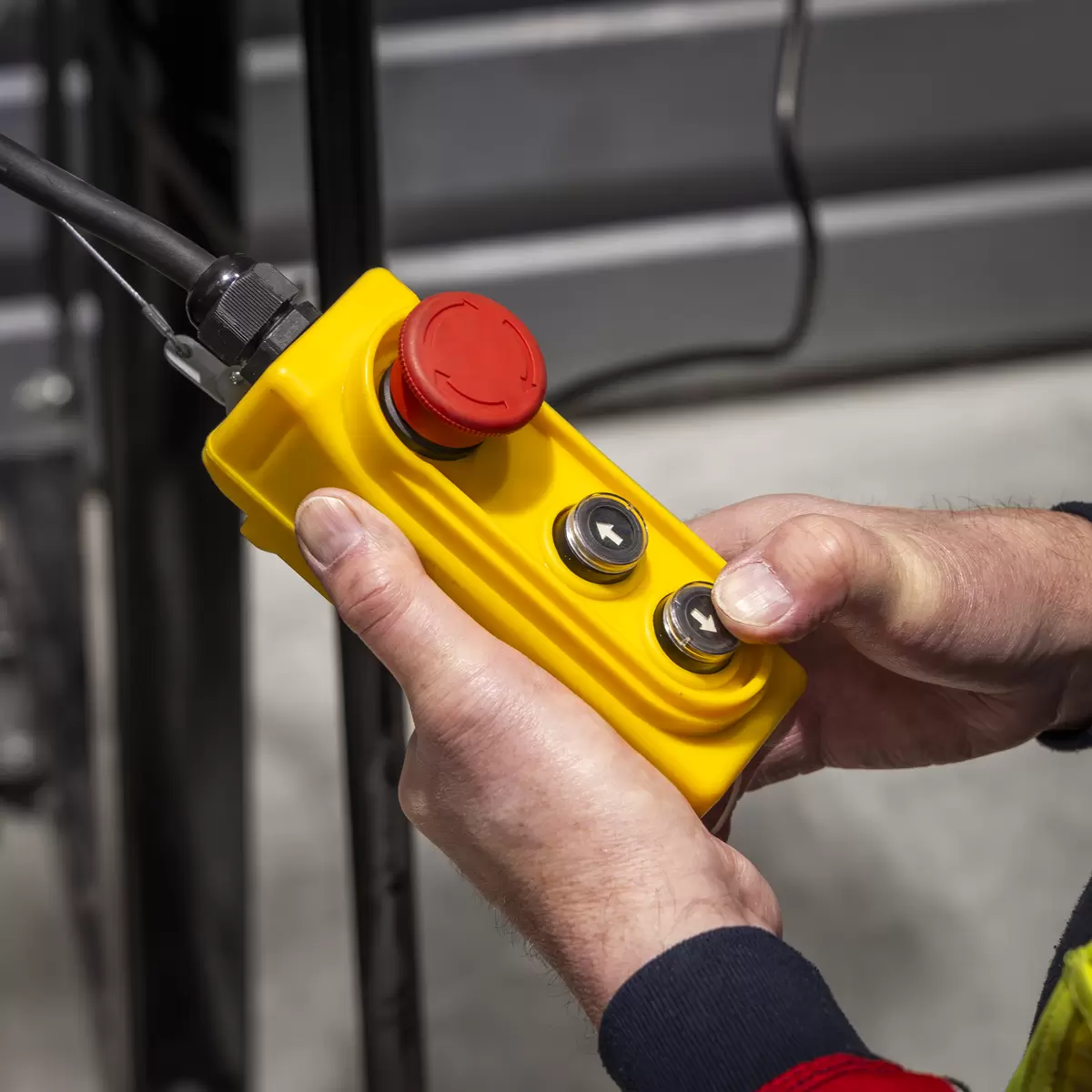

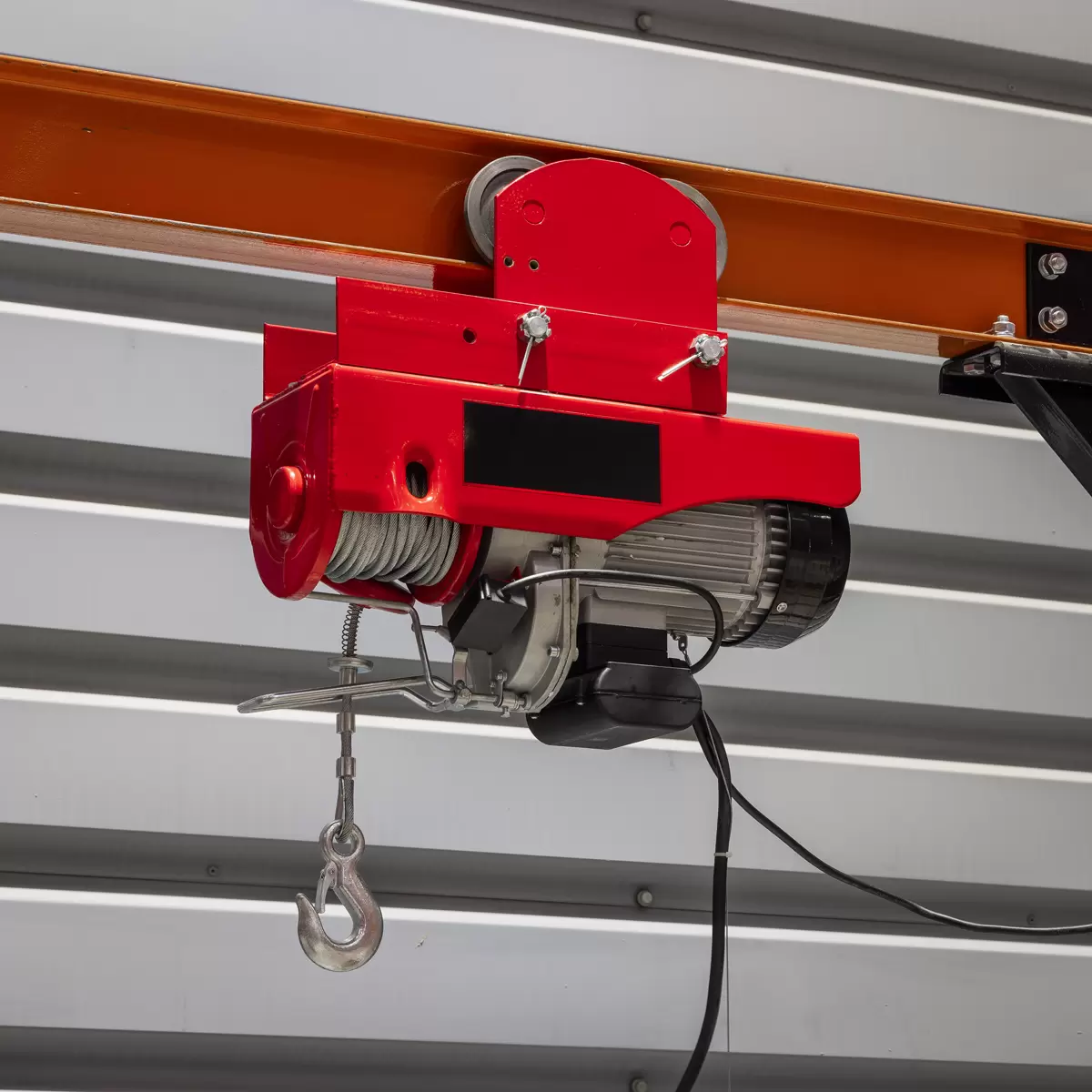

A large, powerful motor capable of a number of lifting tasks, in garage, workshop, construction and industrial environments. Simple installation using the brackets provided, to suitable square section beams. Thermostatic overload cut-out switch, protecting the motor. Remote control with emergency stop for easy control from a safe distance. Powder coated steel casing, for added corrosion resistance.
Features
Model No PH1000
Brand: Sealey
Capacity (Double Cable): 1000kg
Capacity (Single Cable): 500kg
Current: 7.5A
Duty Cycle: S3
Group of Mechanisms: M1
Insulating Grade: B
IP Rating: IP54
Lift Height (Double Cable): 6m
Lift Height (Single Cable): 12m
Lift Speed (Maximum): (Double) 4m/min (Single) 8m/min
Minimum Rope Tensile Strength: 1870N/mm²
Motor Power: 1600W
Nett Weight: 32.0kg
Rope Diameter: Ø6mm
Voltage: 230V~50Hz
Work Rate: S3
Brand: Sealey
Capacity (Double Cable): 1000kg
Capacity (Single Cable): 500kg
Current: 7.5A
Duty Cycle: S3
Group of Mechanisms: M1
Insulating Grade: B
IP Rating: IP54
Lift Height (Double Cable): 6m
Lift Height (Single Cable): 12m
Lift Speed (Maximum): (Double) 4m/min (Single) 8m/min
Minimum Rope Tensile Strength: 1870N/mm²
Motor Power: 1600W
Nett Weight: 32.0kg
Rope Diameter: Ø6mm
Voltage: 230V~50Hz
Work Rate: S3
Specification
Description
A large, powerful motor capable of a number of lifting tasks, in garage, workshop, construction and industrial environments. Simple installation using the brackets provided, to suitable square section beams. Thermostatic overload cut-out switch, protecting the motor. Remote control with emergency stop for easy control from a safe distance. Powder coated steel casing, for added corrosion resistance.
Features
Model No PH1000
Brand: Sealey
Capacity (Double Cable): 1000kg
Capacity (Single Cable): 500kg
Current: 7.5A
Duty Cycle: S3
Group of Mechanisms: M1
Insulating Grade: B
IP Rating: IP54
Lift Height (Double Cable): 6m
Lift Height (Single Cable): 12m
Lift Speed (Maximum): (Double) 4m/min (Single) 8m/min
Minimum Rope Tensile Strength: 1870N/mm²
Motor Power: 1600W
Nett Weight: 32.0kg
Rope Diameter: Ø6mm
Voltage: 230V~50Hz
Work Rate: S3
Brand: Sealey
Capacity (Double Cable): 1000kg
Capacity (Single Cable): 500kg
Current: 7.5A
Duty Cycle: S3
Group of Mechanisms: M1
Insulating Grade: B
IP Rating: IP54
Lift Height (Double Cable): 6m
Lift Height (Single Cable): 12m
Lift Speed (Maximum): (Double) 4m/min (Single) 8m/min
Minimum Rope Tensile Strength: 1870N/mm²
Motor Power: 1600W
Nett Weight: 32.0kg
Rope Diameter: Ø6mm
Voltage: 230V~50Hz
Work Rate: S3
