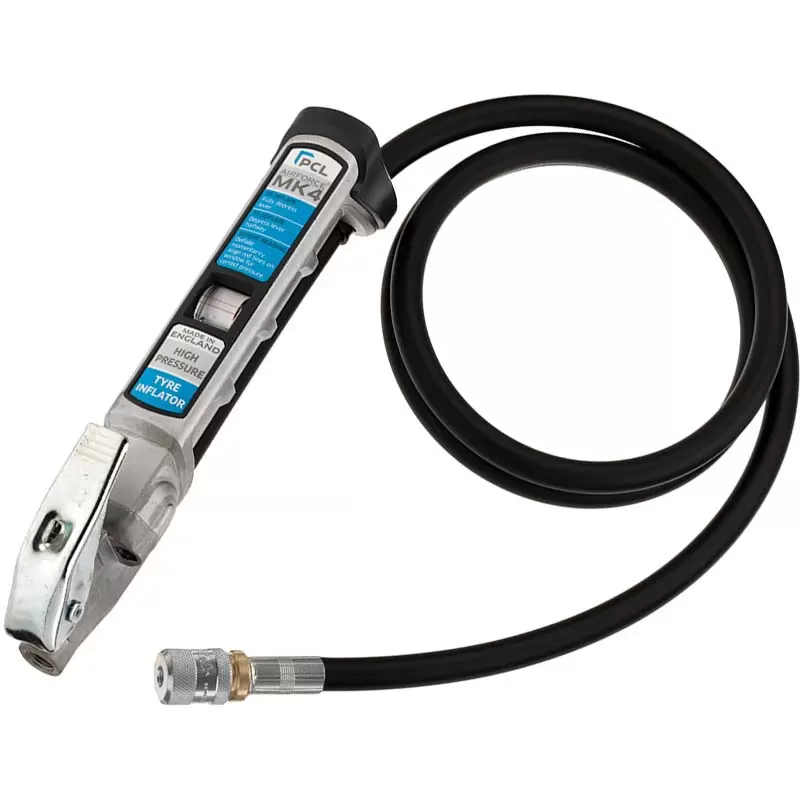

PCL - AFG6H04 - AIRFORCE MK4 High Pressure Tyre Inflator 1.8m Hose 8V1 Screw-On Connector

SKU: AFG6H04
Part Number: AFG6H04
Barcode: 5014875137391
Weight: 1.16 Kg
Product Image

Our Price

£125.39 (inc VAT) £104.49 (ex VAT)

RRP £251.39 £209.49

Save £126.00 £105.00
Out of stock

Description

On the face of it, the AIRFORCE® MK4 High Pressure Tyre Inflator looks exactly the same as the AIRFORCE® MK4 Tyre Inflator. The big difference is that the AIRFORCE® MK4 High Pressure Tyre Inflator is capable of inflating up to 300 psi (21 bar) making it ideally suited for any transport, mining or industrial application requiring high tyre inflation pressures.

The AIRFORCE® MK4 High Pressure Tyre Inflator is a gauge which not only answers the market need for a higher pressure inflator but also provides one which can withstand harsh environments.

The 'Made in Sheffield' AIRFORCE® MK4 High Pressure Tyre Inflator is set to become the heavy duty solution for providing safe, cost-effective and trouble-free high pressure tyre inflation with guaranteed accuracy. This in turn will give high pressure tyre users the benefits of extended tyre life, increased fuel economy and improved safety.

The reliable and versatile AIRFORCE® MK4 High Pressure Tyre Inflator, with its aluminium die cast body and linear gauge represents the best product on the market for both indoor and outdoor applications, even in extreme weather.

Features

  • New Viewing Window - Larger window gives 20% greater field of viewing
  • Lighter Weight - Gauge body weighs 923g, less work strain and easier for repetitive use
  • Biomorphic Shape - Ergonomic, easier to use and less prone to damage when dropped
  • New Valve Mechanism - Simplified 2 stage mechanism design prevents user having to "push" against full line pressure on deflate preventing fatigue
  • New Piston & Seal Design - New design, less drag, reduced friction & less movement inertia means no internal corrosion, no sticking and no skewing of accuracy
  • Higher inflation pressures from 45 - 300 psi (3 - 21 bar) to cope with
    commercial tyres, industrial and aviation applications
  • Accuracy Standards - Tested to over 400,000 cycles at 100% accuracy

Specification

Reading Accuracy: 5 psi / 0.25 bar
Temperature: -15°C to 55°C
Tyre Valve Connection: 8V1 Screw-on
Accuracy: BS EN 12645:2014
Calibration: 45-300 psi / 3-21 bar
Display Type: Linear
Flow Rate: 500 l/min @ 13 bar supply
Hose Length: 1.8 m / 6 ft
Inlet Pressure: 392 psi / 27 bar
