Sealey - ATV1135KIT - Wireless Winch ATV1135 Combo Kit
SKU: ATV1135KIT
Part Number: ATV1135KIT
Barcode: 5054630252822
Country of Origin: CHN
Weight: 12.00 Kg
Our Price
£249.06 (inc VAT) £207.55 (ex VAT)
RRP £347.94 £289.95
Save
£98.88
£82.40
3 years Warranty included.
Description

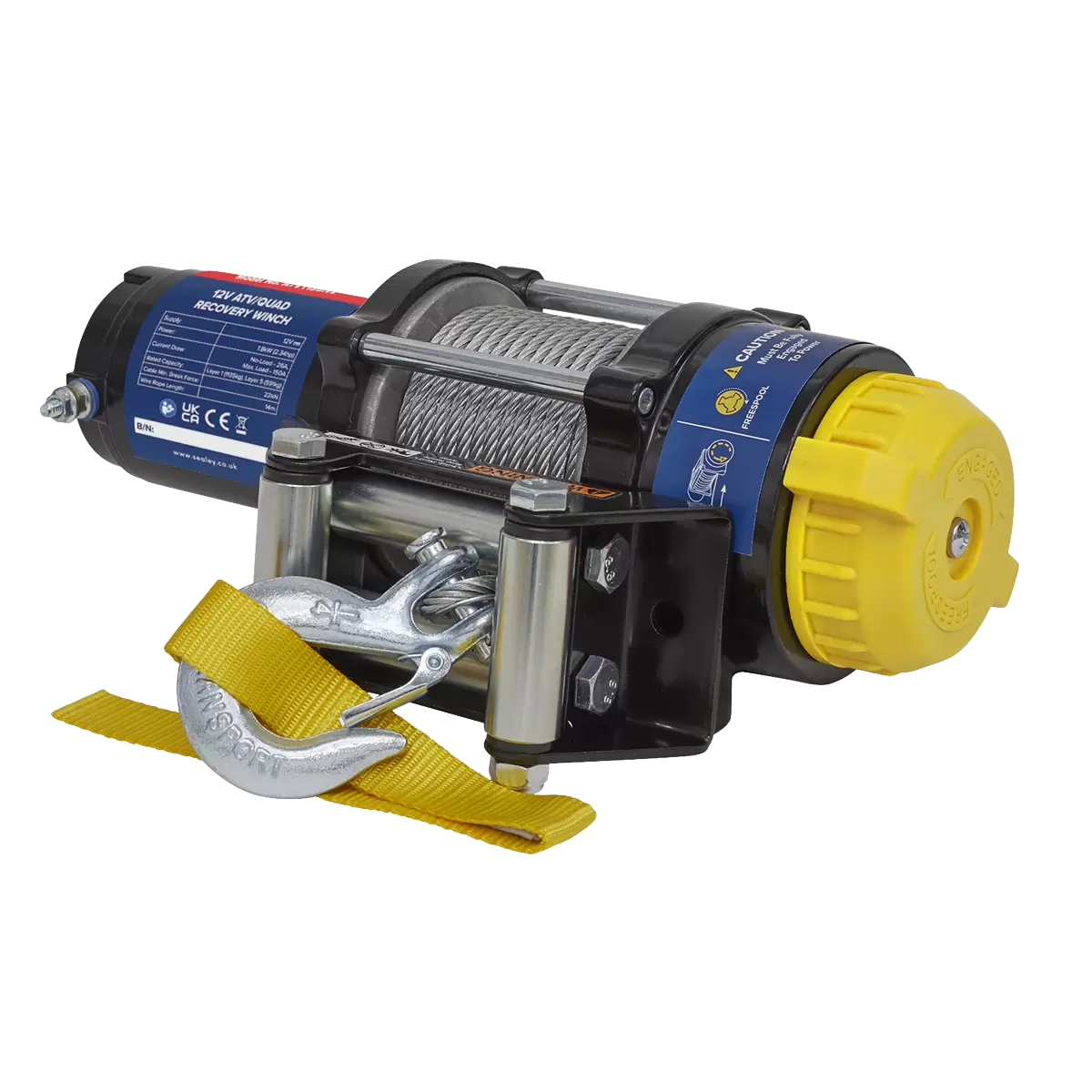

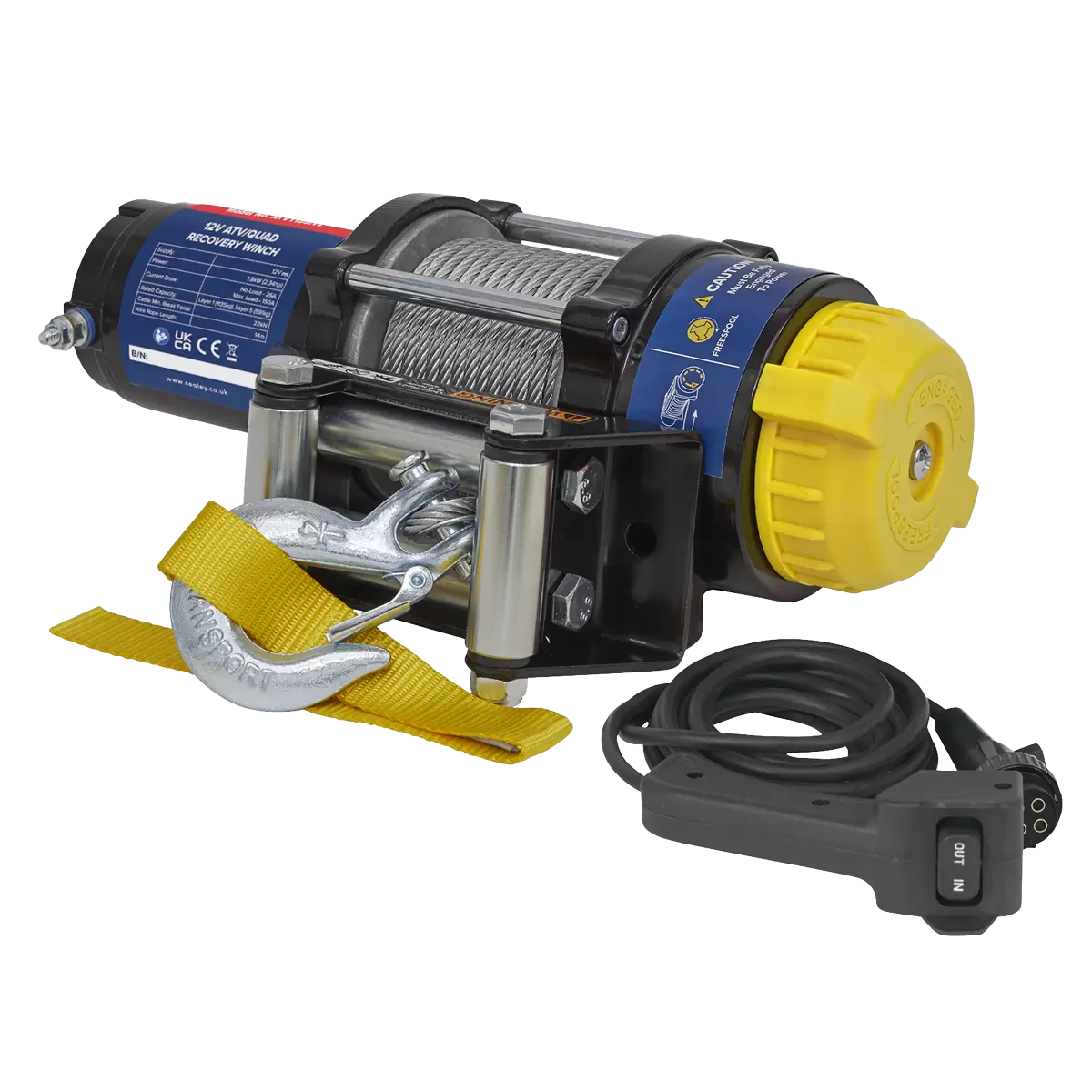

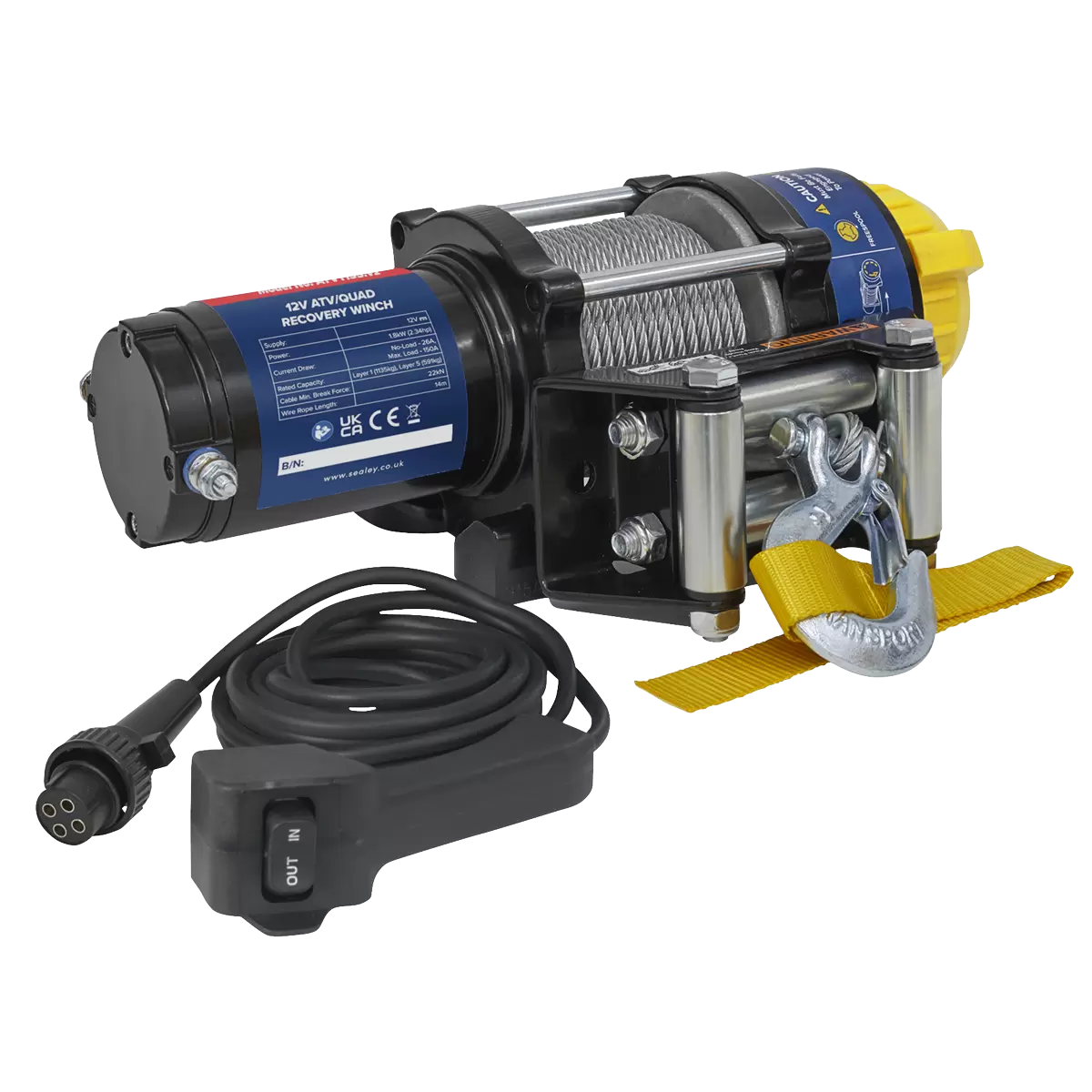

Suitable for ATV and quad bike mounting, this high-speed winch offers a combination of performance with durability. Designed and built with the toughest jobs in mind. High power 12V DC motor with permanent magnet gives first class pulling power. Heavy-duty all-weather housing. 3-Stage planetary gears. Patented unique automatic spring brake, reliable in full load operation. Sliding ring gear clutch. High quality wire rope feeds through 4-way roller fairlead. IP67 rated motor and gearbox.
Features
Package Includes:

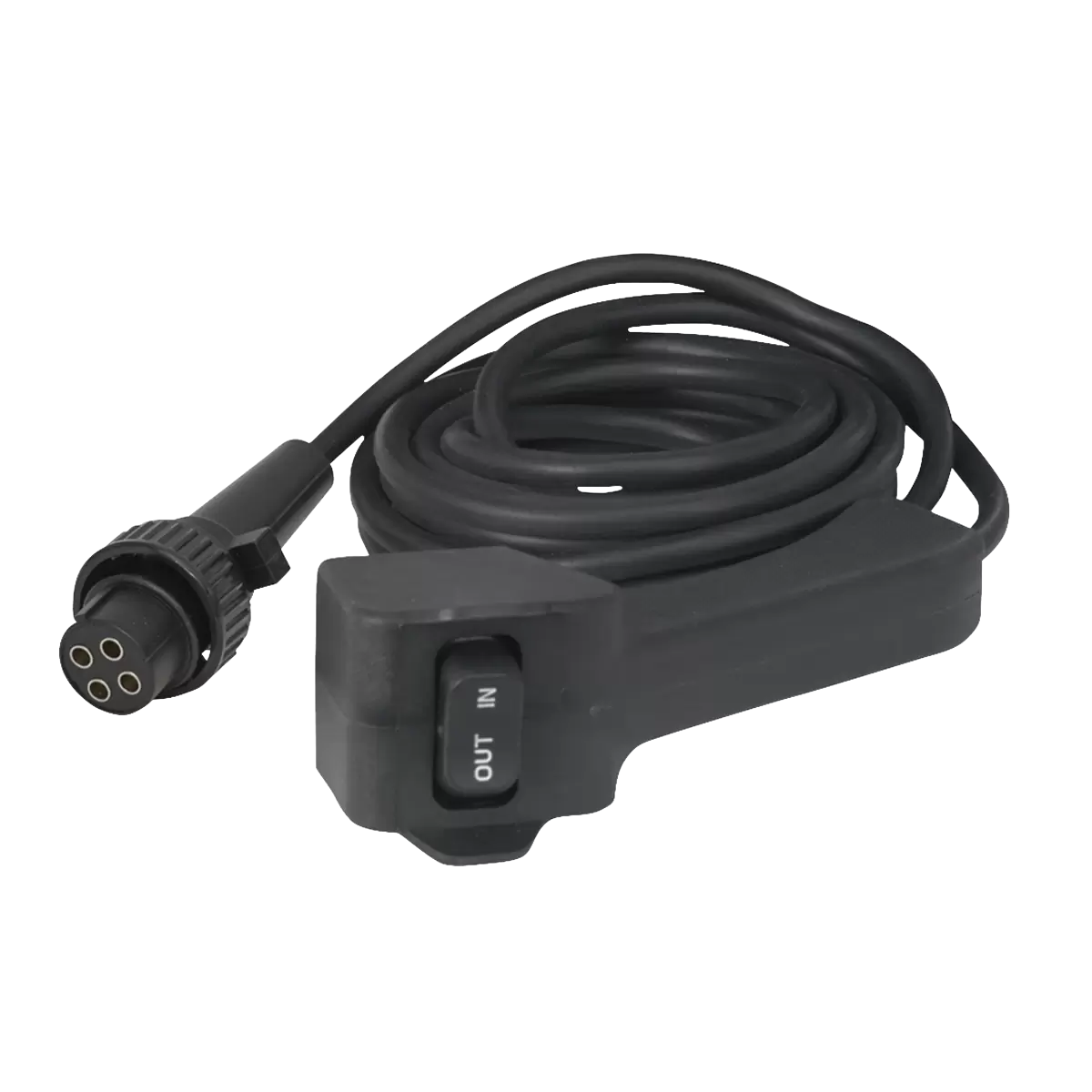

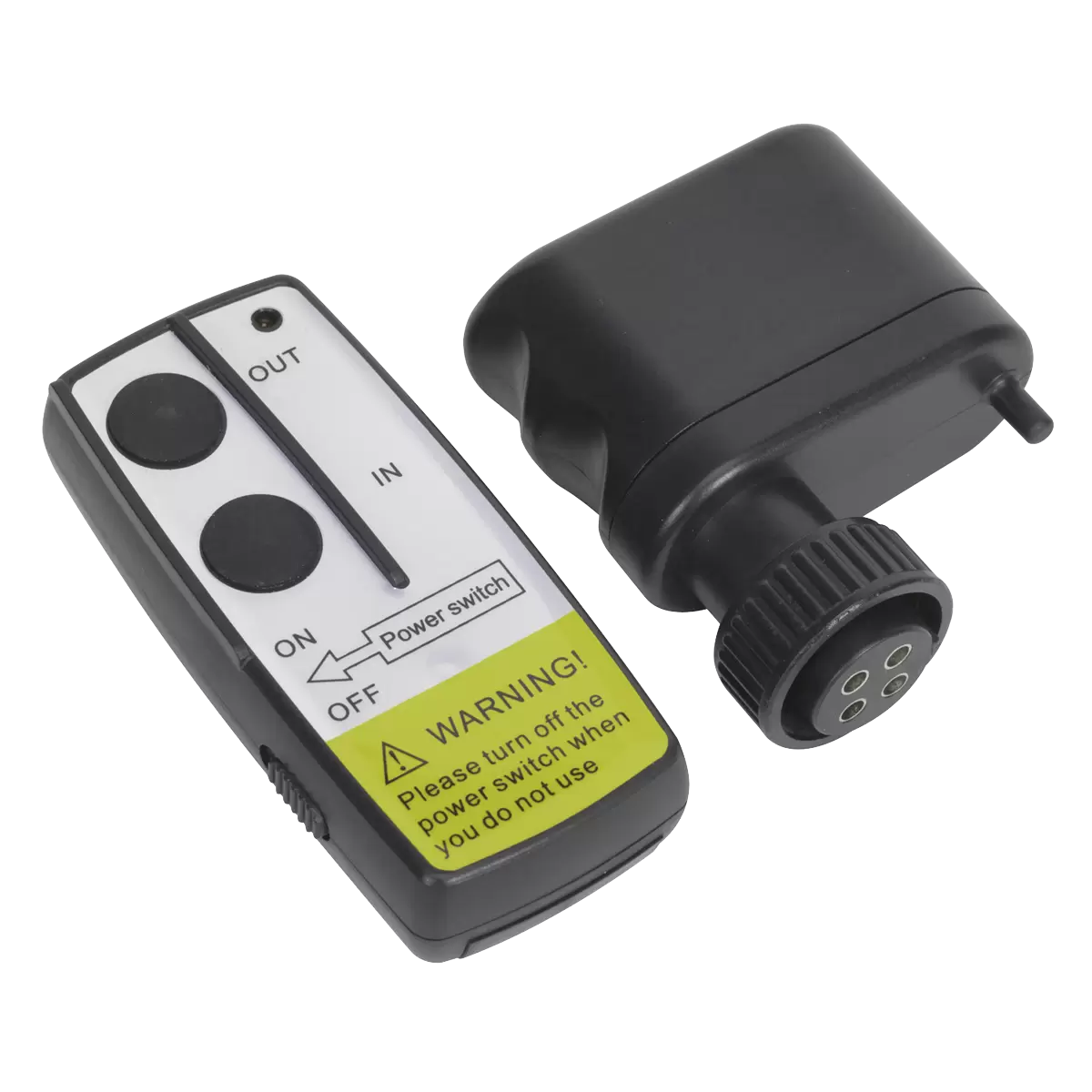

Model No. - Description ATV1135 - 12V ATV/Quad Recovery Winch 1135kg(2500lb) Line Pull UWRC01 - 4-Pin Universal Winch Remote Control 3 Year guarantee*.

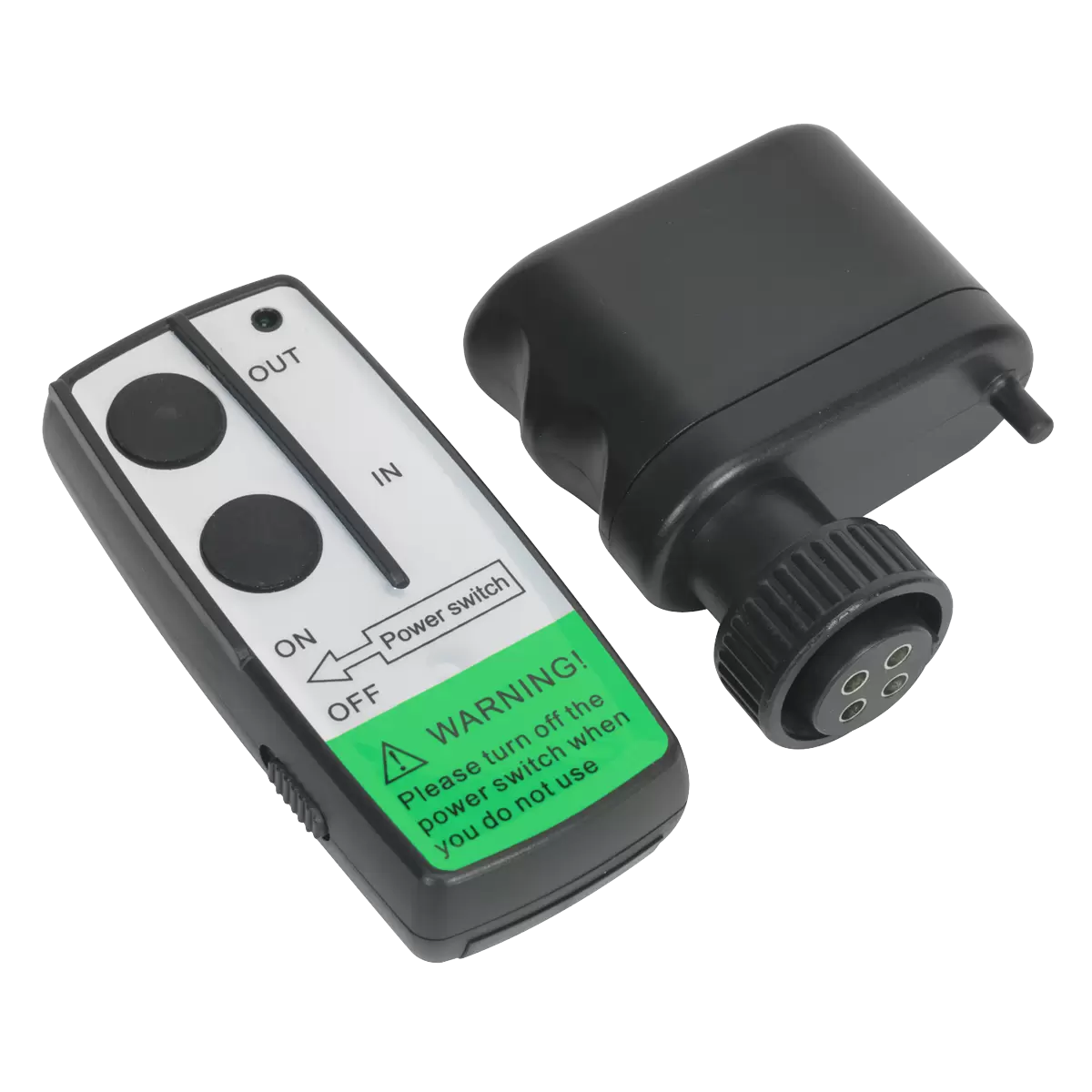

Model No. ATV1135KIT FAST - Suitable for ATV and quad bike mounting, this high-speed winch offers a combination of performance and durability. UNIVERSAL - Wireless remote control has a 4-pin plug-and-play receiver that works with all makes of winch. SAFE - Allows the operator to stand well clear or sit in the cab (provided no restrictions). STRONG - High quality wire rope feeds through 4-way roller fairlead. 3 YEAR GUARANTEE*.
Specification
Model No ATV1135KIT
Brand: Sealey
Cable Minimum Brake Force: 22kN
Consumable Parts: ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135
Current Draw: No-Load - 26A, Maximum Load - 150A
Gear Ratio: 180:1
Line Pull*: 1135kg(2500lb)
Line Speed*: No-Load - 4.8m/min, Maximum Load - 1.6m/min
Motor Power: 1.8kW(2.34hp)
Nett Weight: 11.9kg
Note: *Performance quoted at first layer of cable on drum
Rated Capacity: Layer 1: 1135kg, Layer 5: 591kg
Supply: 12V
Brand: Sealey
Cable Minimum Brake Force: 22kN
Consumable Parts: ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135
Current Draw: No-Load - 26A, Maximum Load - 150A
Gear Ratio: 180:1
Line Pull*: 1135kg(2500lb)
Line Speed*: No-Load - 4.8m/min, Maximum Load - 1.6m/min
Motor Power: 1.8kW(2.34hp)
Nett Weight: 11.9kg
Note: *Performance quoted at first layer of cable on drum
Rated Capacity: Layer 1: 1135kg, Layer 5: 591kg
Supply: 12V
Workshopping Says
Warranty Period = 3 years years
Commodity code = 8425390000
Country of Origin = CHN
Downloads
Description
Suitable for ATV and quad bike mounting, this high-speed winch offers a combination of performance with durability. Designed and built with the toughest jobs in mind. High power 12V DC motor with permanent magnet gives first class pulling power. Heavy-duty all-weather housing. 3-Stage planetary gears. Patented unique automatic spring brake, reliable in full load operation. Sliding ring gear clutch. High quality wire rope feeds through 4-way roller fairlead. IP67 rated motor and gearbox.
Features
Package Includes:
Model No. - Description ATV1135 - 12V ATV/Quad Recovery Winch 1135kg(2500lb) Line Pull UWRC01 - 4-Pin Universal Winch Remote Control 3 Year guarantee*.
Model No. ATV1135KIT FAST - Suitable for ATV and quad bike mounting, this high-speed winch offers a combination of performance and durability. UNIVERSAL - Wireless remote control has a 4-pin plug-and-play receiver that works with all makes of winch. SAFE - Allows the operator to stand well clear or sit in the cab (provided no restrictions). STRONG - High quality wire rope feeds through 4-way roller fairlead. 3 YEAR GUARANTEE*.
Specification
Model No ATV1135KIT
Brand: Sealey
Cable Minimum Brake Force: 22kN
Consumable Parts: ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135
Current Draw: No-Load - 26A, Maximum Load - 150A
Gear Ratio: 180:1
Line Pull*: 1135kg(2500lb)
Line Speed*: No-Load - 4.8m/min, Maximum Load - 1.6m/min
Motor Power: 1.8kW(2.34hp)
Nett Weight: 11.9kg
Note: *Performance quoted at first layer of cable on drum
Rated Capacity: Layer 1: 1135kg, Layer 5: 591kg
Supply: 12V
Brand: Sealey
Cable Minimum Brake Force: 22kN
Consumable Parts: ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135
Current Draw: No-Load - 26A, Maximum Load - 150A
Gear Ratio: 180:1
Line Pull*: 1135kg(2500lb)
Line Speed*: No-Load - 4.8m/min, Maximum Load - 1.6m/min
Motor Power: 1.8kW(2.34hp)
Nett Weight: 11.9kg
Note: *Performance quoted at first layer of cable on drum
Rated Capacity: Layer 1: 1135kg, Layer 5: 591kg
Supply: 12V
Workshopping Says
Warranty Period = 3 years years
Commodity code = 8425390000
Country of Origin = CHN
