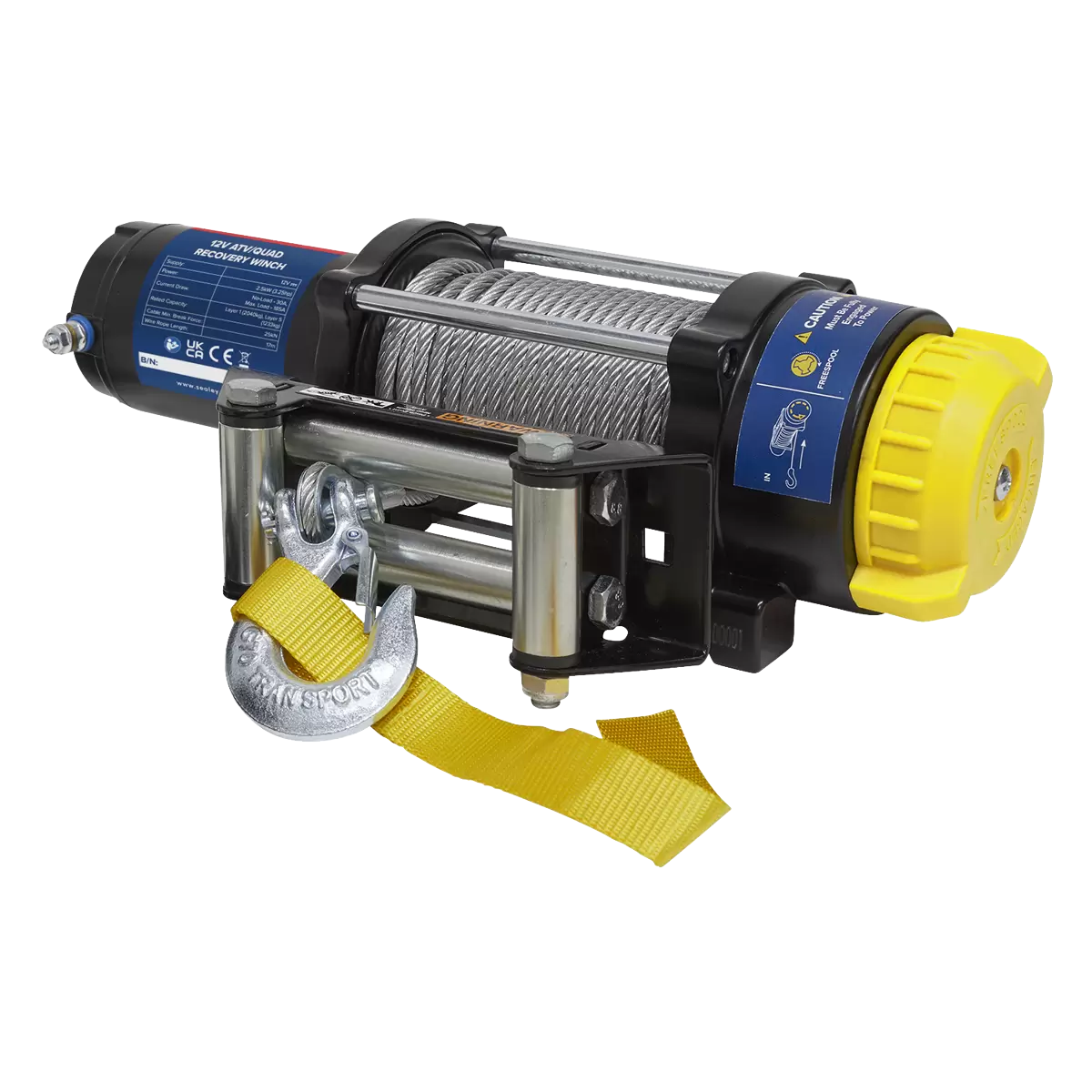

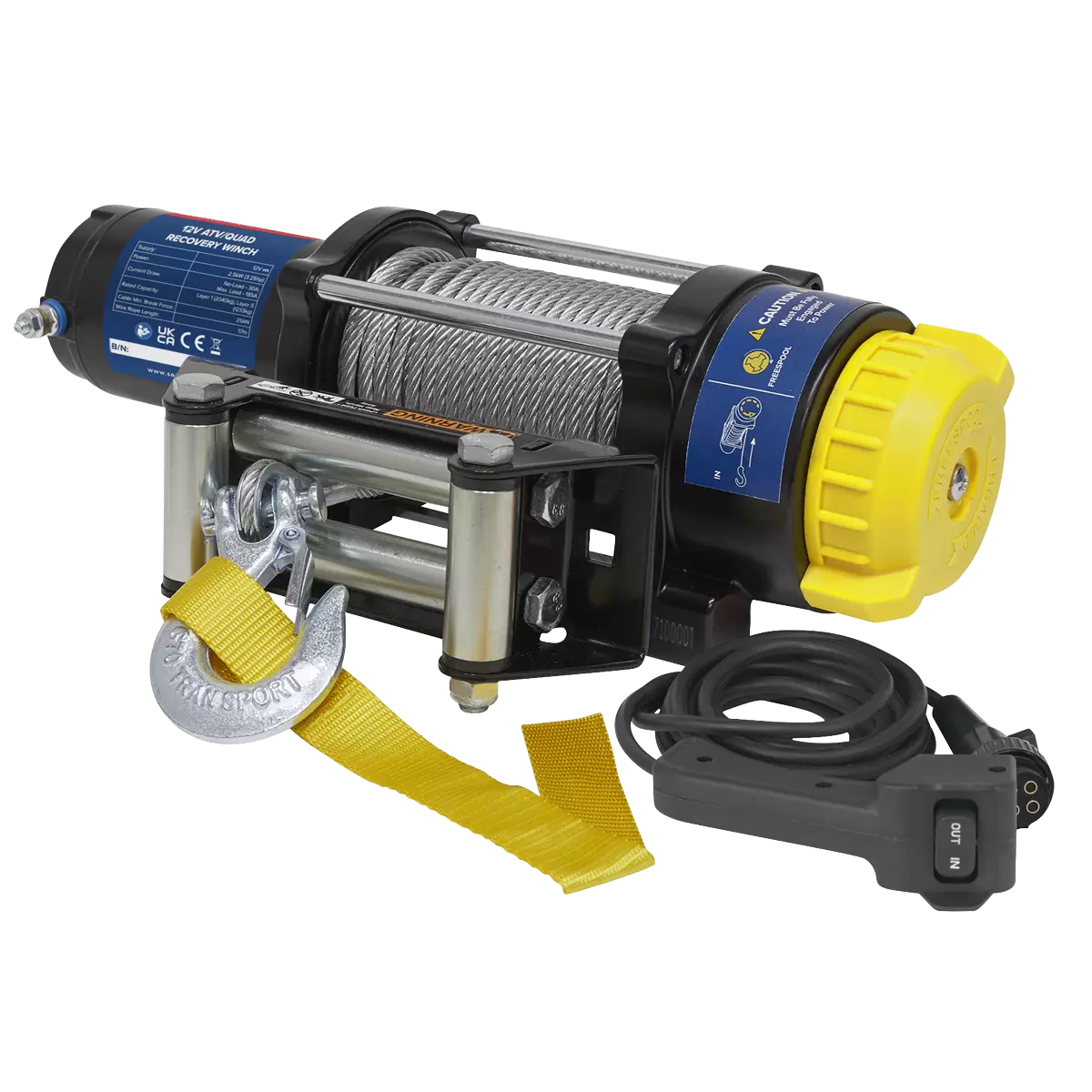

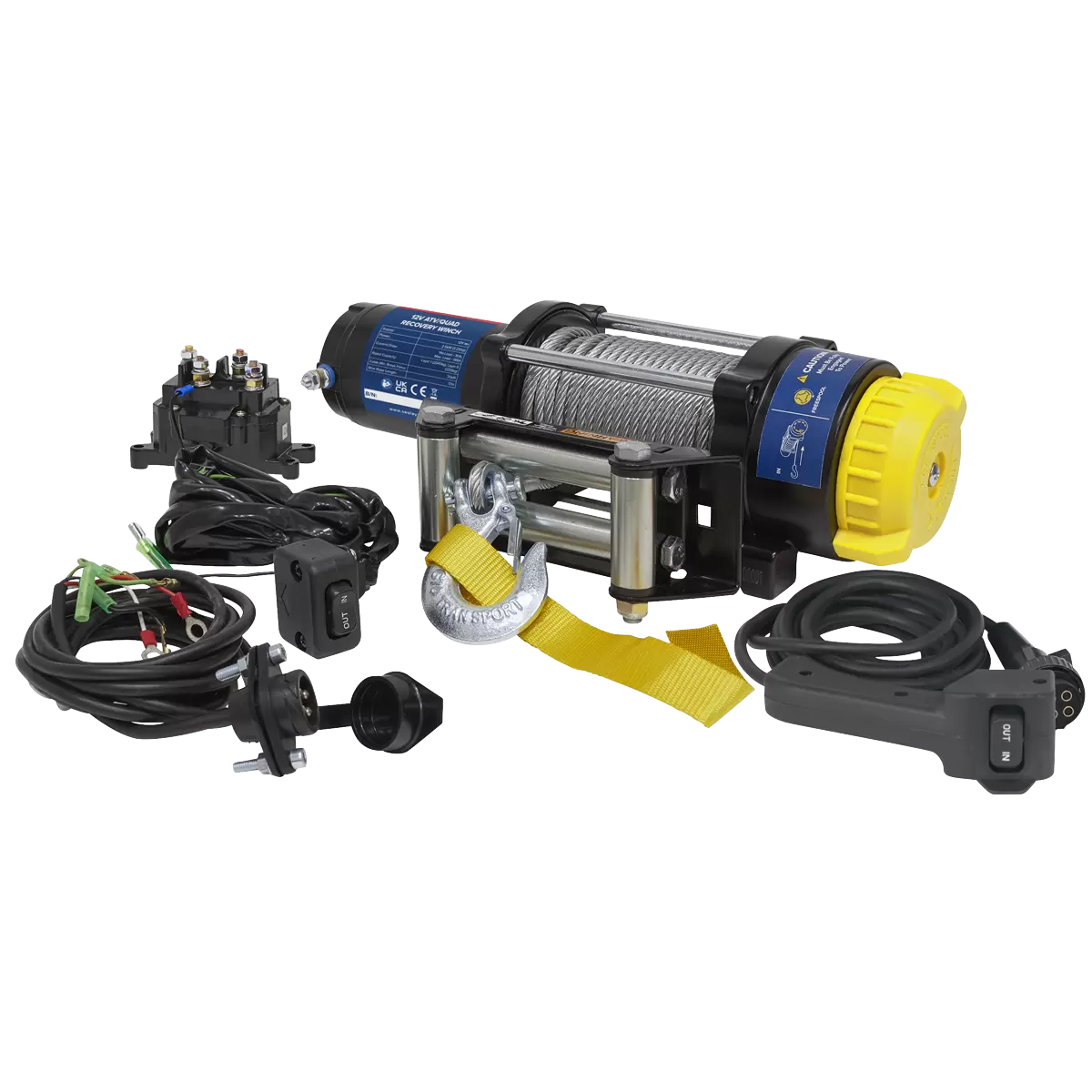

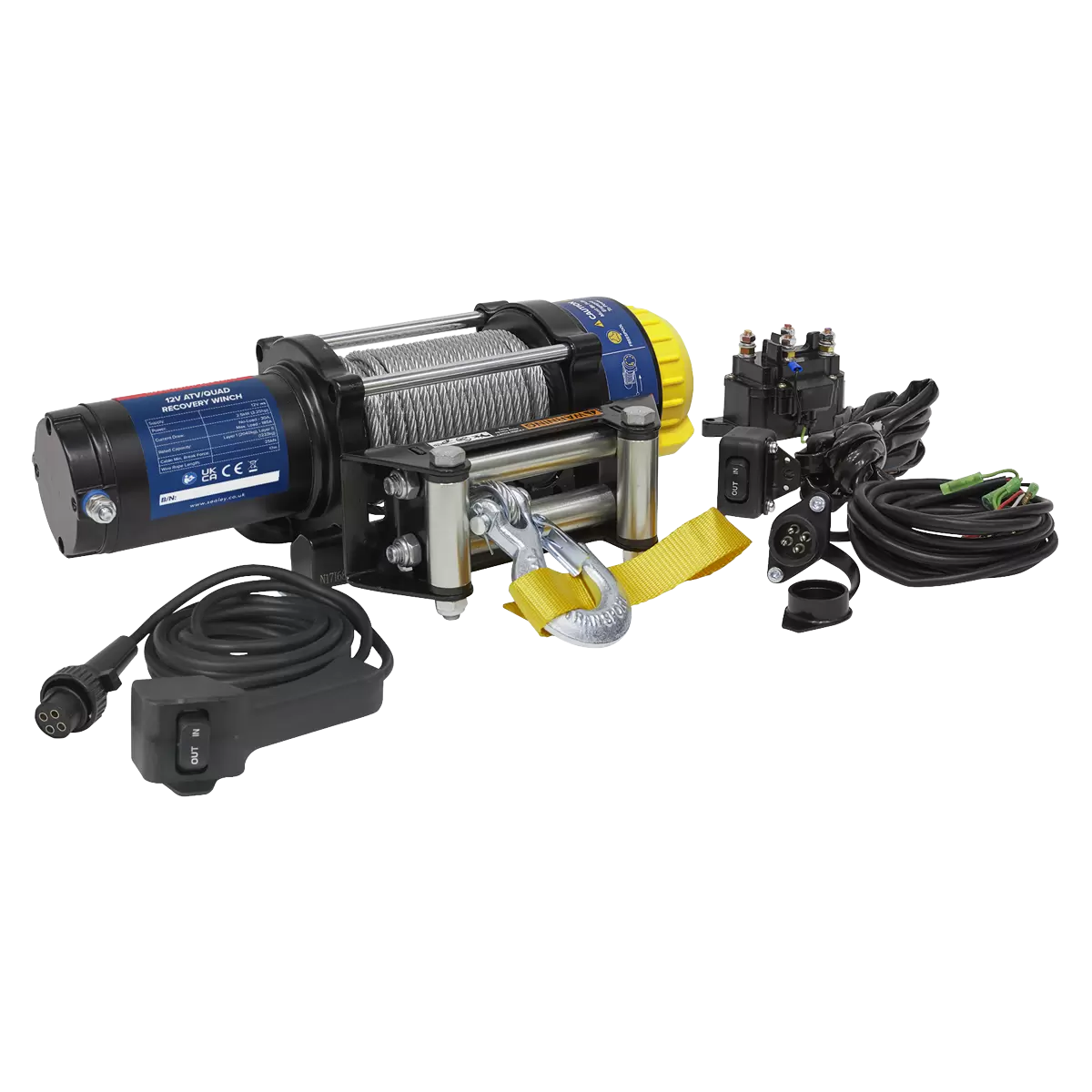

Sealey - ATV2040 - ATV/Quad Recovery Winch 2040kg (4500lb) Line Pull 12V

Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability. High power 2.5kW (3.25hp) 12V DC permanent magnet type motor gives first class pulling power. All-metal chassis for long-life and low maintenance. Motor can easily be rotated 90° to meet various wiring and mounting requirements. Patented unique automatic spring brake, reliable in full load operation. High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.

Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability.

High power 2.5kW(3.25hp) 12V DC permanent magnet type motor gives first class pulling power.

All-metal chassis for long-life and low maintenance.

Motor can easily be rotated 90° to meet various wiring and mounting requirements.

Patented unique automatic spring brake, reliable in full load operation.

High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.

Cable Length: 17m.

Line Pull*: 2040kg(4500lb).

IP67 rated.

Gear Ratio: 180:1.

Model No. ATV2040

*Performance quoted at first layer of cable on drum

Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability.

High power 2.5kW (3.25hp) 12V DC permanent magnet type motor gives first class pulling power.

All-metal chassis for long-life and low maintenance.

Motor can easily be rotated 90° to meet various wiring and mounting requirements.

Patented unique automatic spring brake, reliable in full load operation.

High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.

Cable Length: 17m.

Line Pull*: 2040kg(4500lb).

IP67 rated.

Gear Ratio: 180:1.

*Performance quoted at first layer of cable on drum.

Model No ATV2040
Brand: Sealey
Consumable Parts: ATV2040.WR - Wire Rope (Ø5.4mm x 17m) for ATV2040, ATV2040.DR - Dyneema Rope (Ø5.5mm x 17m) for ATV2040
Current Draw: No-Load - 30A, Maximum Load - 185A
Gear Ratio: 180:1
Line Pull*: 2040kg(4500lb)
Line Speed*: No Load - 4.5m/min, Maximum Load - 1.3m/min
Motor Power: 2.5kW(3.25hp)
Nett Weight: 13.9kg
Note: *Performance quoted at first layer of cable on drum
Rated Capacity: Layer 1: 2043kg, Layer 4: 1234kg
Supply: 12V
Wire Rope Diameter: 5.4mm
Wire Rope Length: 17m

Warranty Period = 1 year years

Commodity code = 8425310000

Country of Origin = CHN
