Draper Tools - 28838 - 110V Portable Transformer, 5kVA
SKU: 28838
Part Number: DPT5000A
Barcode: 5059482075056
Country of Origin: GB
Weight: 32.05 Kg
Our Price
£205.81 (inc VAT) £171.51 (ex VAT)
RRP £226.79 £188.99
Save
£20.98
£17.48
Out of stock
12 months Warranty included.
Description

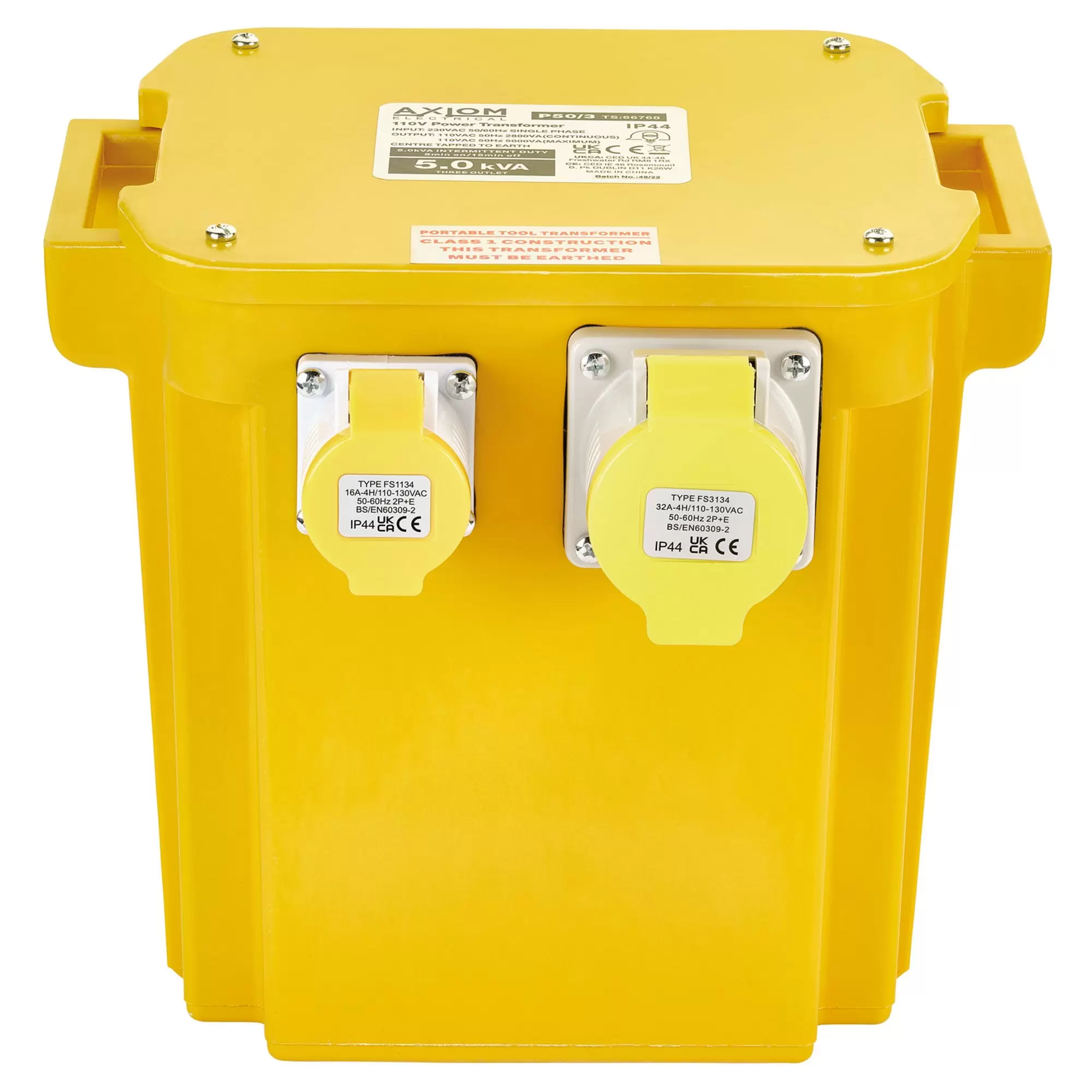

This portable transformer is designed step down the voltage from 230V to 110V CTE supply. It is intended for the intermittent running of 110V power tools and the continuous running of site lighting within the specified capacity. The transformer safely isolates the tool from the mains supply, which helps to prevent overheating. It is constructed with a durable GRP casing and is insulated and IP44 rated to withstand normal site usage and harsh weather conditions. Socket covers are included to protect the ports when they are not in use, keeping them clean and secure. The transformer is overload protected with an input thermal device and is centre tapped to earth. It is fitted with a 13A plug and a 1m rubber cable. Includes 2 x 16A/110V and 1 x 32A outlets.
Features
Specification
Rated voltage 5,000kvA
Input voltage 230V
Output 110V
Continuous rating 2.8kVA
Intermittent rating 5.0kVA
Duty cycle 5 mins on, 15 mins off
Cable 1m
Weight 30.5kg
Input voltage 230V
Output 110V
Continuous rating 2.8kVA
Intermittent rating 5.0kVA
Duty cycle 5 mins on, 15 mins off
Cable 1m
Weight 30.5kg
Workshopping Says
⚠️ Electrical Supply Required
This product requires a 16A (or 32A) industrial electrical supply and cannot be plugged into a standard UK 13A 3-pin socket without the appropriate electrical installation or approved adaptor where applicable. Please check the product specification before ordering.
This product requires a 16A (or 32A) industrial electrical supply and cannot be plugged into a standard UK 13A 3-pin socket without the appropriate electrical installation or approved adaptor where applicable. Please check the product specification before ordering.
