Laser - 9320 - Exhaust Gas Sensor Socket 1/2"D 20mm
SKU: LAS9320
Part Number: 9320
Barcode: 5018341093204
Country of Origin: Taiwan Province of China
Weight: 20 g
Our Price
£18.40 (inc VAT) £15.33 (ex VAT)
RRP £23.46 £19.55
Save
£5.06
£4.22
Description
This short series sensor socket is used for the removal and installation of Oxygen DPF sensors.
Features

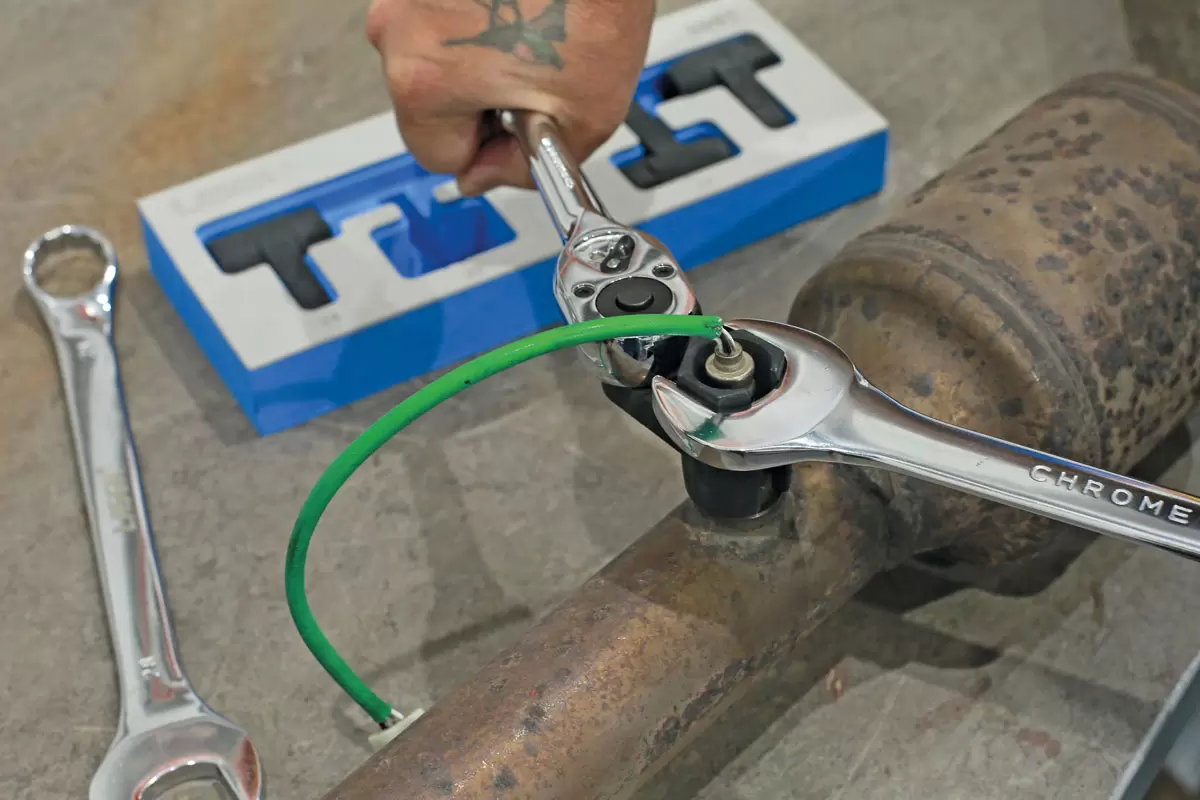

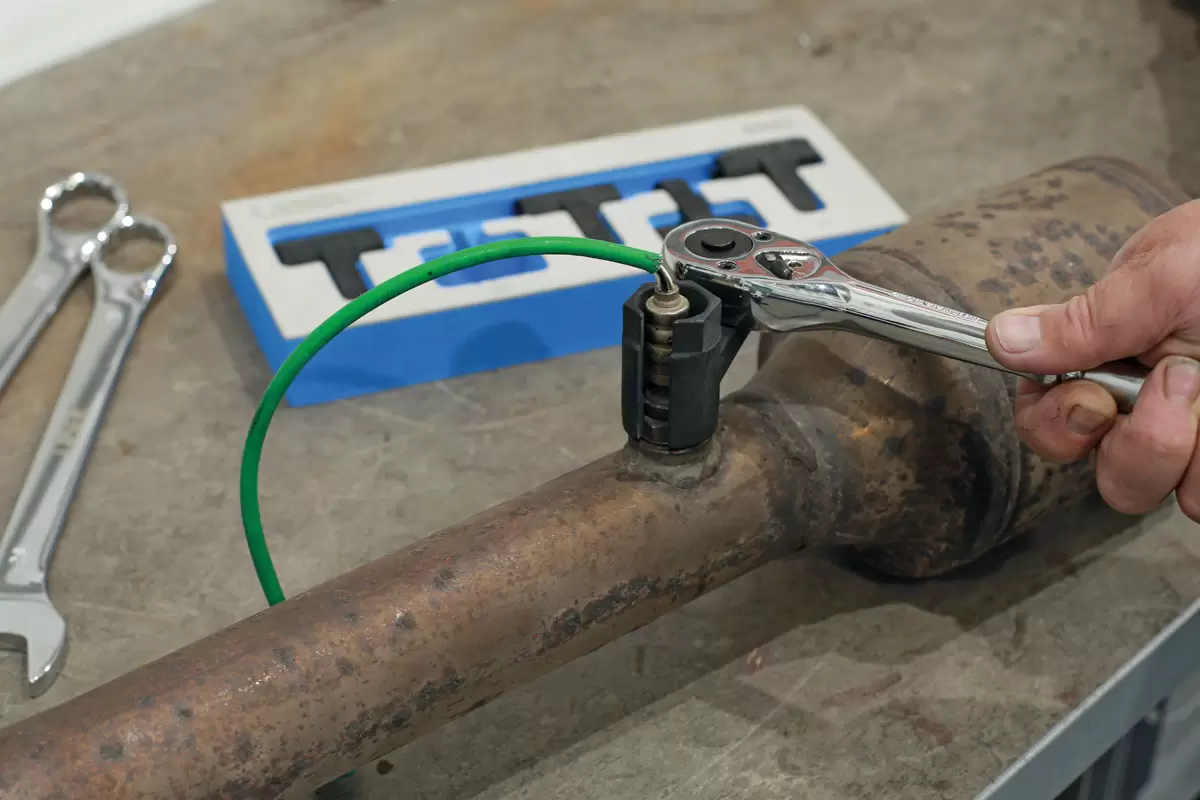

It features a slot in the side, enabling it to be fitted over the wiring harness, and can be driven by either a 24mm spanner or 1/2"D ratchet making it ideal for both difficult access situations or for when increased torque is required to undo tight or seized sensors.
Specification
- Applications: 20mm exhaust gas sensors including DPF sensors on IVECO trucks.
- Single hex (6pt), 20mm (across flats). Length: 68mm.
- The combination of open wrench & 1/2” ratchet drive allows for the application of increased torque.
- Can be driven by 1/2"D ratchet or 24mm spanner depending on access. Manufactured from Chrome Molybdenum with black phosphate finish.
- Additional sizes available, please see Part No. 9000 (14mm), 8999 (17mm), 8998 (19mm), 8063 (22mm) & 8590 (24mm).
