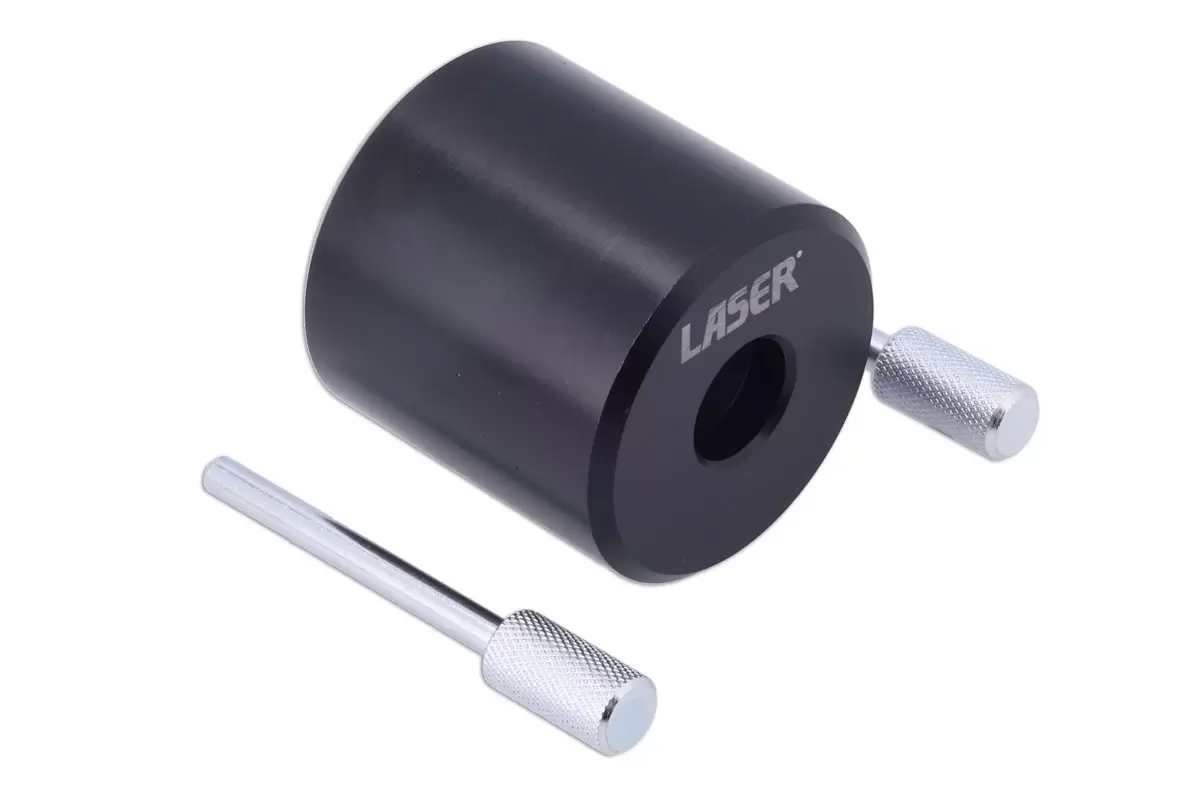

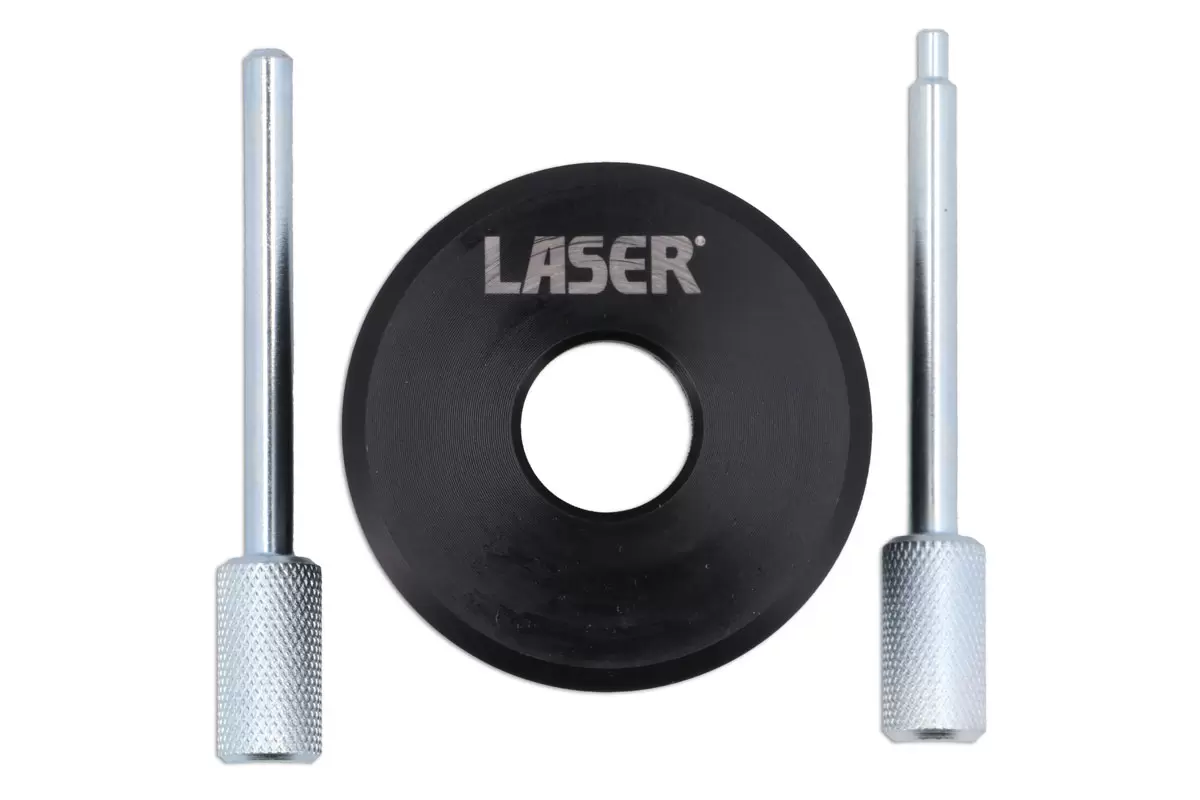

Laser - 9505 - Split Gear Retaining Kit - for Ford EcoBlue
SKU: LAS9505
Part Number: 9505
Barcode: 5018341095055
Country of Origin: Great Britain
Weight: 25 g
Our Price
£42.00 (inc VAT) £35.00 (ex VAT)
RRP £75.60 £63.00
Save
£33.60
£28.00
Description

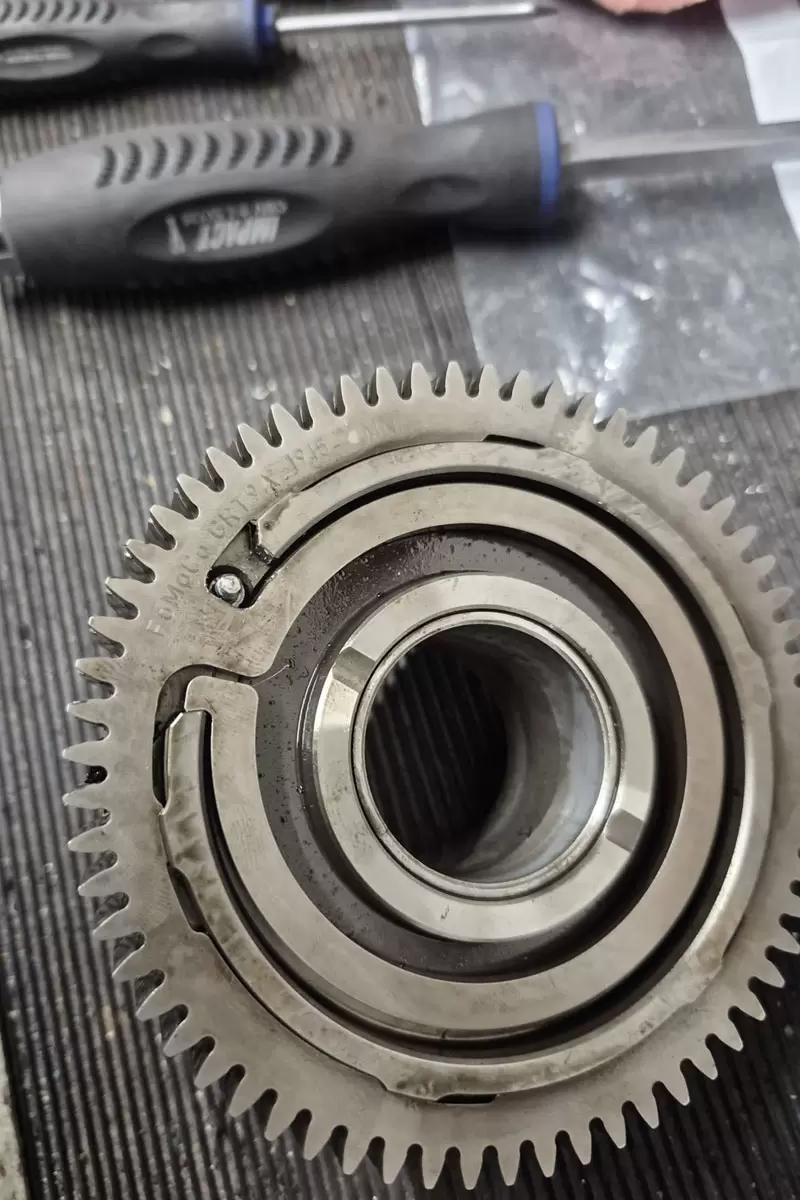

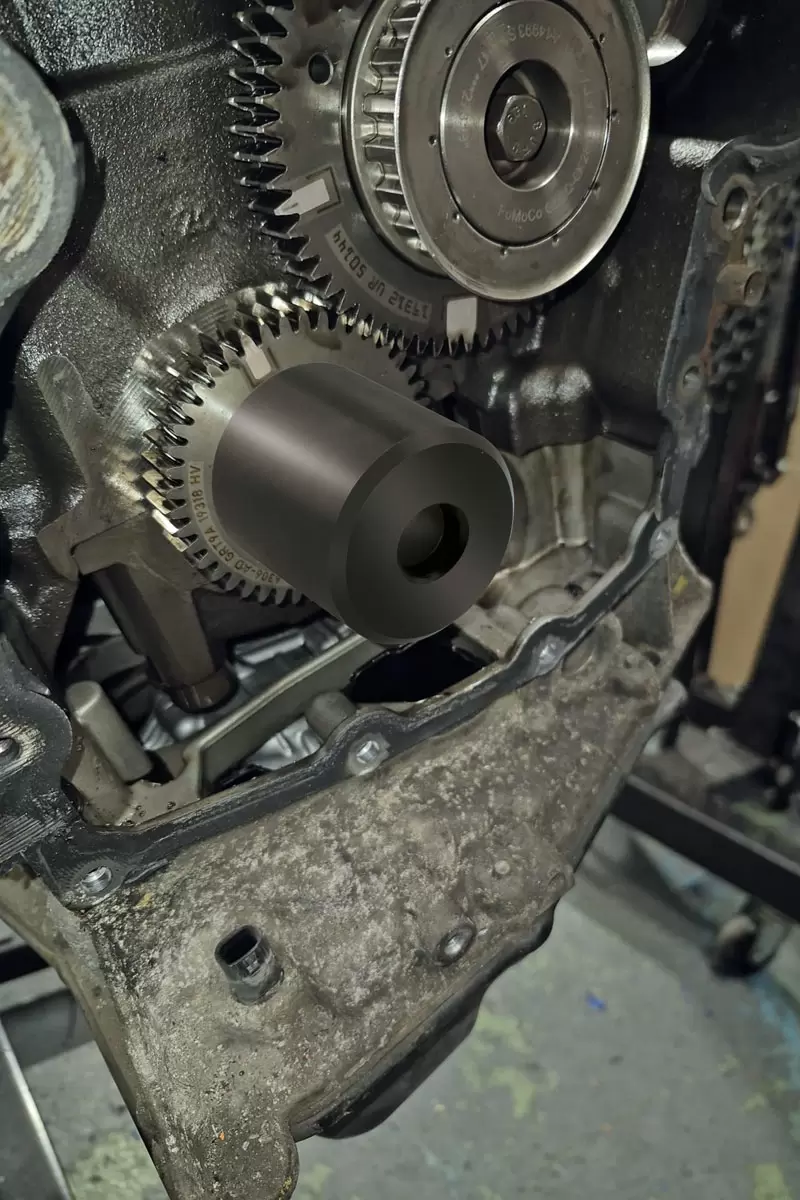

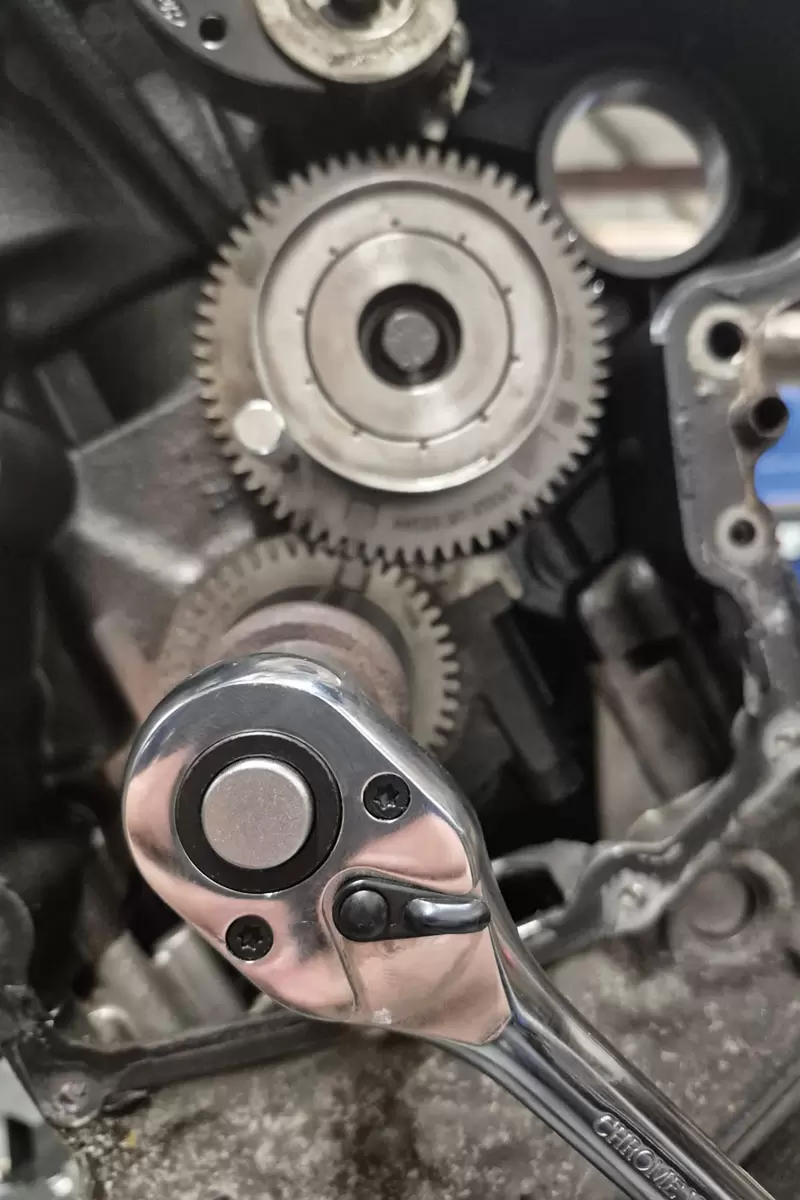

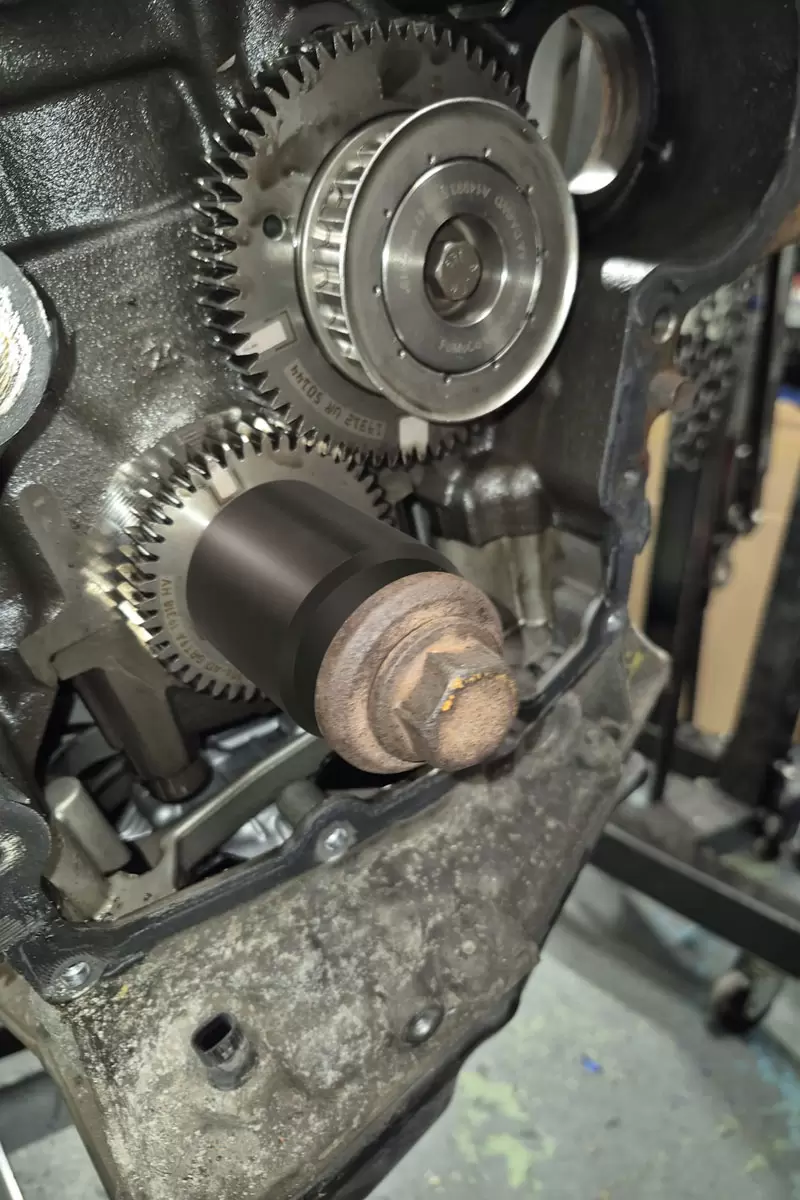

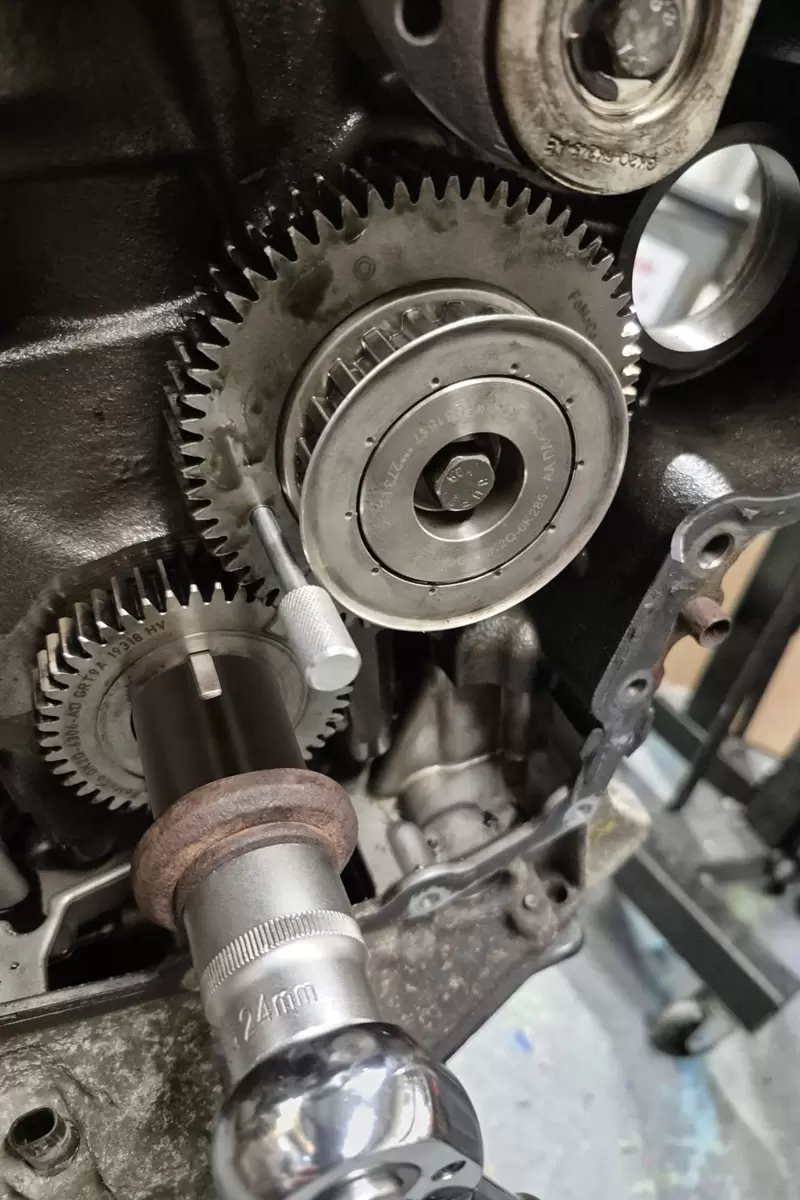

Customers of Laser Tools have been reporting idler gear/belt sprocket bolt failure soon after cambelt replacement. After investigation it was found that the crankshaft gear, during belt replacement, can move forward and allow the rear most part of the split gear to drop out of engagement with the crankshaft gear. It is not visually obvious that this has happened so if the technician continues to reassemble the engine without correcting this issue subsequent engine failure will be the result. Laser Tools have designed and developed the Laser 9505 tool set and process to help avoid this issue.
Specification
- Applications include: Ford 2.0L EcoBlue Diesel found in Ford Edge, Focus, Galaxy, S-MAX (from 2018); Kuga, Mondeo, Ranger (from 2019); Transit, Transit Custom & Tourneo Custom (from 2016); all with EcoBlue TDCi engines; AWD, FWD & RWD.
- Also suitable for Volkswagen Amarok T1A/T1B (from 2022), engine codes: DXKA, DXKB & DXKD.
- For full Ford engine code list please see applications list on Laser Tools website.
- The Laser 9505 is a Laser Tools design & must be used in accordance with Laser Tools instructions.
- Made in Sheffield. For engine timing see Laser Part No. 7323, for Crankshaft pulley removal see Part Nos. 7334, 8394 & 9385.
