Sealey - VSE5846 - Diesel Engine Timing Tool Kit for PSA, Ford, Volvo 1.4D/1.5D/1.6D HDi/TDCi - Belt Drive

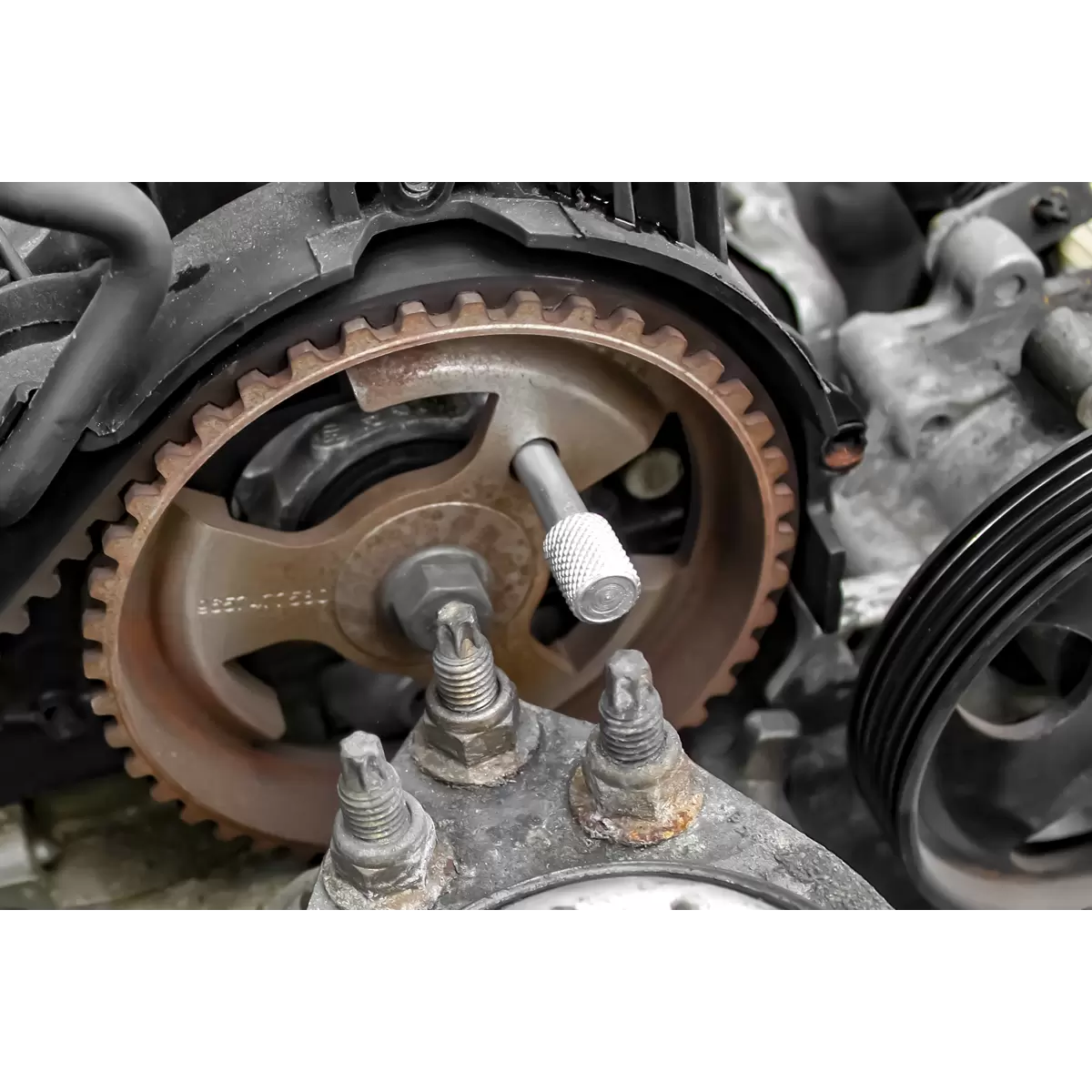

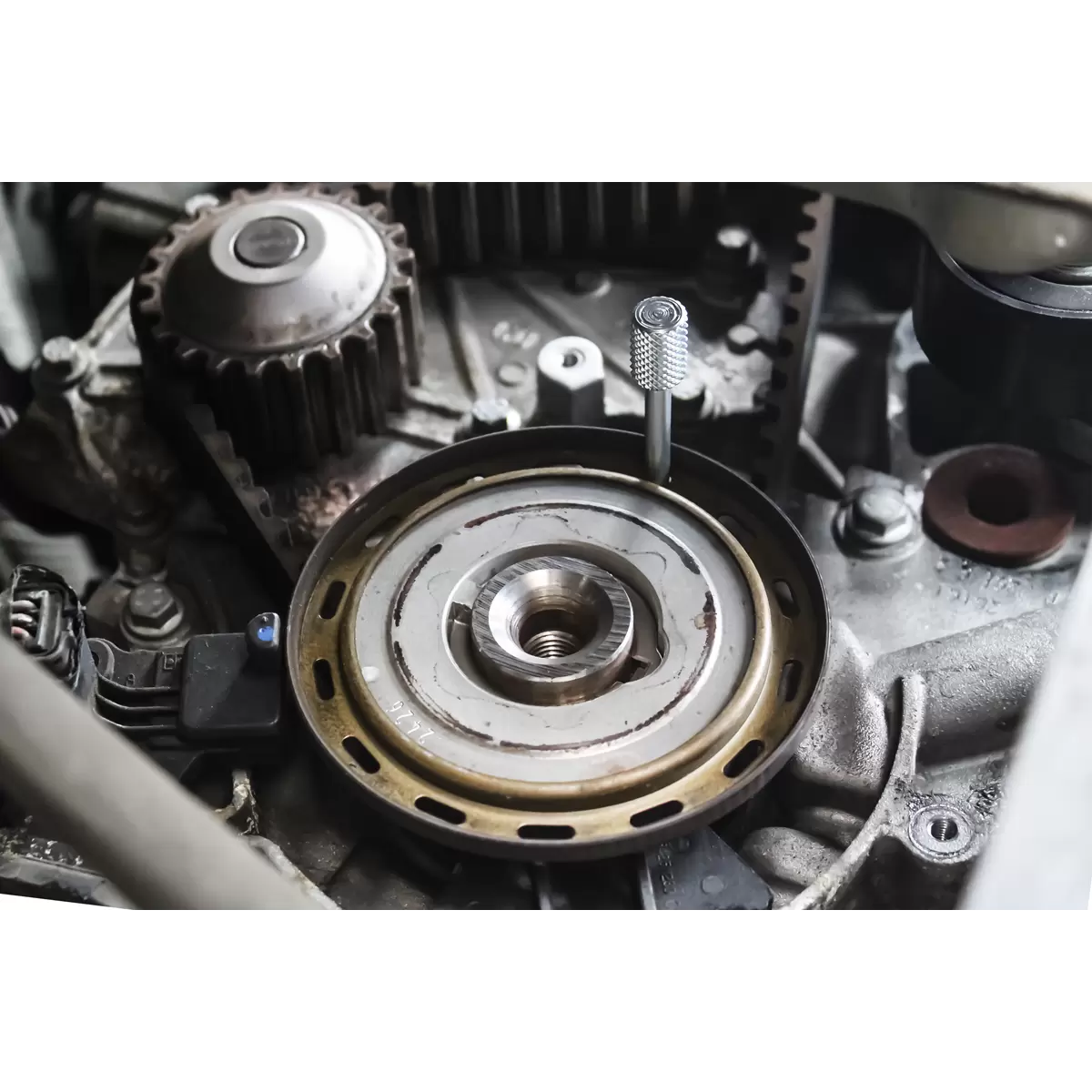

Set of locking pins for timing belt replacement on Ford 1.5, PSA 1.4 (DV4) and 1.6 (DV6) diesel engines fitted in Citroen, Peugeot, Ford, Mazda, Suzuki, Toyota and Volvo models. These timing pins lock and hold the camshaft, crankshaft, flywheel and HP pump in the timed position.

Model No VSE5846
Applications:
Citroen: Berlingo I/II (05-11), Berlingo III (08-18), Berlingo IV (14-19), C1 (05-10), C2 (03-10), C3 I/II (02-10), C3 III (10-18), C III IV (16-18), C3 Picasso (09-12), C3 Pluriel (04-10), DS3 (09-12), C4 (04-11), C4 II (11-18), C4 Picasso/Grand Picasso (06-18), C5 II (04-08), C5 III (07-12), DS4 (11-12), Nemo (08-10), Xsara II (04-08), Xsara Picasso (04-10)
Ford: B-Max (12-18), C-Max (07-15), EcoSport (13-18), Fiesta (02-21), Focus (04-18), Focus C-Max (03-18), Fusion (04-11), Grand C-Max (10-18), Tourneo Courier (14-16)
Mazda: 2 (02-10), 3 (04-12), 5 (10-12)
Peugeot: 107 (05-10), 1007 (05-10), 206 (01-12), 206+ (10-13), 206CC (05-07), 207 (06-13), 207CC (07-15), 208 (12-18), 2008 (12-17), 307 (01-08), 308 (07-18), 308CC (09-17), 3008 (09-18), 407 (04-11), 4008 (12-15), 508 (11-18), 5008 (09-18), Bipper (08-10), Expert (10-12), Partner I/II (05-11), Partner III (08-18), Rifter (18-19). Traveller (16-20)
Suzuki: Liana (04-08), SX4 (07-11)
Toyota: Aygo (05-10)
Volvo: C30 (06-13), S40 (04-12), S60 (11-15), S80 (09-15), V40 (12-15), V50 (04-12), V60 (11-15), V70 (11-15)
Brand: Sealey
Engine Codes:
1.4D: F6JA, F6JB
1.4D D-4D: ZWZ-TV
1.4D DDiS: (DV4)8HY
1.4D HDi: DV4C(8HR), DV4TD(8HT), DV4TD(8HW), DV4TD(8HX), DV4TD(8HZ), DV4TED(8HS), DV4TED4(8HX), DV4TED4(8HY), DVTED4(8HV)
1.4D TDCi: F6JA, F6JB, F6JC, F6JD, KVJA
1.5D TDCi: ENUG, UGCA, UGJC, XUJA, XUJB, XUJC, XUJF, XUJG, XUJH, XUJK, XUJL, XUJN, XUJM, XWDA, XWDB, XWDC, XWDD, XWDE, XWJB, XWJC, XXDA, XXDB, XXDC, XXDD
1.6D: Y6, MZ-CD(Y6)
1.6D DDiS: DV6(9HX)
1.6D eDrive: D4162T, D4164T
1.6D eHDi: DV6C(9HR), DV6FC(BHW), DV6FC(BHX), DV6FC(BHY), DV6FC(BHZ), DV6FDU(BHV), DV6FCU(BHX), DV6FDU(BHS)
1.6D HDi: DV6(9HR), DV6ATED(9HX), DV6ATED(9HY), DV6ATED4(9HX), DV6AUTED4(9HX), DV6BTED4(9HT), DV6BTED4(9HW), DV6BUTED4(9HT), DV6C(9HL), DV6C(9HR), DV6C9(HR), DV6CATED(9HX), DV6D(9HP), DV6DTED(9HJ), DV6DTED(9HP), DV6ETED(9HN), DV6DTED(9HF), DV6FD (BHY), DV6FE (BHW), DV6TED(9HP), DV6TED4(9HV), DV6TED4(9HW), DV6TED4(9HX), DV6TED4(9HY), DV6TED4(9HZ), DV6TED4B, DV6TED4B(9HV), DV6TED4BU(9HS), DV6UTED4(9HU), DV6UTED4(9HX), DVTED4(9HV)
1.6D TDCi: G8DA, G8DB, G8DD, G8DE, G8DF, GPDA, GPDC, HHDA, HHDB, HHJA, HHJB, HHJC, HHJD, HHJE, HHJF, MTDA, NGDA, T1DA, T1DB, T3DA, T3DB, T3JA, T3JB, TZJA, TZJB, UBJA
1.6D TDCI ECOnetic: G8DD, GPDA, HHJD, TZJA, TZJB
2.0D HDi: DW10FC(AHH), DW10FD(AHX)
Nett Weight: 0.15kg
OEM Tools:
Flywheel Locking Pin (VSE5846.01): 303-734 (21-262) (Ford), 49JE02-020 (Mazda), 0194-C (PSA), 09910-05410 (Suzuki), 999-7169 (Volvo)
Camshaft/HP Fuel Pump Locking Pins (VSE5846.02): 11-0-790 (BMW), 303-735 (212-263) (Ford), 49JE02-021 (Mazda), 0194-B (PSA), 09910-05410 Suzuki, 999-7122 (Volvo)
Crankshaft Locking Pin (VSE5846.03): 11-0-300 (BMW), 303-732 (21-260) (Ford), 49JE02-018 (Mazda), 0194-A (PSA), 09910-05410 (Suzuki), 999-7121 (Volvo)

Warranty Period = 1 year years

Commodity code = 8205598000

Country of Origin = CHN
