Sealey - DG5000W - 5000W Diesel Welder Generator 4-Stroke Engine 110/230V
SKU: DG5000W
Part Number: DG5000W
Barcode: 5054630662492
Country of Origin: CHN
Weight: 126.00 Kg
Our Price
£1,454.58 (inc VAT) £1,212.15 (ex VAT)
RRP £1,799.94 £1,499.95
Save
£345.36
£287.80
Out of stock
1 year Warranty included.
Description

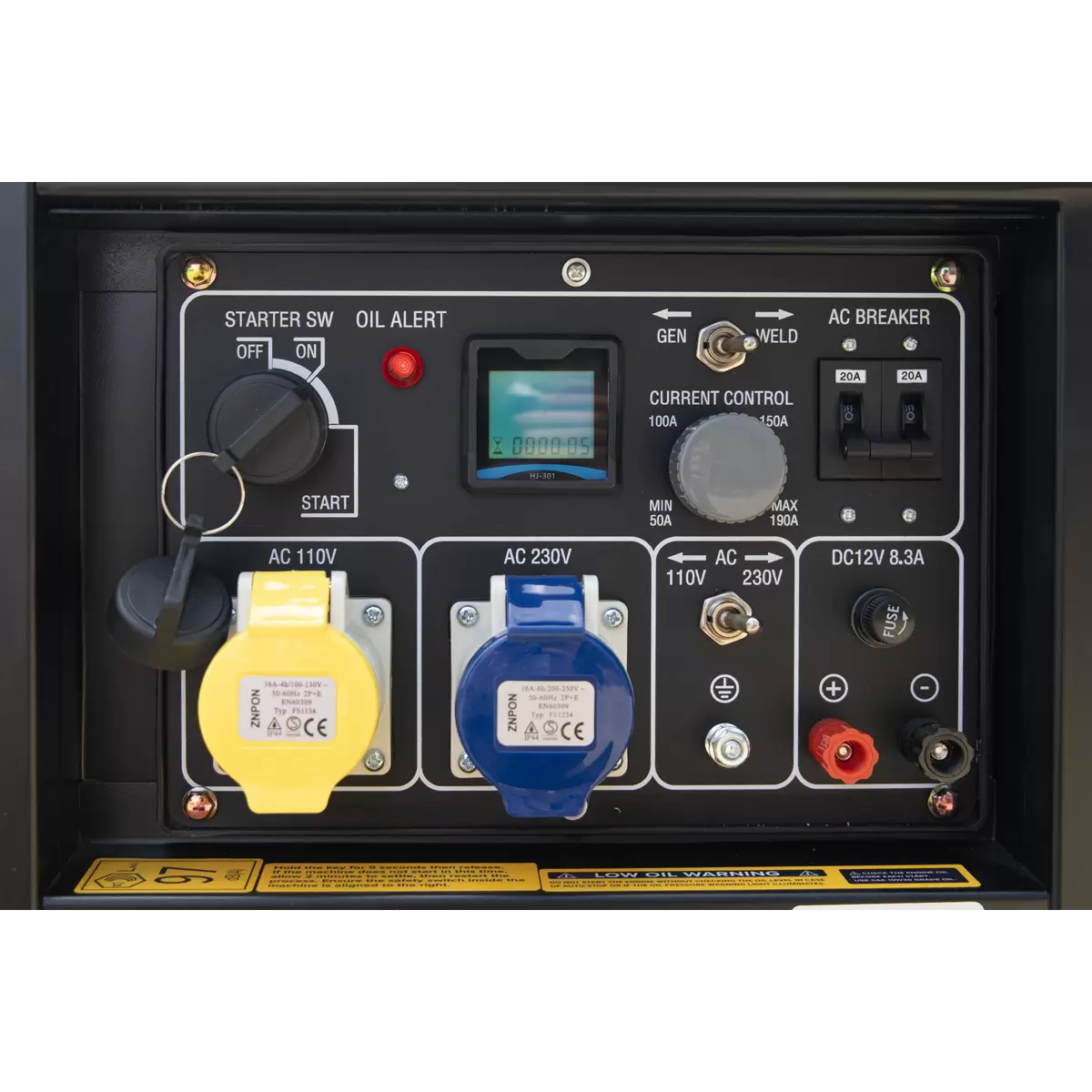

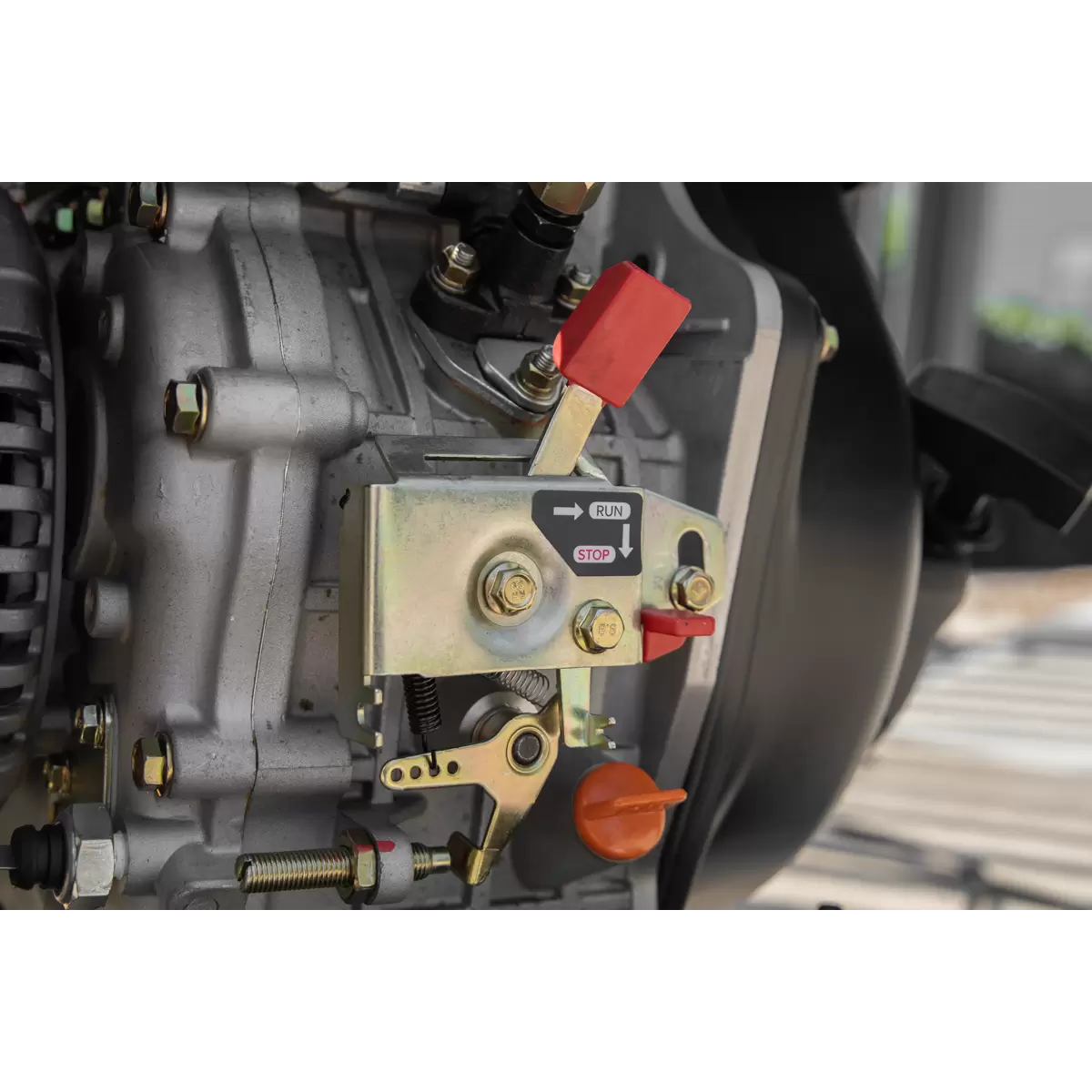

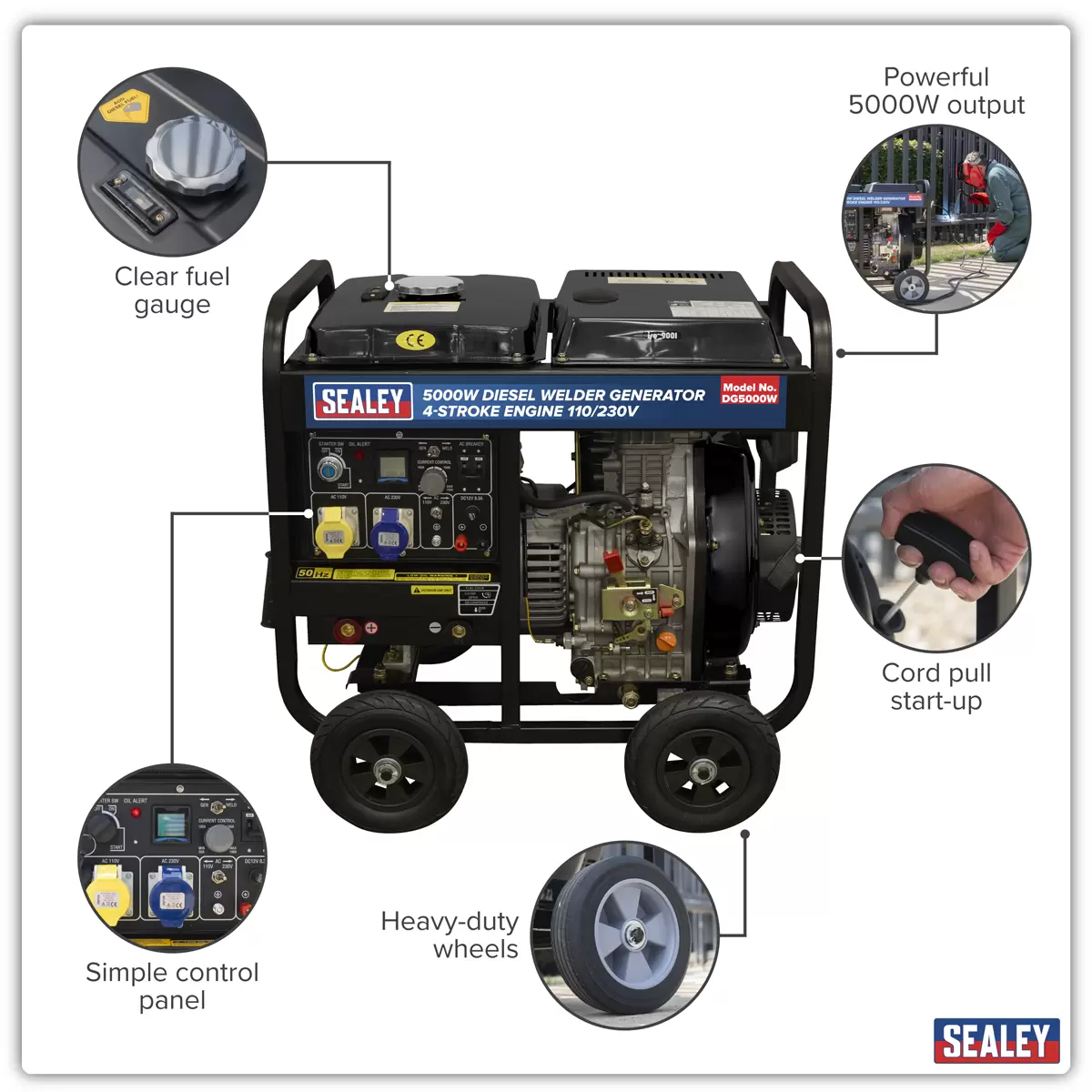

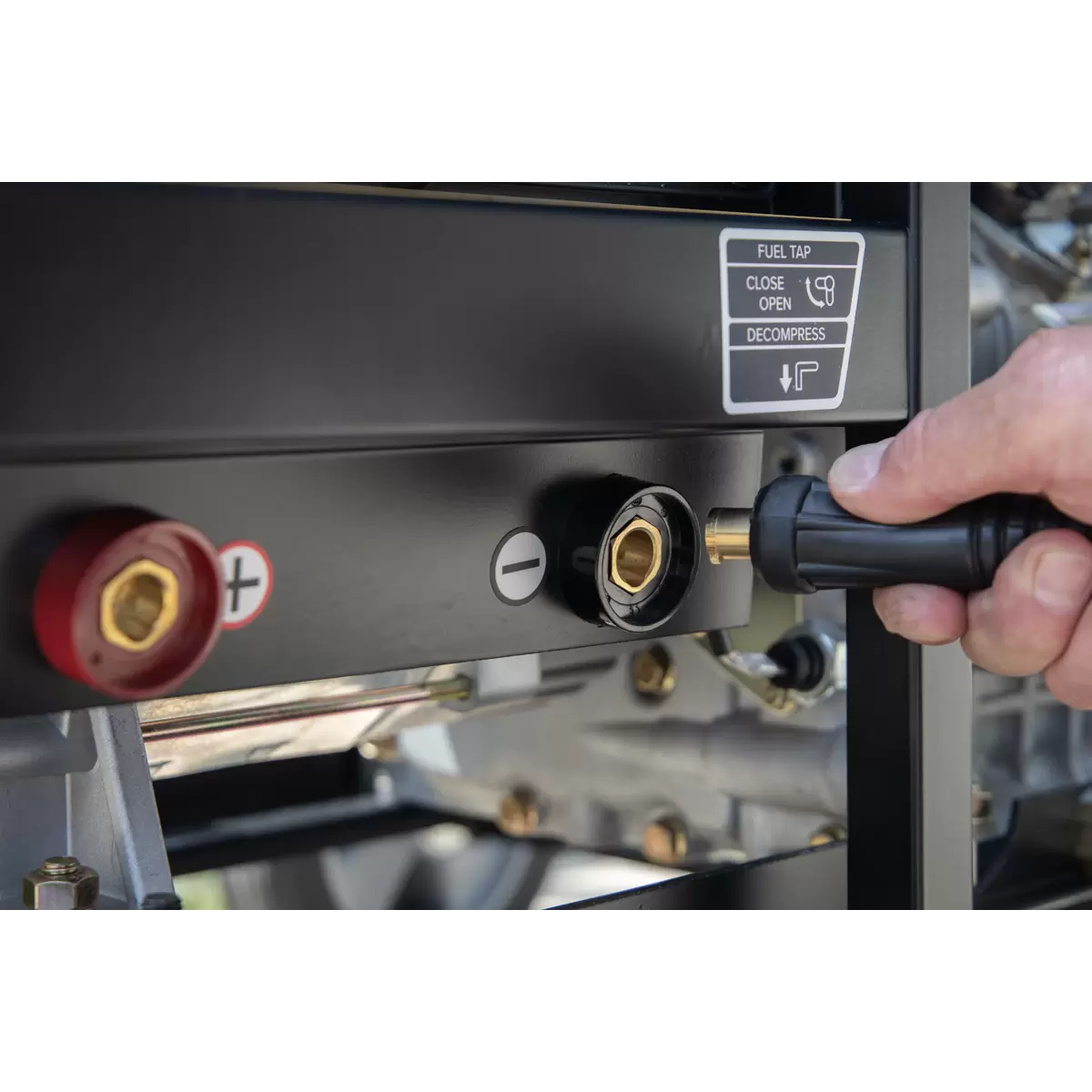

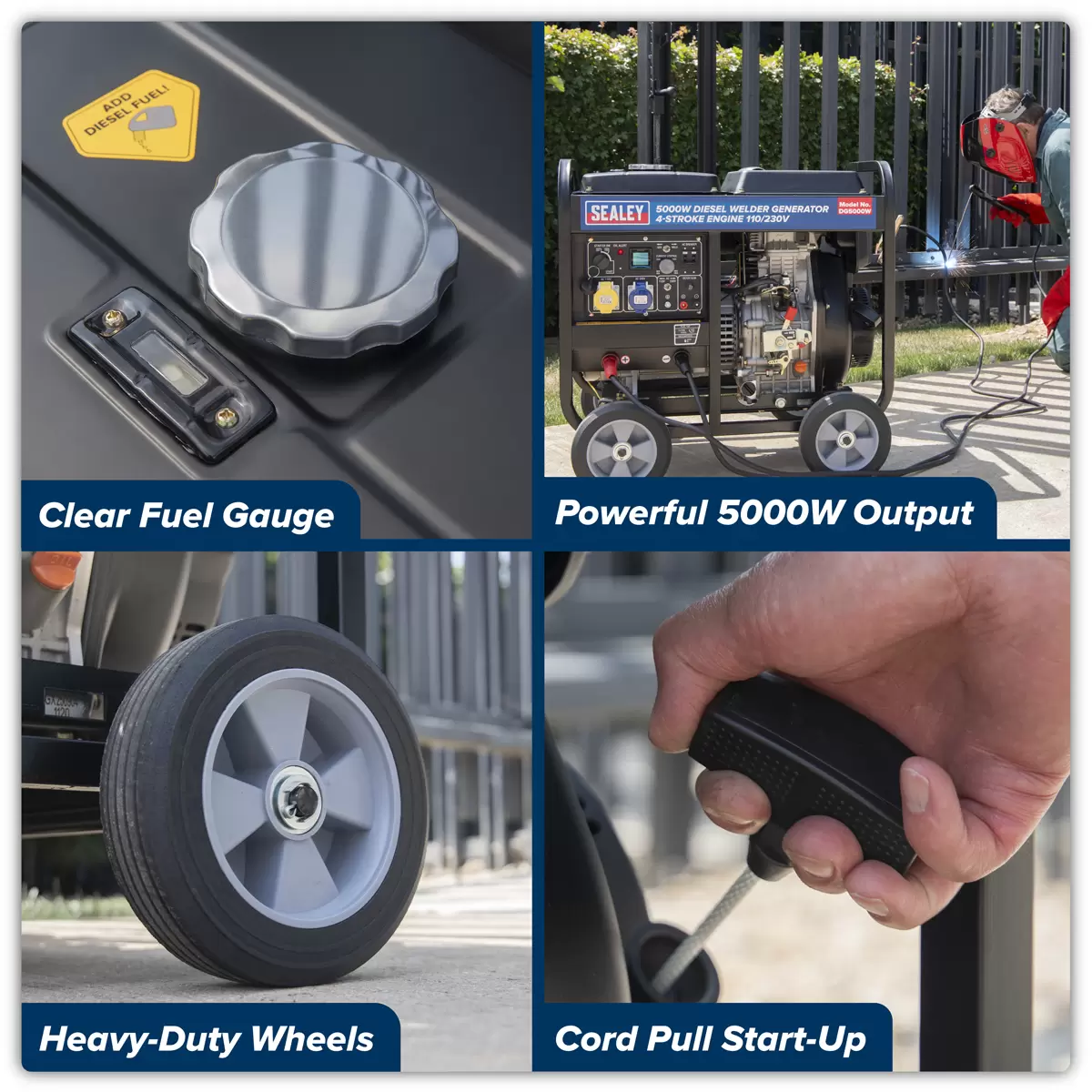

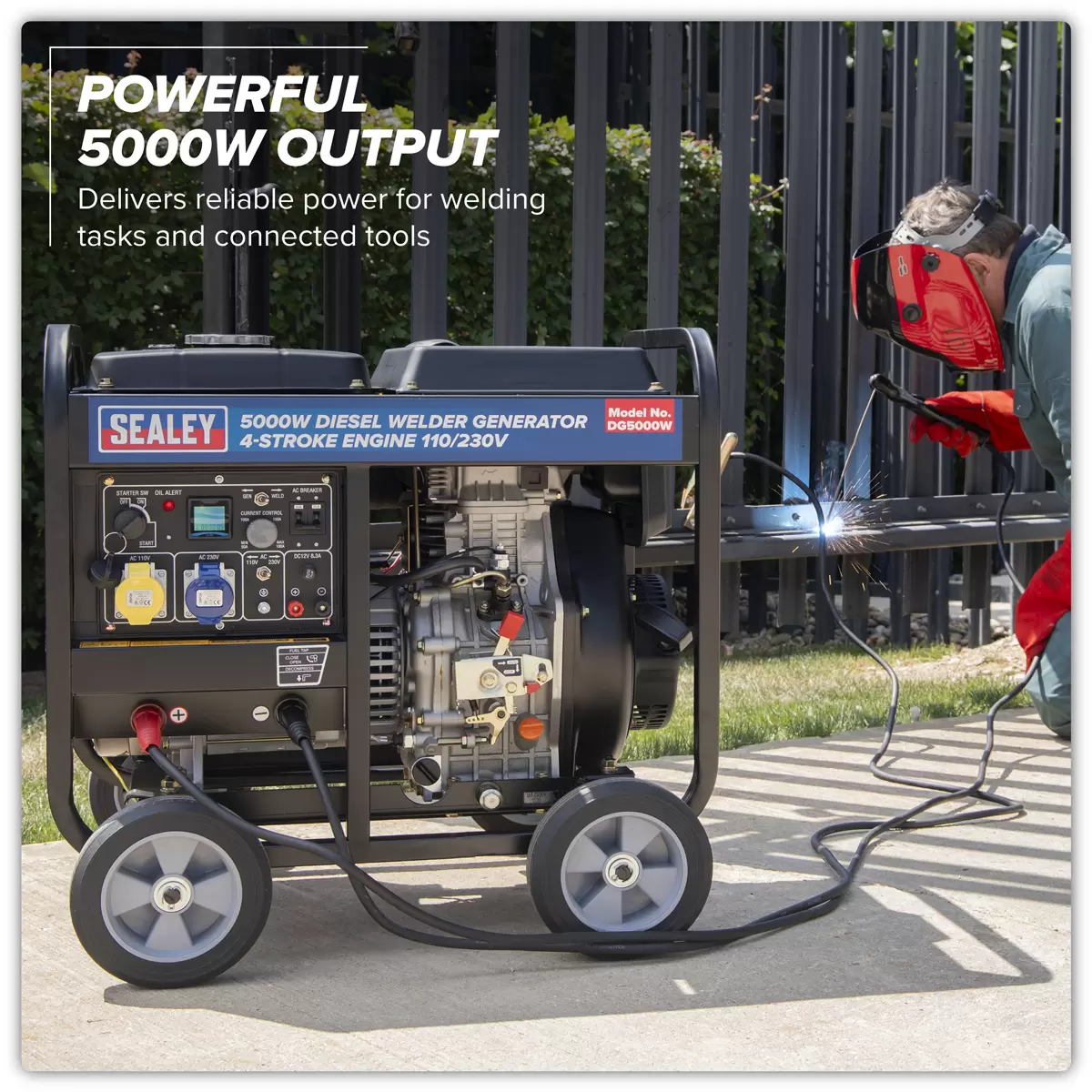

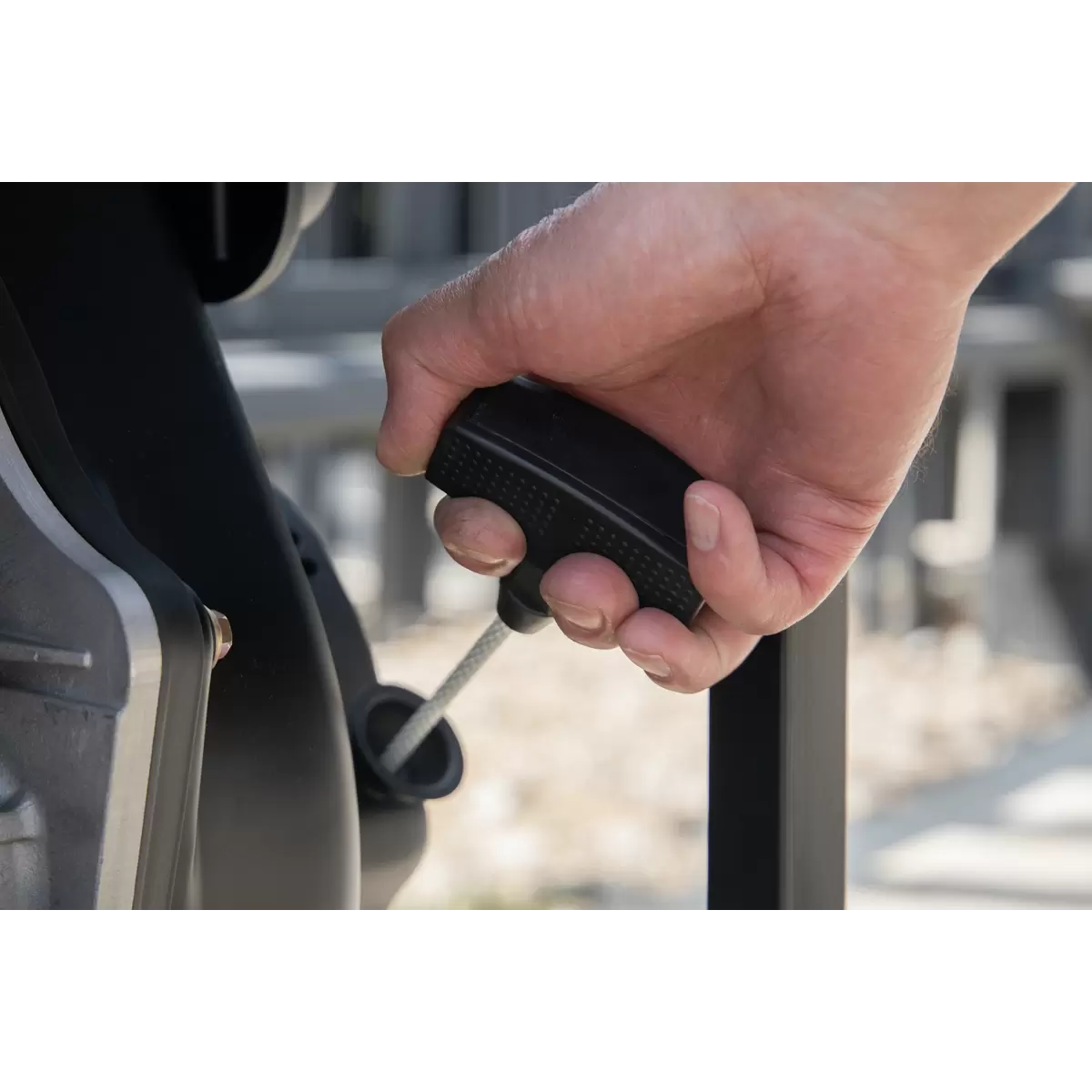

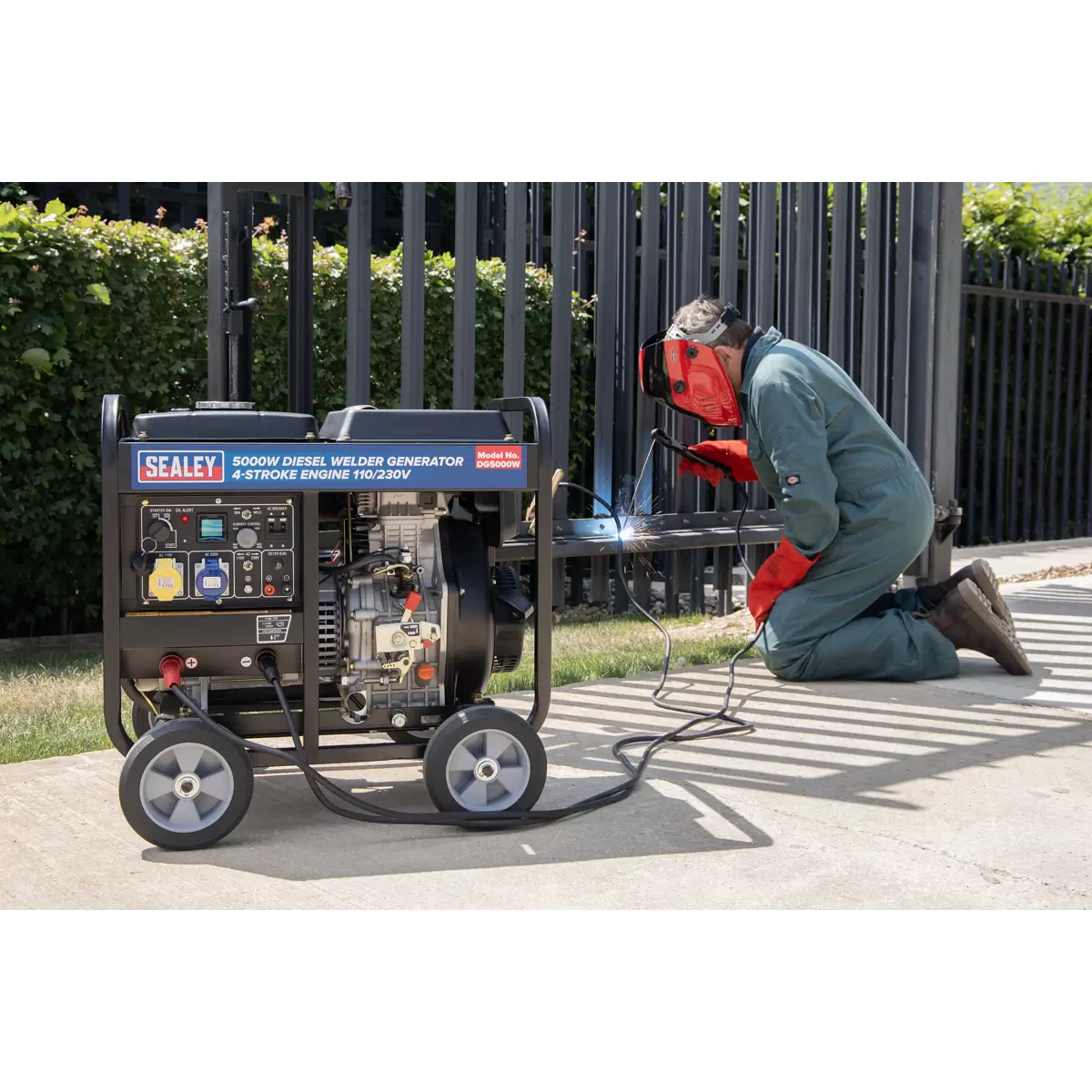

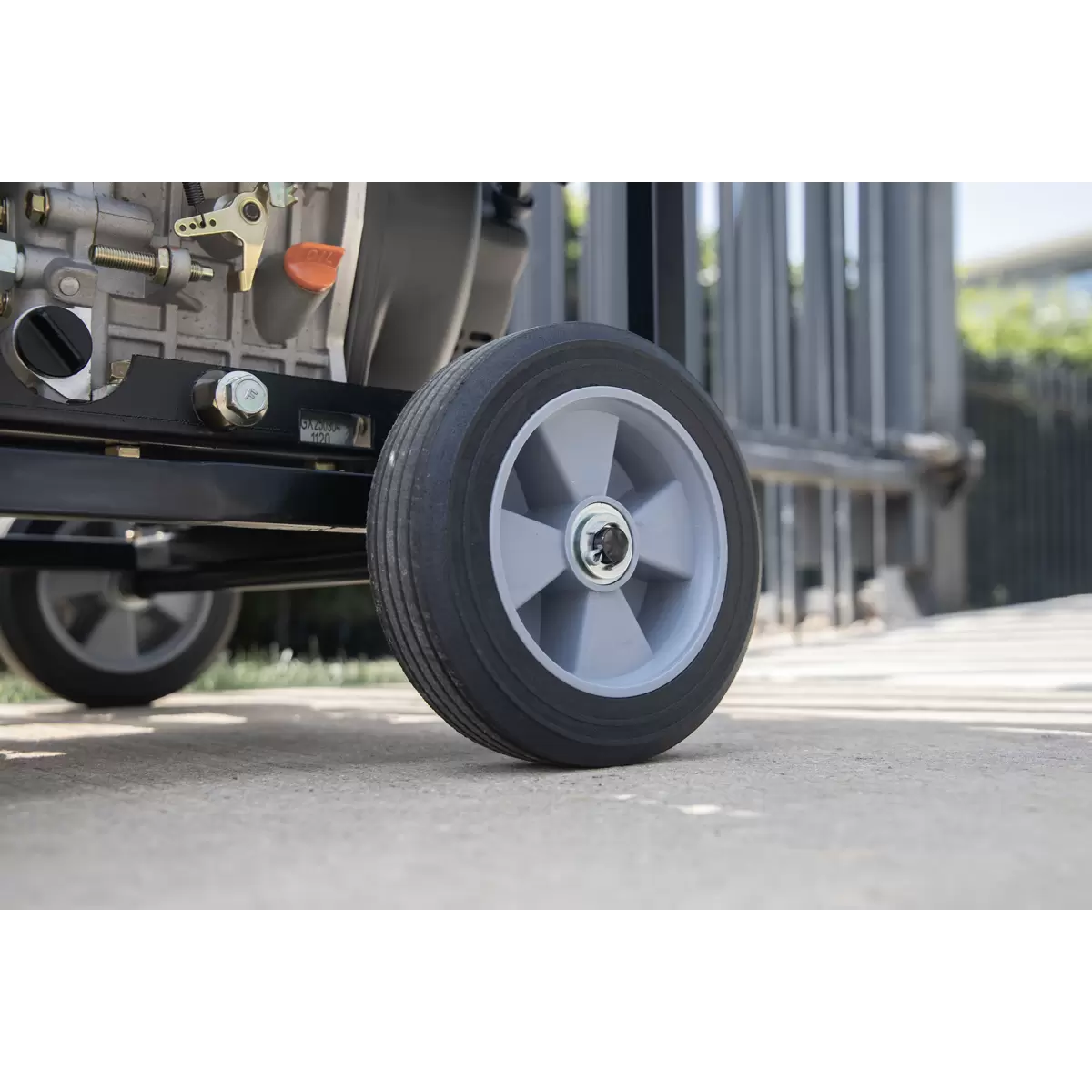

Supplies both 110V and 230V AC for flexible power options on-site. Built-in electric welding capability with adjustable current ranges from 80–180A, suitable for electrodes from Ø2.5-4mm. Driven by a 418cc single-cylinder, 4-stroke diesel engine delivering 5.0kW. Manual recoil start and key start function. 15L fuel tank allows extended operation without frequent refuelling. Rugged frame with two pull handles and four wheels for easy transportation around the worksite. Perfect for construction, agricultural, and industrial applications. Supplied with two Keys, 2.8m electrode holder and 2.8m earth clamp.

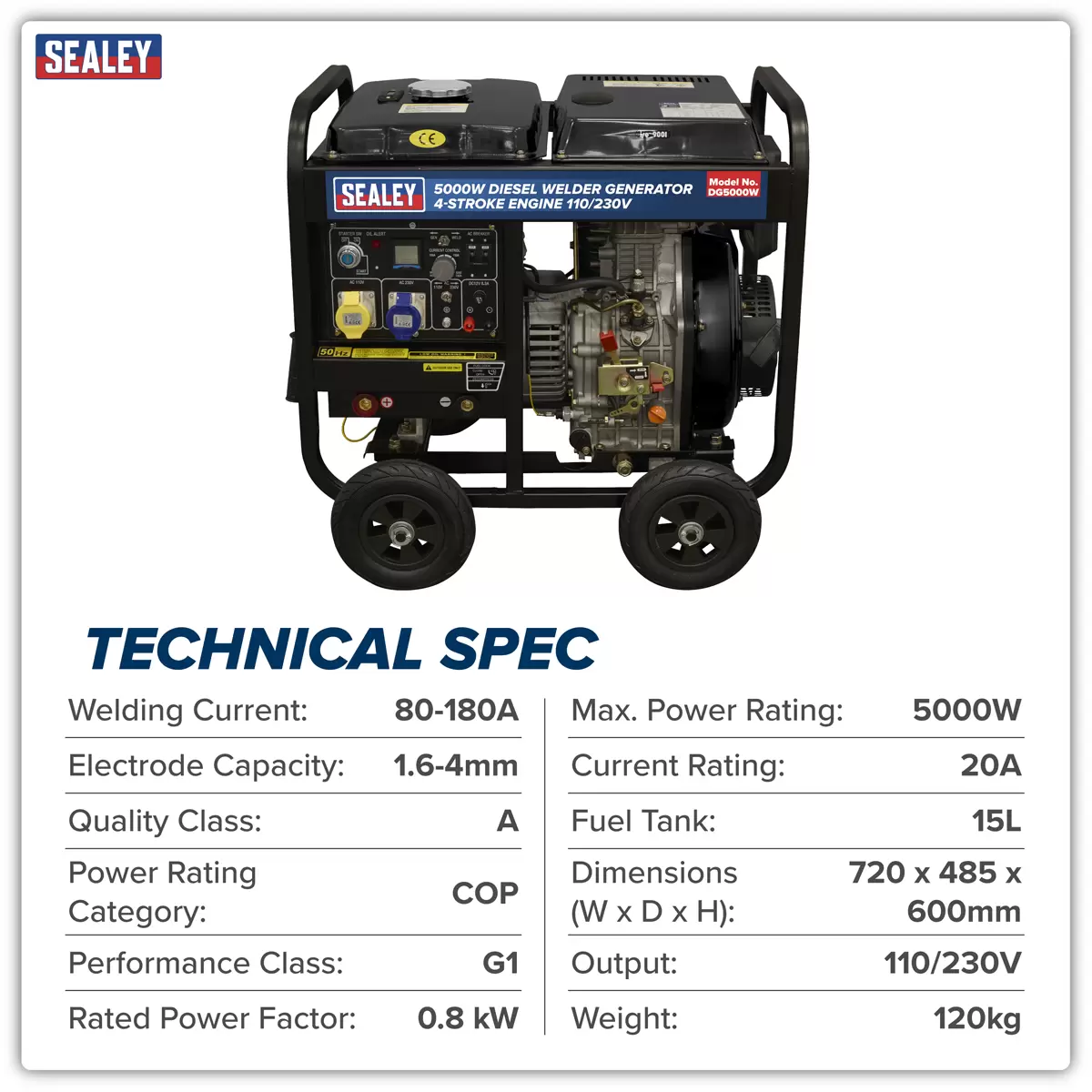

Features
Model No DG5000W
Brand: Sealey
Continuous Power Rating: 4600W
Current Rating: 20A
Dimensions (W x D x H): 720 x 485 x 600mm

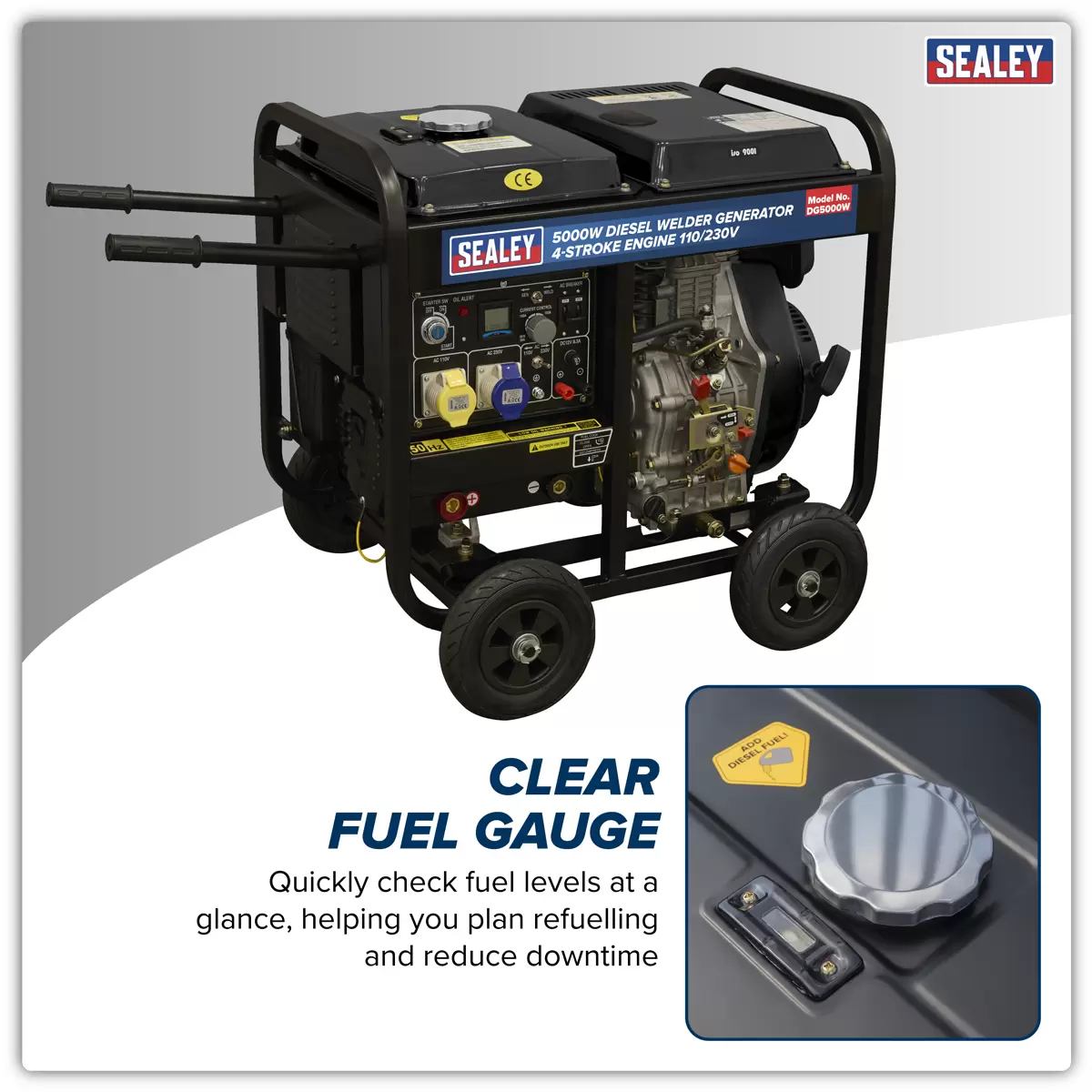

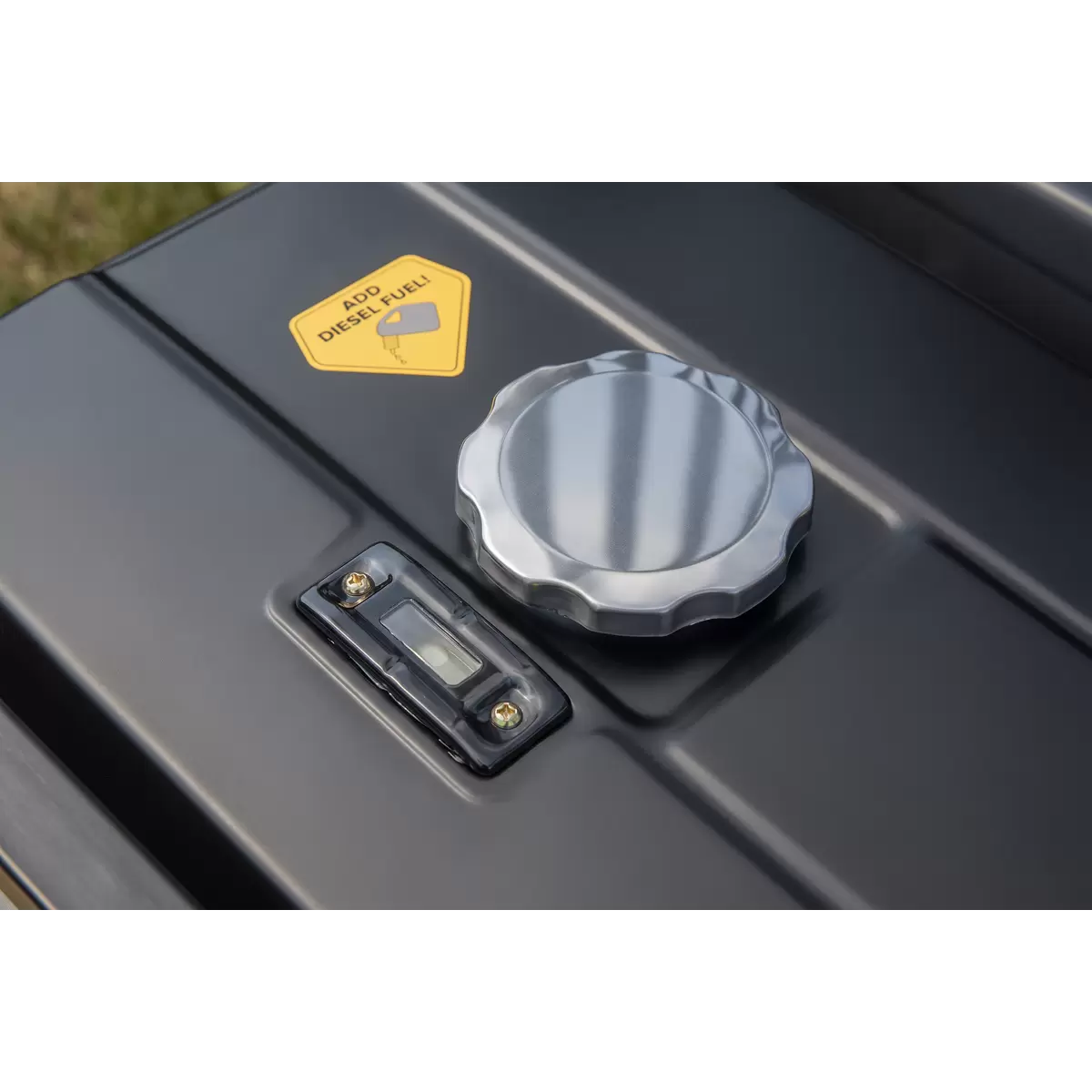

Fuel Tank: 15L
Fuel: Diesel
IP Rating: IP23
Maximum Power Rating: 5000W
Maximum Running Time: 12hrs
Motor Power: 5.7kw/3600rpm
Motor Type: 4-Stoke Diesel
Nett Weight: 120kg
Noise Rating: 97dB(A)
Oil Capacity: 1.65L
Output: 110/230V
Welding Current: 80-180A
Electrode Capacity: 1.6-4mm
Quality Class A
Power Rating Category COP
Performance Class G1
Rated Power Factor (COS ∮) 0.8 kW
Brand: Sealey
Continuous Power Rating: 4600W
Current Rating: 20A
Dimensions (W x D x H): 720 x 485 x 600mm
Fuel Tank: 15L
Fuel: Diesel
IP Rating: IP23
Maximum Power Rating: 5000W
Maximum Running Time: 12hrs
Motor Power: 5.7kw/3600rpm
Motor Type: 4-Stoke Diesel
Nett Weight: 120kg
Noise Rating: 97dB(A)
Oil Capacity: 1.65L
Output: 110/230V
Welding Current: 80-180A
Electrode Capacity: 1.6-4mm
Quality Class A
Power Rating Category COP
Performance Class G1
Rated Power Factor (COS ∮) 0.8 kW
