Sealey - POWERMIG500Wi - 500A Professional Gas/Gasless MIG/TIG/MMA Inverter Welder with Portable Wire Feeder & Water Cooler 400V 3ph
SKU: POWERMIG500Wi
Part Number: POWERMIG500Wi
Barcode: 5054630530302
Country of Origin: CHN
Weight: 89.00 Kg
Our Price
£2,418.32 (inc VAT) £2,015.27 (ex VAT)
RRP £2,999.94 £2,499.95
Save
£581.62
£484.68
Out of stock
3 years Warranty included.
Description

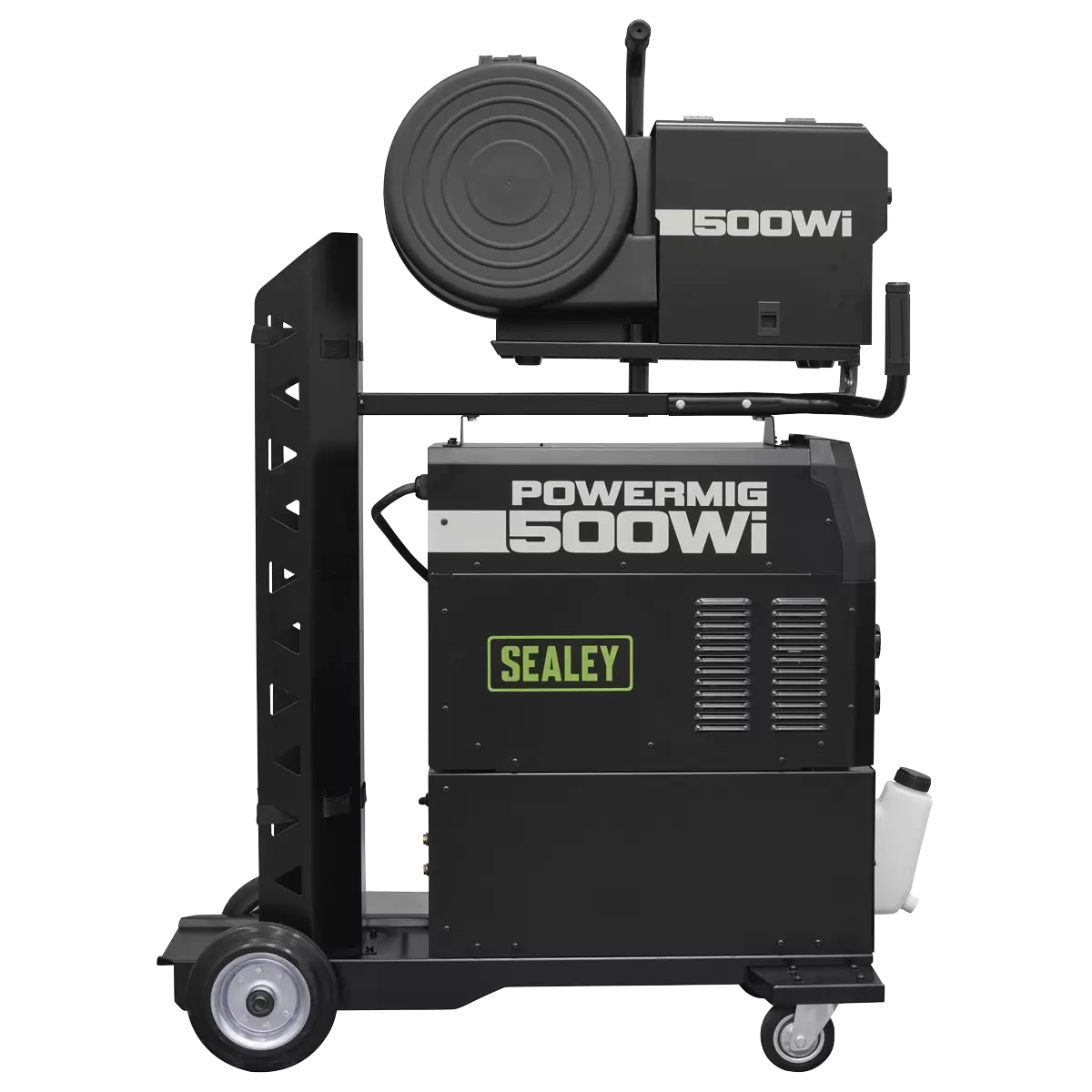

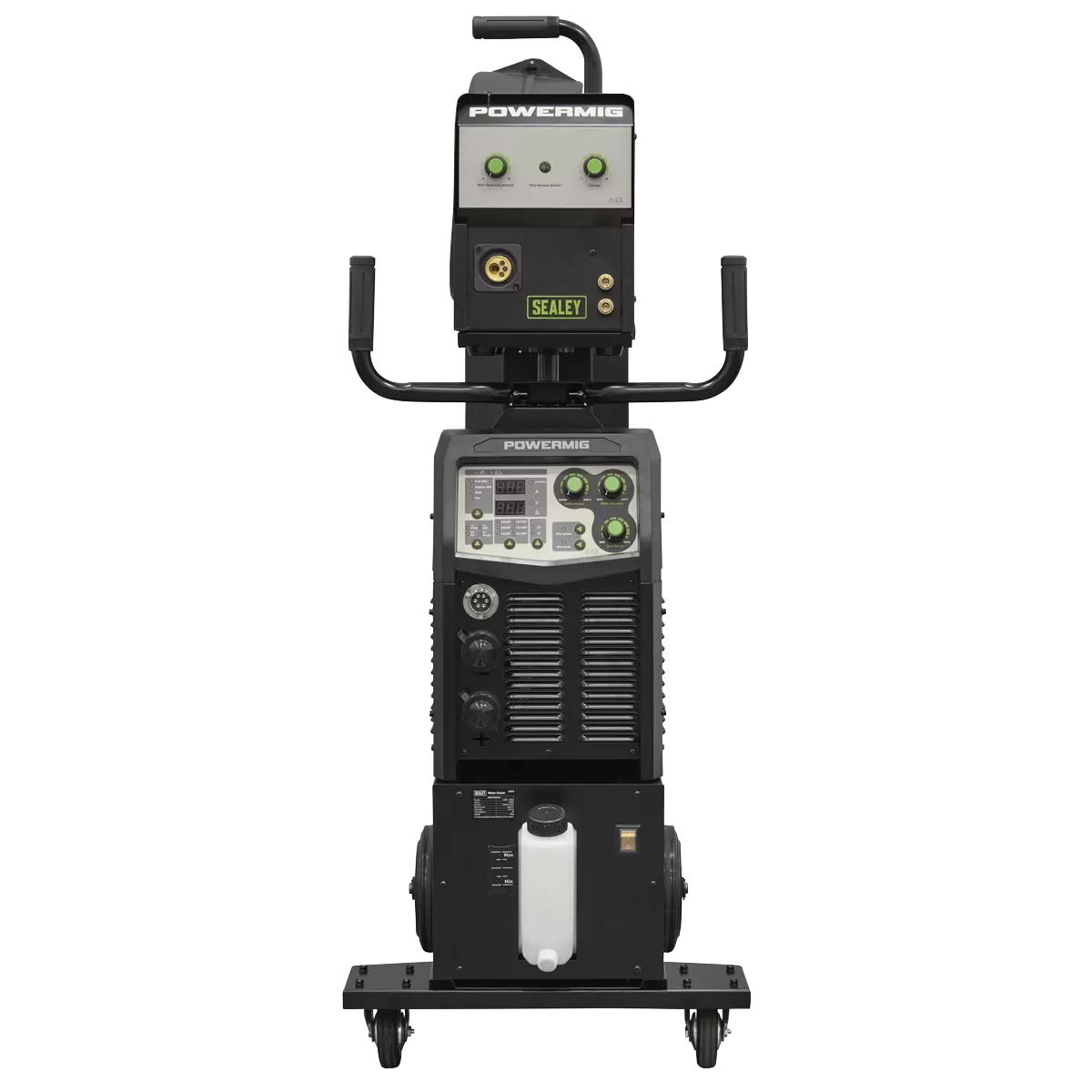

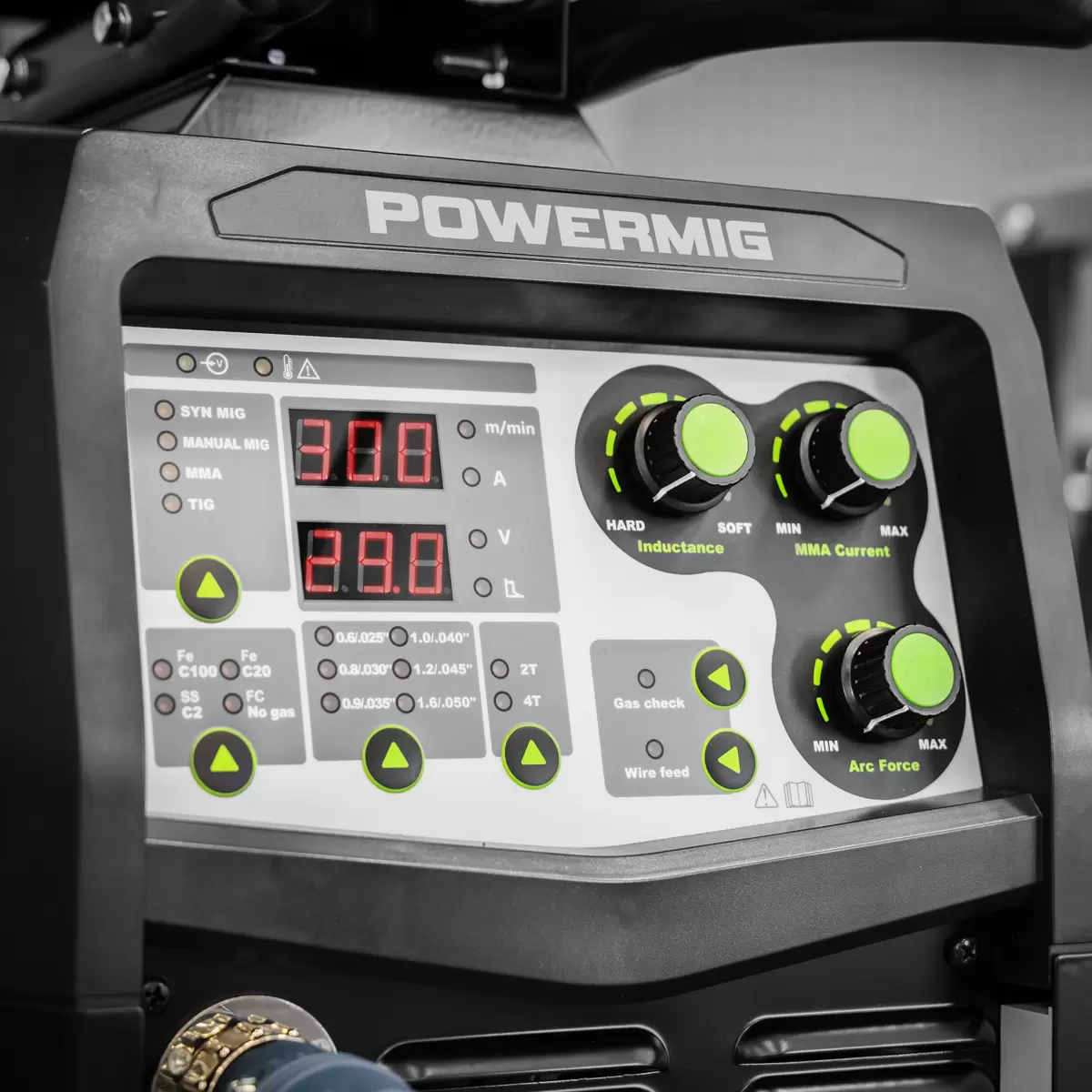

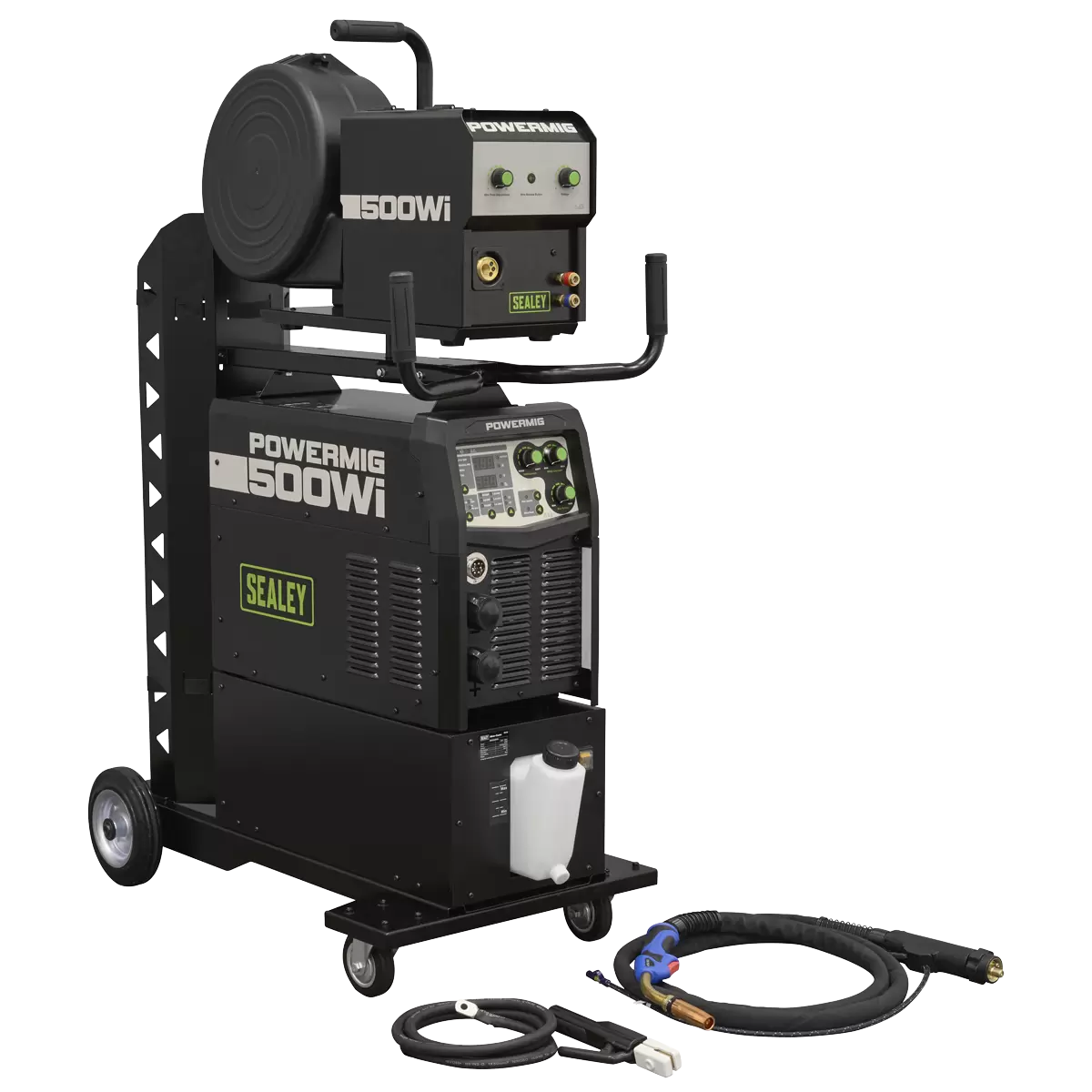

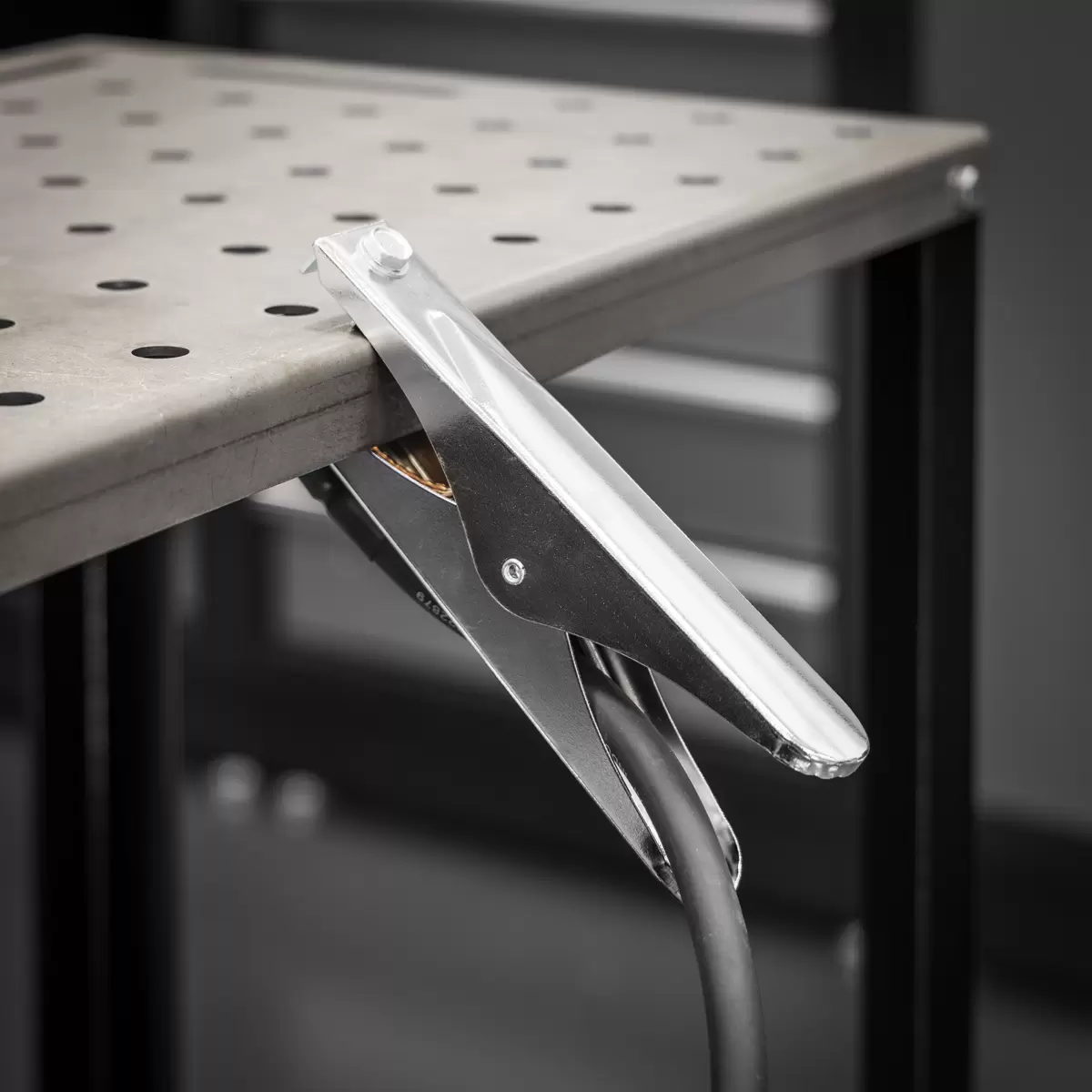

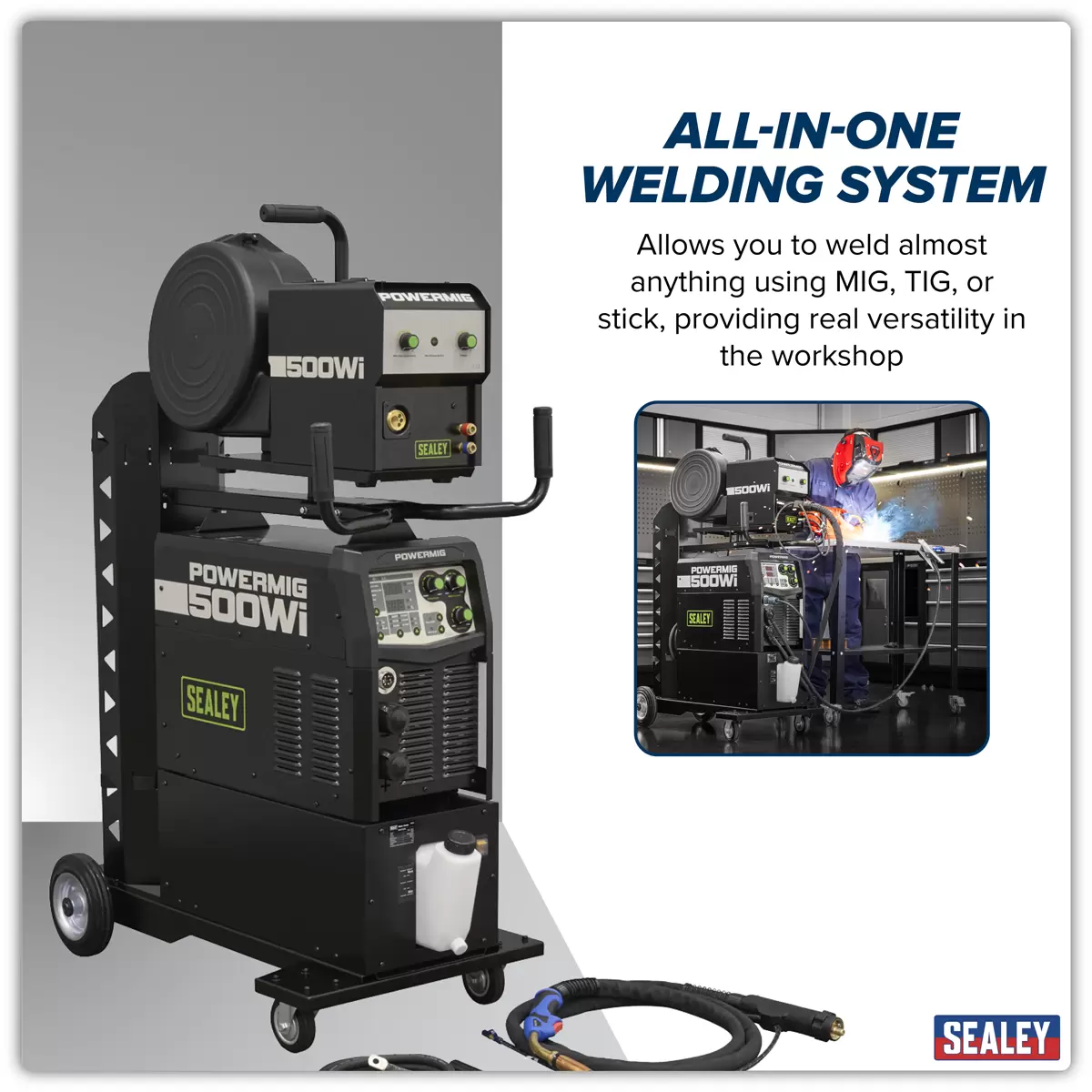

Multi process IGBT inverter Gas/Gasless MIG/TIG/MMA welder suitable for professional fabricators and workshops, as well as mechanics and technicians. Fitted with a portable wire feeder allowing access into high or tight spaces that otherwise would not be possible. In-built water cooler allows the torch to remain cooler for longer enhancing efficiency and productivity. Maximum output of 500A making it ideal for welding a large variety of metals including Steel, Stainless Steel up to 20mm. 2T/4T torch trigger function allowing greater precision during longer welds. Supplied with 2m power cable, 2m earth clamp, 3m Euro Mig torch and 2m Electrode holder. Wire capacity of 5-15kg with a diameter of 0.6mm to 1.6mm. Electrode capacity from 1.6mm to 5mm. Duty Cycle: MIG 60% @ 500A, MMA 60% @ 500A, TIG 60% 500A. POWERMIG500Wi is also supplied with a water cooler to prolong duty cycle and efficiency.
Features
Model No POWERMIG500Wi
Brand: Sealey
Nett Weight: 55.7kg
Welding Current: 30-500A
Wire Capacity: 5-15kg
Electrode Capacity: 1.6-5mm
Duty Cycle MIG: 60% @ 500A 100% @ 388A
Duty Cycle TIG: 60% @ 500A 100% @ 388A
Duty Cycle MMA: 60% @ 500A 100% @ 388A
Gas Type: CO2, Argon, CO2/Argon Mix

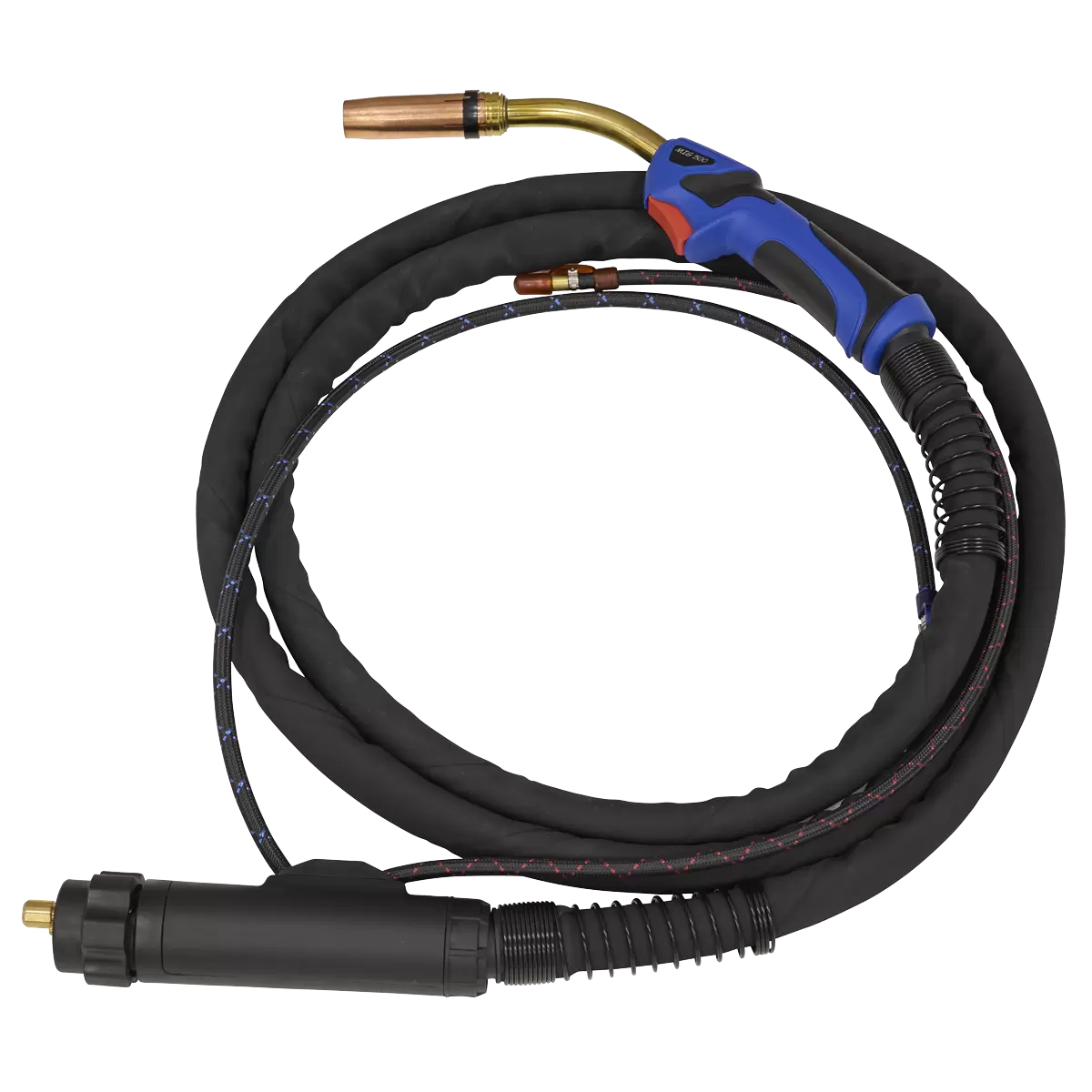

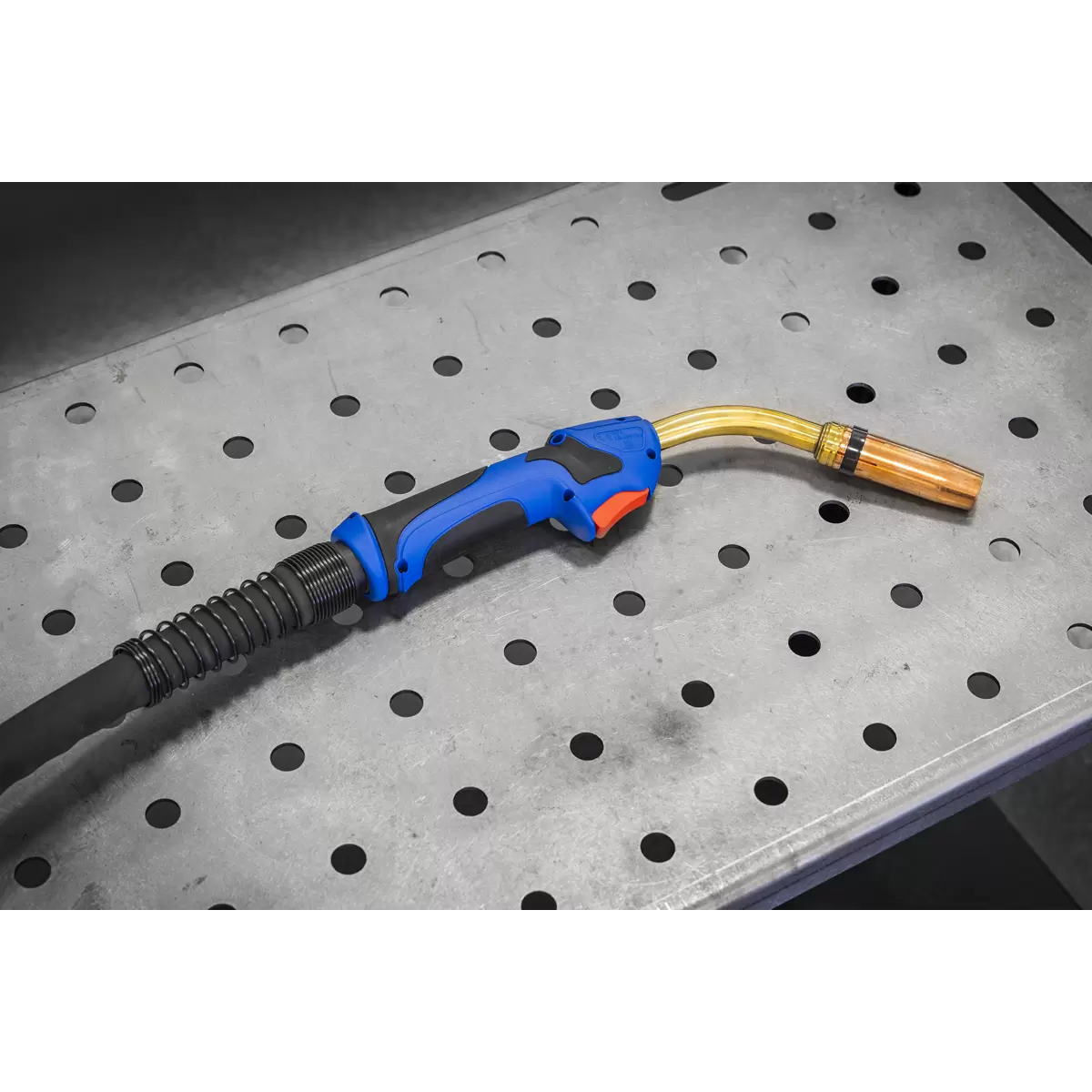

Mig Torch (inc): 3m Euro Non-Live Torch
Supply: 400V 3ph
Plug Type: Bare Wire
Power Supply Cable Length: 2m
Weight: 55.7kg
IP Rating: IP21S
Absorbed Power: 19.04kW
Input Current: 39.5A (MMA), 40A (MIG)
Output Voltage: 50A/22V to 500A/40V (MMA), 30A/15.5V to 500A/39V (MIG)
No Load Voltage: 85V (MMA), 85V (MIG)
Efficeincy: 0.8

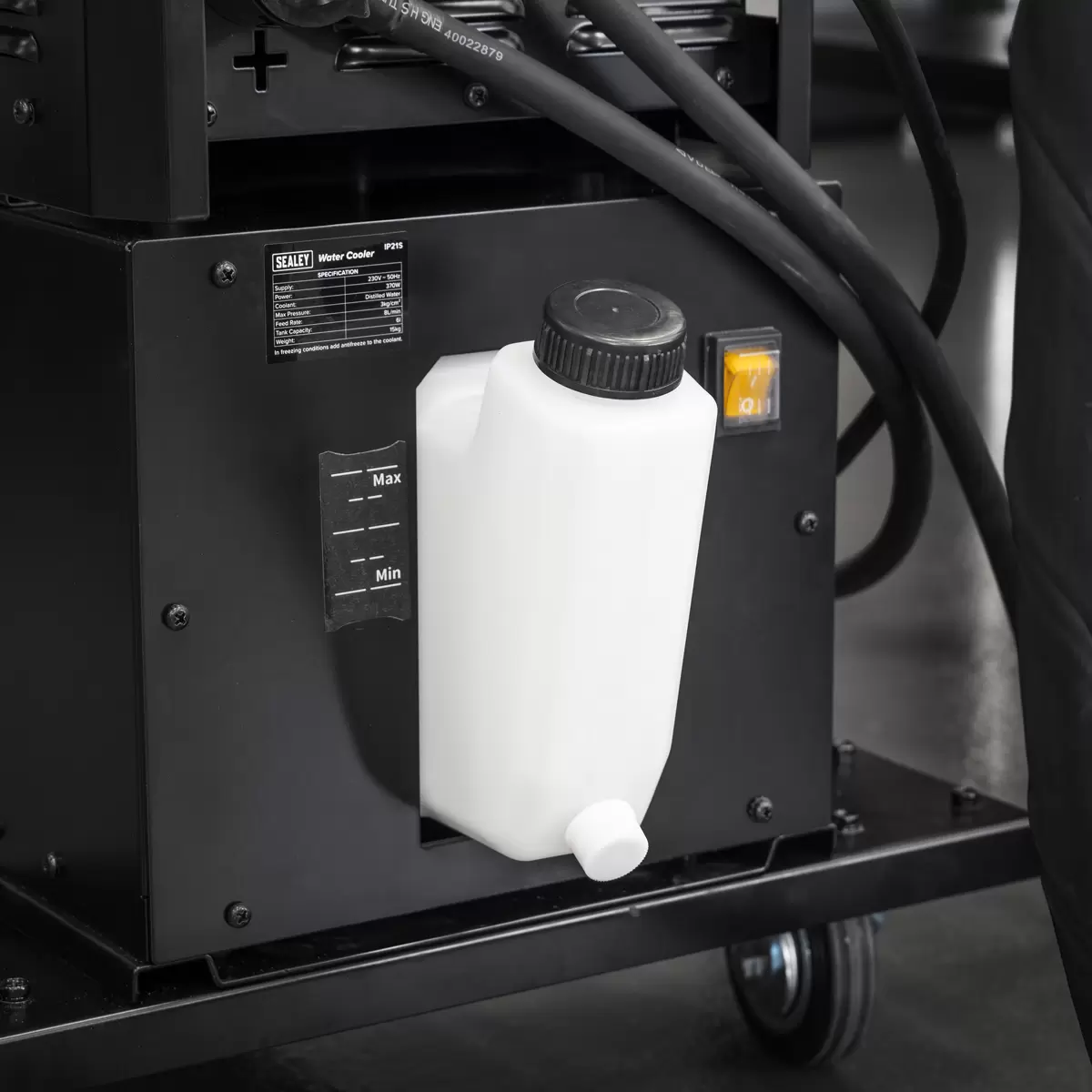

Specifications for Water Cooler:
Supply: 230V - 50Hz
Power: 370W
Coolant: Distilled Water
Max Pressure: 3kg/cm²
Feed Rate: 8L/min
Tank Capacity: 6L
Weight: 15kg
IP Rating: IP21S
Note* In freezing conditions add antifreeze to the coolant.
Brand: Sealey
Nett Weight: 55.7kg
Welding Current: 30-500A
Wire Capacity: 5-15kg
Electrode Capacity: 1.6-5mm
Duty Cycle MIG: 60% @ 500A 100% @ 388A
Duty Cycle TIG: 60% @ 500A 100% @ 388A
Duty Cycle MMA: 60% @ 500A 100% @ 388A
Gas Type: CO2, Argon, CO2/Argon Mix
Mig Torch (inc): 3m Euro Non-Live Torch
Supply: 400V 3ph
Plug Type: Bare Wire
Power Supply Cable Length: 2m
Weight: 55.7kg
IP Rating: IP21S
Absorbed Power: 19.04kW
Input Current: 39.5A (MMA), 40A (MIG)
Output Voltage: 50A/22V to 500A/40V (MMA), 30A/15.5V to 500A/39V (MIG)
No Load Voltage: 85V (MMA), 85V (MIG)
Efficeincy: 0.8
Specifications for Water Cooler:
Supply: 230V - 50Hz
Power: 370W
Coolant: Distilled Water
Max Pressure: 3kg/cm²
Feed Rate: 8L/min
Tank Capacity: 6L
Weight: 15kg
IP Rating: IP21S
Note* In freezing conditions add antifreeze to the coolant.
