SIP - 05691 - WELDMATE® PRO 200A DV ARC/TIG Inverter Welder
SKU: SIP05691
Part Number: 05691
Barcode: 5012713006076
Country of Origin: CN
Weight: 8.20 Kg
Our Price
£267.43 (inc VAT) £222.86 (ex VAT)
RRP £275.99 £229.99
Save
£8.56
£7.13
SIP 2-YEAR Warranty included.
Description

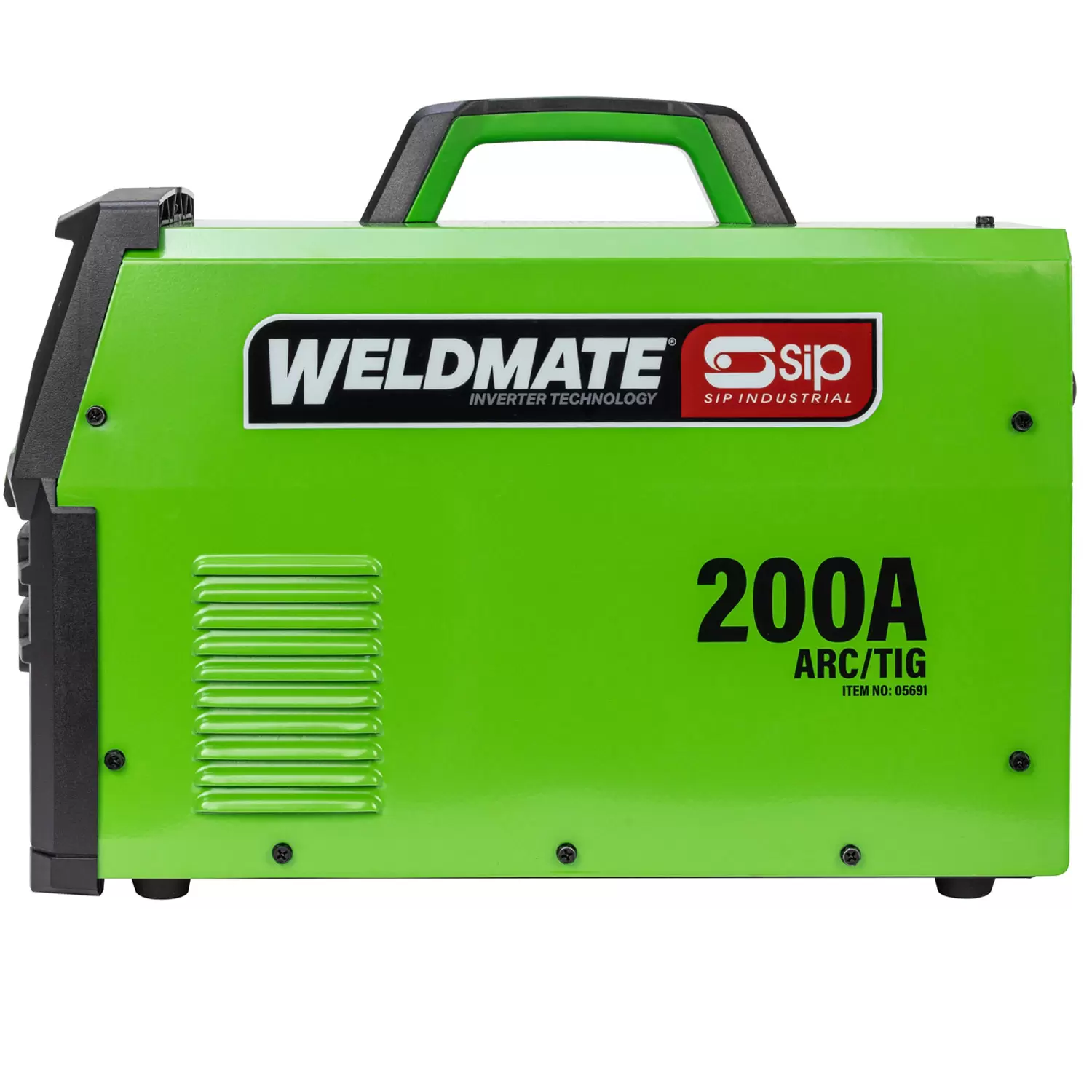

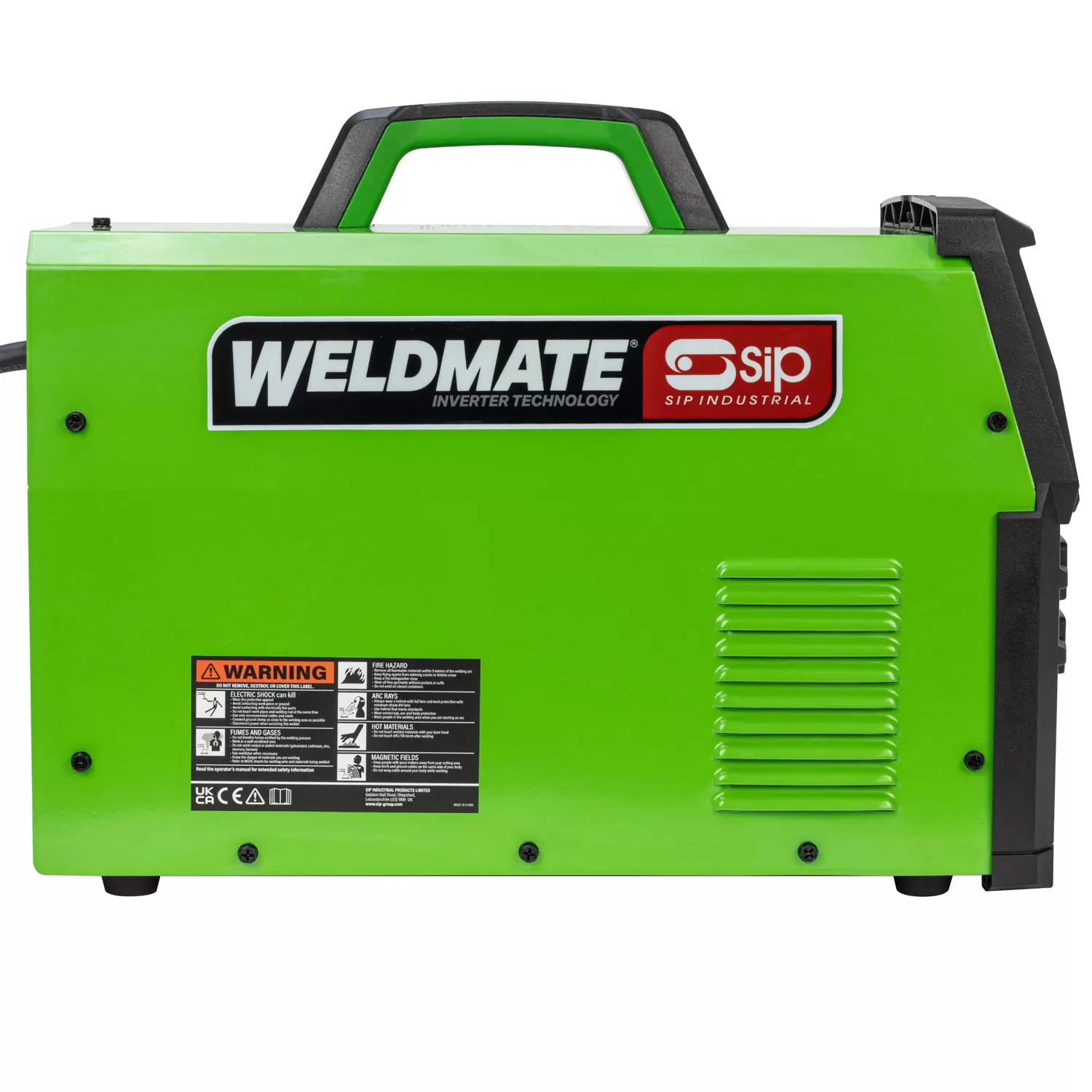

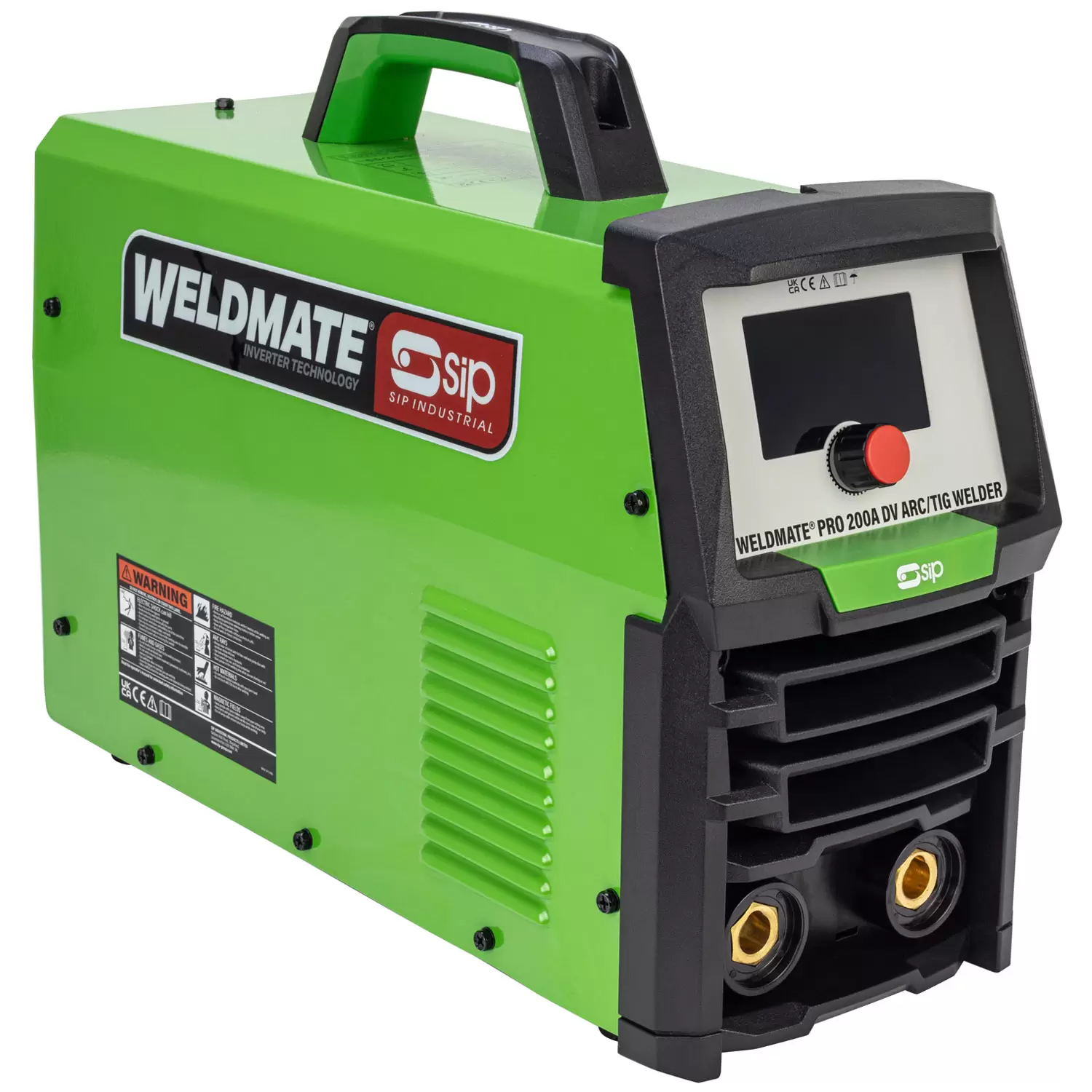

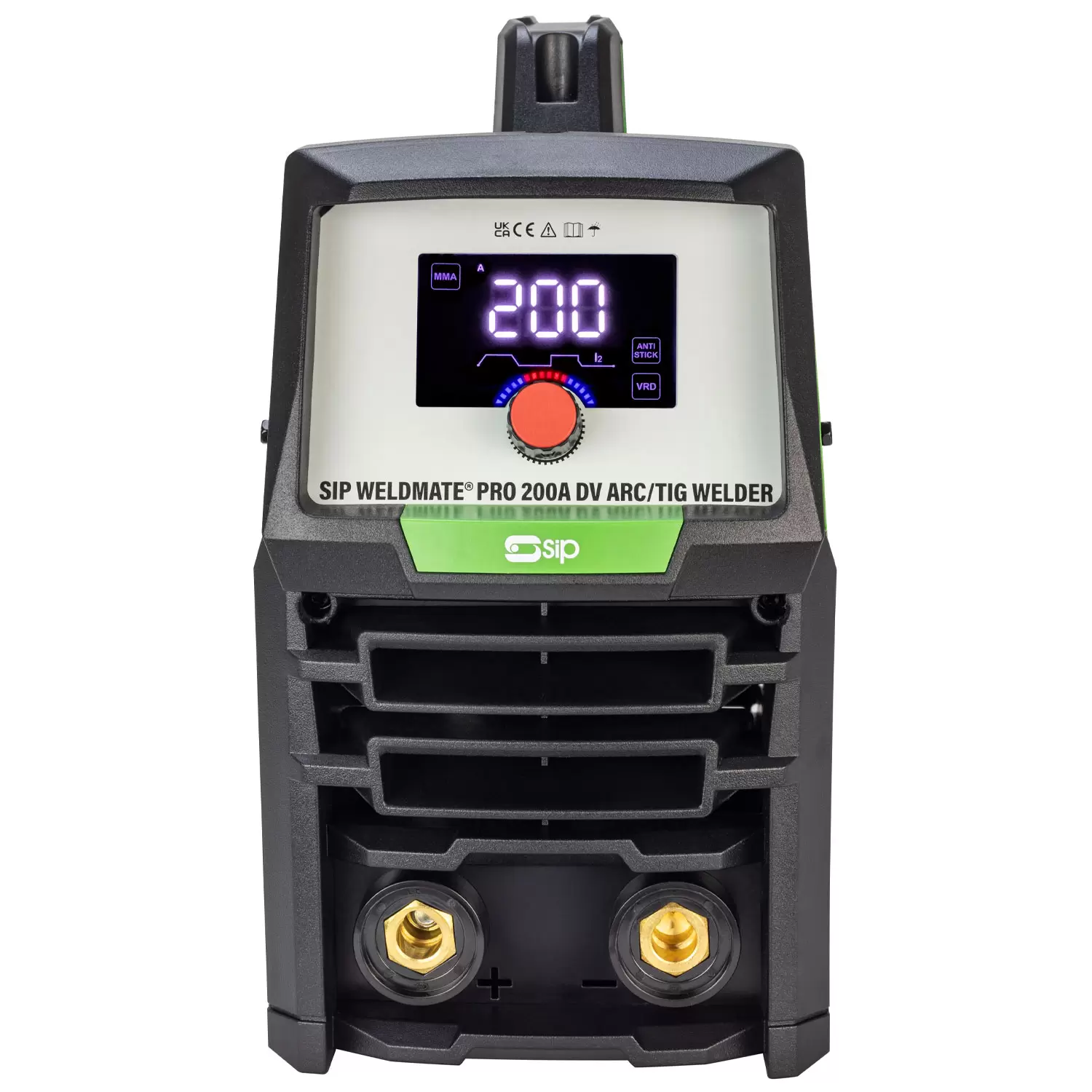

The SIP WELDMATE® PRO 200A DV ARC/TIG Inverter Welder is a dual process inverter welder with dual voltage functionality. Ideal for use in professional fabrication workshops and onsite environments, this welder can be powered from either a 230v/16A or 110v/16A supply.

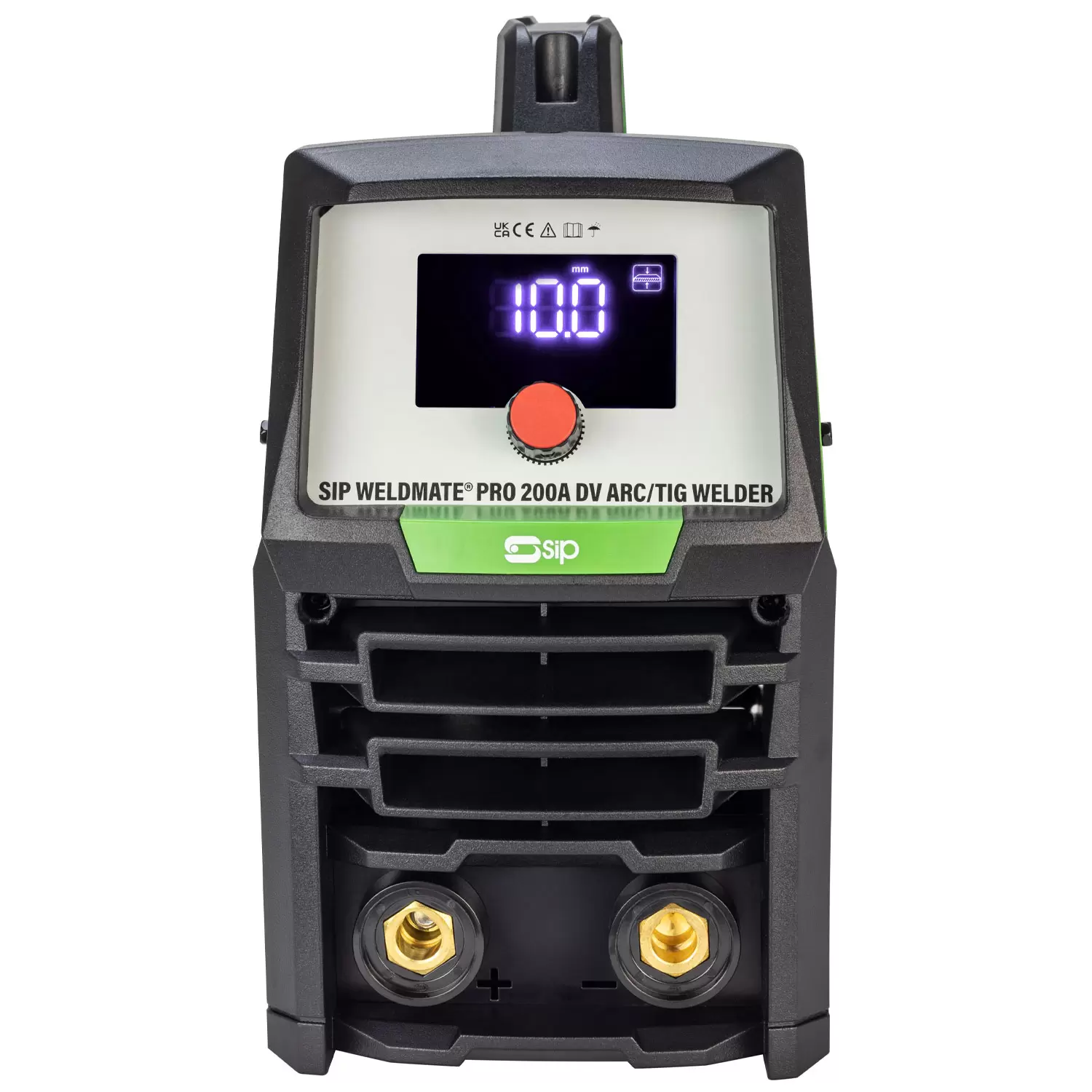

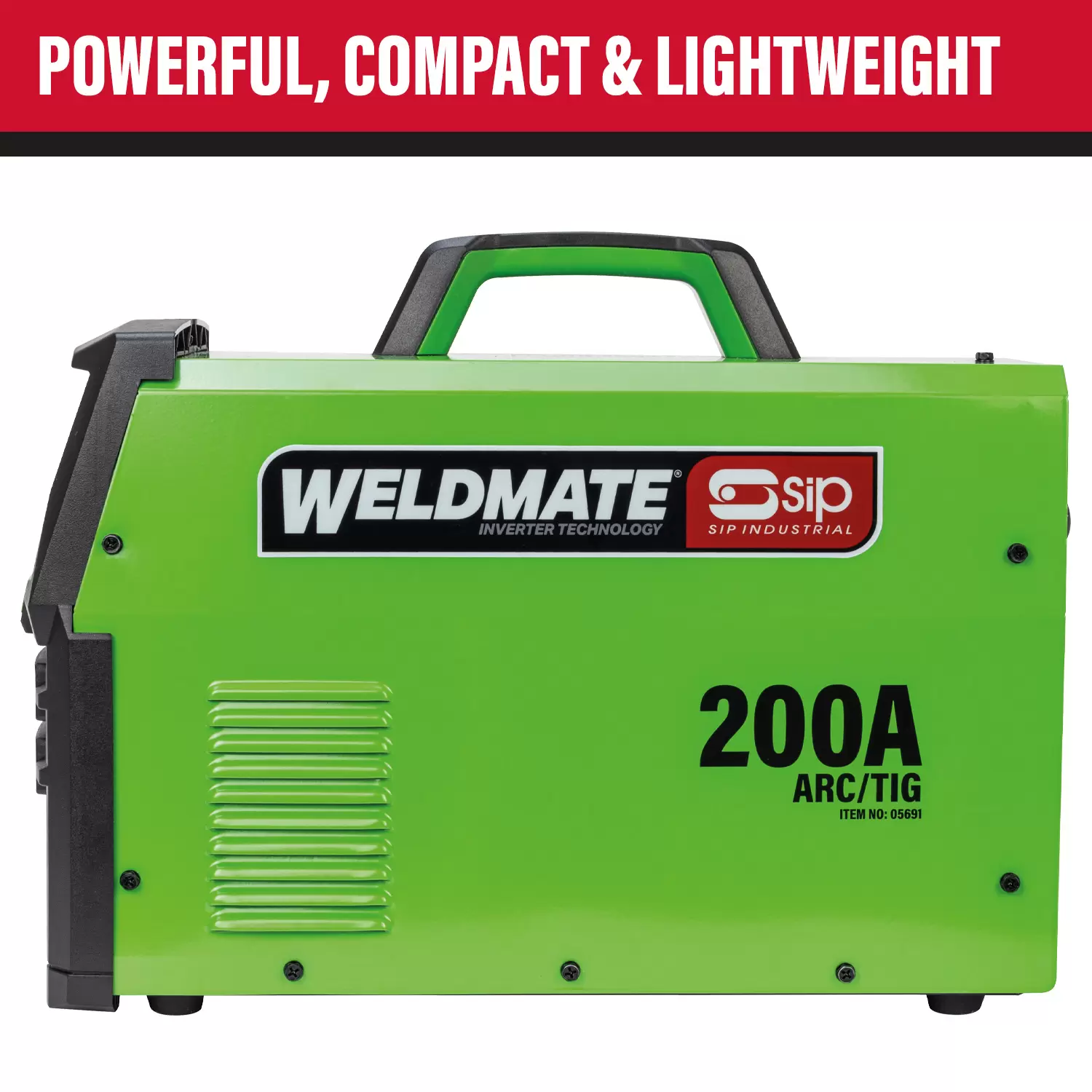

Powerful, compact and lightweight, this inverter welder also features Synergic Control which adjusts the welding current output according to the electrode diameter or welding material thickness selected for optimal penetration and bead formation.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
Features

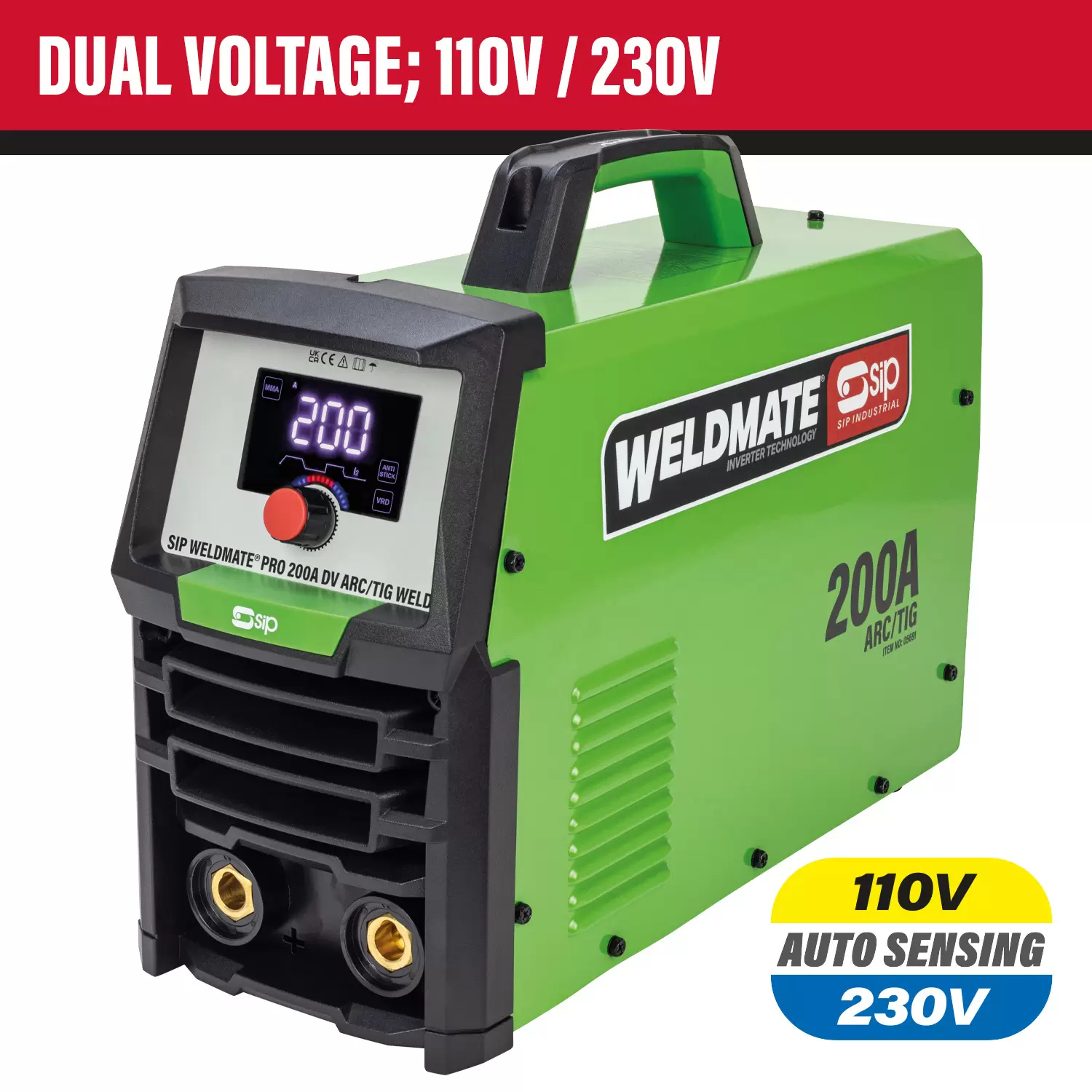

• Dual process ARC/TIG welder with 230v and 110v supply outputs
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)

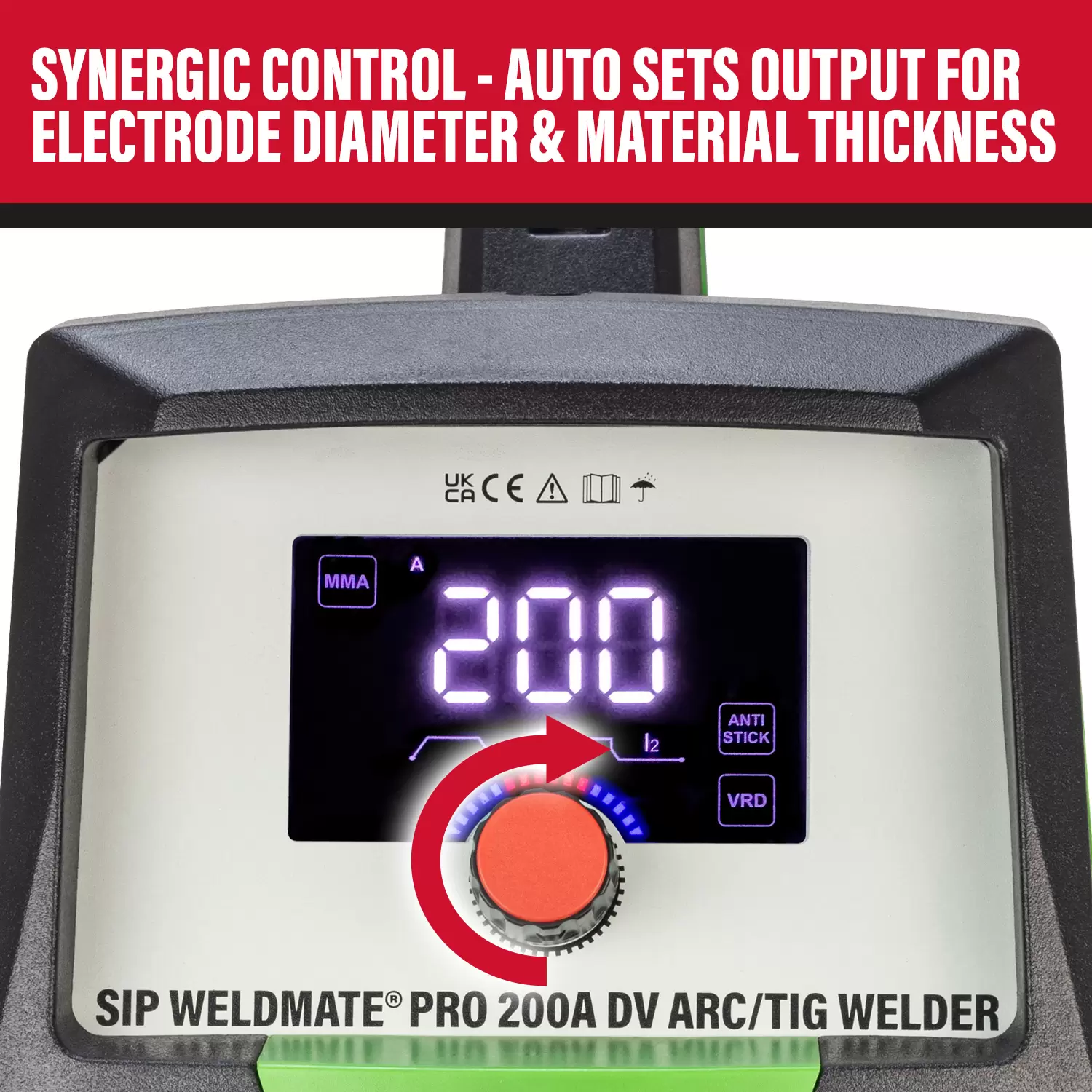

• Synergic control auto sets output for electrode diameter and material thickness

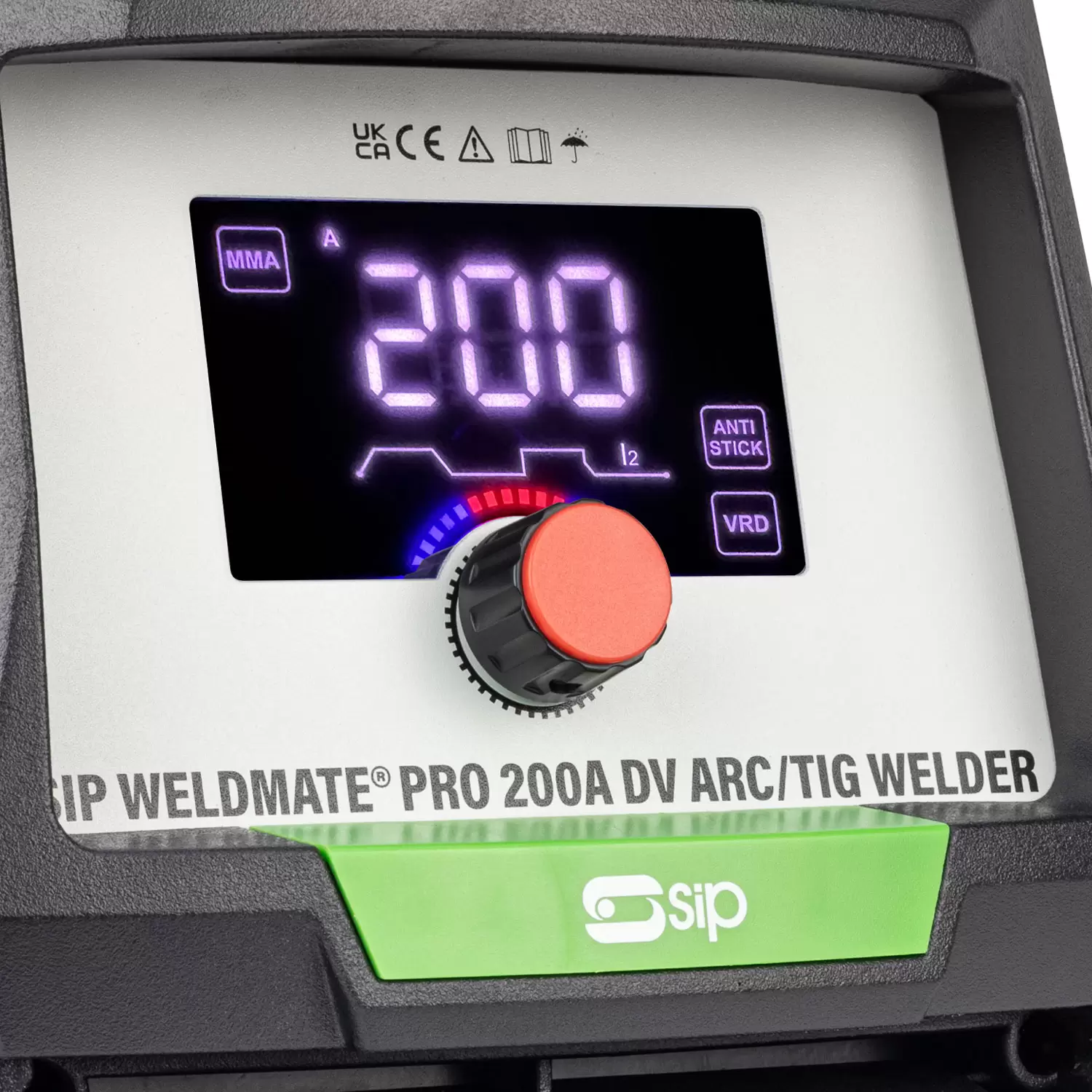

• Infinitely variable dial offers a smoother stepless output adjustment

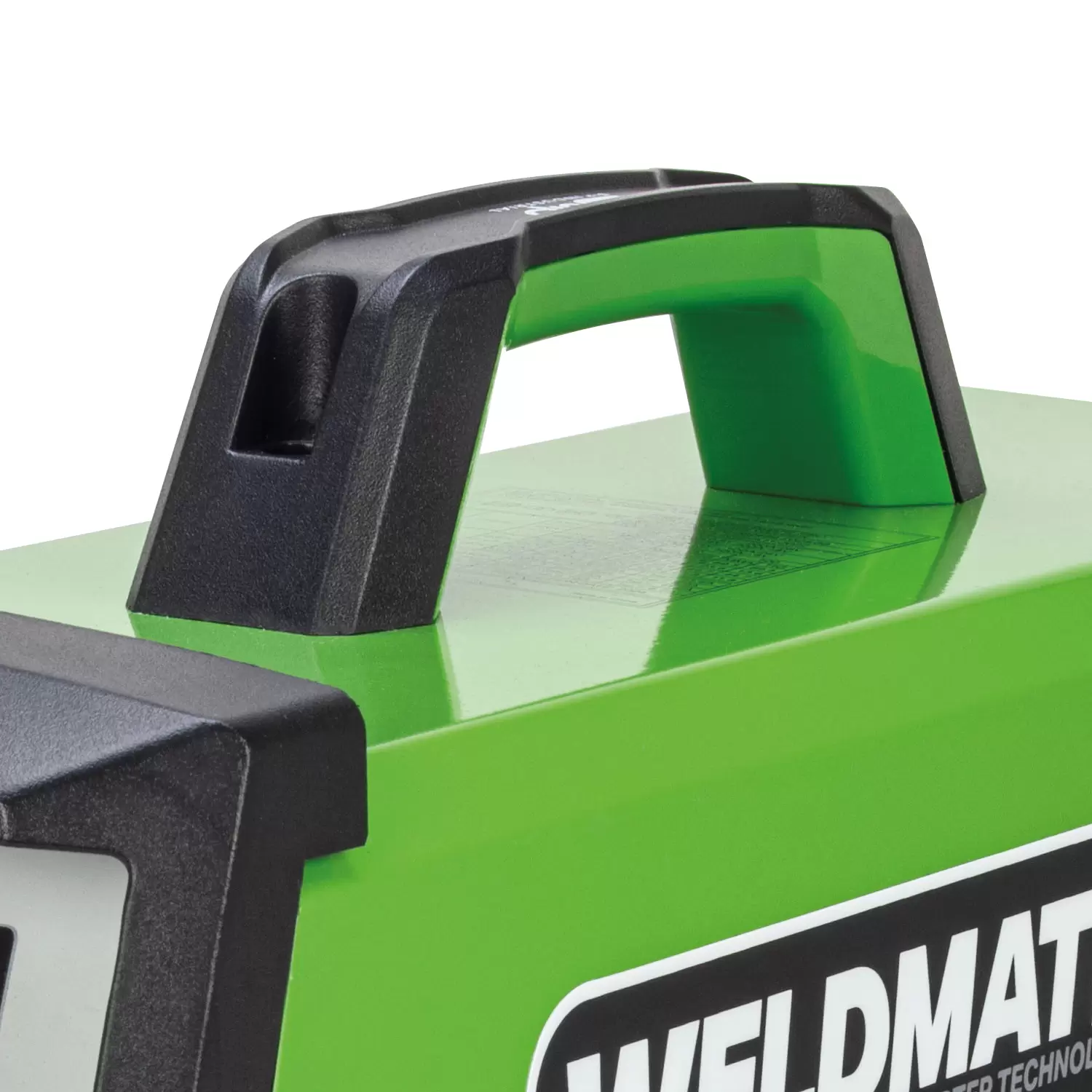

• Compact and lightweight design for easy work area movement
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)
• Synergic control auto sets output for electrode diameter and material thickness
• Infinitely variable dial offers a smoother stepless output adjustment
• Compact and lightweight design for easy work area movement
Specification
ITEM NO. 05691

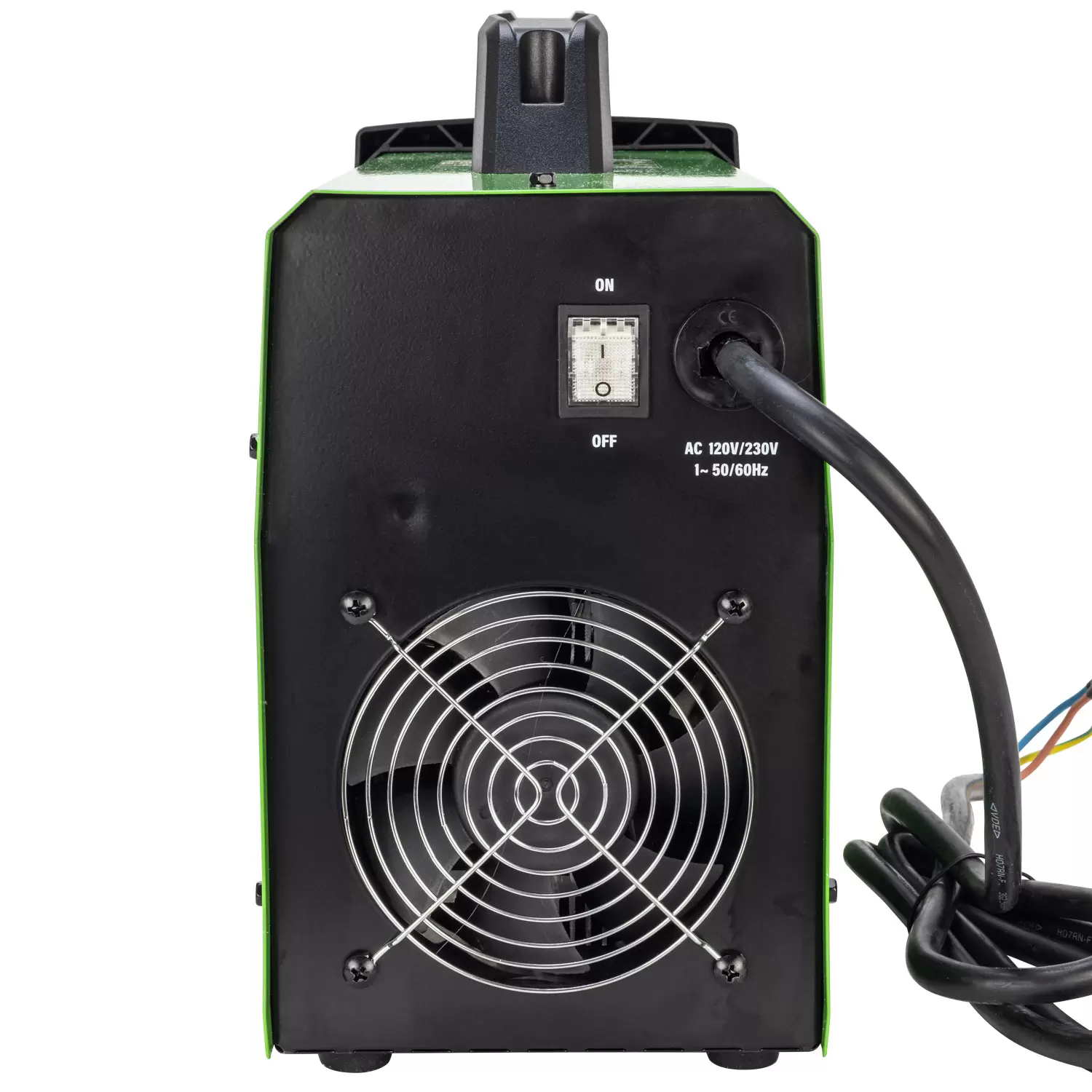

Input Supply: 230v (16A) / 110v (16A)
Output Current: ARC; 10A - 200A (230v) / 10A - 100A (110v) / TIG; 10A - 200A (230v) / 10A - 100A (110v)
Output Voltage: ARC; 20.4v - 28v (230v) / 20.4v - 24v (110v) / TIG; 20.4v - 28v (230v) / 20.4v - 24v (110v)
Duty Cycle @ 20°C: ARC; 200A @ 40% (230v) / 100A @ 20% (110v) / TIG; 200A @ 40% (230v) / 100A @ 20% (110v)
Welding Material Thickness: 1.5mm - 10.5mm (mild steel) (230v) / 1.5mm - 5.5mm (mild steel) (110v)
Protection / Insulation F
Workshopping Says
⚠️ Electrical Supply Required
This product requires a 16A (or 32A) industrial electrical supply and cannot be plugged into a standard UK 13A 3-pin socket without the appropriate electrical installation or approved adaptor where applicable. Please check the product specification before ordering.
This product requires a 16A (or 32A) industrial electrical supply and cannot be plugged into a standard UK 13A 3-pin socket without the appropriate electrical installation or approved adaptor where applicable. Please check the product specification before ordering.
