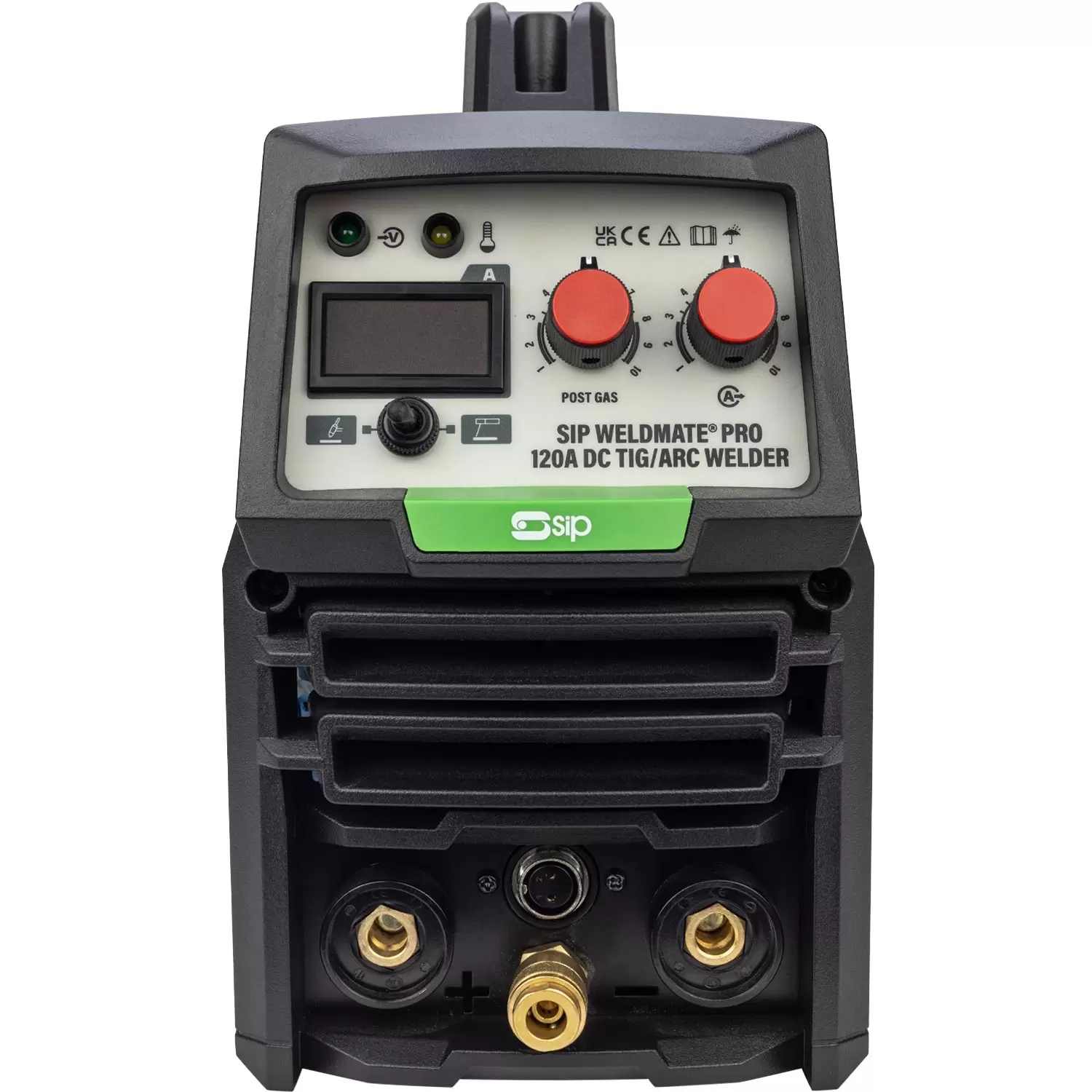

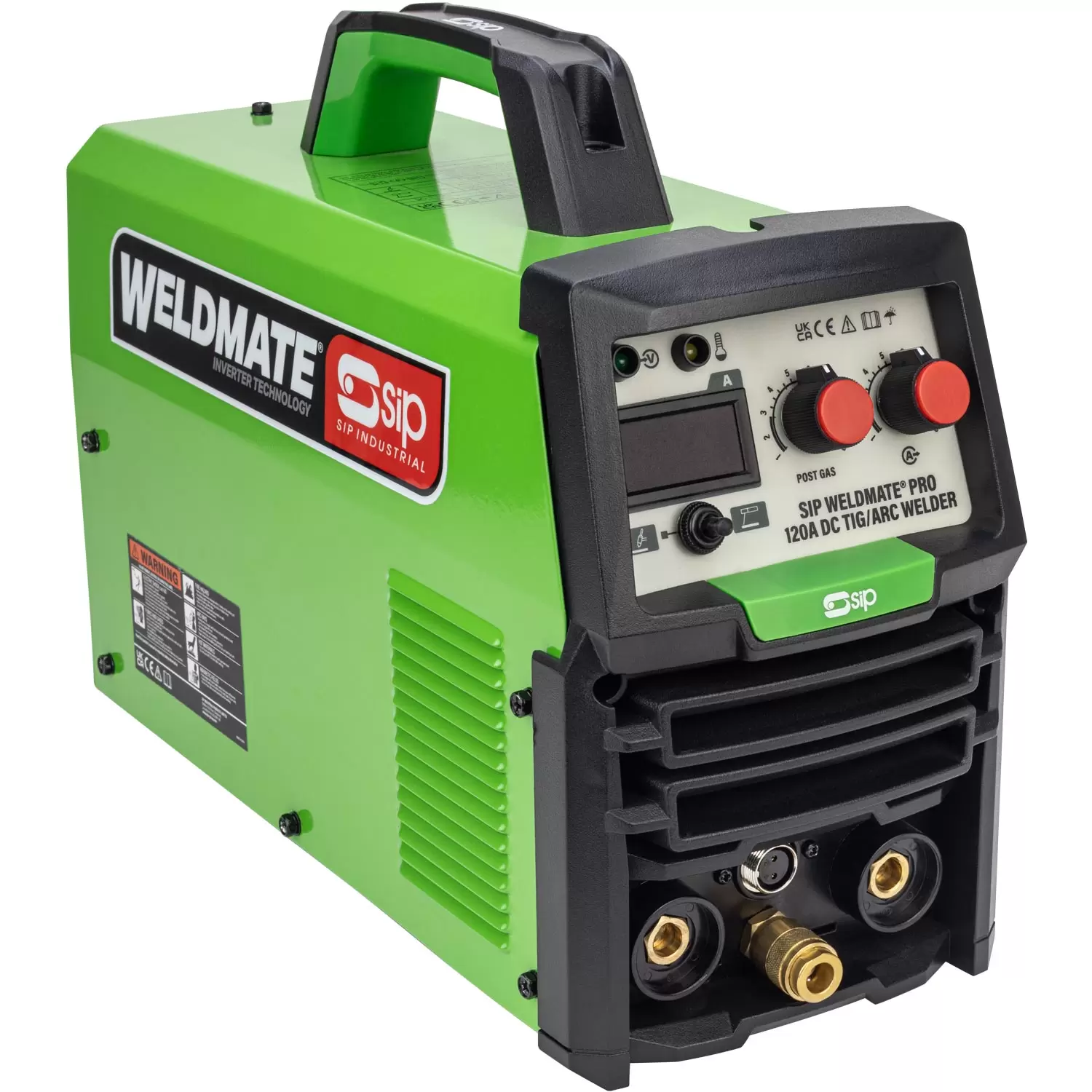

SIP - 05693 - WELDMATE® PRO 120A DC TIG/ARC Inverter Welder
SKU: SIP05693
Part Number: 05693
Barcode: 5012713006083
Country of Origin: CN
Weight: 7.20 Kg
Our Price
£209.29 (inc VAT) £174.41 (ex VAT)
RRP £215.99 £179.99
Save
£6.70
£5.58
SIP 2-YEAR Warranty included.
Description
The SIP WELDMATE® PRO 120A DC TIG/ARC Inverter Welder is a dual process inverter welder specifically designed for use in fabrication workshops, sheet metal applications and home workshops.

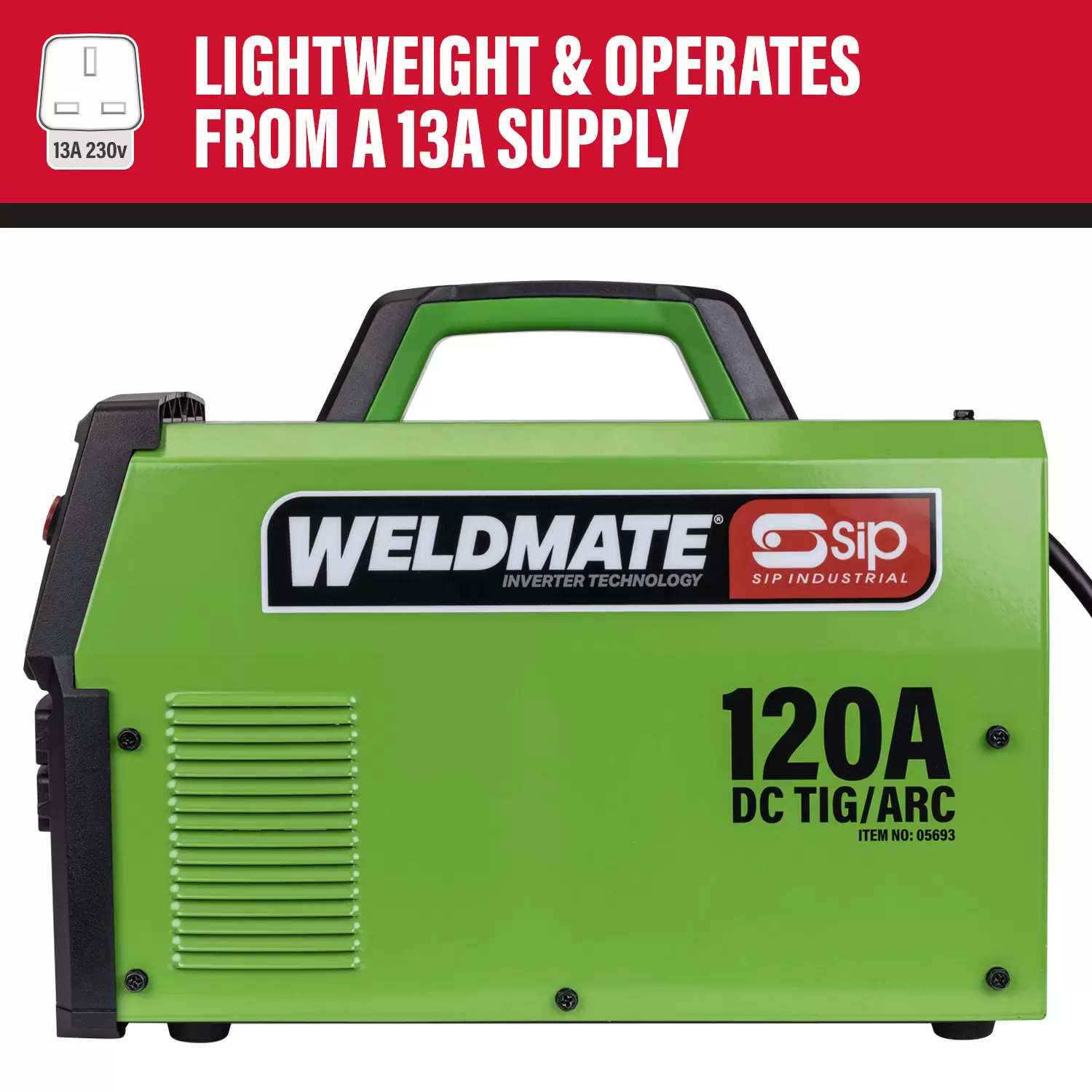

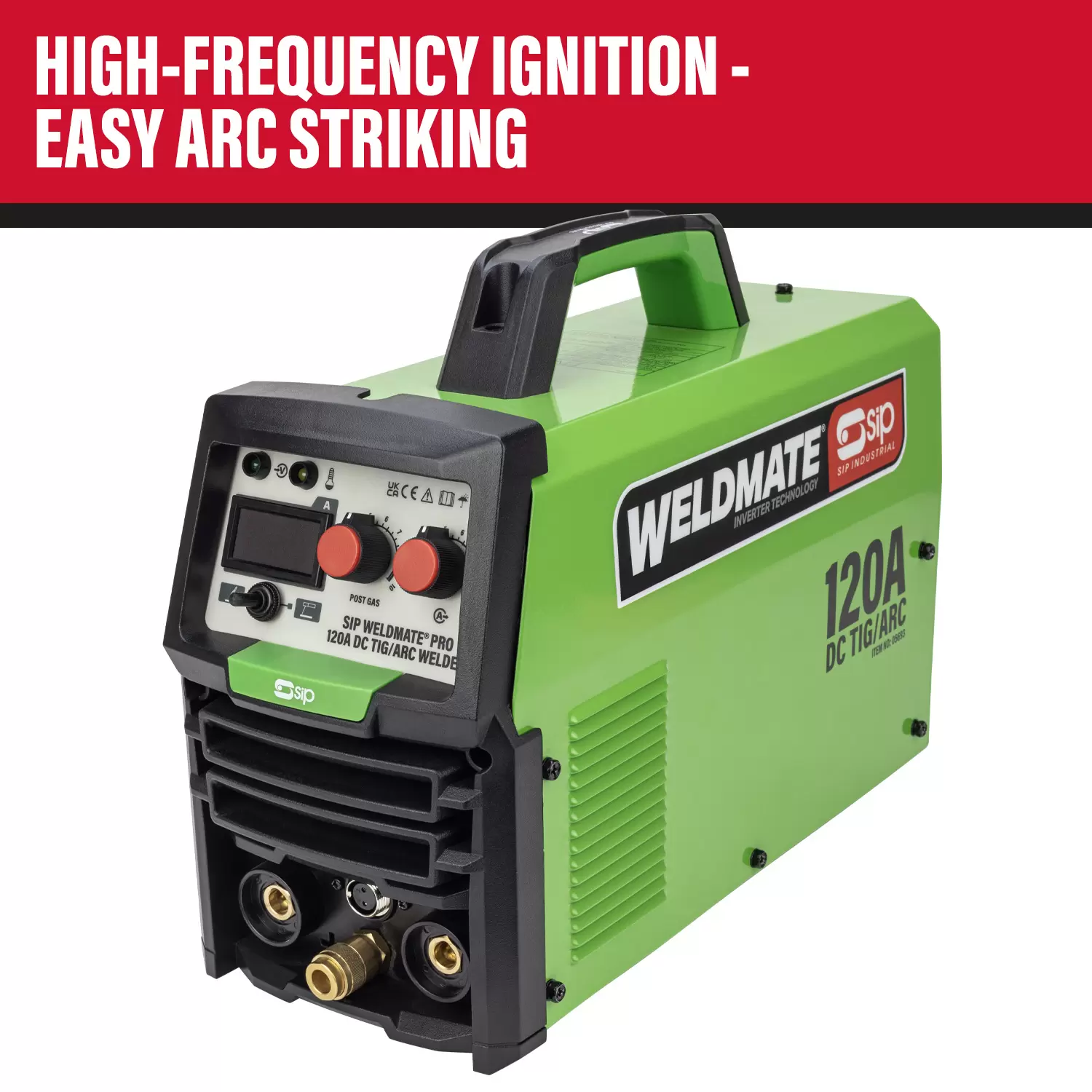

Powerful, compact and lightweight, this inverter welder also features high frequency start-up for easy arc striking, which helps to achieve cleaner and higher quality welds by avoiding electrode contact with the workpiece when initiating the arc. Also operates from a 230v (13A) supply for added flexibility.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
Features
• Dual process TIG/ARC DC welder for greater versatility at high duty cycles
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)

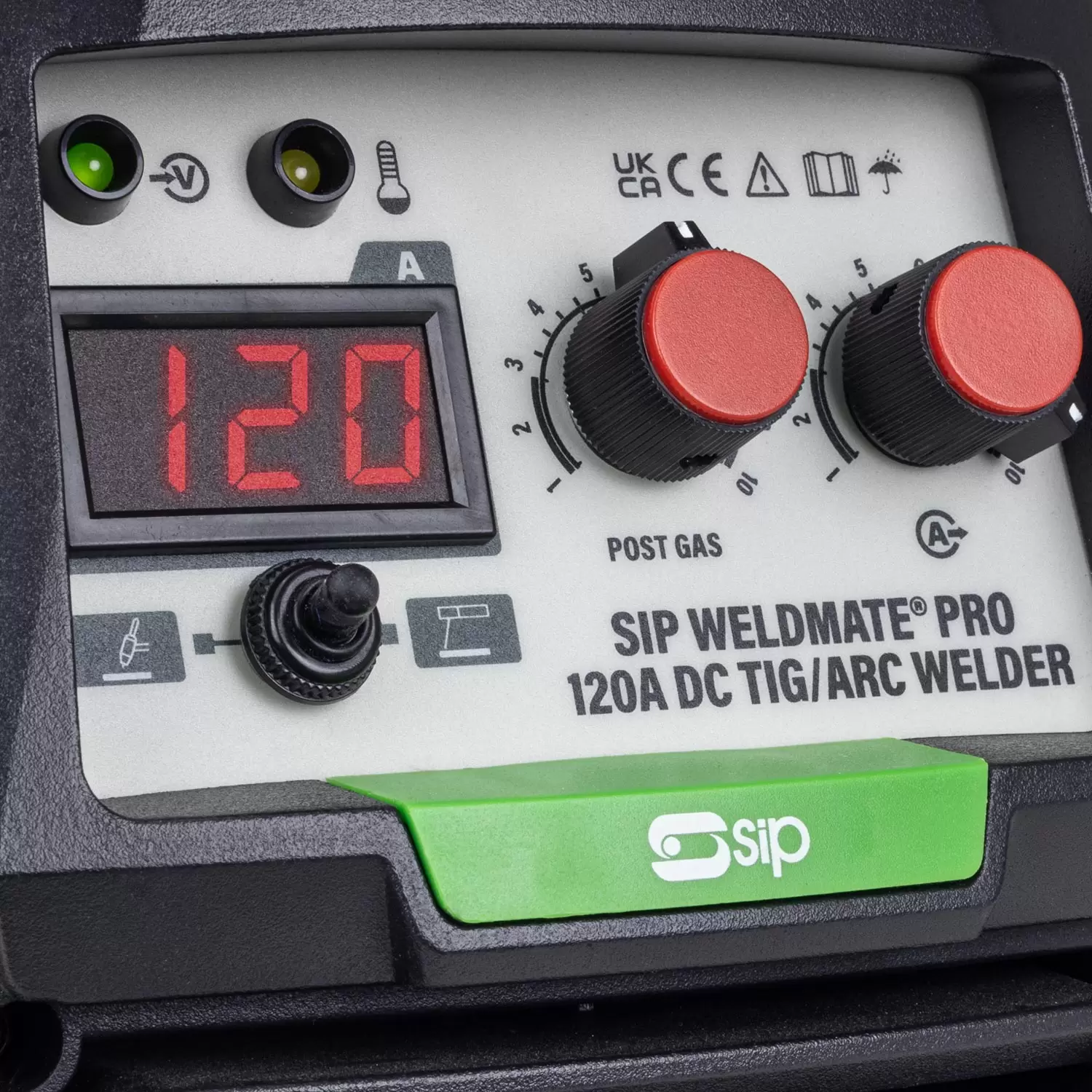

• Infinitely variable dials offer smoother stepless output and setting adjustment

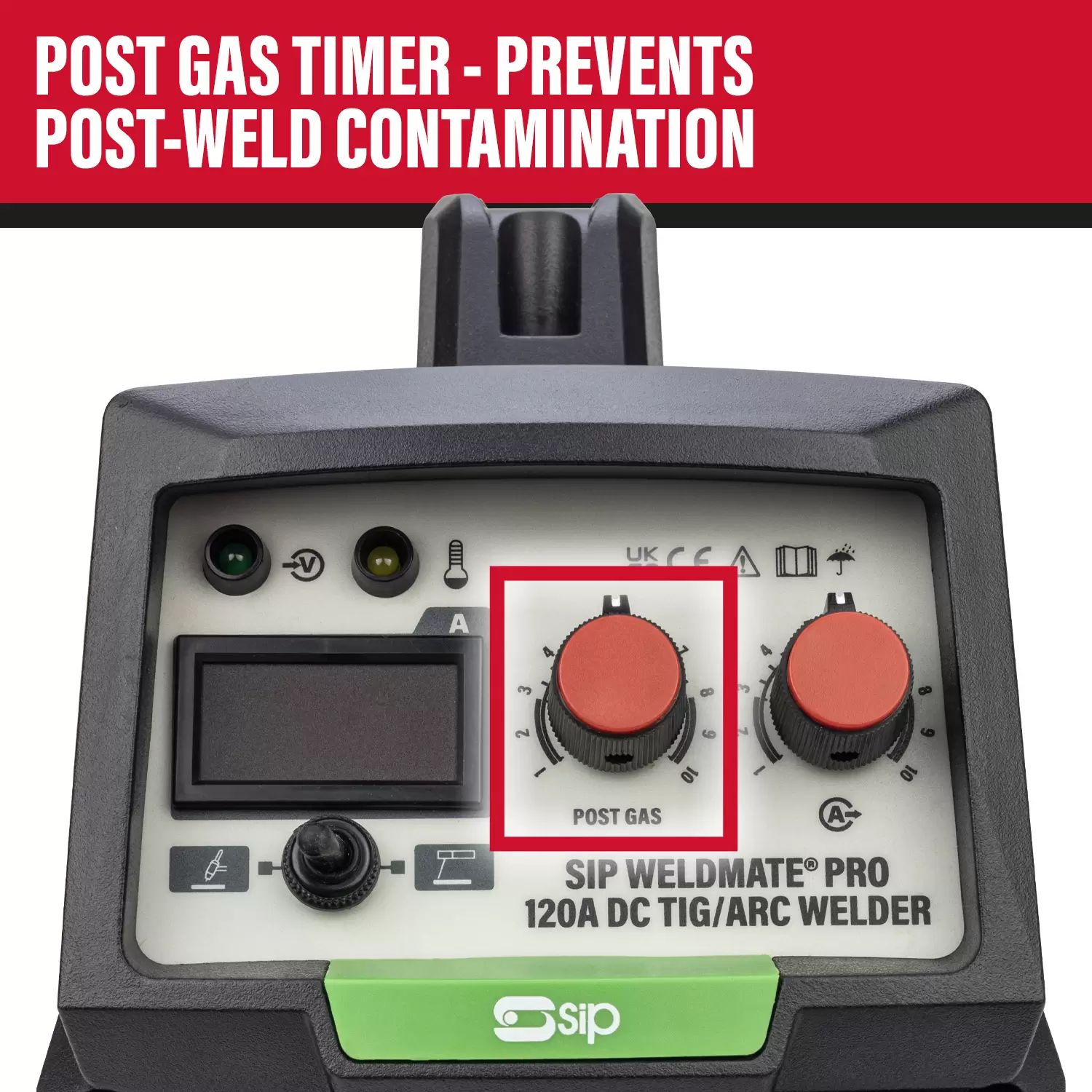

• Post gas setting for prevent oxidation for a clean and higher quality weld
• Compact and lightweight design for easy work area movement
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)
• Infinitely variable dials offer smoother stepless output and setting adjustment
• Post gas setting for prevent oxidation for a clean and higher quality weld
• Compact and lightweight design for easy work area movement
Specification
ITEM NO. 05693

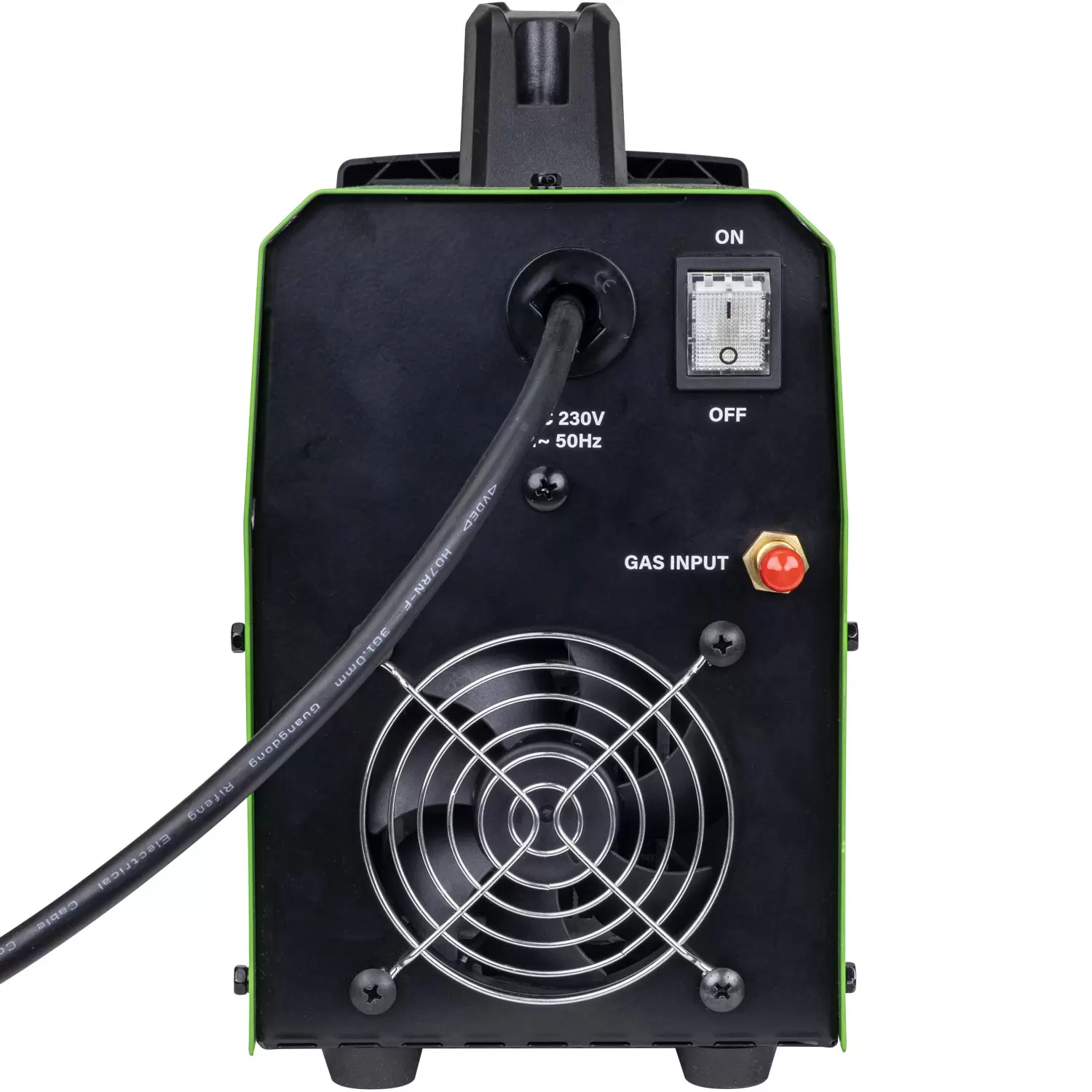

Input Supply: 230v (13A)
Output Current: 10A - 120A (TIG) / 10A - 100A (MMA)
Output Voltage: 10.4v - 14.8v: 70v DC Open Circuit Volts (TIG) / 20.4v - 24v: 70v DC Open Circuit Volts (MMA)
Duty Cycle @ 20°C: 120A @ 30% (TIG) / 100A @ 30% (MMA)
Welding Material Thickness: 0.5mm - 5mm (mild steel)
Protection / Insulation F
Workshopping Says

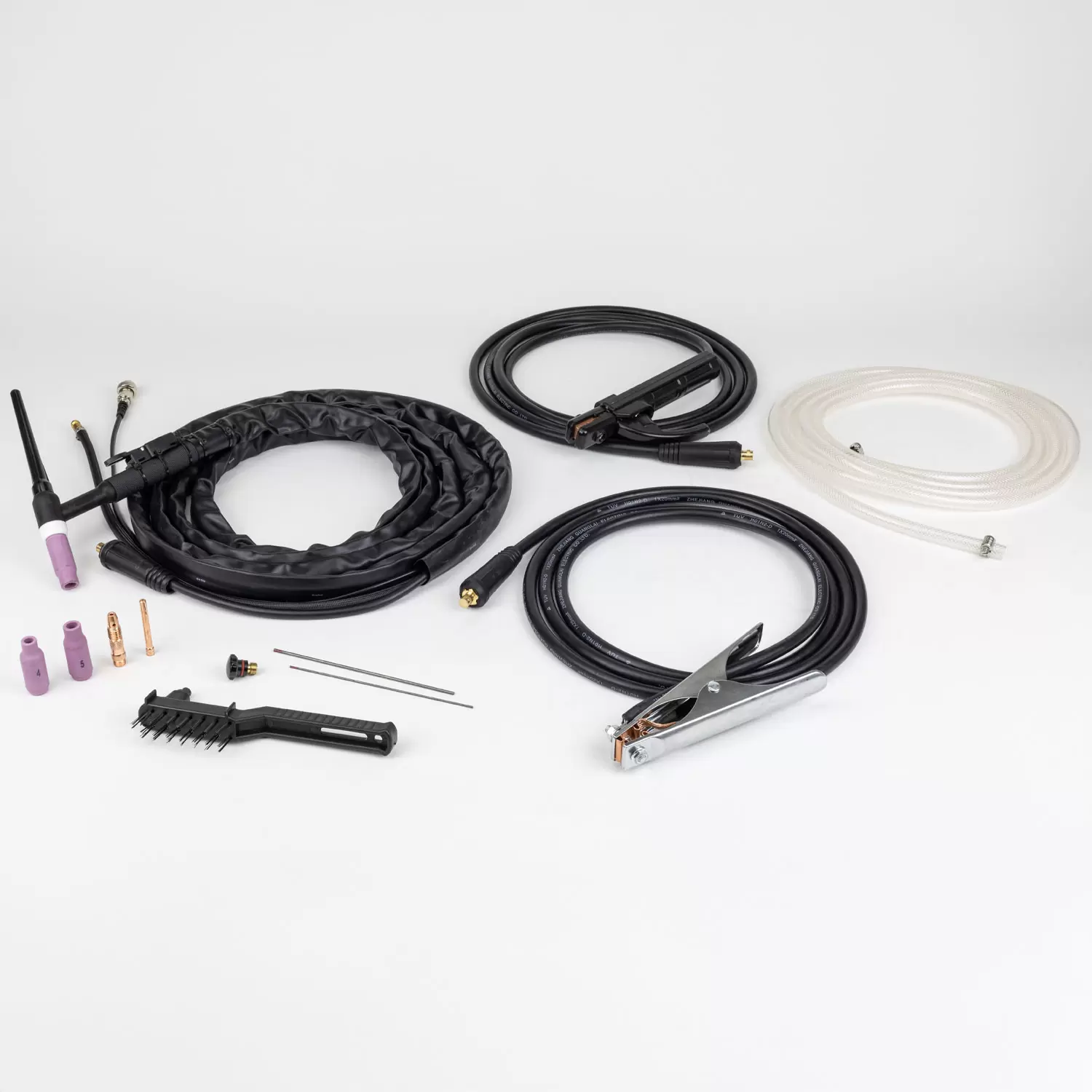

Ideal for use in fabrication workshops. Perfect for sheet metal applications. Suitable for home workshops. Ideal for mild steel, stainless steels, copper and brass. 1x SIP WELDMATE® PRO DC 120A TIG/ARC Inverter Welder (230v/13A), 1x 3mtr TIG torch with consumables (2x tungsten electrodes, collets, collet bodies, ceramic nozzles and back caps), 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x welding hammer/brush.
