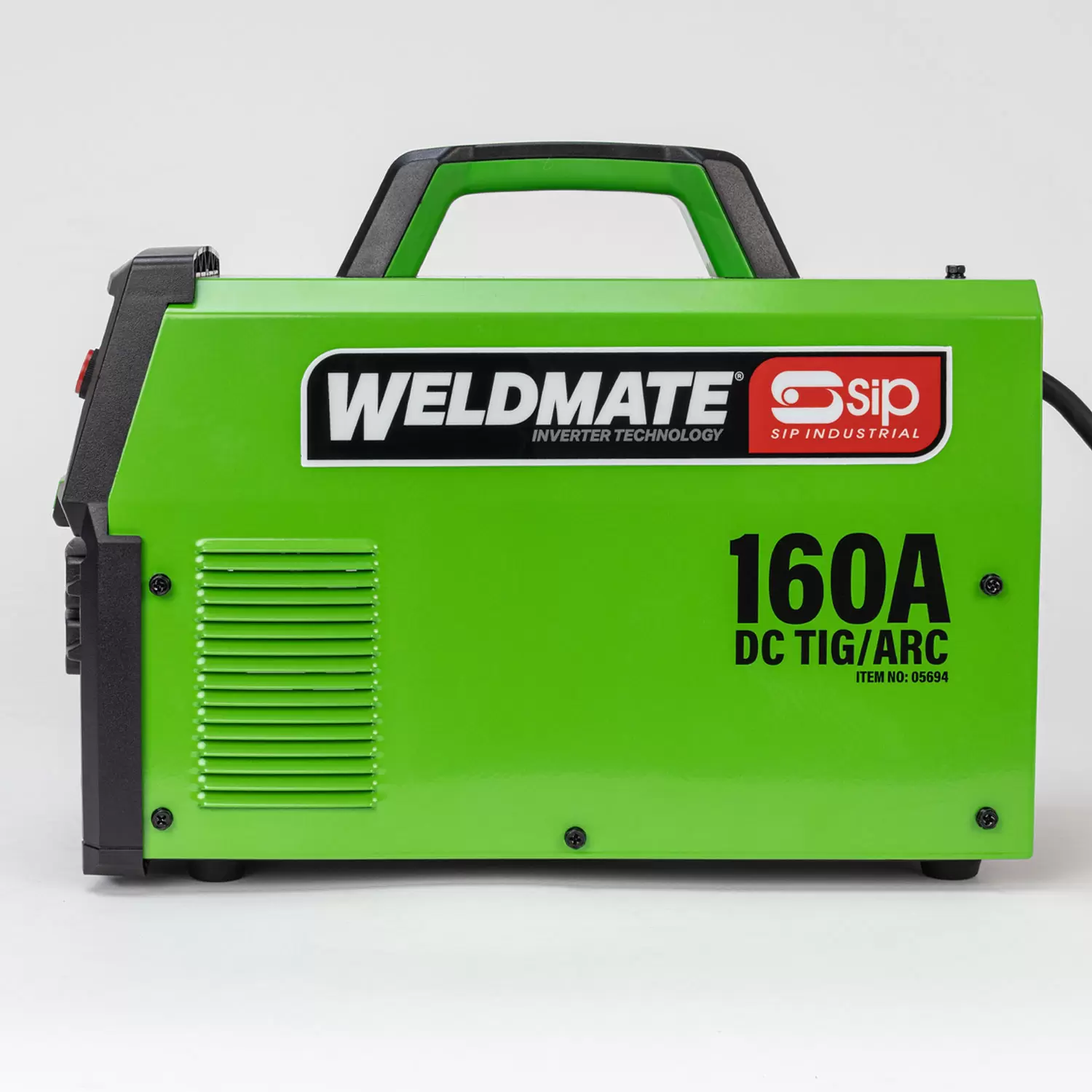

SIP - 05694 - WELDMATE® PRO 160A DC TIG/ARC Inverter Welder
SKU: SIP05694
Part Number: 05694
Barcode: 5012713006090
Country of Origin: CN
Weight: 7.20 Kg
Our Price
£313.94 (inc VAT) £261.62 (ex VAT)
RRP £323.99 £269.99
Save
£10.05
£8.37
SIP 2-YEAR Warranty included.
Description

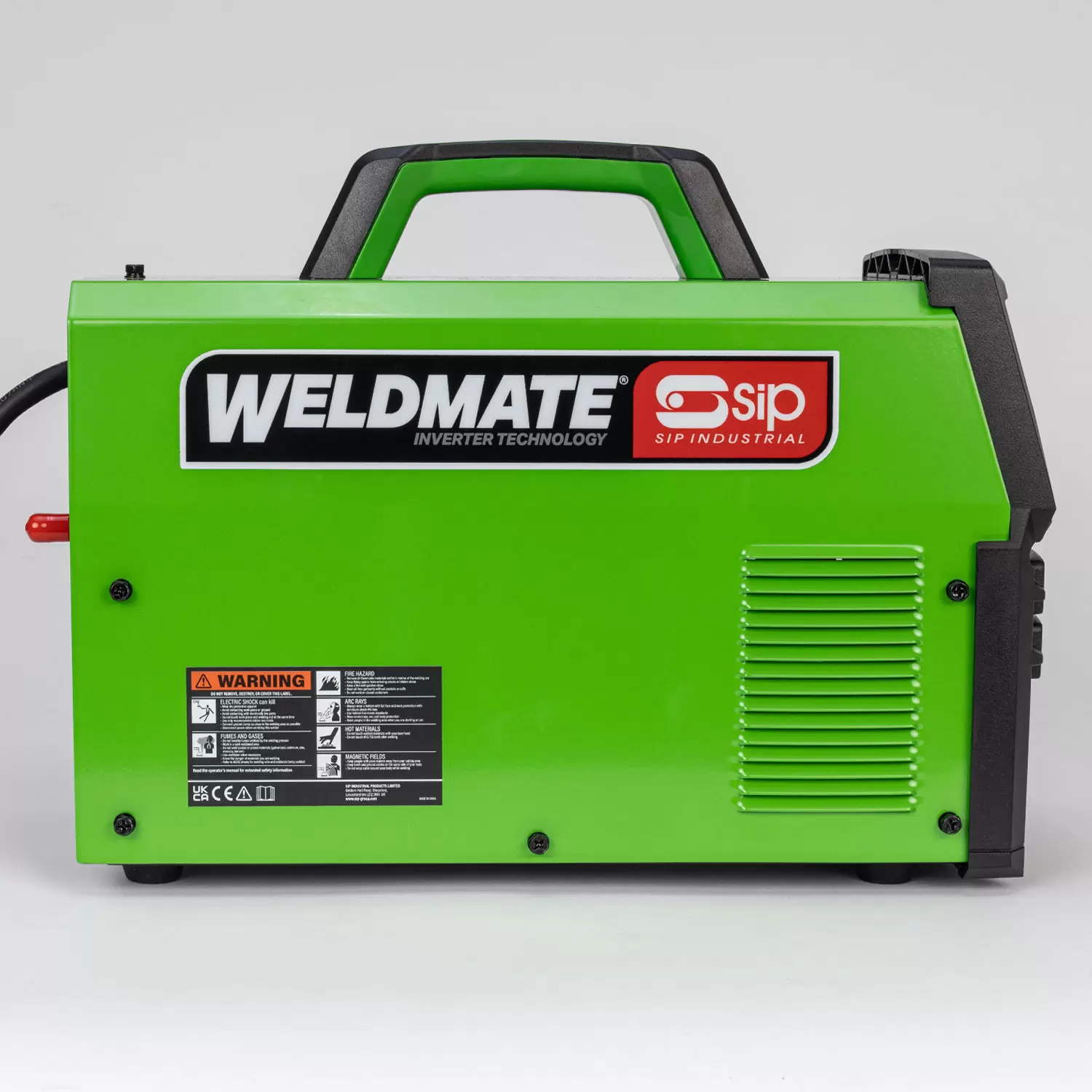

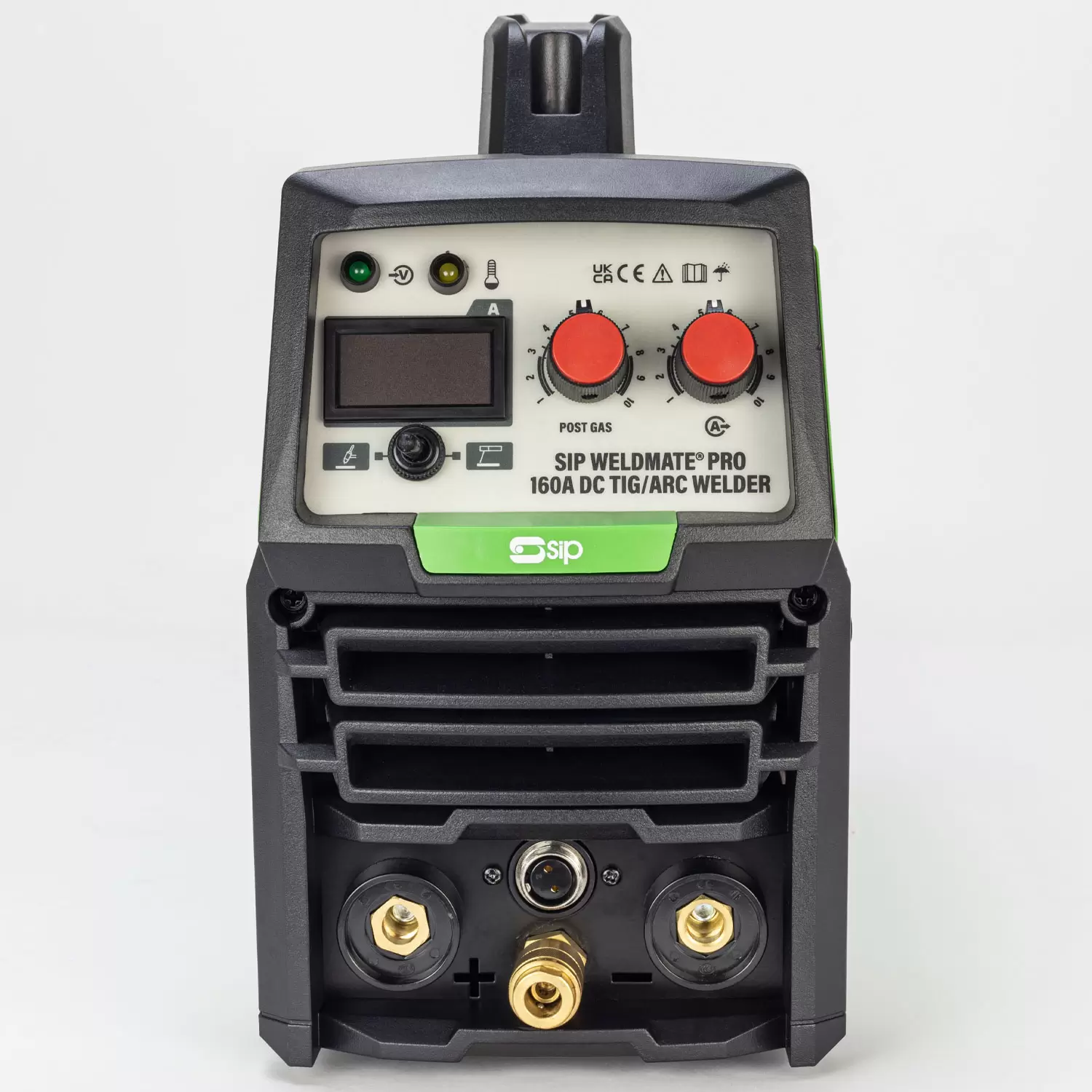

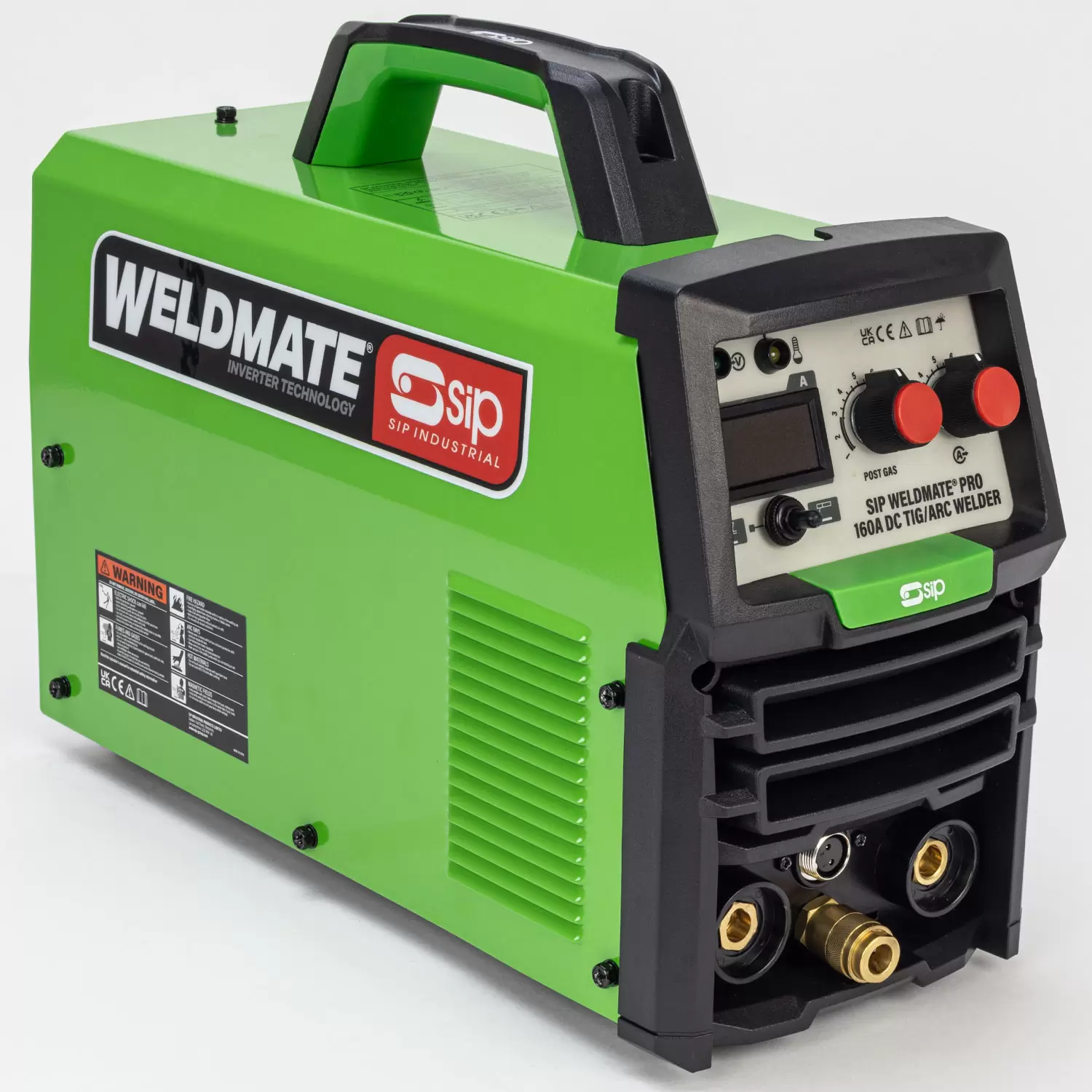

The SIP WELDMATE® PRO 160A DC TIG/ARC Inverter Welder is a dual process inverter welder specifically designed for use in professional fabrication workshops, sheet metal applications and home workshops.

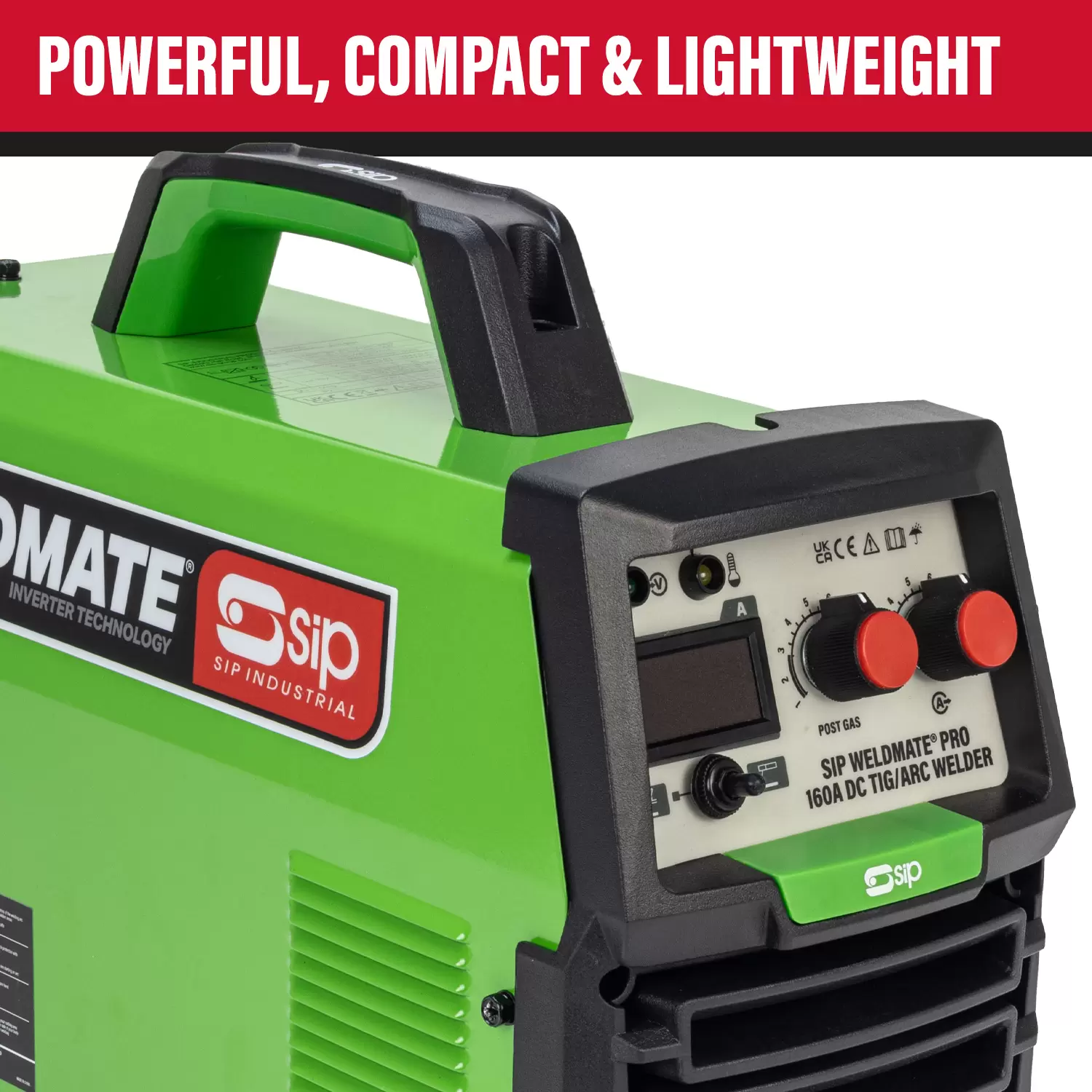

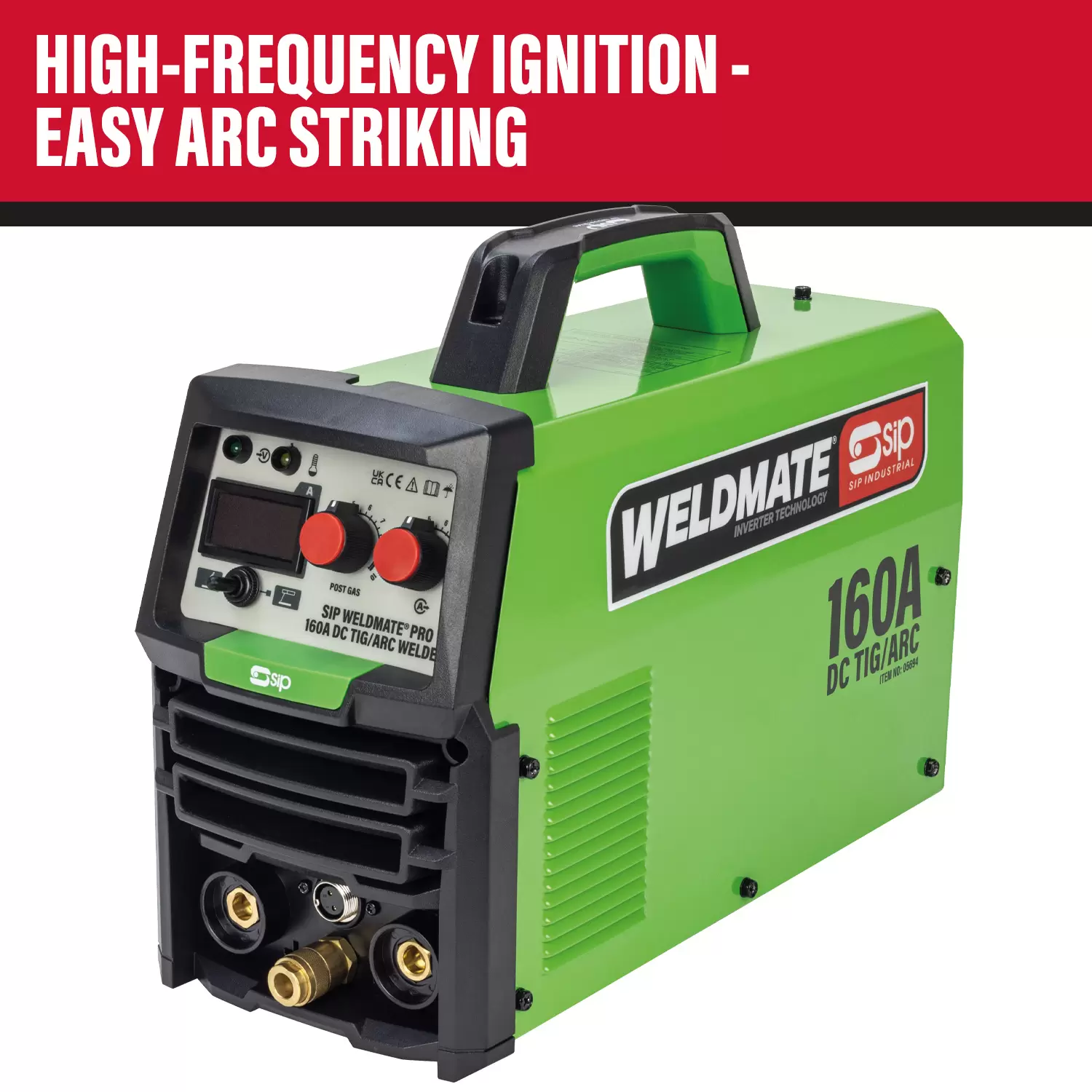

Powerful, compact and lightweight, this inverter welder also features high frequency start-up for easy arc striking, which helps to achieve cleaner and higher quality welds by avoiding electrode contact with the workpiece when initiating the arc.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
Features
• Dual process TIG/ARC DC welder for greater versatility at high duty cycles
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)

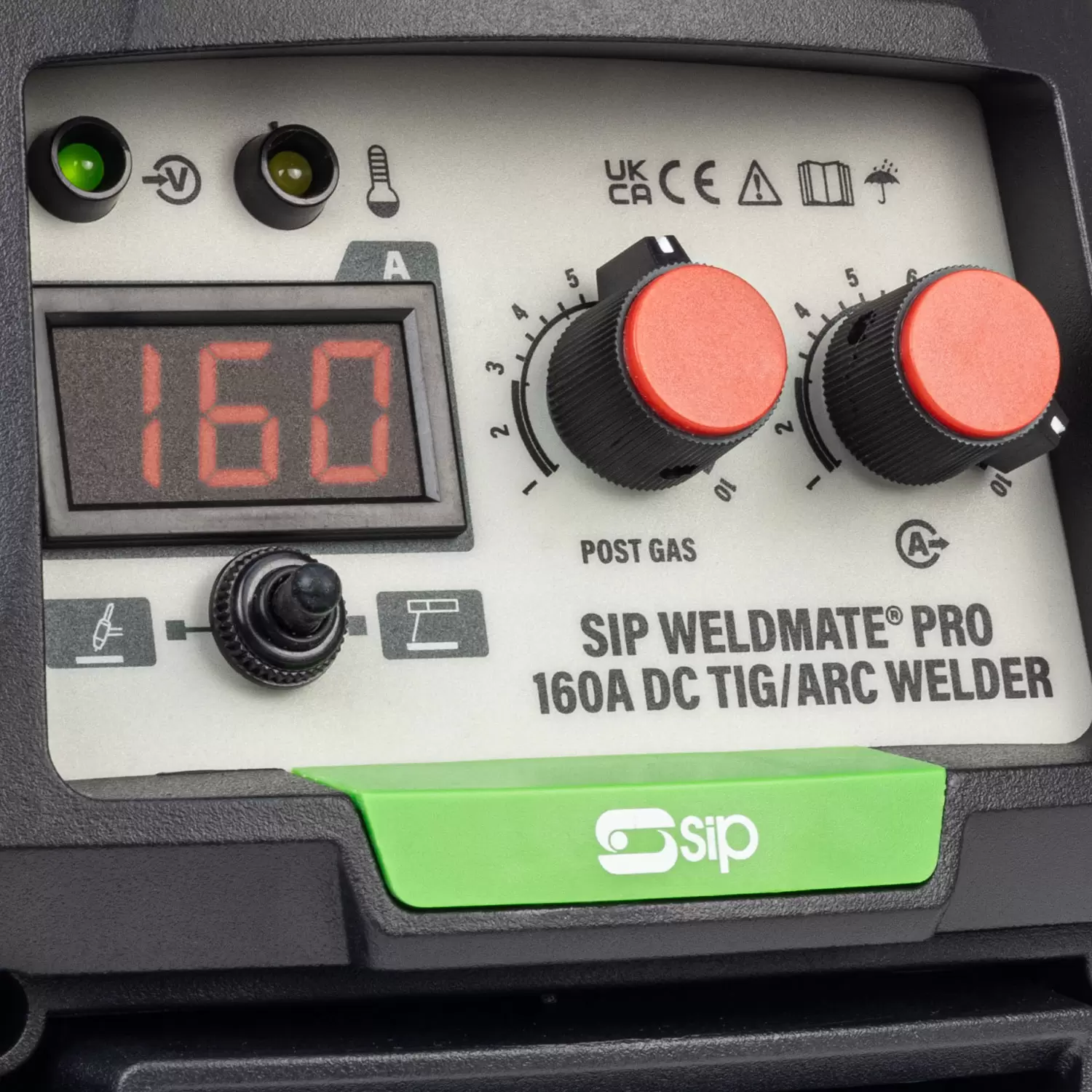

• Infinitely variable dials offer smoother stepless output and setting adjustment

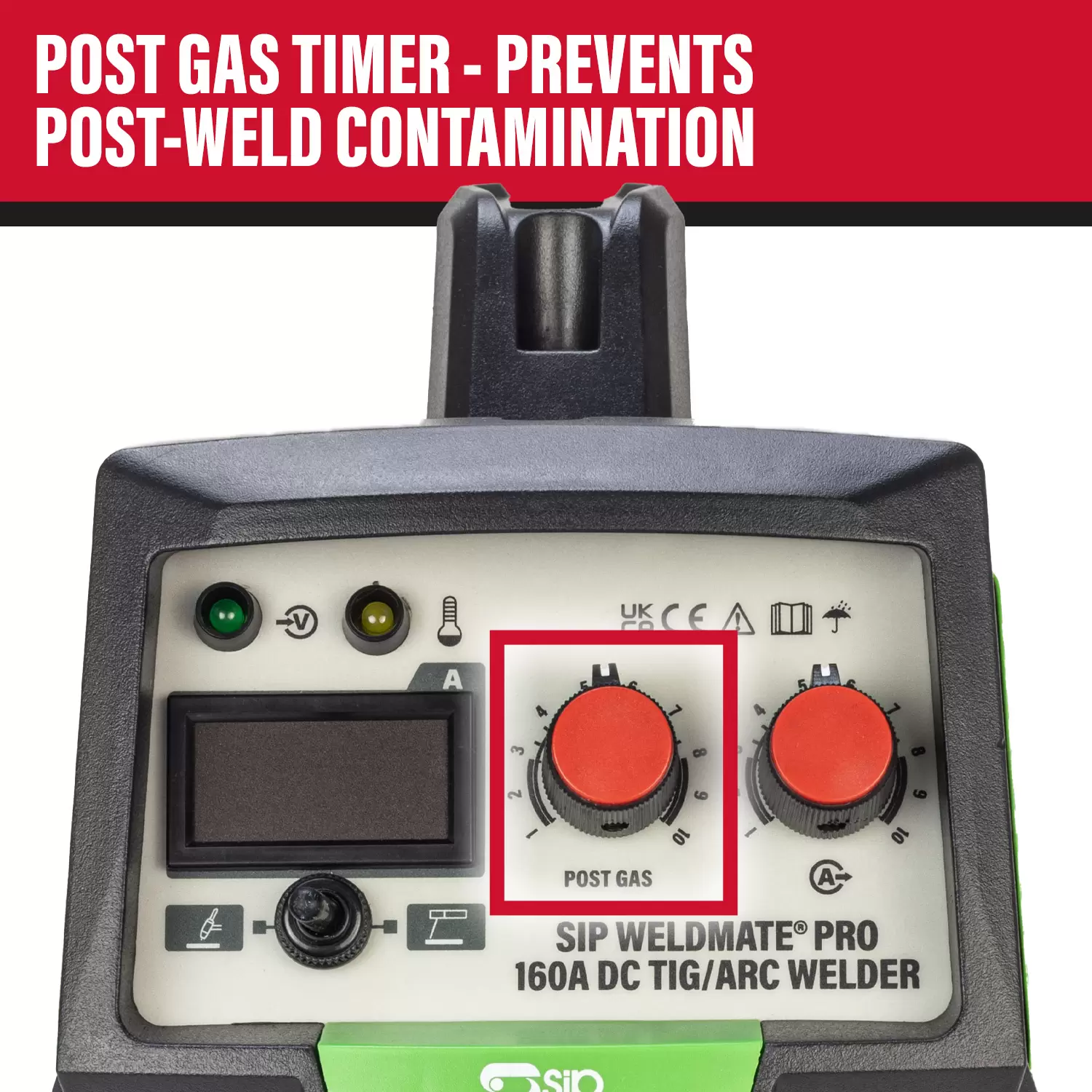

• Post gas setting to prevent oxidation for a clean and higher quality weld

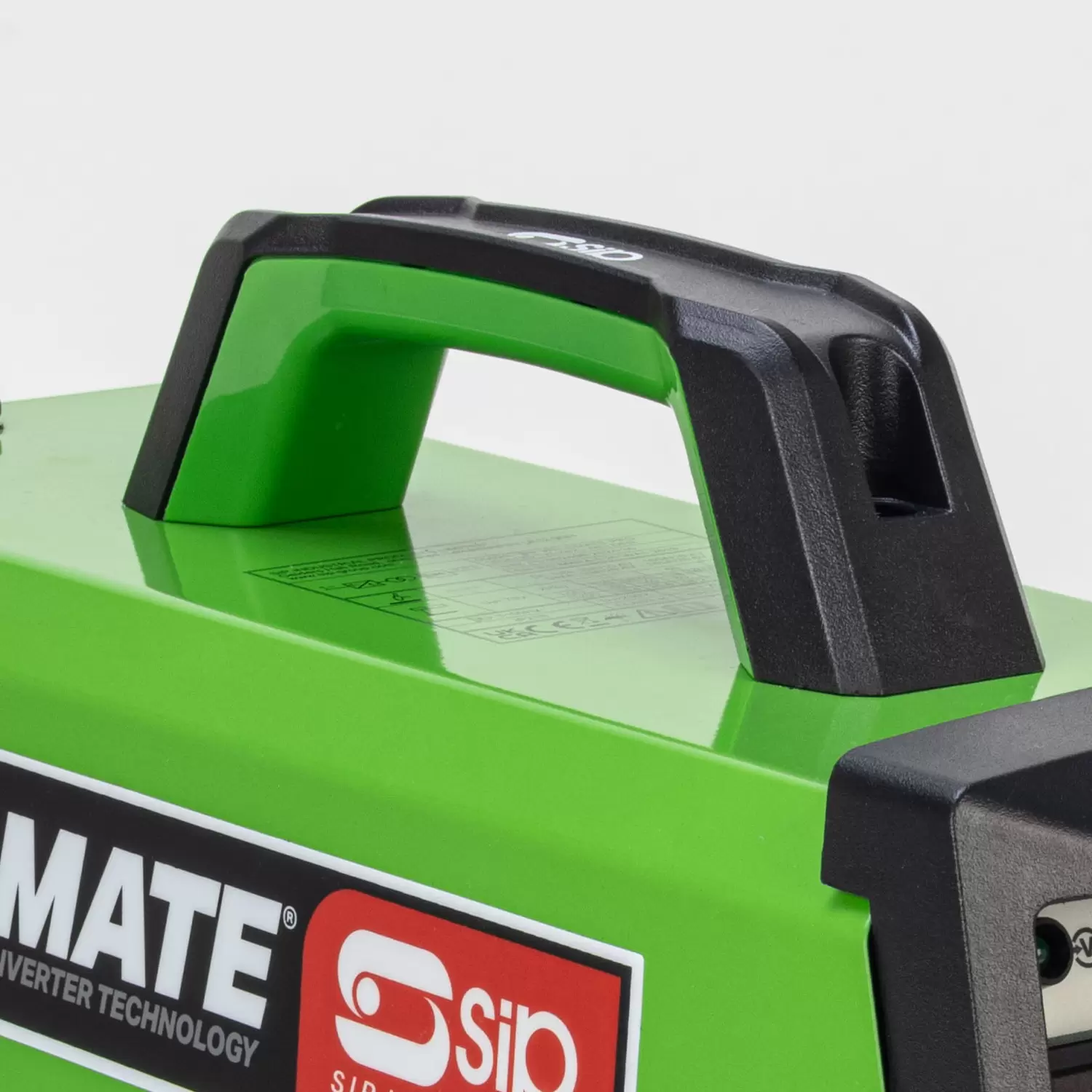

• Compact and lightweight design for easy work area movement
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)
• Infinitely variable dials offer smoother stepless output and setting adjustment
• Post gas setting to prevent oxidation for a clean and higher quality weld
• Compact and lightweight design for easy work area movement
Specification
ITEM NO. 05694

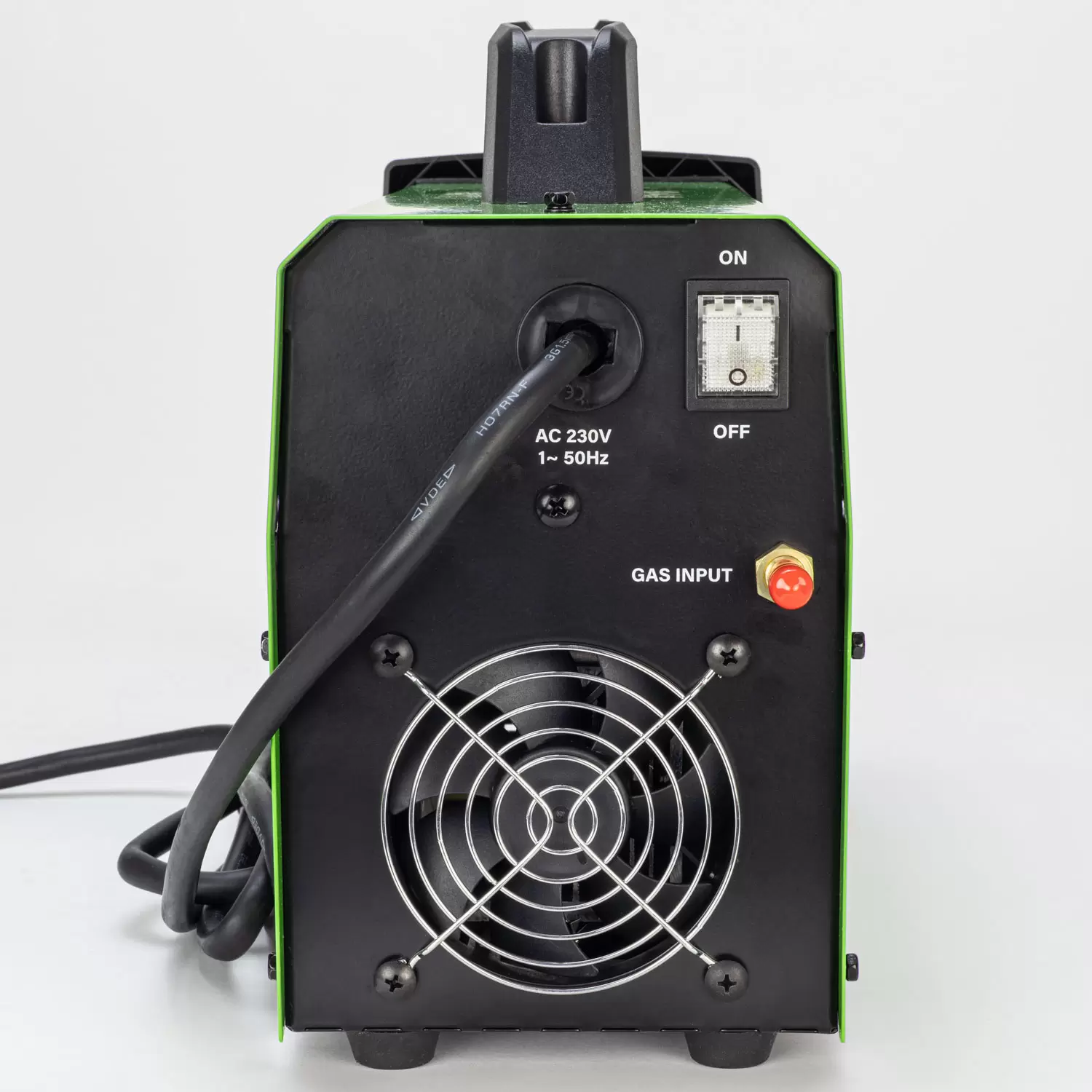

Input Supply: 230v (16A)
Output Current: 10A - 160A (TIG) / 10A - 140A (MMA)
Output Voltage: 10.4v - 14.8v: 70v DC Open Circuit Volts (TIG) / 20.4v - 24v: 70v DC Open Circuit Volts (MMA)
Duty Cycle @ 20°C: 160A @ 30% (TIG) / 160A @ 30% (MMA)
Welding Material Thickness: 0.5mm - 6mm (mild steel) (TIG) / 1.5mm - 7mm (mild steel) (MMA)
Protection / Insulation F
Workshopping Says
⚠️ Electrical Supply Required
This product requires a 16A (or 32A) industrial electrical supply and cannot be plugged into a standard UK 13A 3-pin socket without the appropriate electrical installation or approved adaptor where applicable. Please check the product specification before ordering.
This product requires a 16A (or 32A) industrial electrical supply and cannot be plugged into a standard UK 13A 3-pin socket without the appropriate electrical installation or approved adaptor where applicable. Please check the product specification before ordering.
