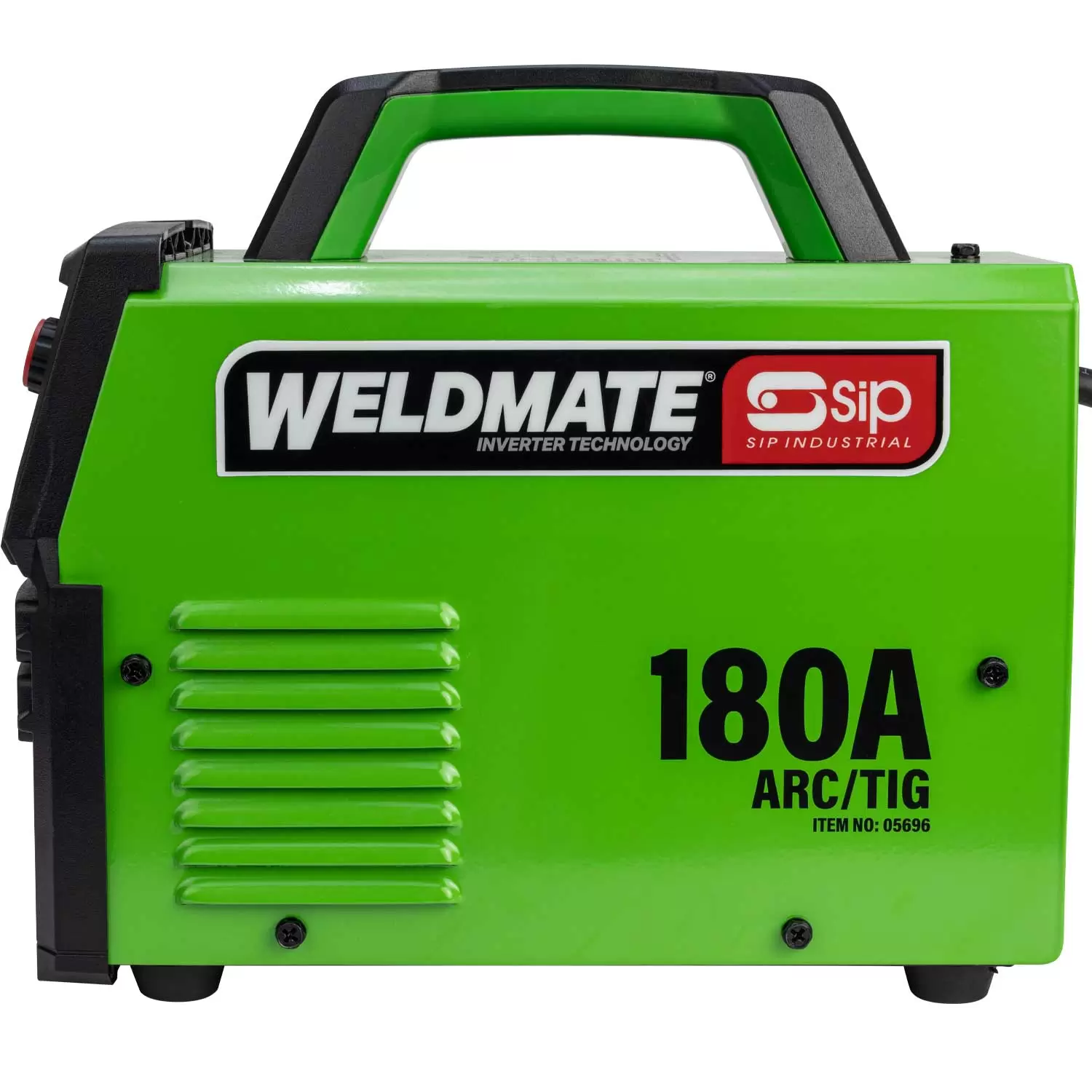

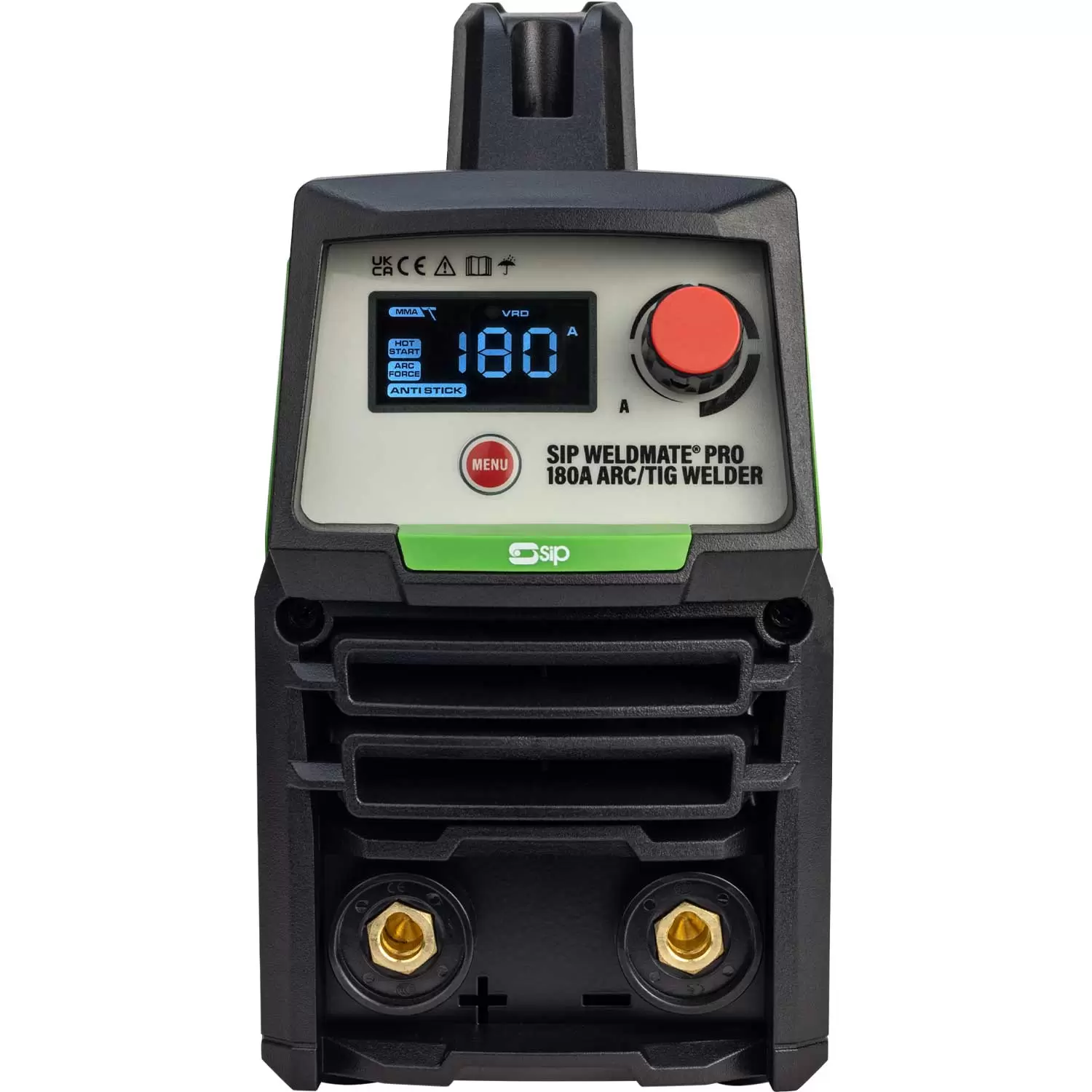

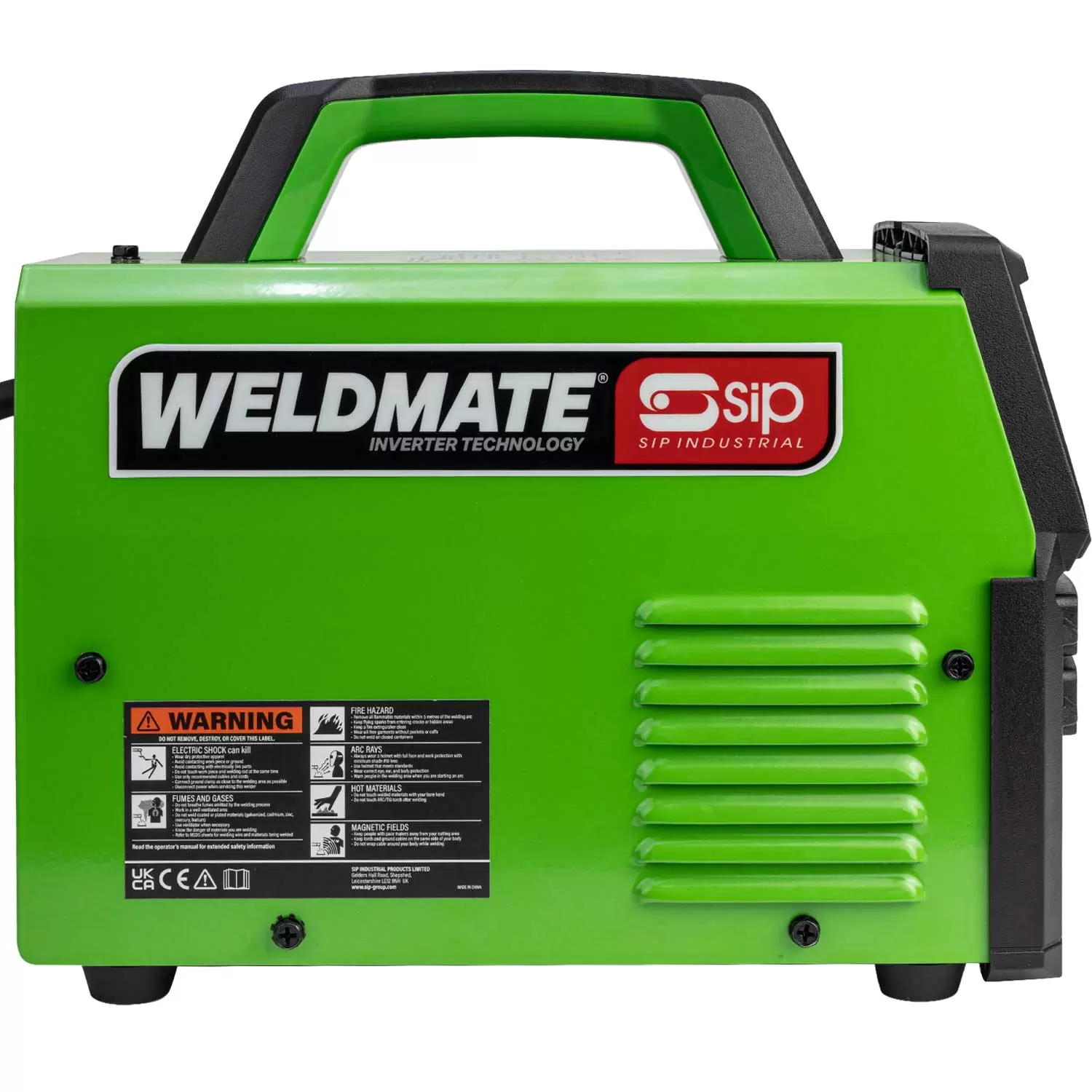

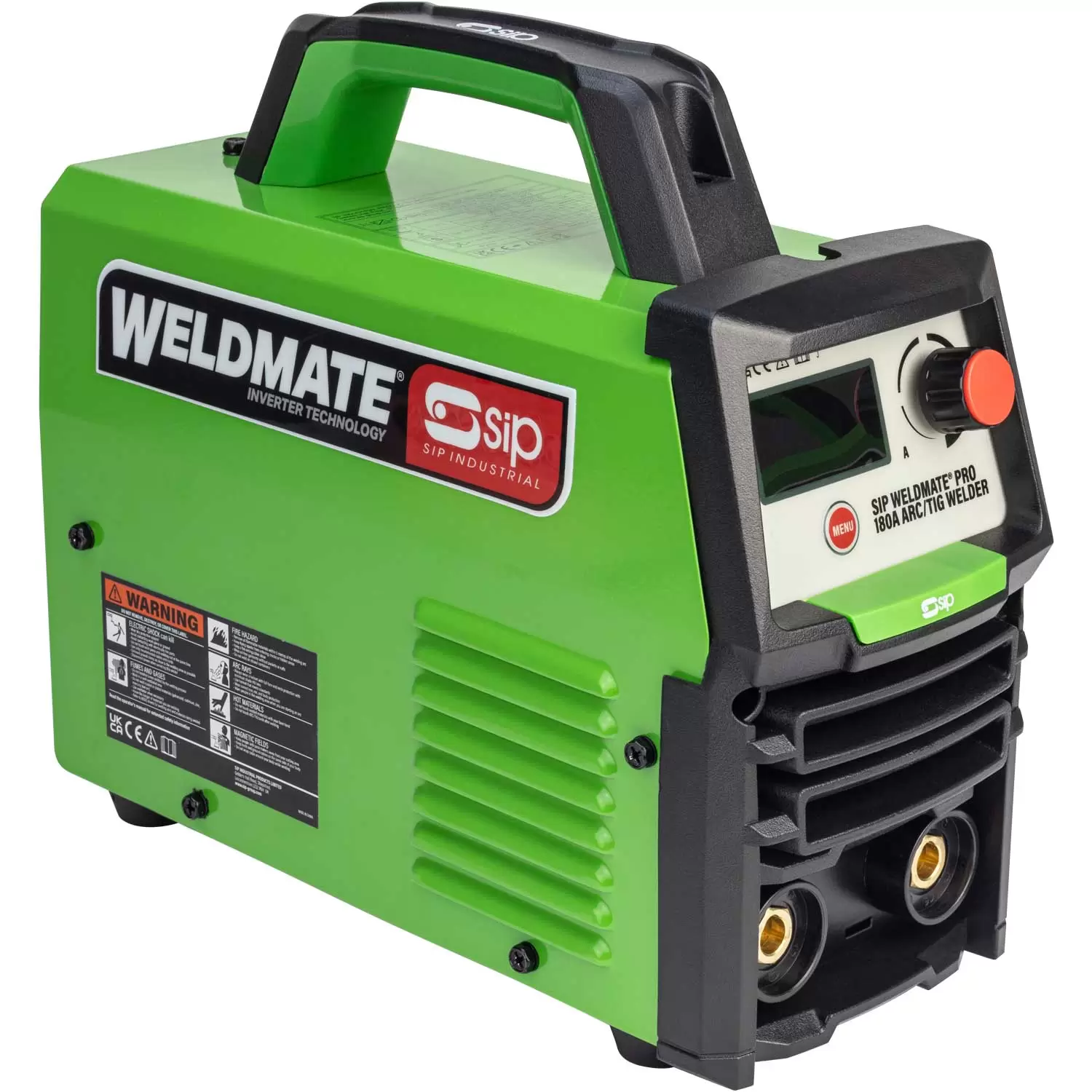

SIP - 05696 - WELDMATE® PRO 180A ARC/TIG Inverter Welder
SKU: SIP05696
Part Number: 05696
Barcode: 5012713006052
Country of Origin: CN
Weight: 4.80 Kg
Our Price
£175.93 (inc VAT) £146.61 (ex VAT)
RRP £179.99 £149.99
Save
£4.06
£3.38
Out of stock
SIP 2-YEAR Warranty included.
Description
The SIP WELDMATE® PRO 180A ARC/TIG Inverter Welder is a dual process inverter welder specifically designed for use in professional fabrication workshops.

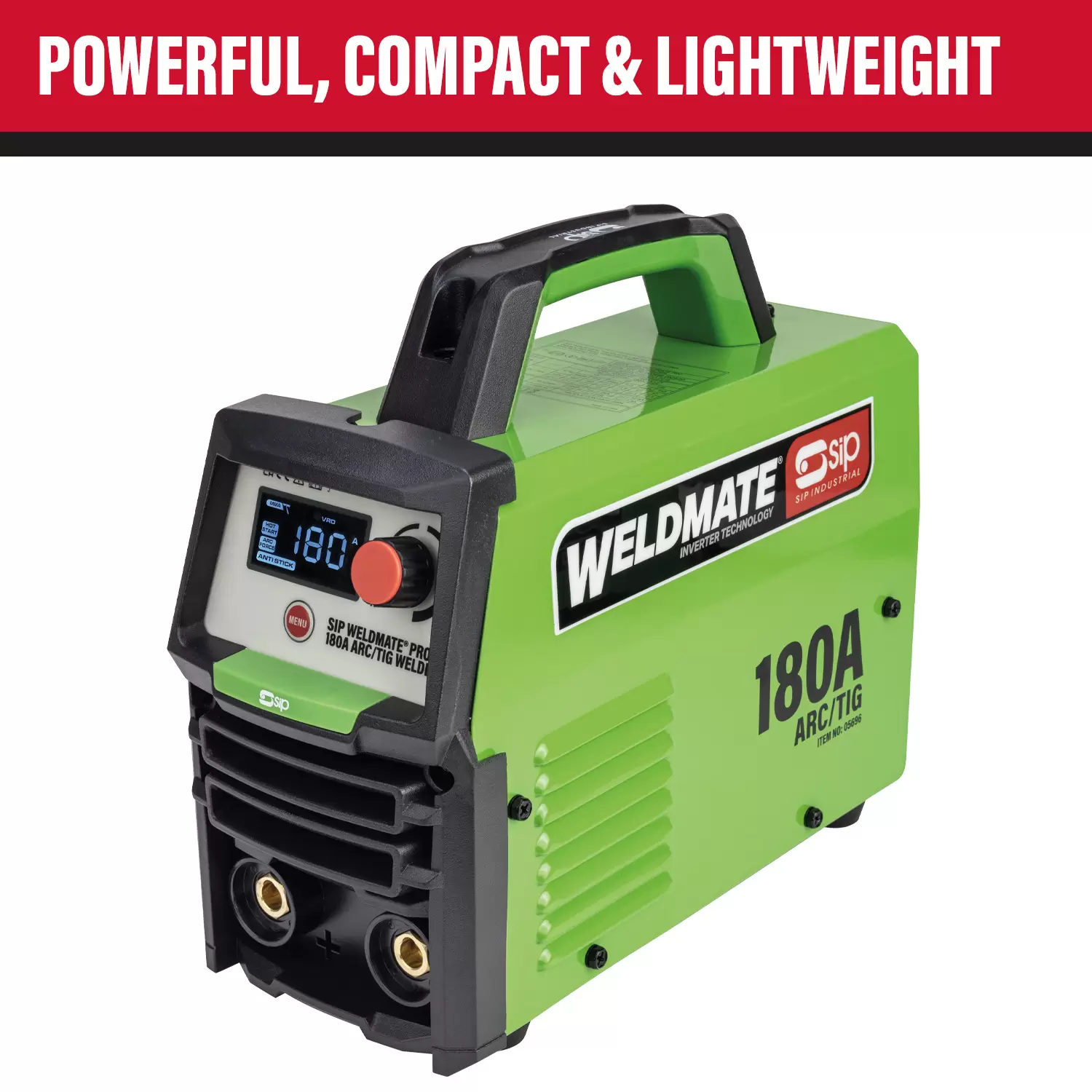

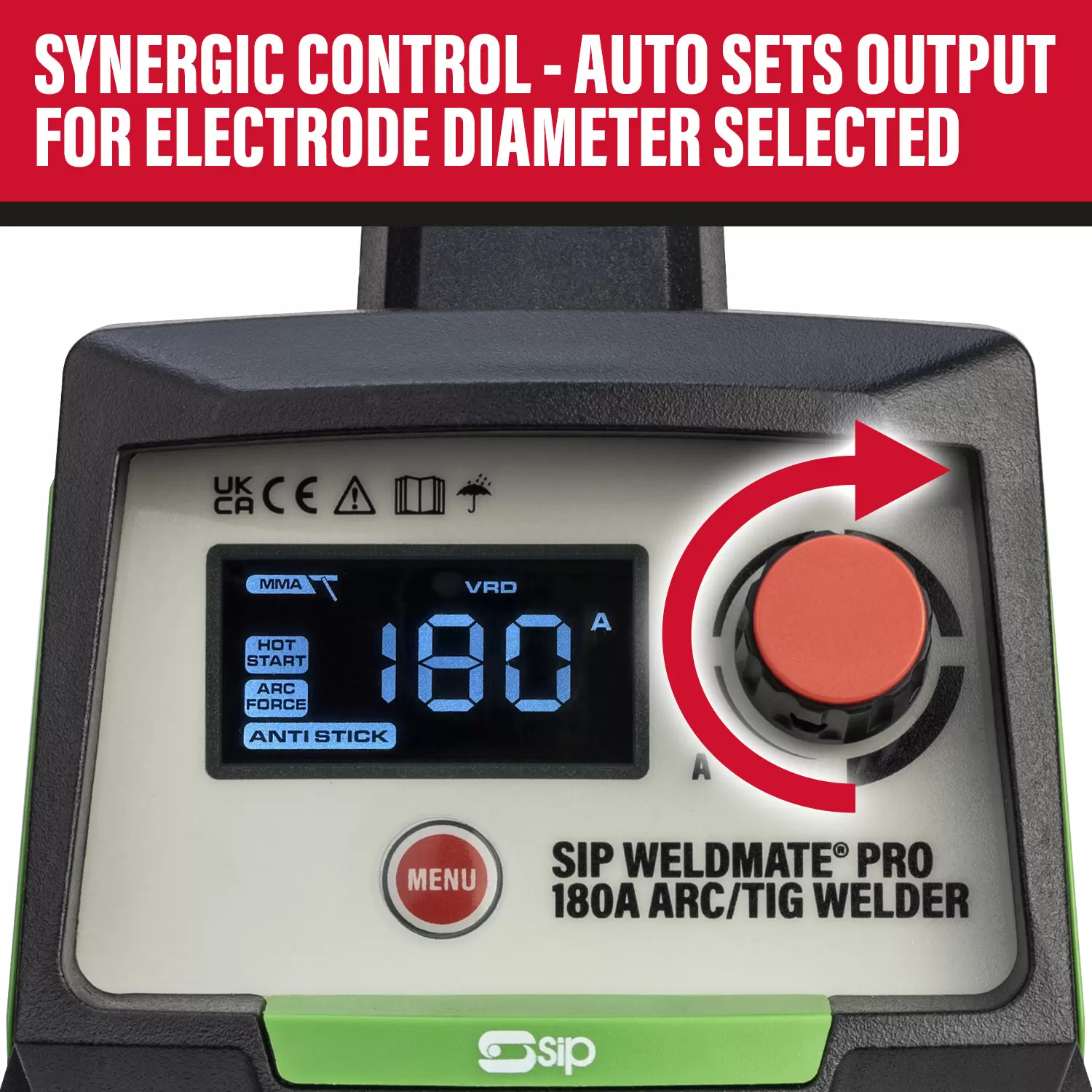

Powerful, compact and lightweight, this welder also features Synergic Control which adjusts the welding current output according to the electrode diameter selected for optimal penetration and bead formation.
Fully compliant wth Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
Features
• Dual process ARC/TIG welder for greater flexibility at high duty cycles
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)

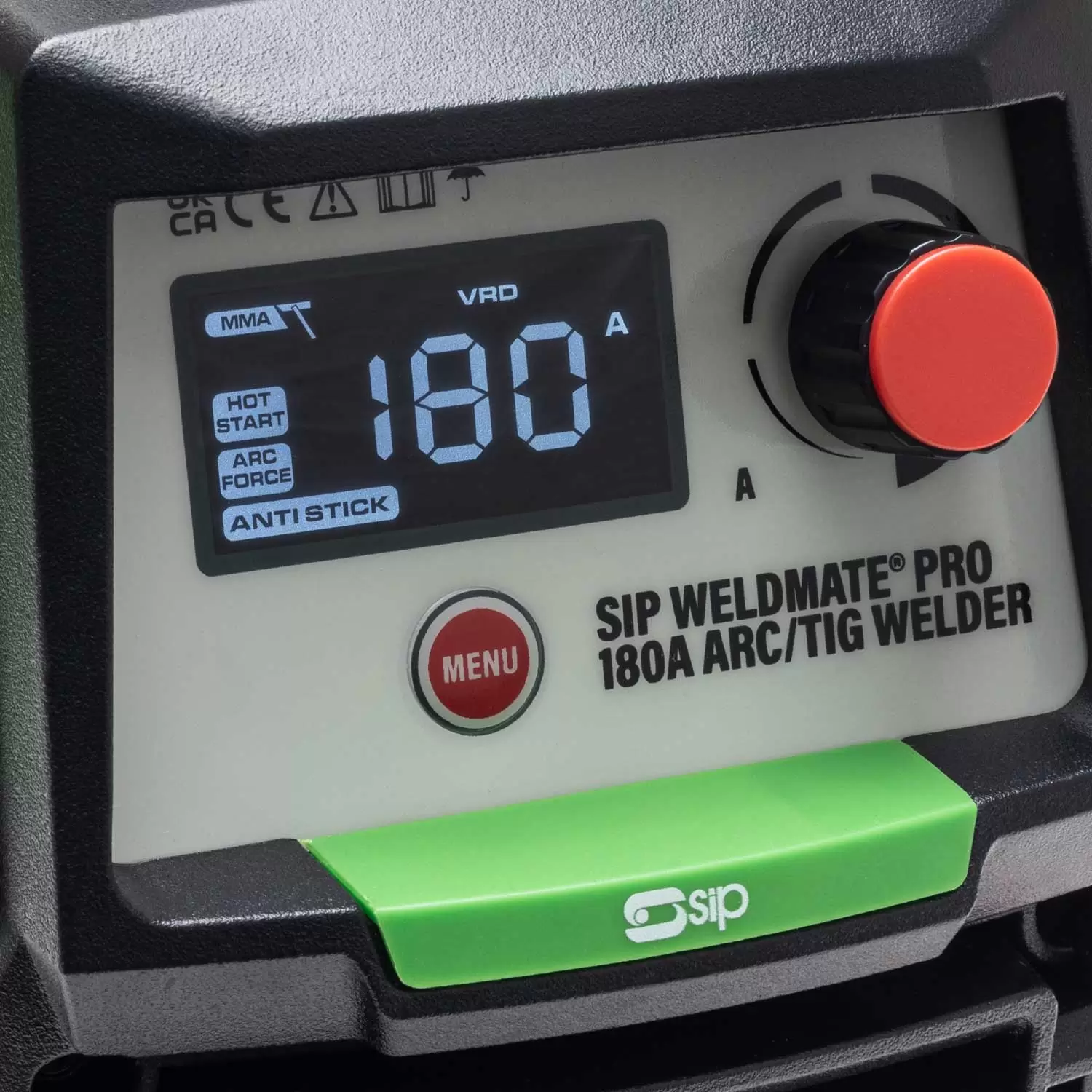

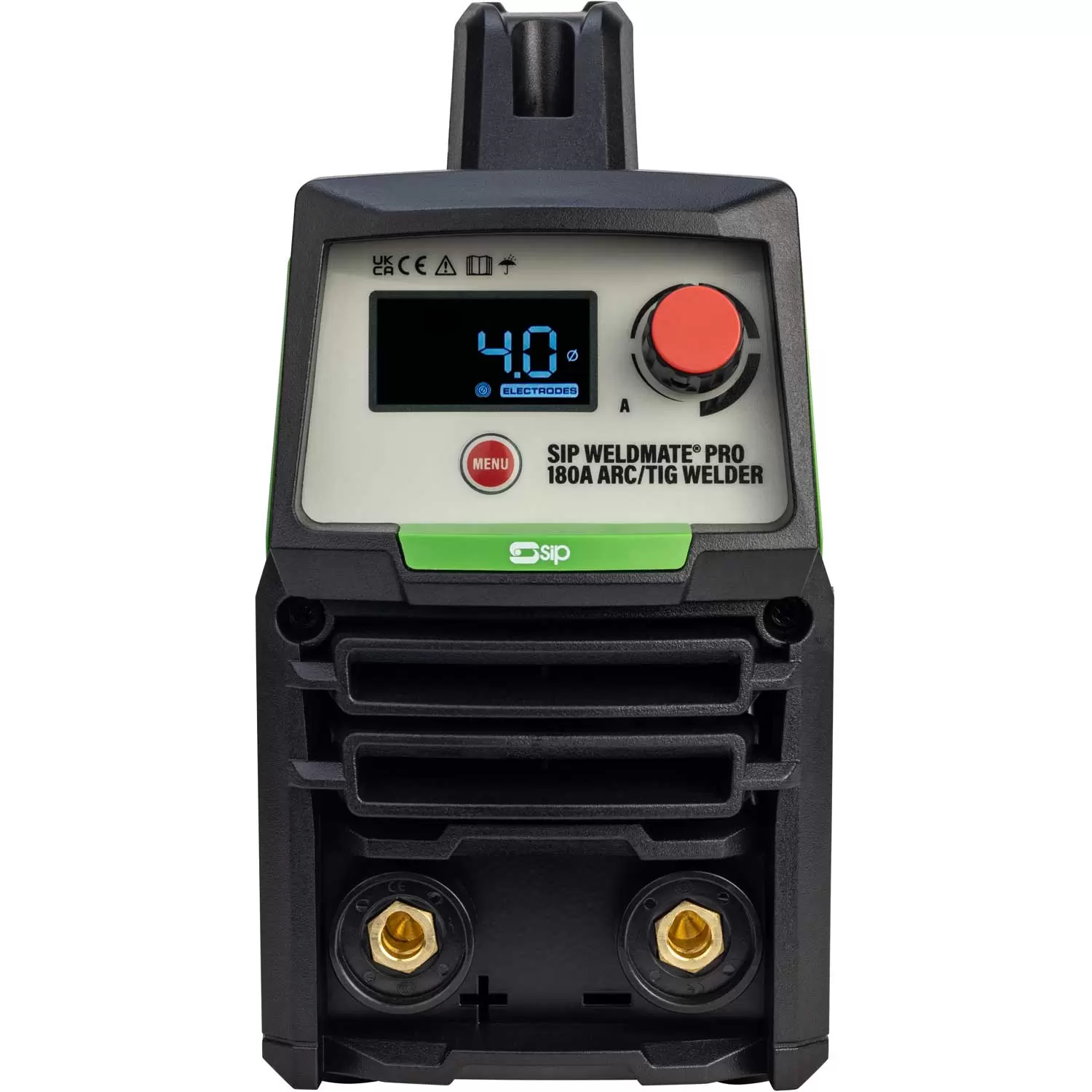

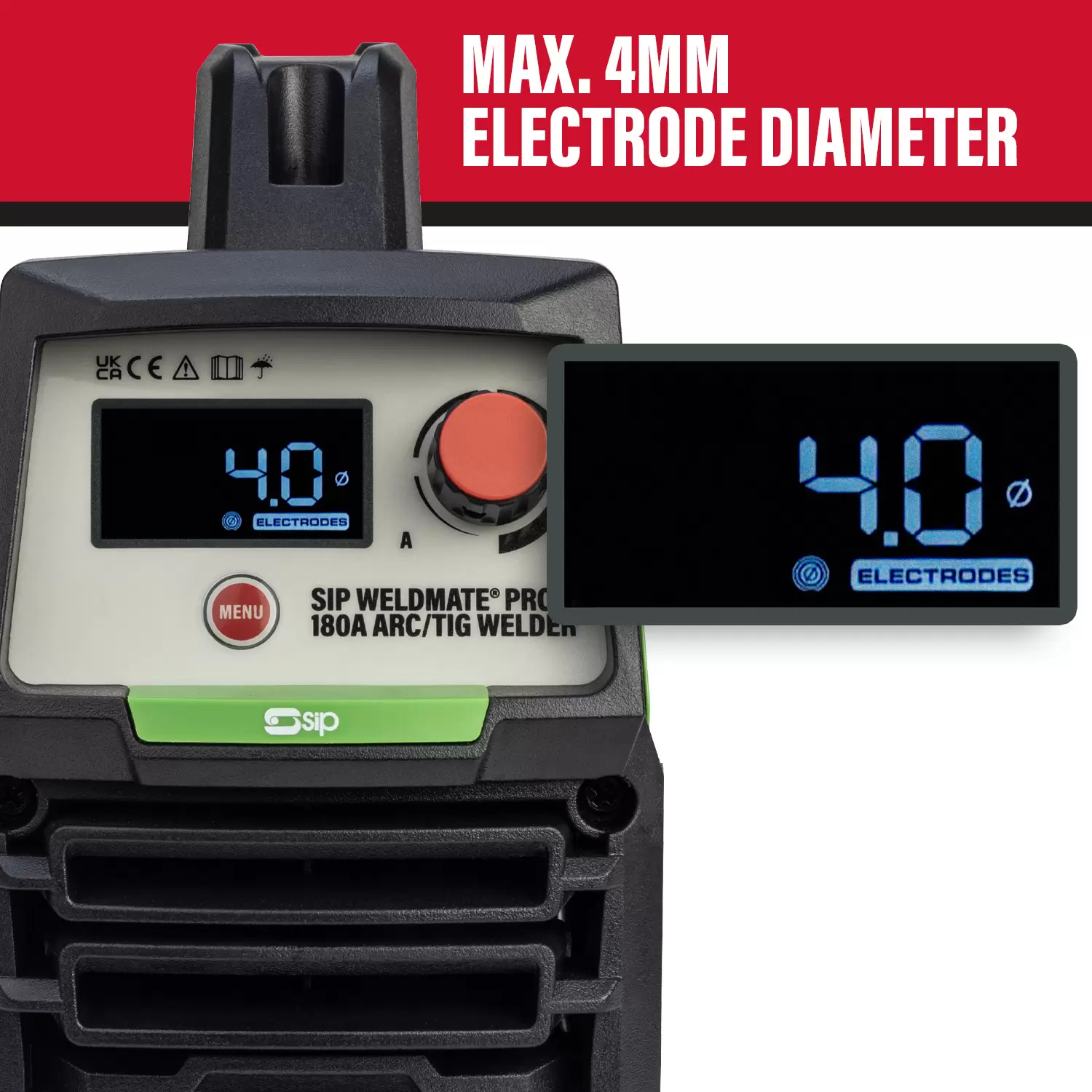

• Synergic control auto sets welding current output for electrode diameter selected
• Infinitely variable dial offers a smoother stepless output adjustment
• Compact and lightweight design for easy work area movement
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)
• Synergic control auto sets welding current output for electrode diameter selected
• Infinitely variable dial offers a smoother stepless output adjustment
• Compact and lightweight design for easy work area movement
Specification
ITEM NO. 05696

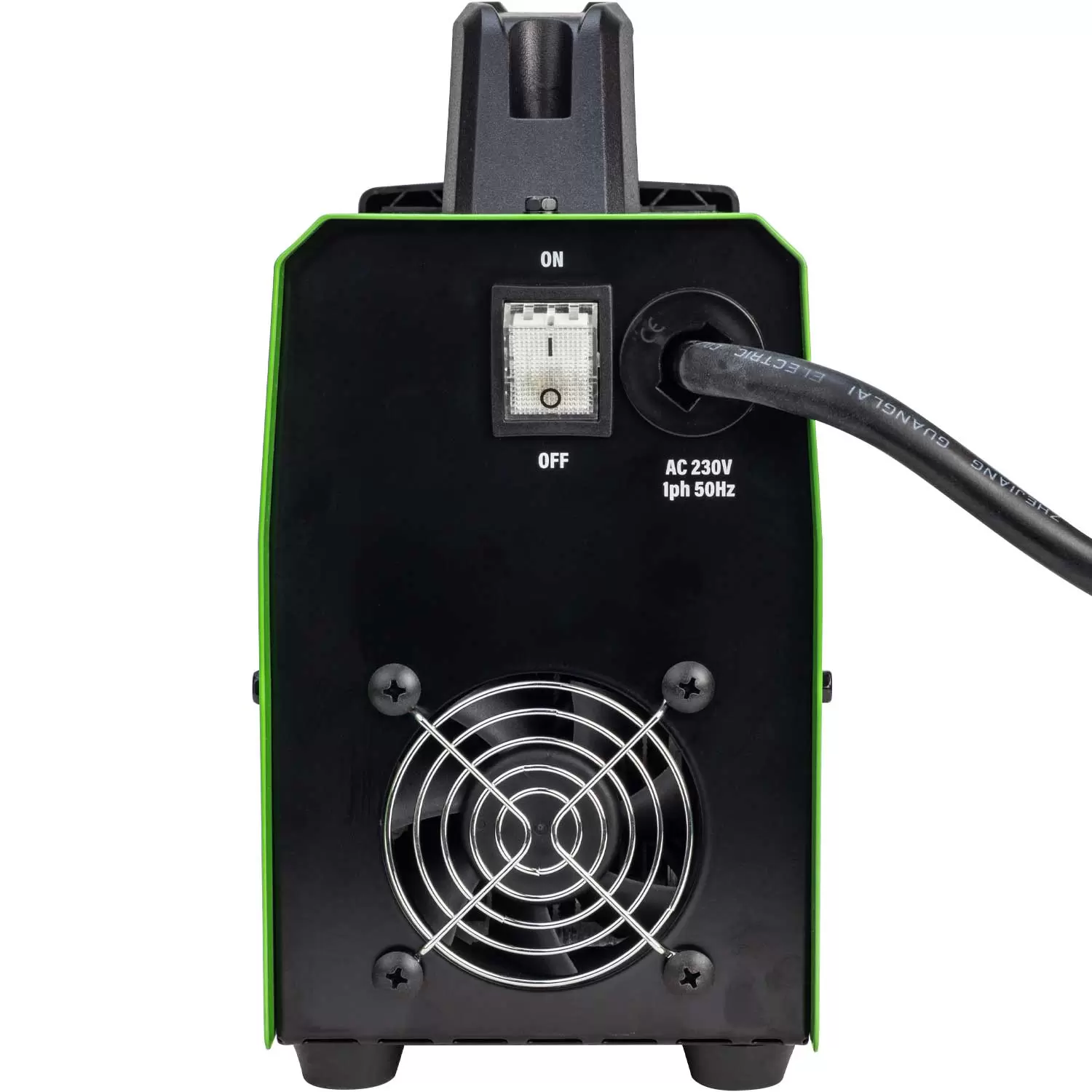

Input Supply: 230v (16A)

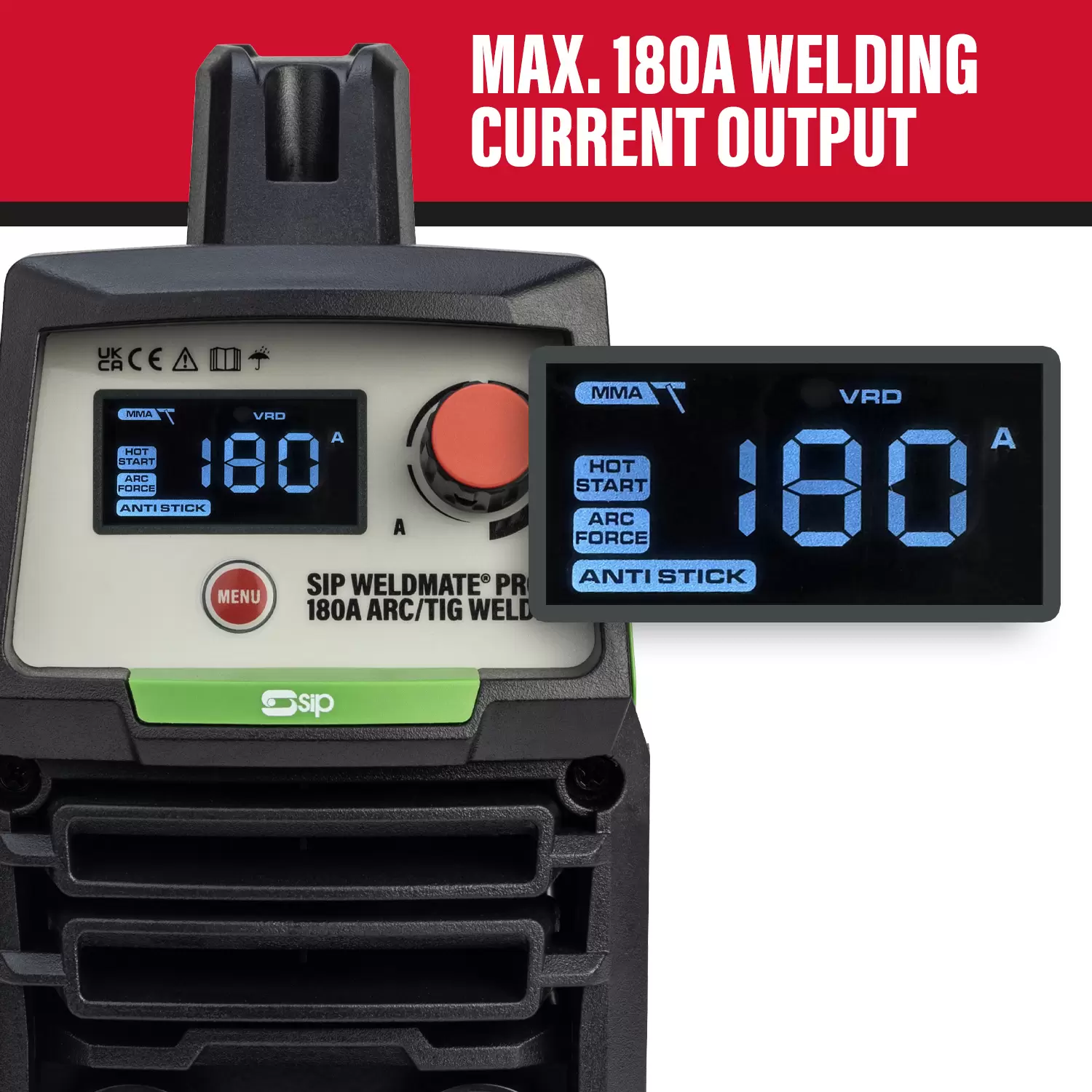

Output Current: 10A - 180A (ARC) / 10A - 180A (TIG)
Output Voltage: 20.4v - 27.2v (ARC) / 10.4v - 17.2v (TIG)
Duty Cycle @ 20°C: 180A @ 30% (ARC) / 180A @ 30% (TIG)
Welding Material Thickness: 1.6mm - 8mm (mild steel)
Protection / Insulation F
Workshopping Says

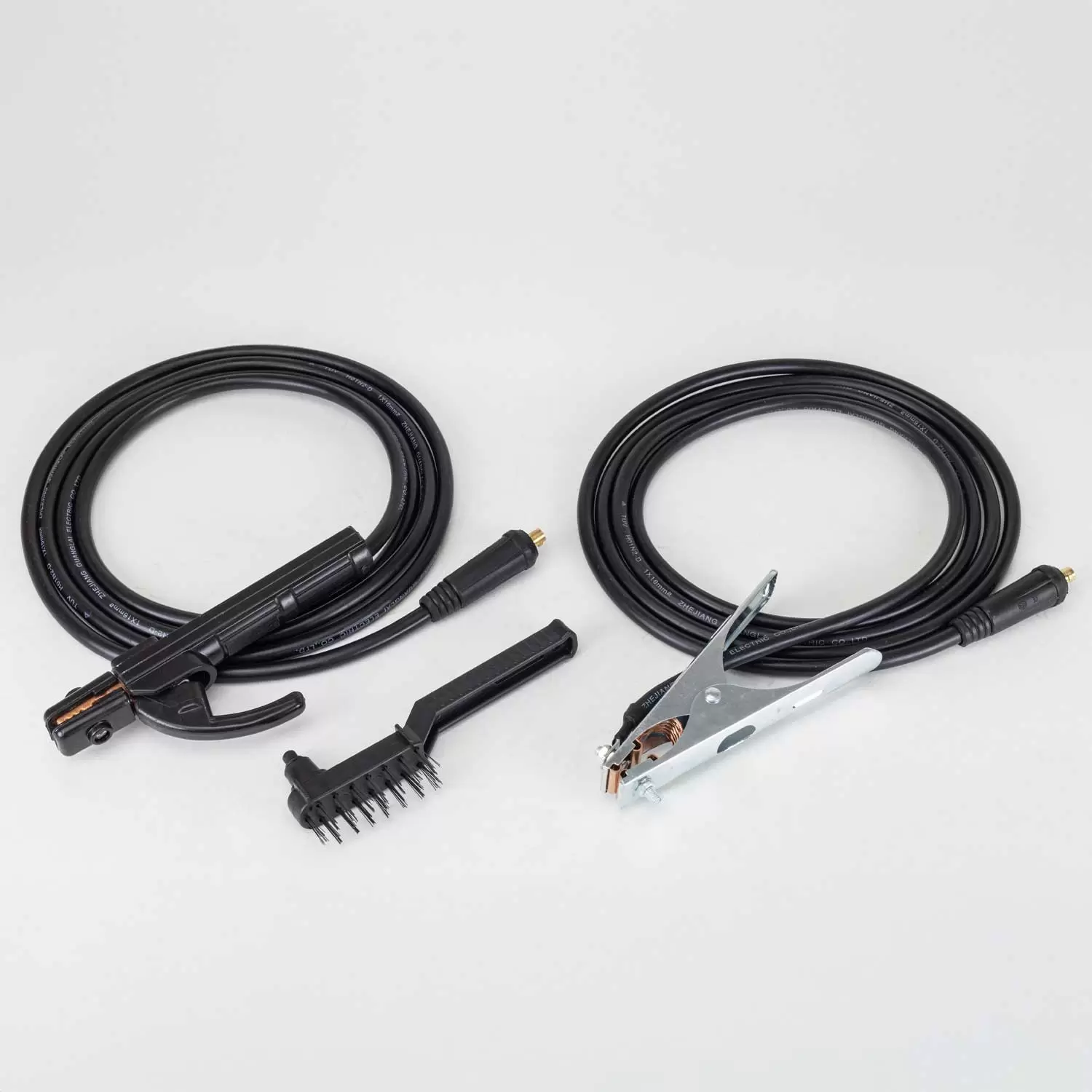

Ideal for use in professional fabrication workshops. Suitable for ARC/TIG welding. Ideal for mild steel, stainless steels and dissimilar steels. 1x SIP WELDMATE® PRO 180A ARC/TIG Inverter Welder (230v/16A), 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x welding hammer/brush. TIG torch sold separately (Item 08206A recommended).
