Home > Handtools > Welding & Cutting > SIP - 05733 - WELDMATE® 160A MIG Inverter Welder

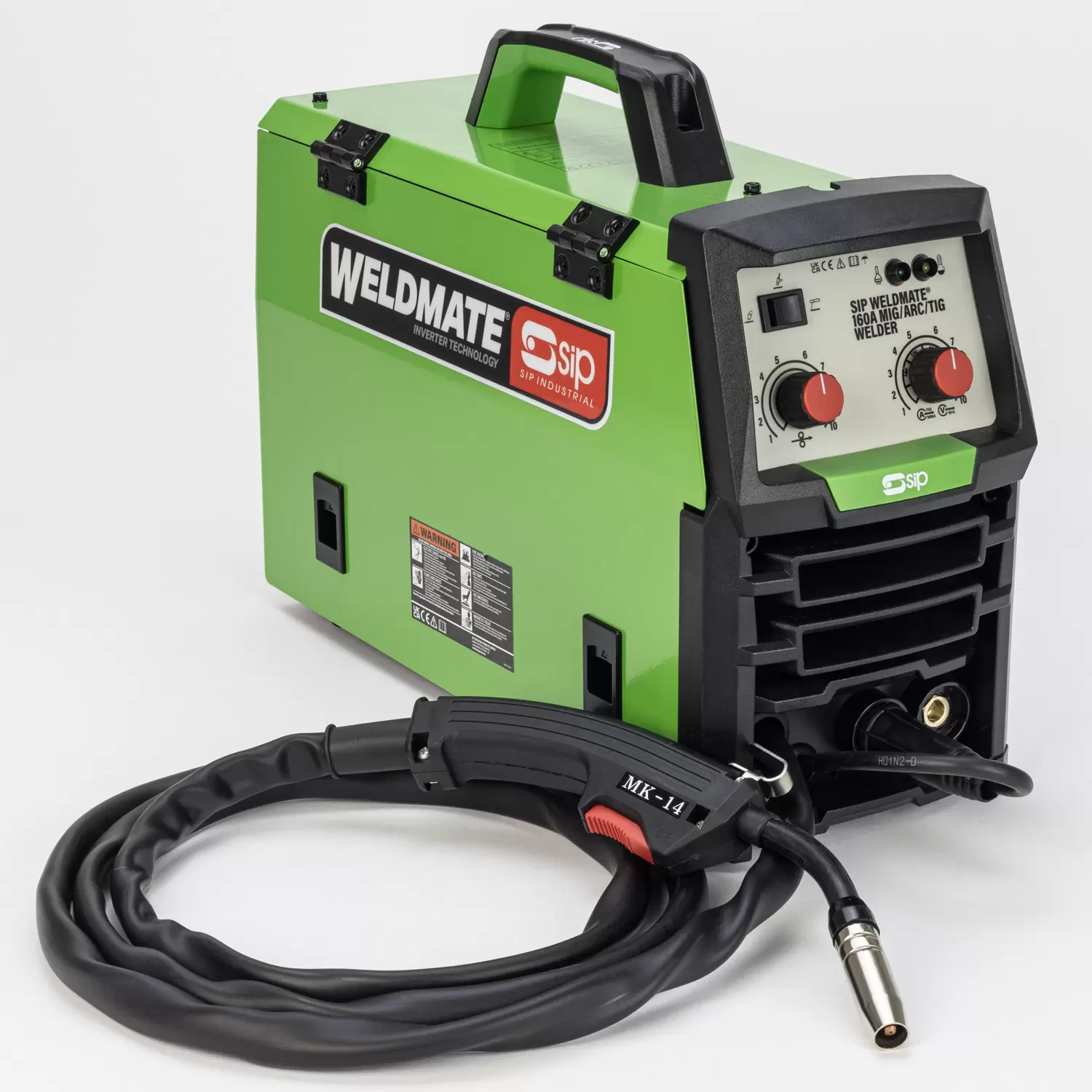

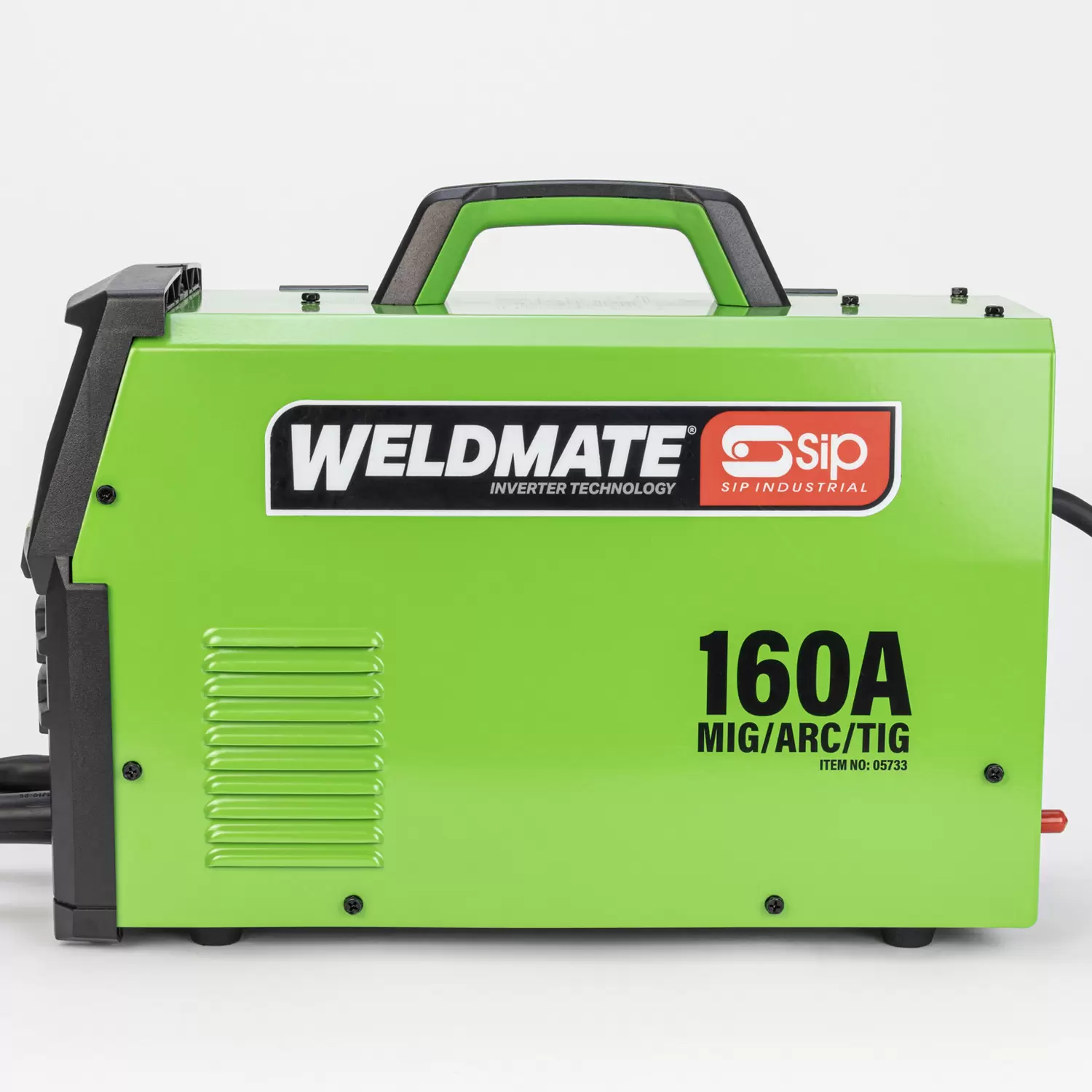

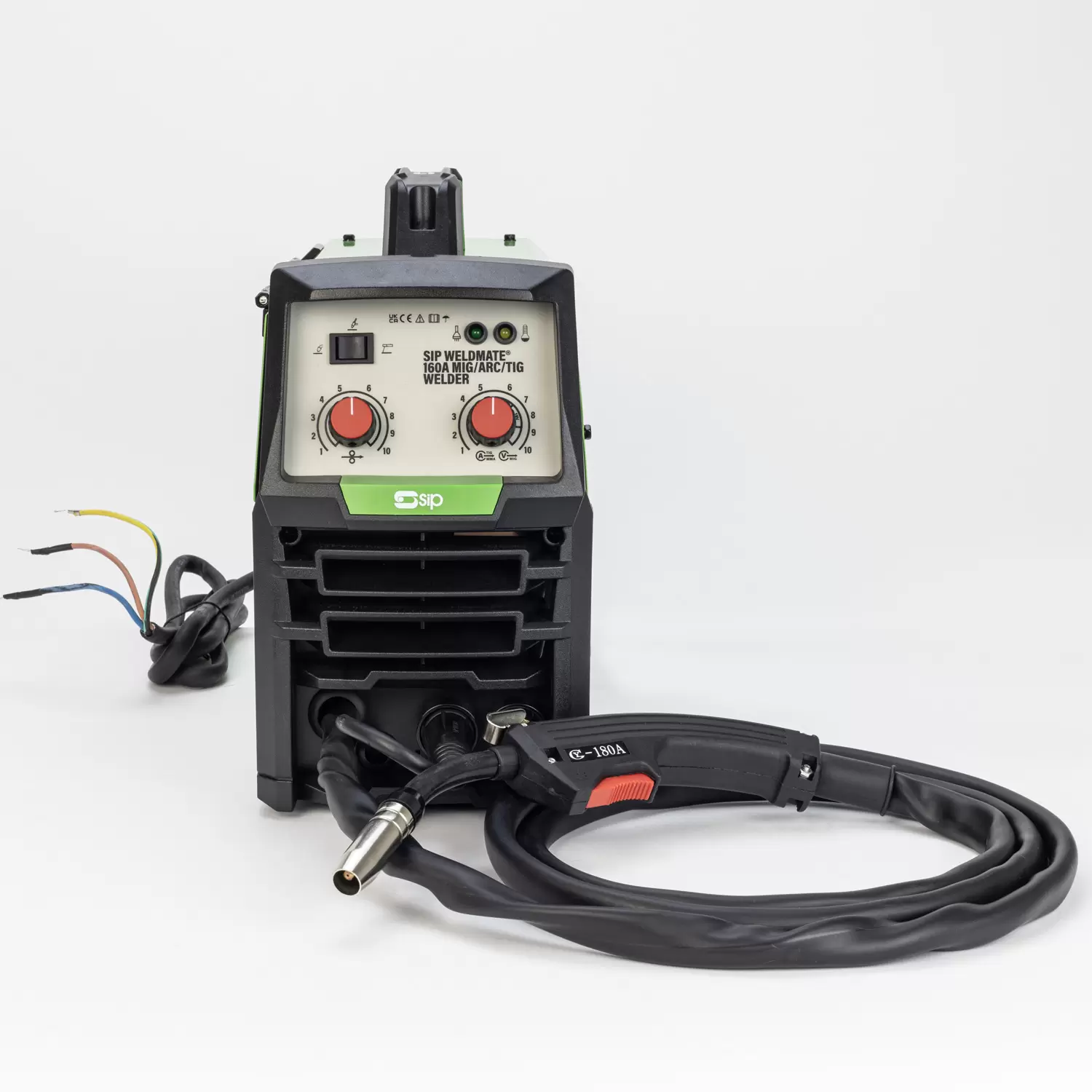

SIP - 05733 - WELDMATE® 160A MIG Inverter Welder
SKU: SIP05733
Part Number: 05733
Barcode: 5012713057337
Country of Origin: CN
Weight: 8.10 Kg
Our Price
£218.87 (inc VAT) £182.39 (ex VAT)
RRP £239.99 £199.99
Save
£21.12
£17.60
SIP 2-YEAR Warranty included.
Description
The SIP WELDMATE® 160A MIG/ARC/TIG Inverter Welder is a multi-process inverter welder specifically designed for entry level users and small workshop applications.
Supplied with all accessories needed to weld straight from the box, this welder also performs gasless MIG welding for added flexibility.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
Features
• Multi-process MIG/ARC/TIG welder for greater flexibility
• Also performs gasless MIG welding for added versatility
• All accessories needed to weld straight from the box supplied
• Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)
• Compact and portable design for mobility around work area
• Also performs gasless MIG welding for added versatility
• All accessories needed to weld straight from the box supplied
• Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)
• Compact and portable design for mobility around work area
Specification
ITEM NO. 05733
Input Supply: 230v (16A)
Output Voltage: 15v - 22v (MIG) / 20.8v - 25.6v (ARC) / 10.8v - 15.6v (TIG)
Output Current: 20A - 160A (MIG) / 20A - 140A (ARC) / 20A - 140A (TIG)
Duty Cycle @ 40°C: 160A @ 15% (MIG) / 140A @ 15% (ARC) / 140A @ 15% (TIG)
Wire Diameter: ⌀ 0.8mm - 0.9mm
Wire Spool Size: 0.7kg, 5kg
Welding Material Thickness: 0.8mm - 5.5mm (mild steel)
Protection / Insulation 21S / H
Workshopping Says

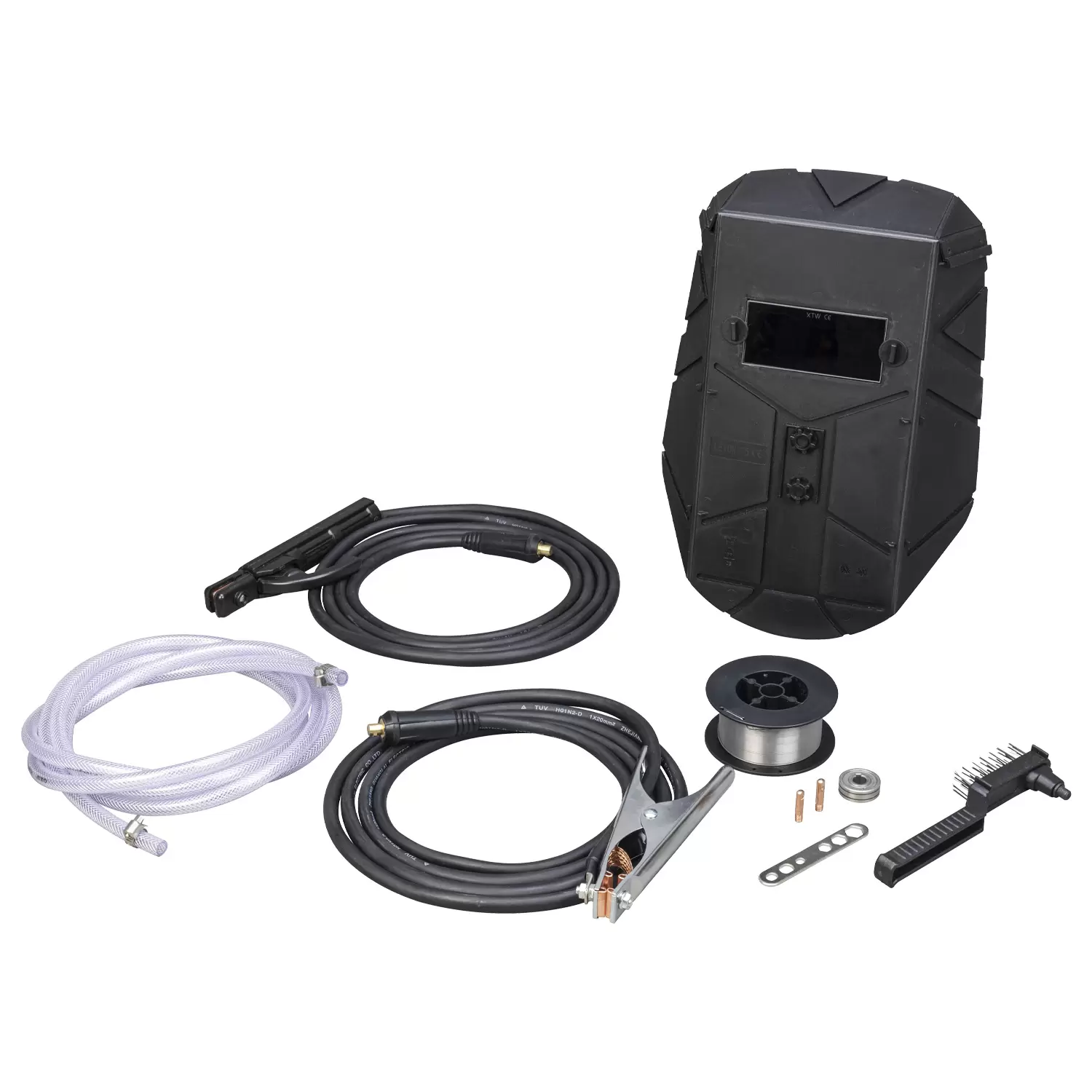

Perfect for entry level users and small workshop applications. Suitable for MIG/ARC/TIG welding. Performs gasless MIG welding. Ideal for mild steels and *stainless steel. *Using stainless steel welding wire. 1x SIP WELDMATE® 160A MIG/ARC/TIG Inverter Welder (230v/16A), 1x 2mtr integrated MIG torch, 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x 3mtr gas hose with clamps, 1x 0.7kg flux-cored wire reel, 2x feed rollers, 2x contact tips, 1x torch spanner, 1x chipping hammer/brush and 1x face shield. TIG torch sold separately (Item 08206A recommended).
