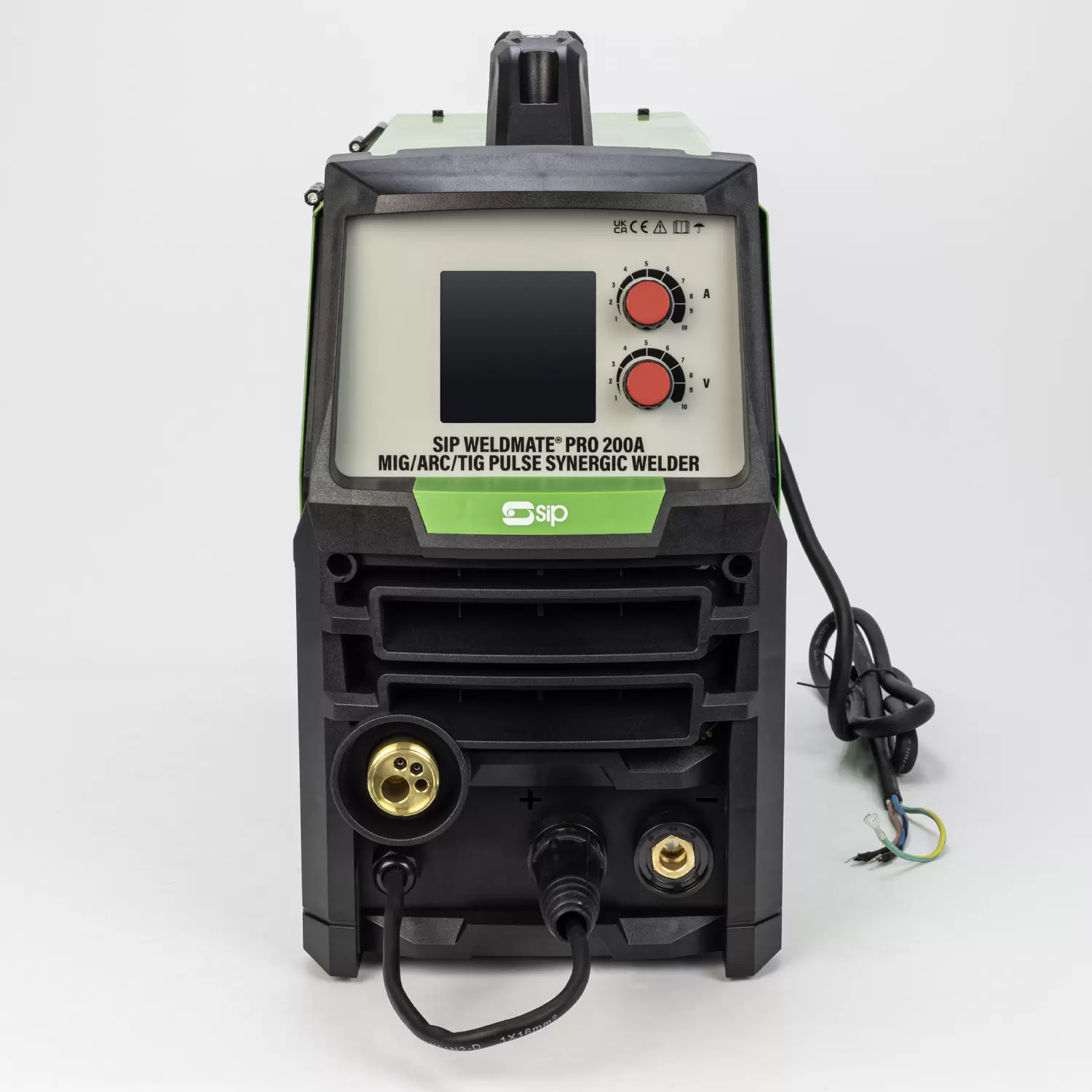

SIP - 05735 - WELDMATE® PRO 200A MIG/ARC/TIG Pulse Synergic Inverter Welder
SKU: SIP05735
Part Number: 05735
Barcode: 5012713057351
Country of Origin: CN
Weight: 19.80 Kg
Our Price
£647.99 (inc VAT) £539.99 (ex VAT)
RRP £719.99 £599.99
Save
£72.00
£60.00
SIP 2-YEAR Warranty included.
Description

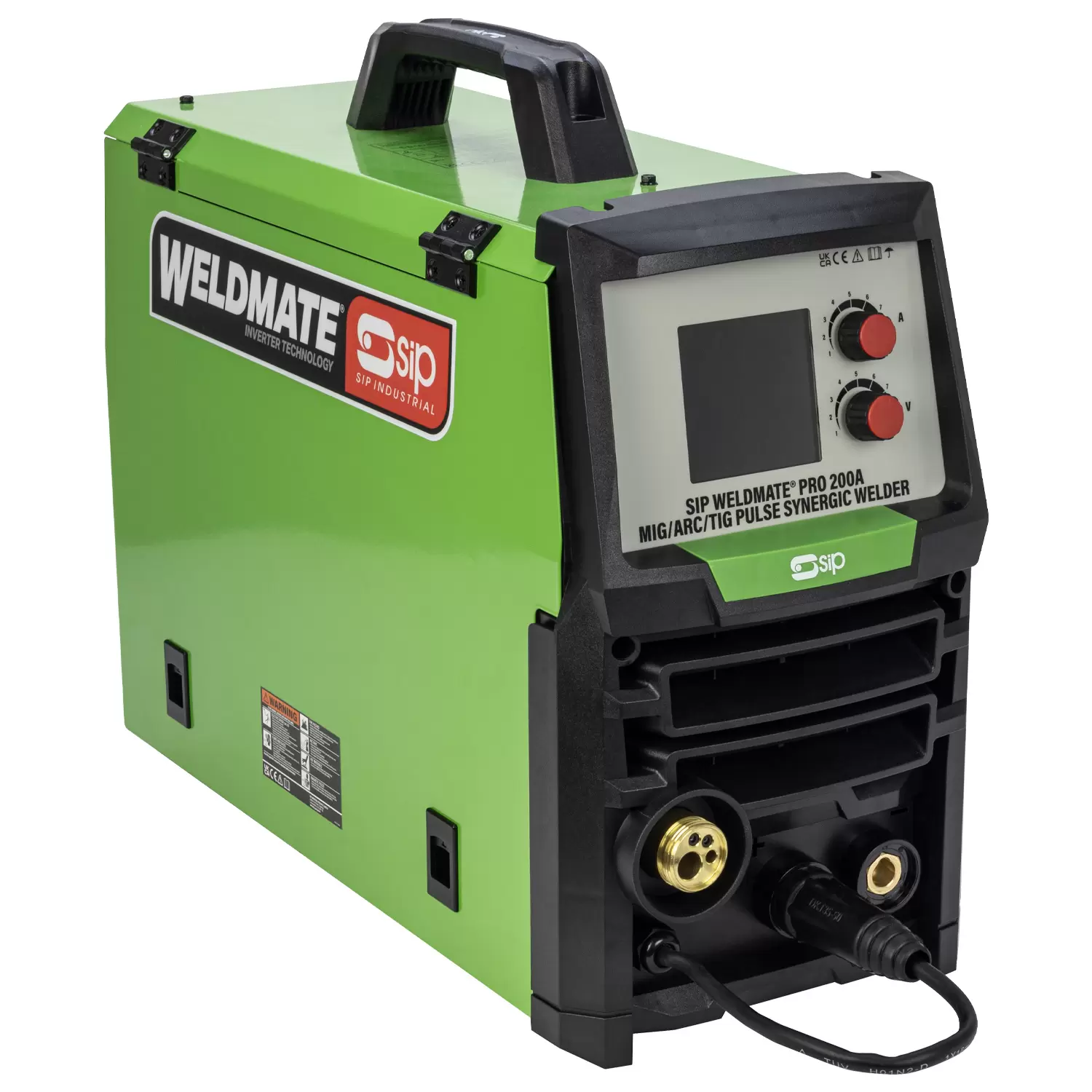

The SIP WELDMATE® PRO 200A MIG/ARC/TIG Pulse Synergic Inverter Welder is a multi-process inverter welder specifically designed for use in professional fabrication workshops.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
For a simplified welding process, Pure Synergic Control allows users to adjust welding voltage and wire feed speed autonomously, while MIG Pulse functionality allows advanced users to achieve higher quality MIG welding on aluminium and greater control on ferrous metals.
Features
• Multi-process MIG/ARC/TIG welder for greater flexibility
• Pure Synergic Control for more consistent and higher quality welds
• MIG Pulse functionality for setting parameters and arc characteristics
• Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)

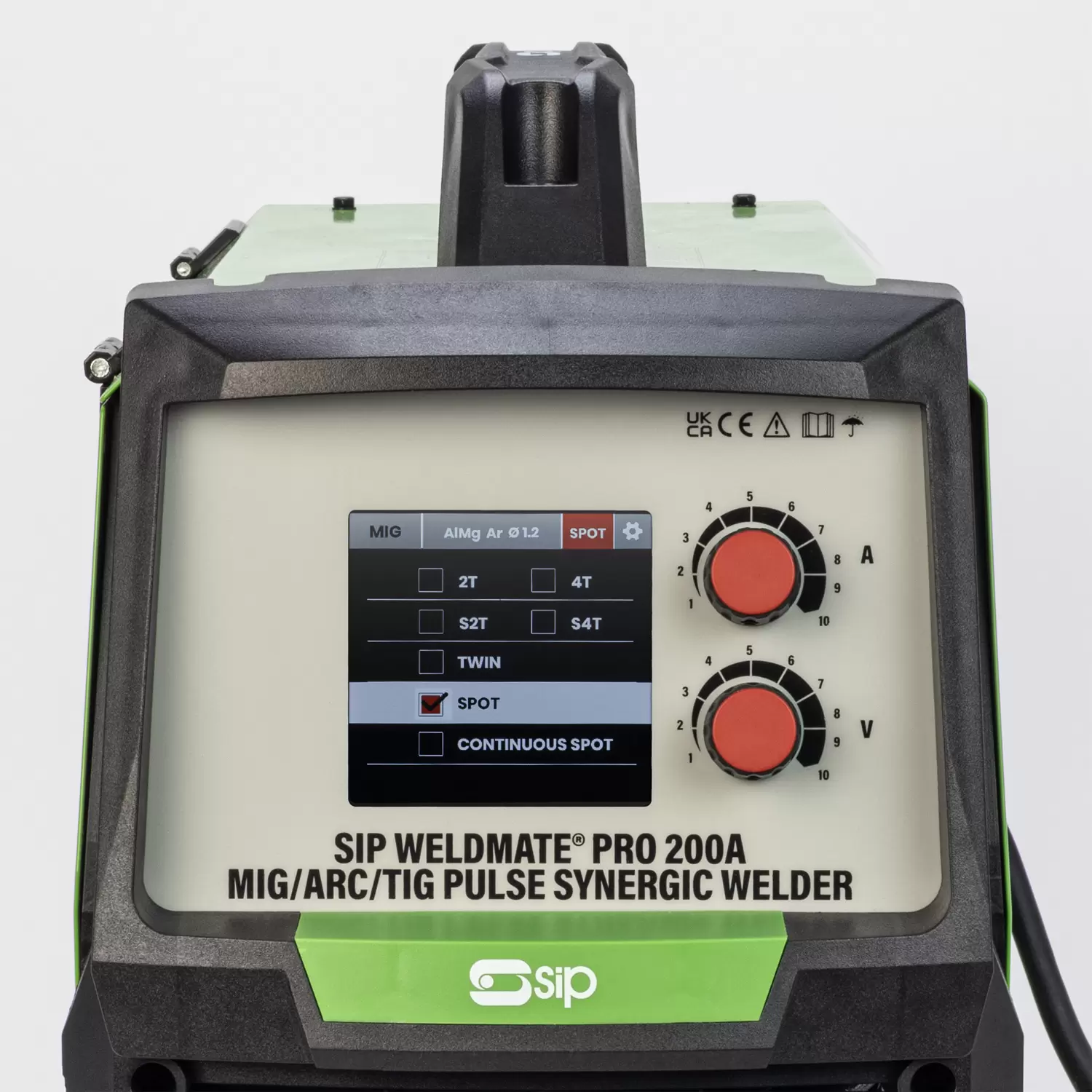

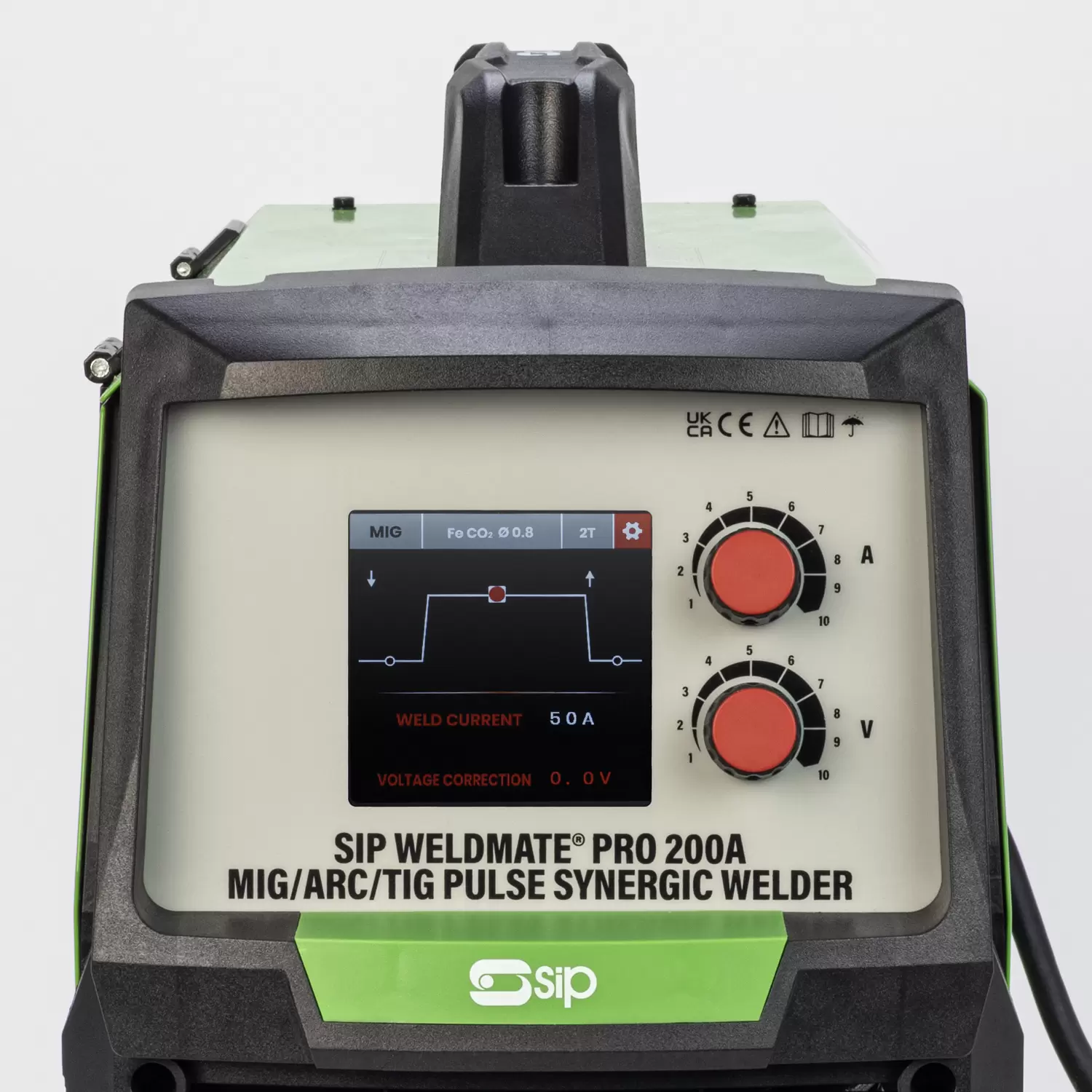

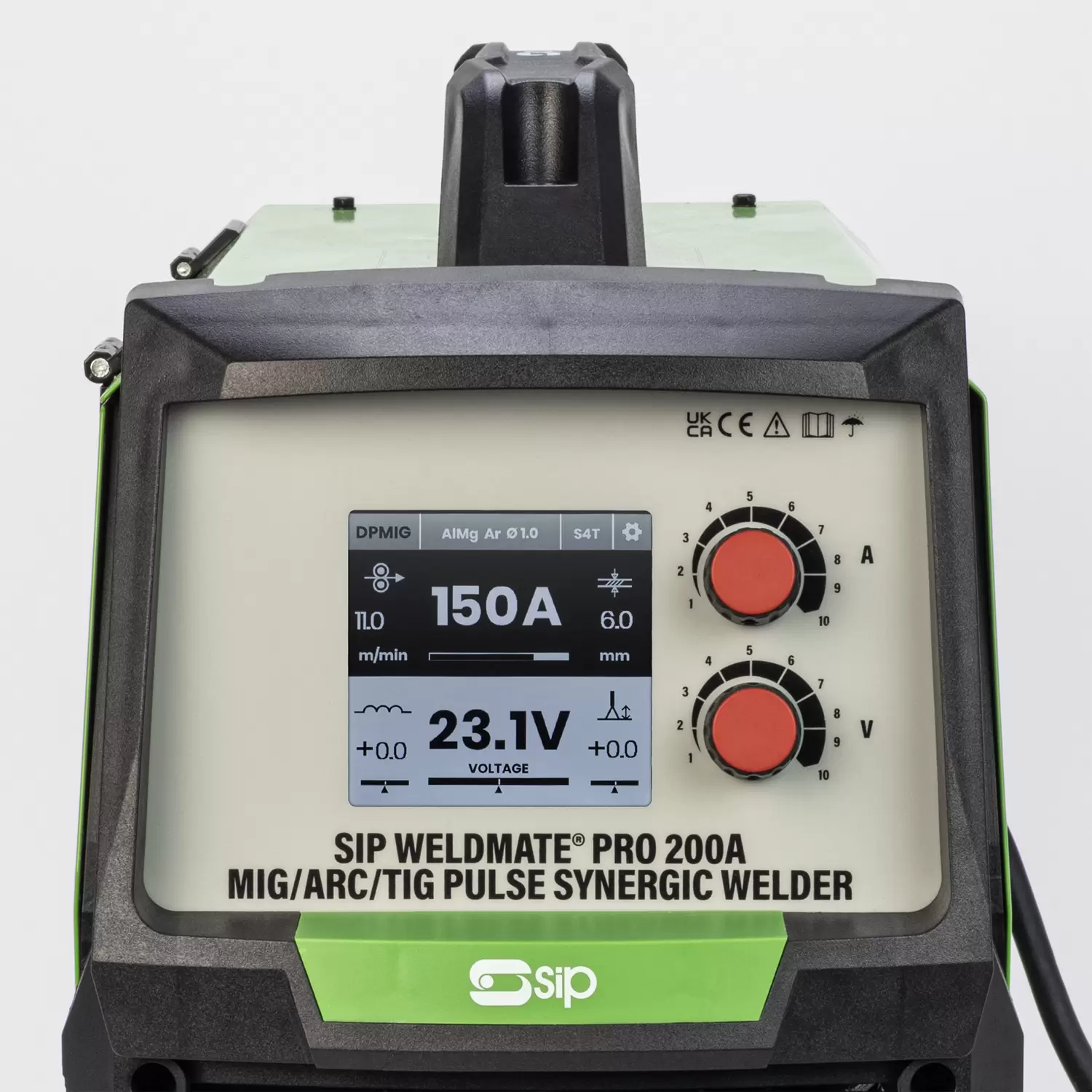

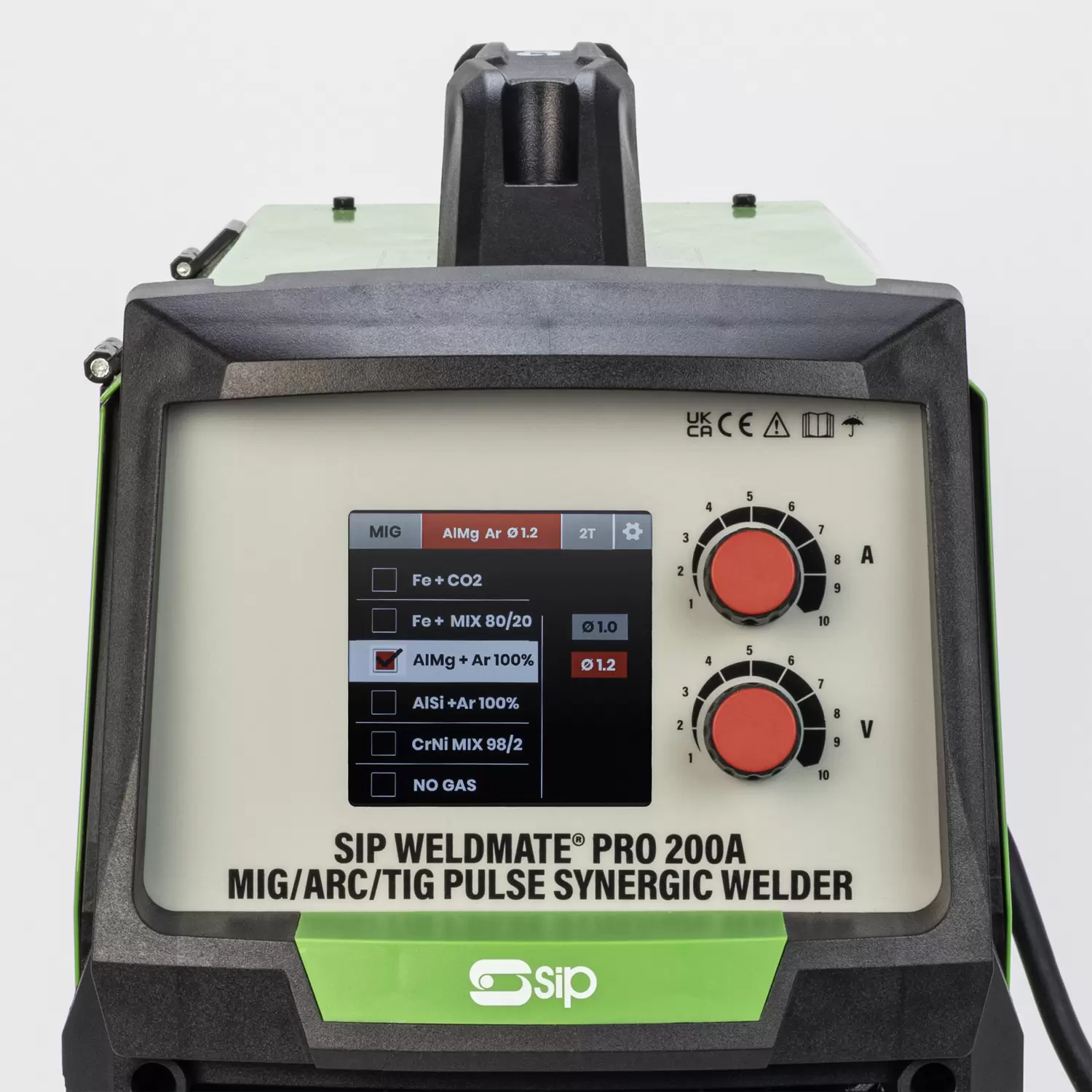

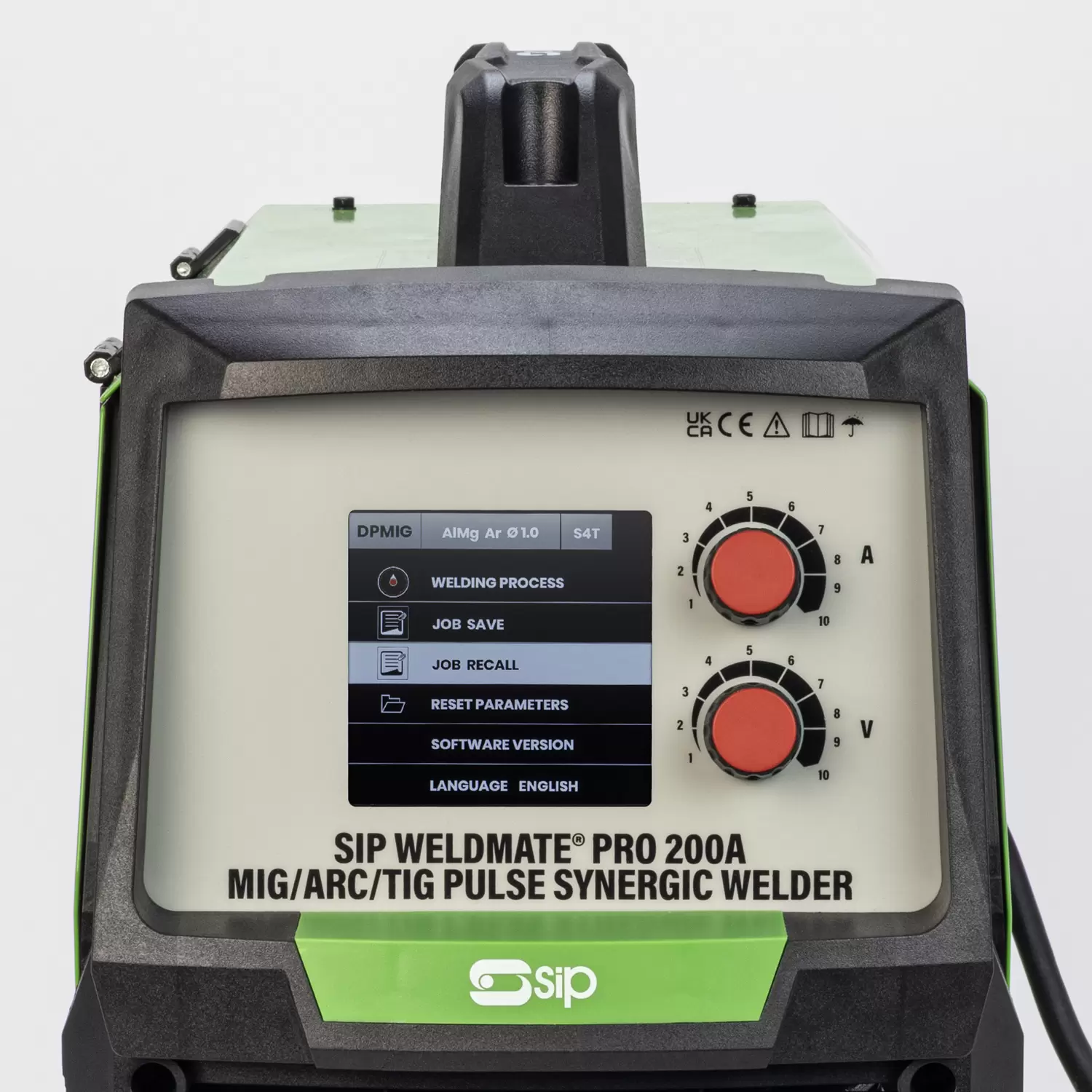

• LCD screen with infinitely variable controls to select functions
• Pure Synergic Control for more consistent and higher quality welds
• MIG Pulse functionality for setting parameters and arc characteristics
• Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)
• LCD screen with infinitely variable controls to select functions
Specification
ITEM NO. 05735
Input Supply: 230v (16A)
Output Voltage: 16.5v - 24v (MIG) / 15.5v - 22.5v (MIG Pulse) / 20.8v - 27.2v (ARC) / 10.8v - 17.2v (TIG)
Output Current: 20A - 200A (MIG) / 30A - 170A (MIG Pulse) / 20A - 180A (ARC) / 20A - 180A (TIG)
Duty Cycle @ 20°C: 200A @ 30% (MIG) / 170A @ 30% (MIG Pulse) / 180A @ 30% (ARC) / 180A @ 30% (TIG)
Wire Diameter: ⌀ 0.8mm - 1mm
Wire Spool Size: 5kg, 15kg
Welding Material Thickness: 0.8mm - 7mm (mild steel) / 2.5mm - 7mm (aluminium)
Protection / Insulation 21S / H
Workshopping Says

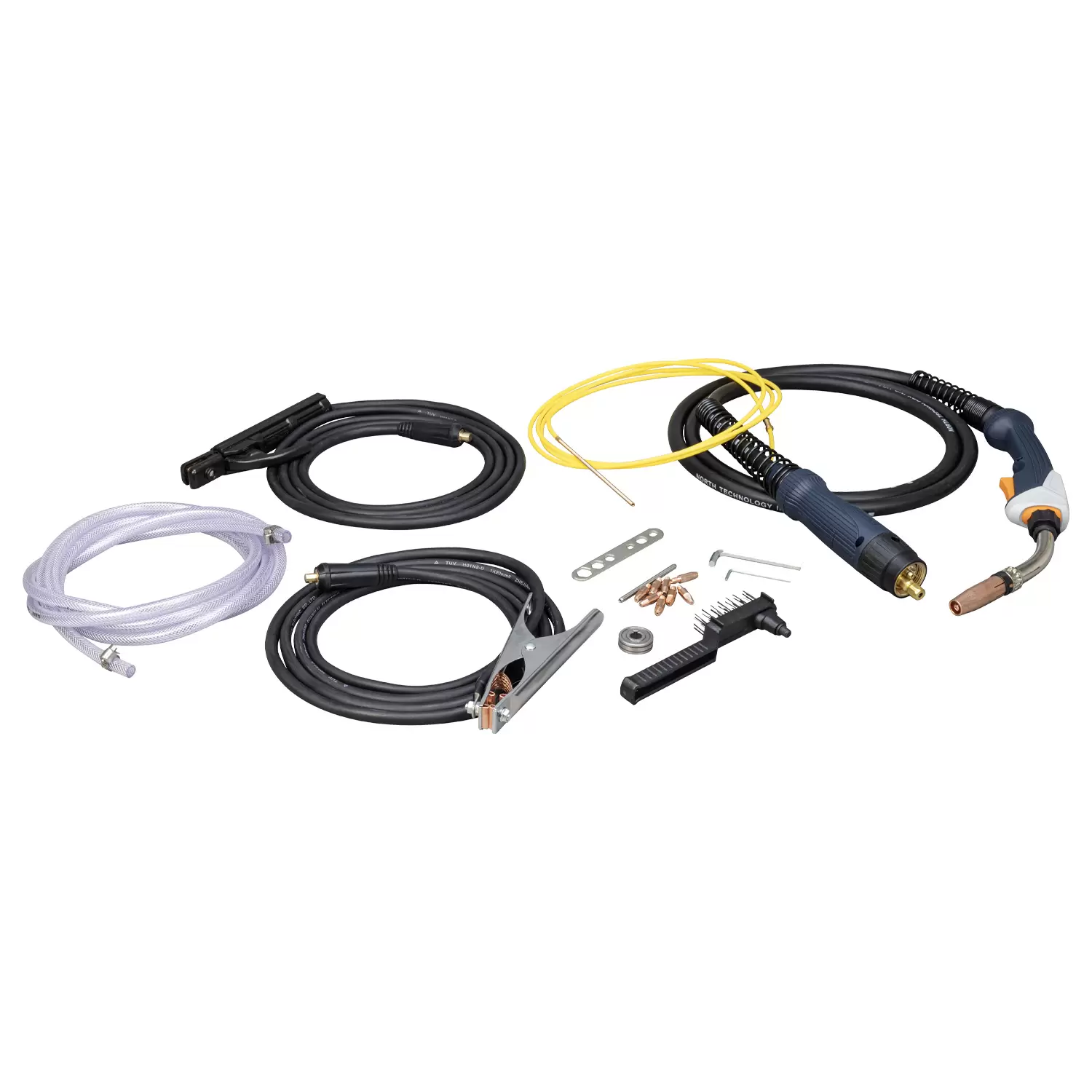

Ideal for use in professional fabrication workshops. Perfect for sheet metal applications. Suitable for MIG/ARC/TIG welding. Ideal for mild steels and welds *stainless steel and **aluminium. *Using stainless steel welding wire. **Using aluminium welding wire and pure Argon gas. 1x SIP WELDMATE® PRO 200A MIG/ARC/TIG Pulse Synergic Inverter Welder (230v/16A), 1x 3mtr Euro MIG torch with mild steel and aluminium wire liners, 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x 3tr gas hose with clamps, 2x feed rollers, 8x contact tips, 1x torch spanner, 2x hex keys and 1x chipping hammer/brush. TIG torch sold separately (Item 08206A recommended).
