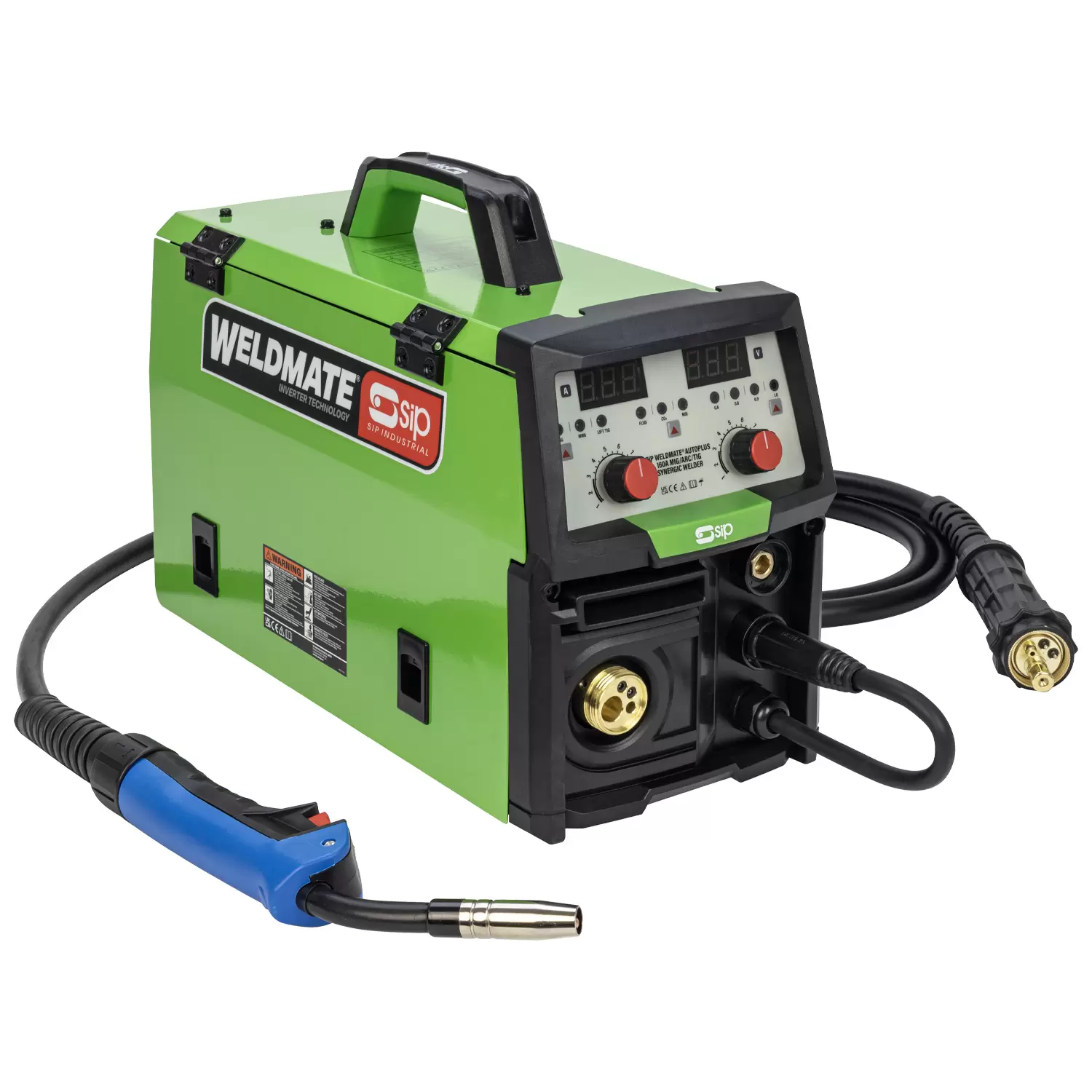

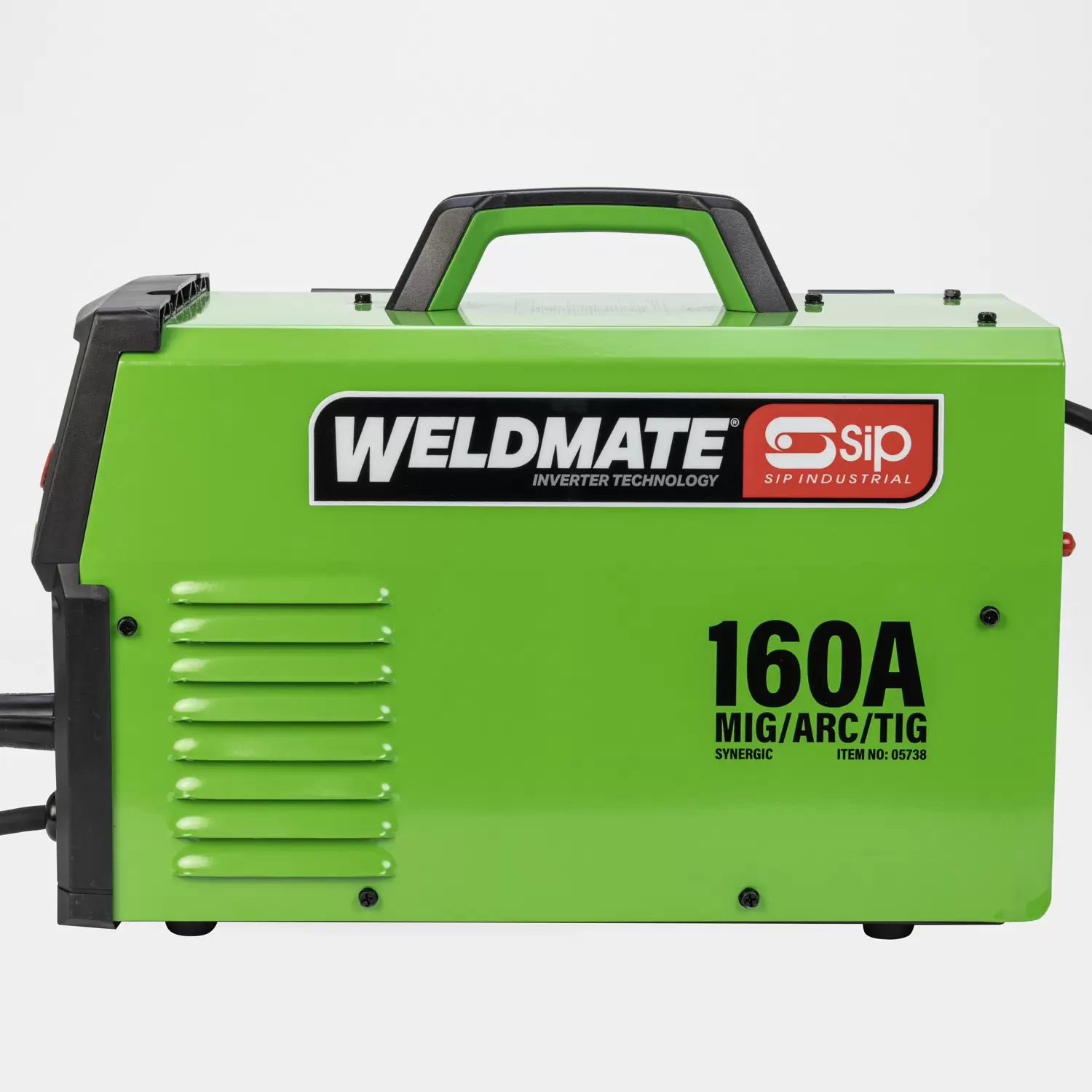

SIP - 05738 - WELDMATE® AUTOPLUS 160A MIG/ARC/TIG Synergic Inverter Welder
SKU: SIP05738
Part Number: 05738
Barcode: 5012713057382
Country of Origin: CN
Weight: 11.00 Kg
Our Price
£328.31 (inc VAT) £273.59 (ex VAT)
RRP £359.99 £299.99
Save
£31.68
£26.40
Out of stock
SIP 2-YEAR Warranty included.
Description

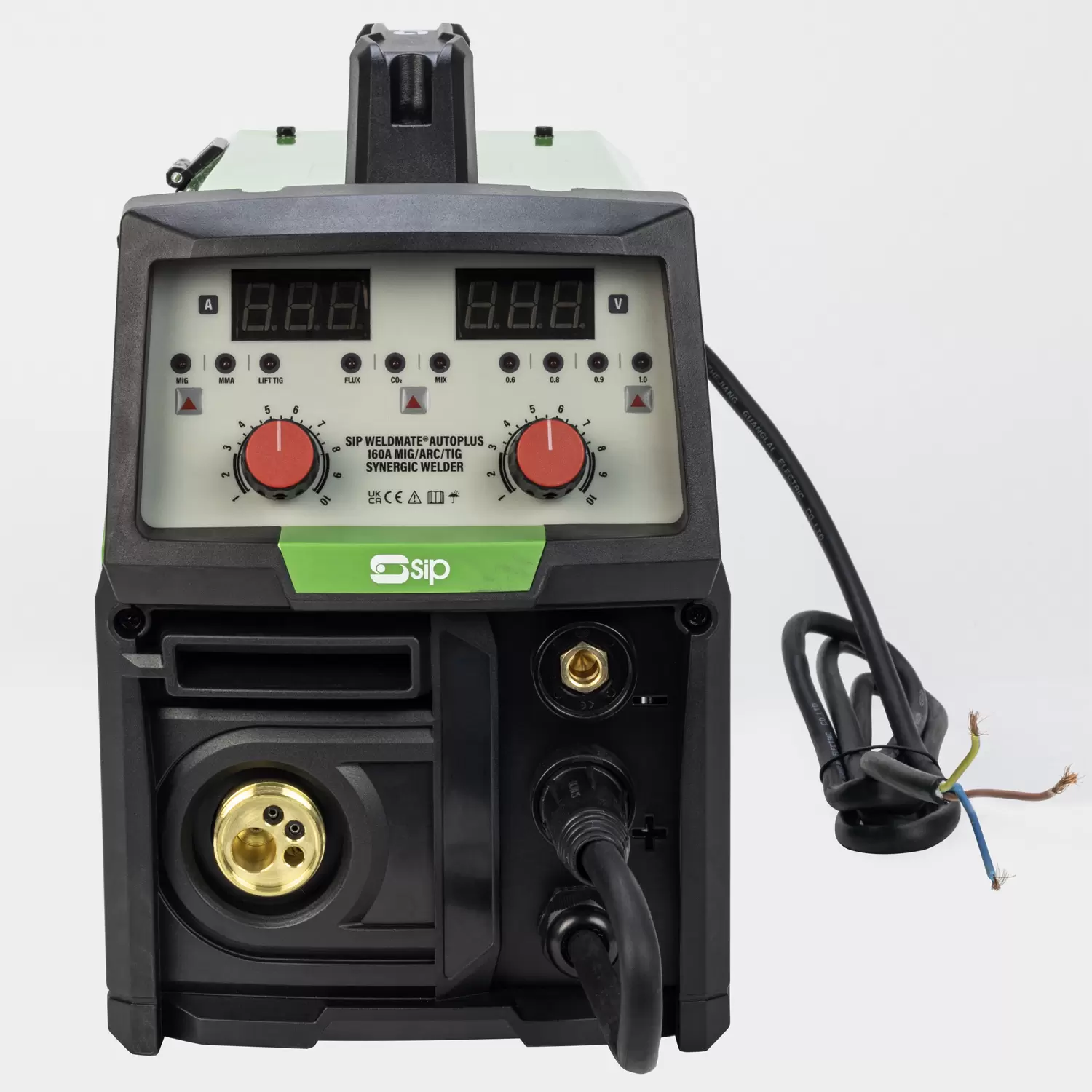

The SIP WELDMATE® AUTOPLUS 160A MIG/ARC/TIG Synergic Inverter Welder is a multi-process inverter welder specifically designed for use in automotive and garage environments.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

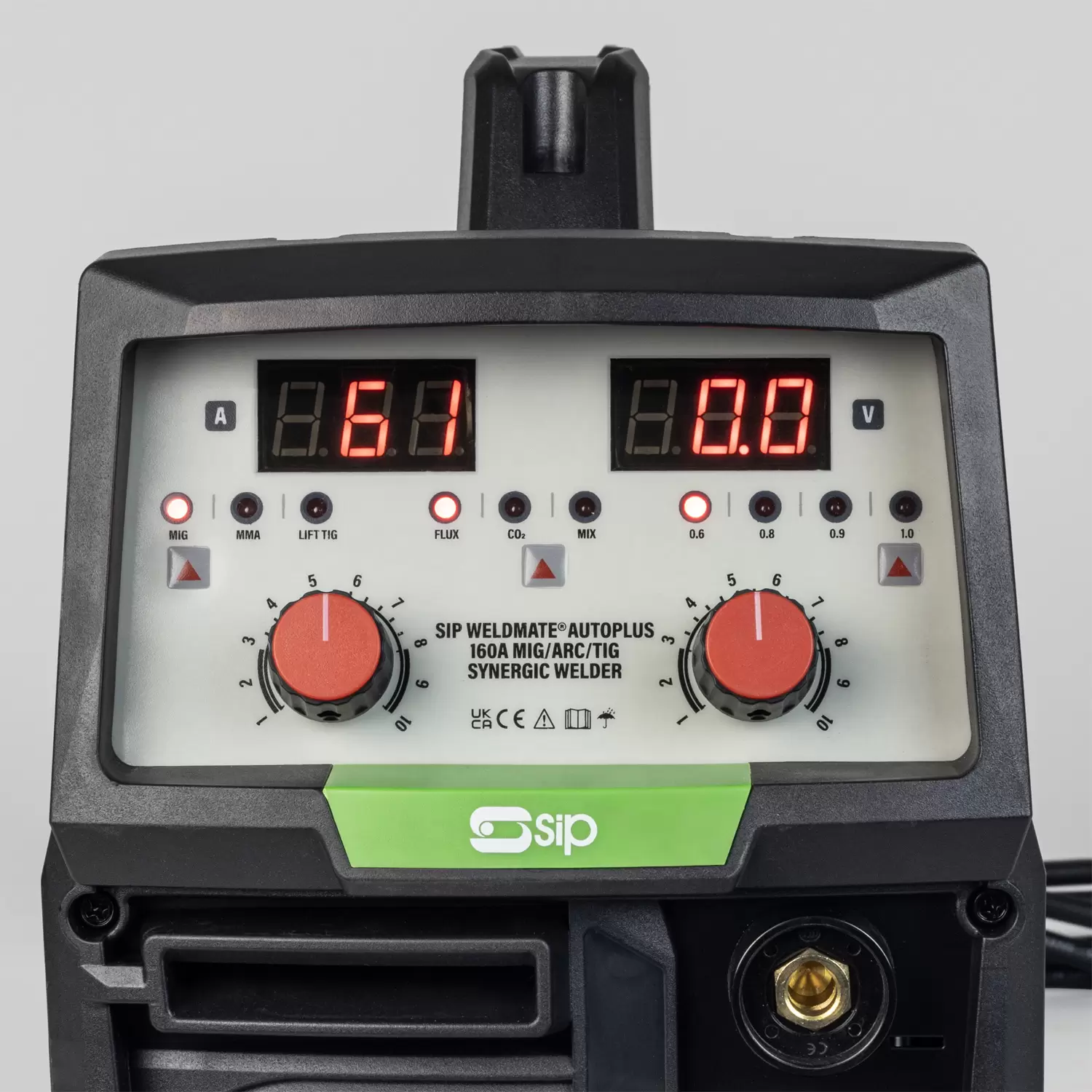

It also includes Pure Synergic Control, which allows users to adjust welding voltage and wire feed speed autonomously. This simplifies the welding process at all skill levels and helps to achieve more consistent and higher quality welds.
Features
• Multi-process MIG/ARC/TIG welder for greater flexibility
• Pure Synergic Control for more consistent and higher quality welds
• Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)

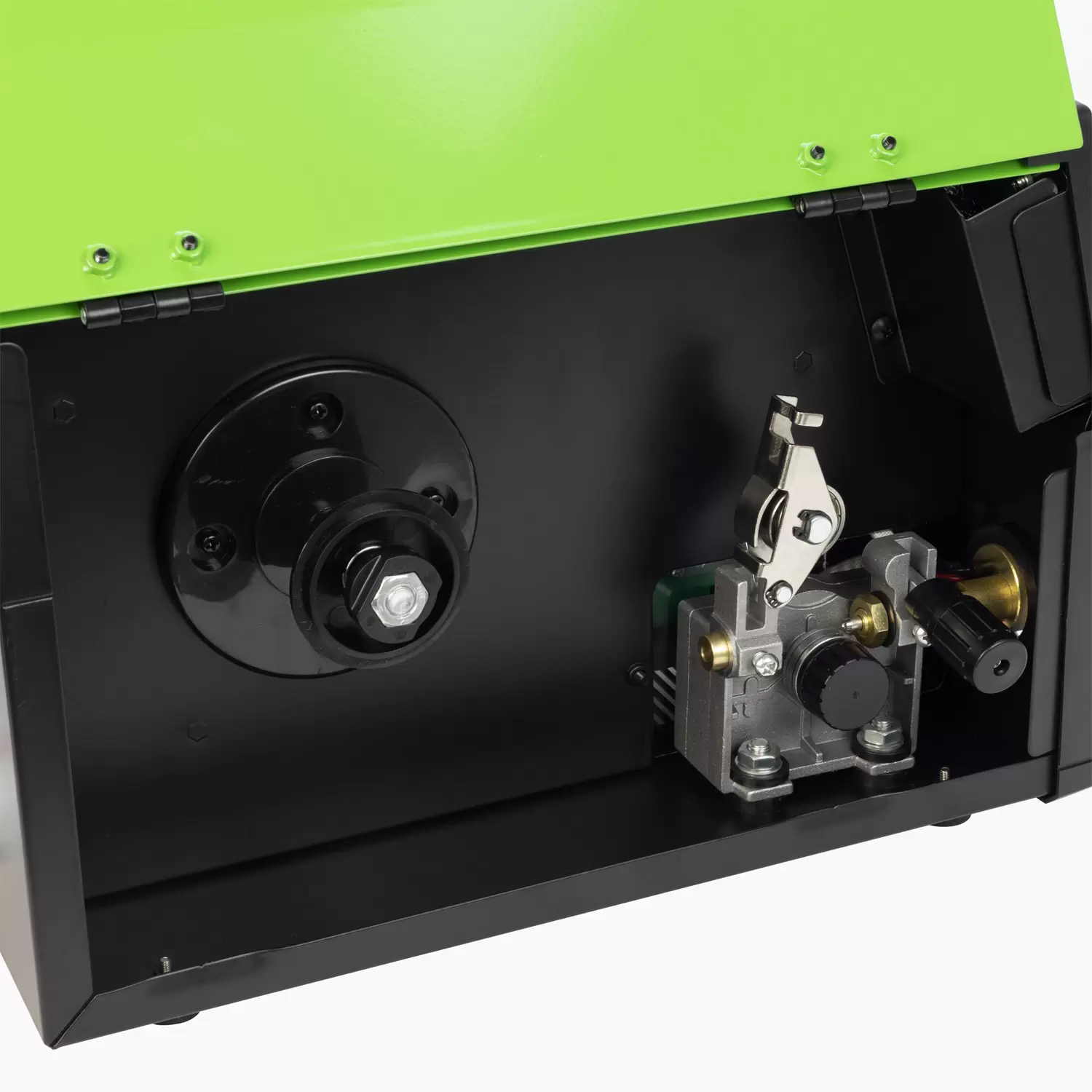

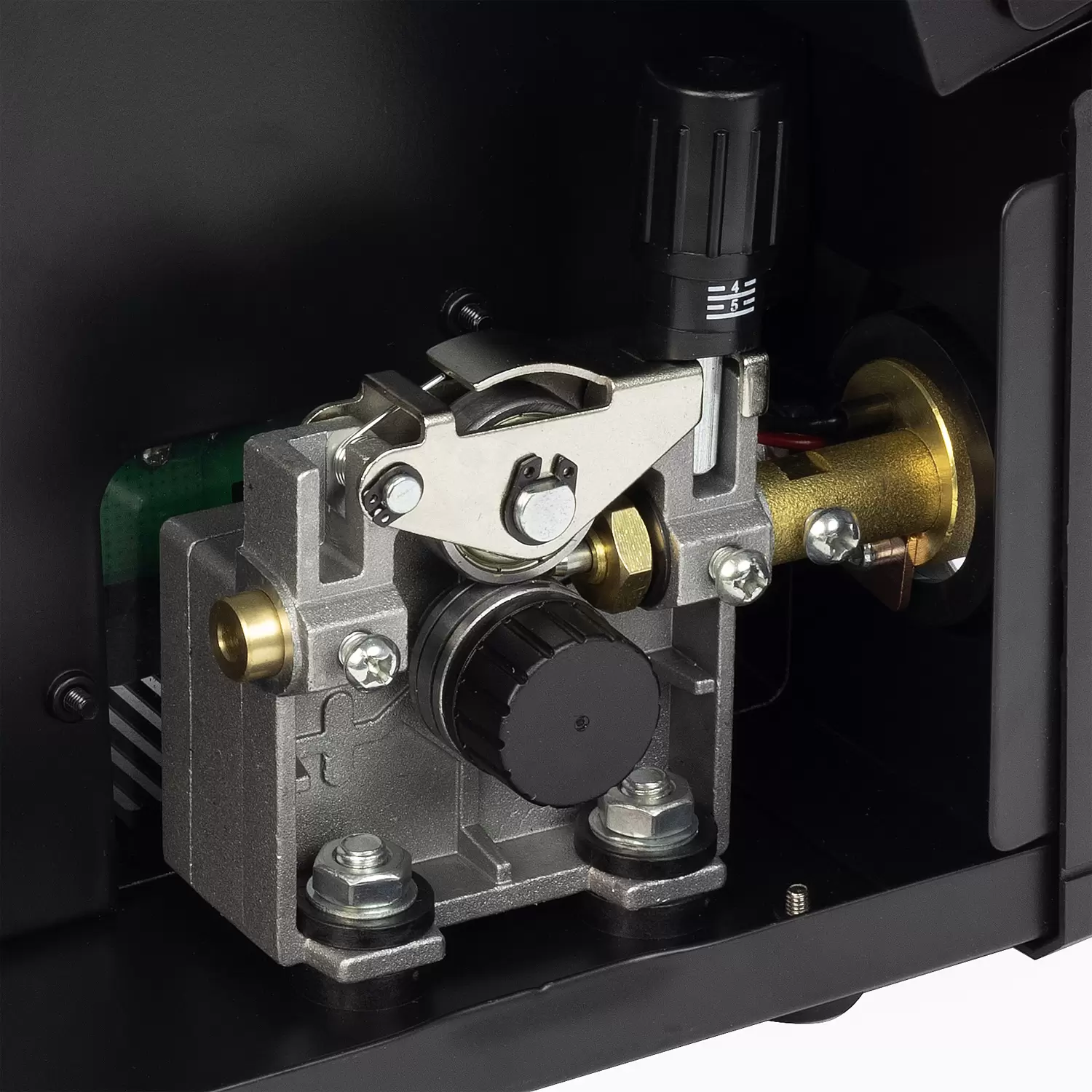

• Heavy-duty aluminium wire feeder for smooth consistent flow of wire
• Metal casing with strong-grip carry handle for long life use
• Pure Synergic Control for more consistent and higher quality welds
• Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)
• Heavy-duty aluminium wire feeder for smooth consistent flow of wire
• Metal casing with strong-grip carry handle for long life use
Specification
ITEM NO. 05738

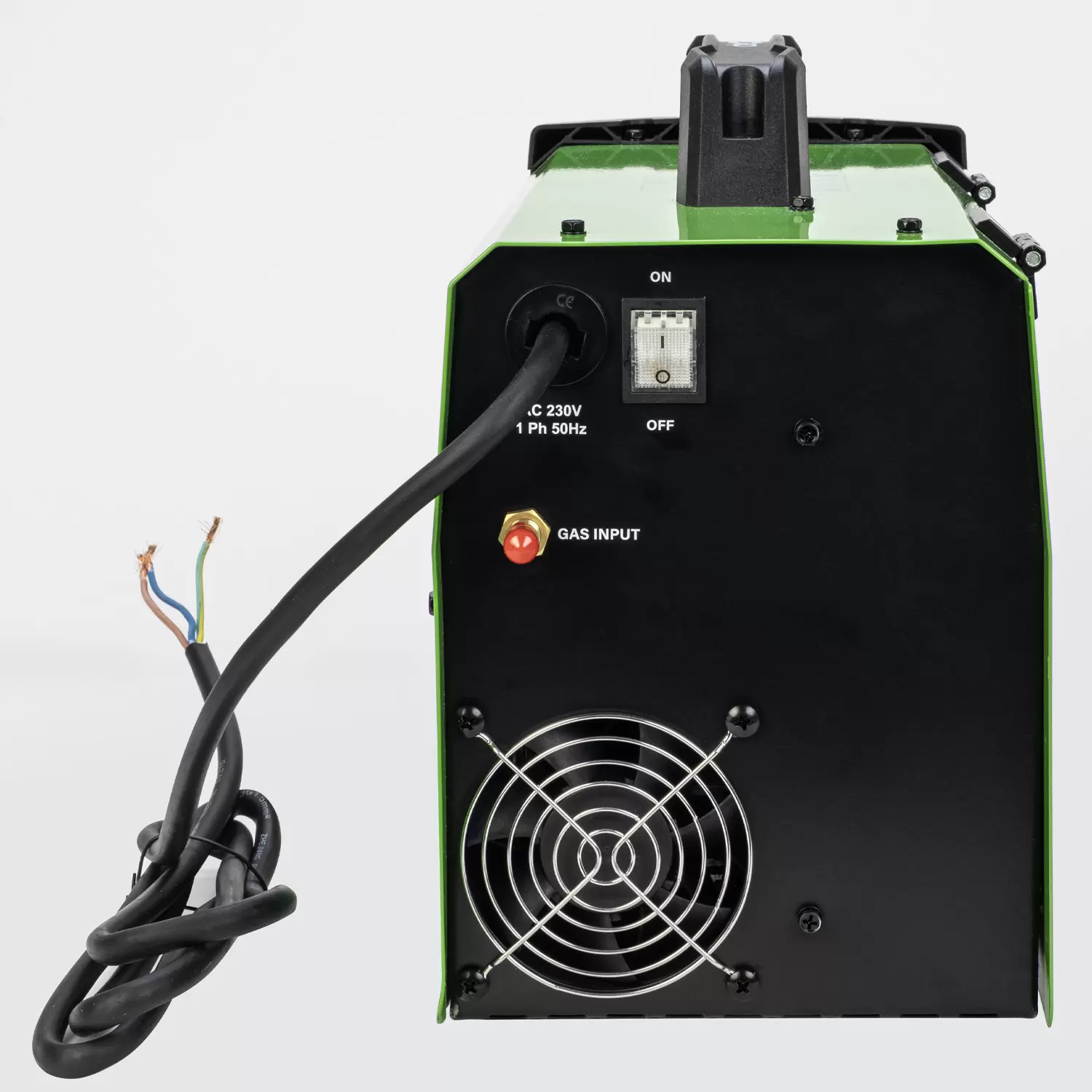

Input Supply: 230v (16A)
Output Voltage: 16.5v - 22v (MIG) / 20.8v - 26.4v (ARC) / 10.8v - 16.4v (TIG)
Output Current: 20A - 160A (MIG) / 20A - 160A (ARC) / 20A - 160A (TIG)
Duty Cycle @ 20°C: 160A @ 30% (MIG) / 160A @ 30% (ARC) / 160A @ 30% (TIG)
Wire Diameter: ⌀ 0.8mm - 0.9mm
Wire Spool Size: 0.7kg, 5kg
Welding Material Thickness: 0.8mm - 5.5mm (mild steel)
Protection / Insulation 21S / H
Workshopping Says

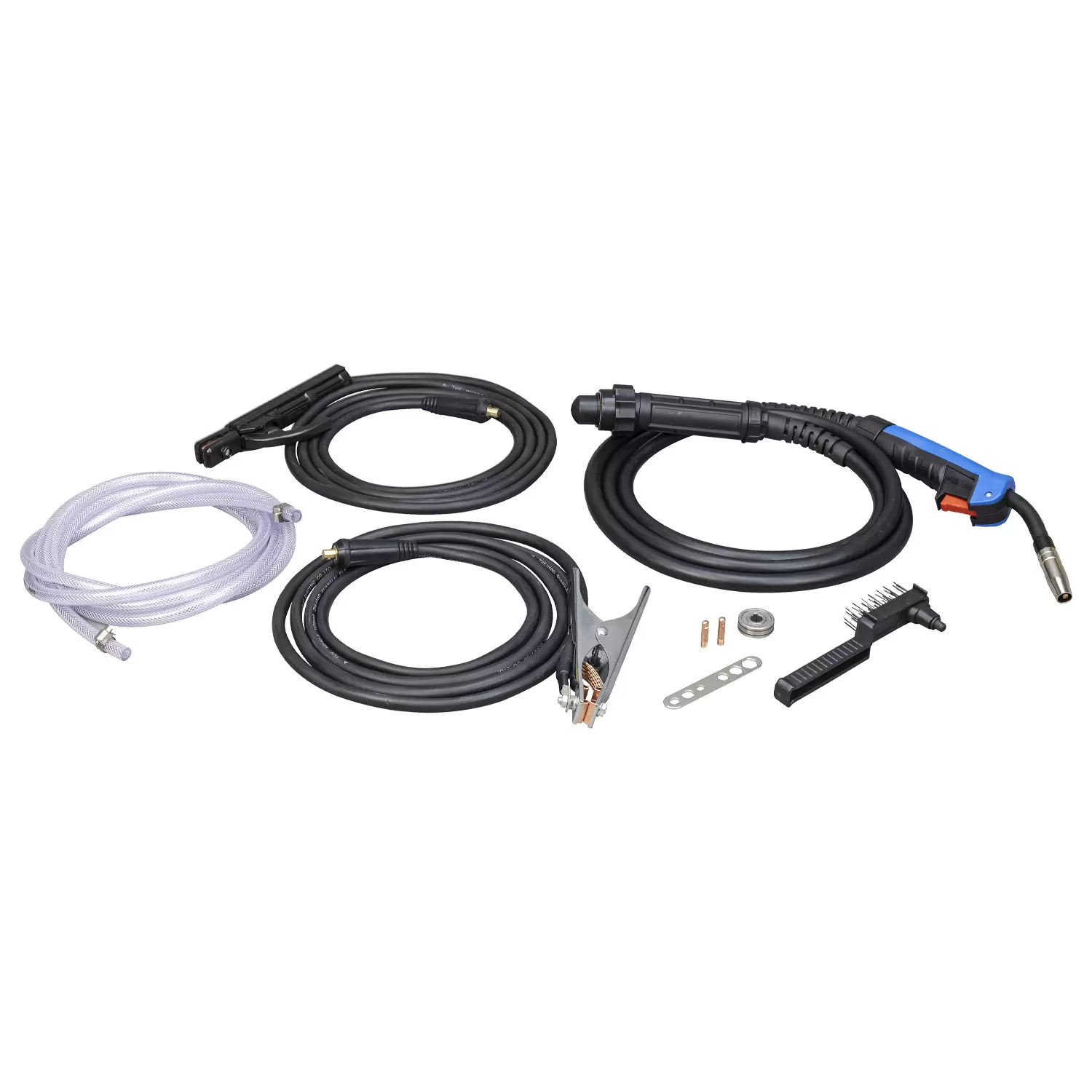

Ideal for use in automotive and garage environments. Perfect for sheet metal applications. Suitable for MIG/ARC/TIG welding, and performs gasless MIG welding. Ideal for mild steels and welds *stainless steel and **aluminium. *Using stainless steel welding wire. **Using aluminium welding wire and pure Argon gas. 1x SIP WELDMATE® AUTOPLUS 160A MIG/ARC/TIG Synergic Inverter Welder (230v/16A), 1x 3mtr Euro MIG torch, 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x 3mtr gas hose with clamps, 2x feed rollers, 2x contact tips, 1x torch spanner and 1x chipping hammer/brush. TIG torch sold separately (Item 08206A recommended).
