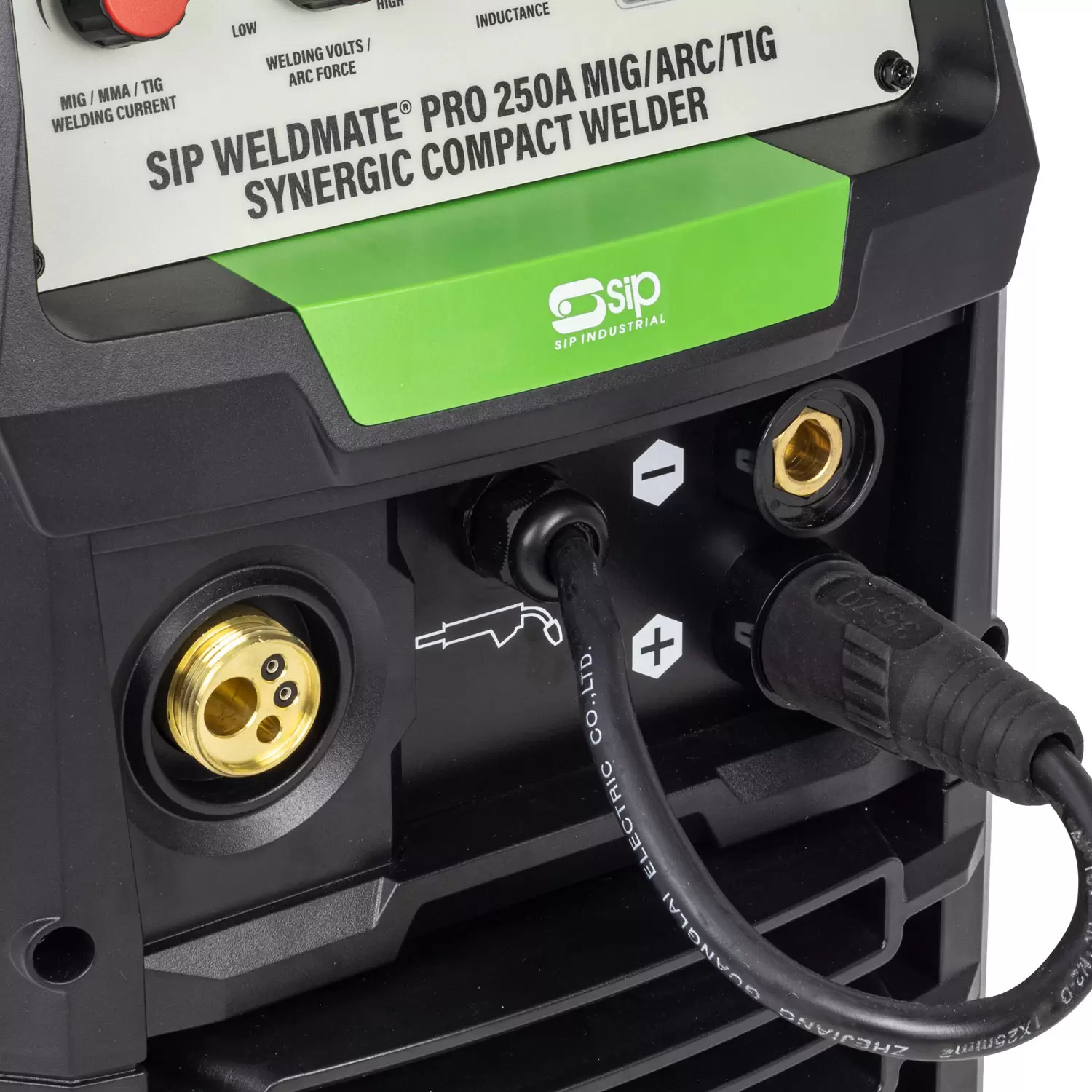

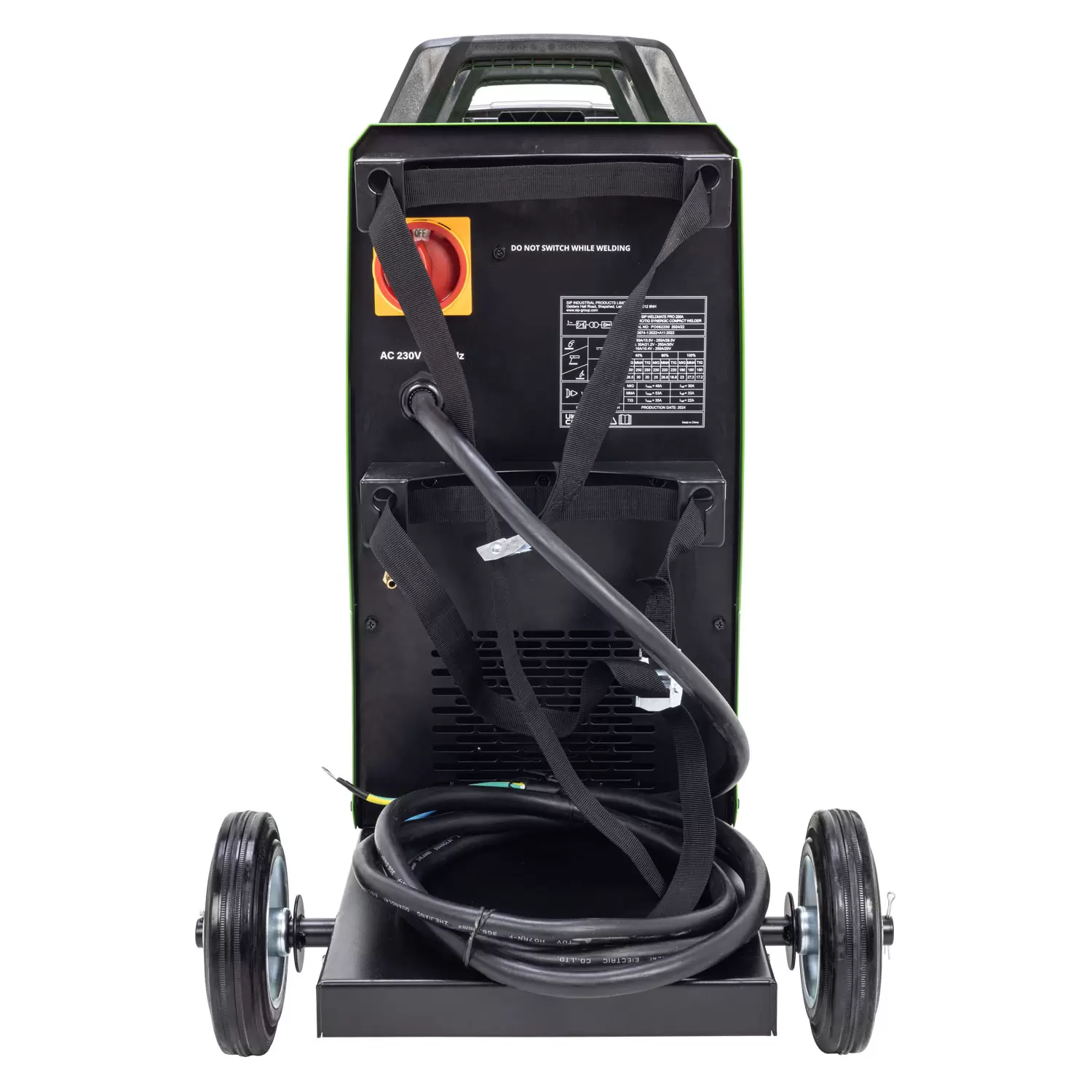

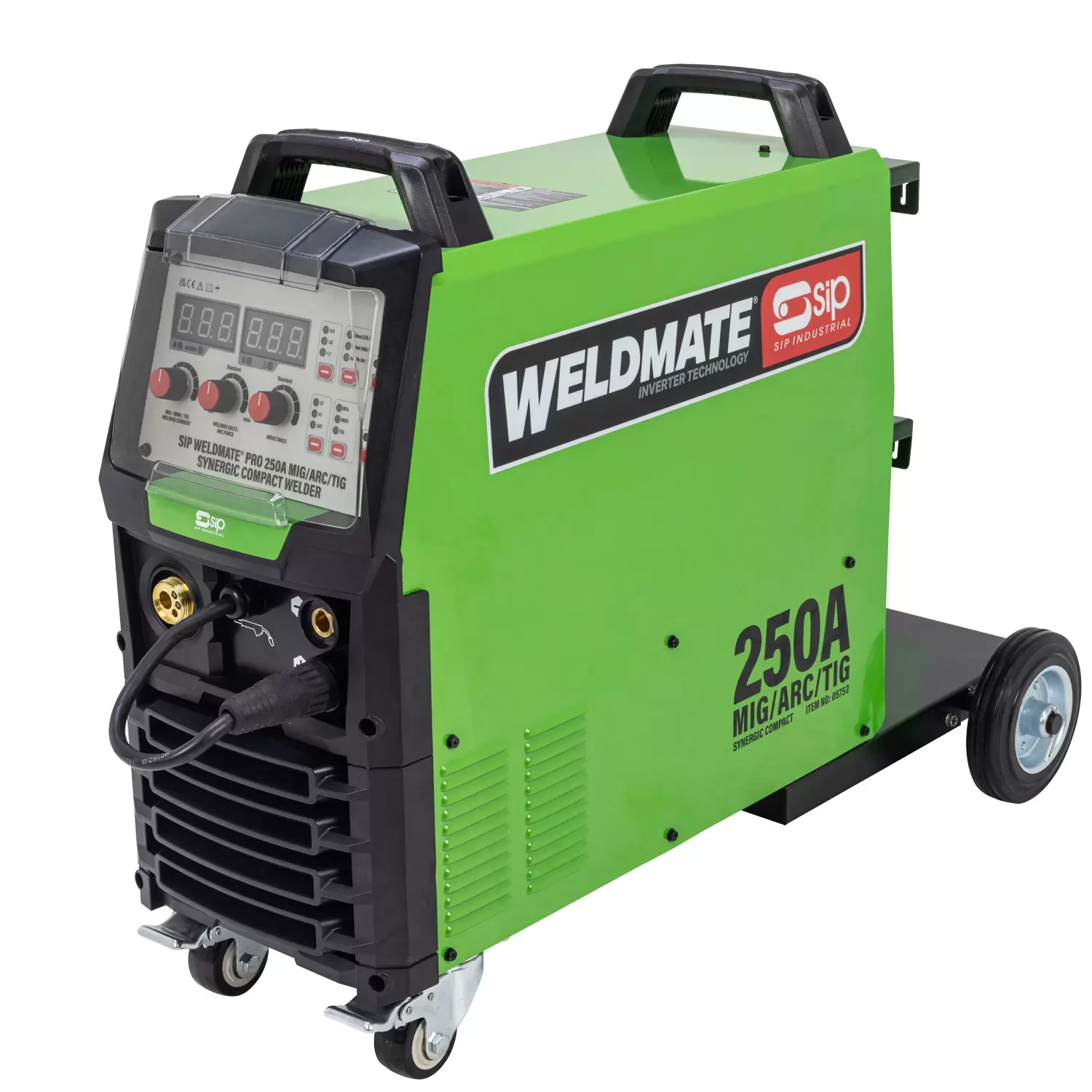

SIP - 05752 - WELDMATE® PRO 250A MIG/ARC/TIG Synergic Compact Inverter Welder
SKU: SIP05752
Part Number: 05752
Barcode: 5012713057528
Country of Origin: CN
Weight: 40.00 Kg
Our Price
£917.99 (inc VAT) £764.99 (ex VAT)
RRP £1,019.99 £849.99
Save
£102.00
£85.00
Out of stock
SIP 2-YEAR Warranty included.
Description

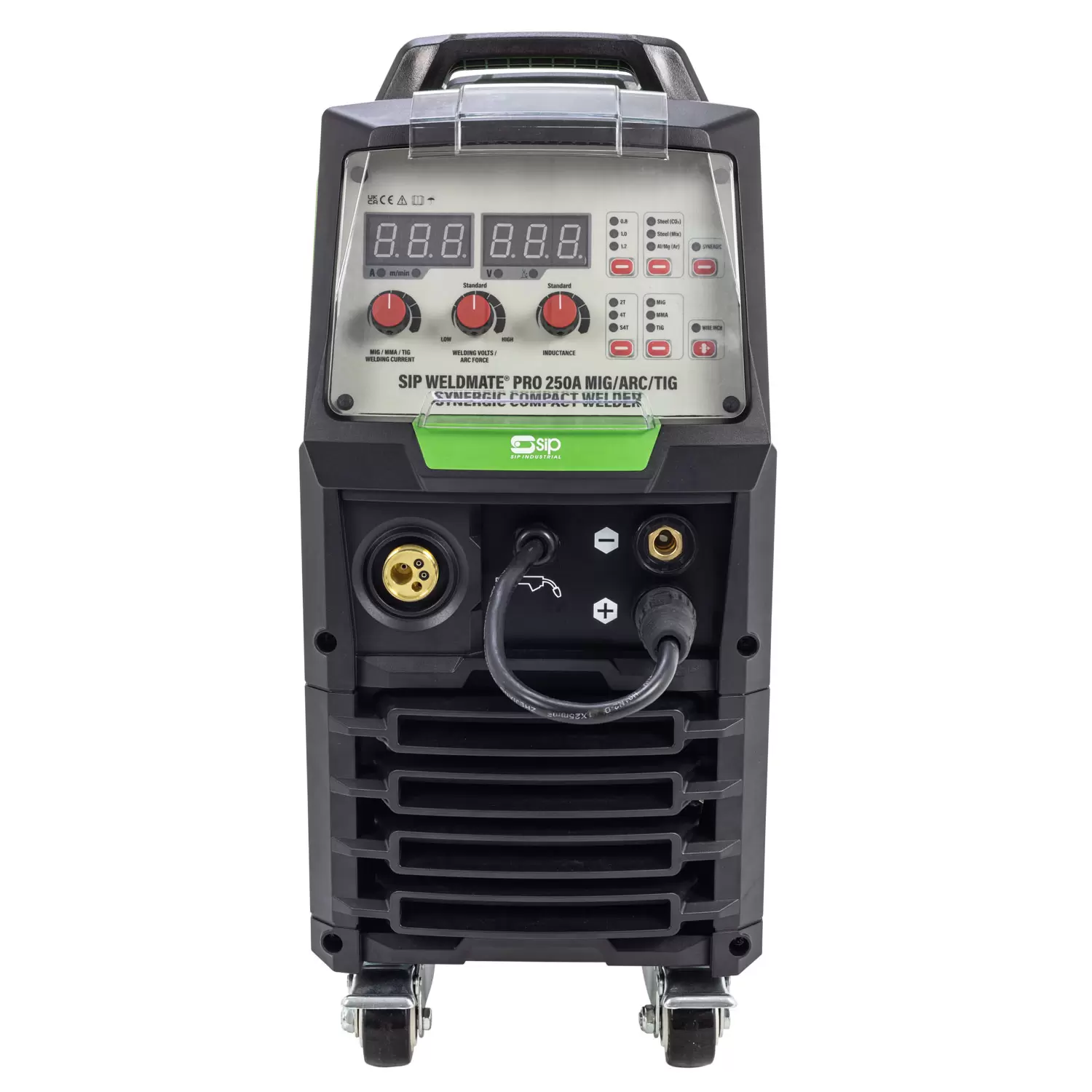

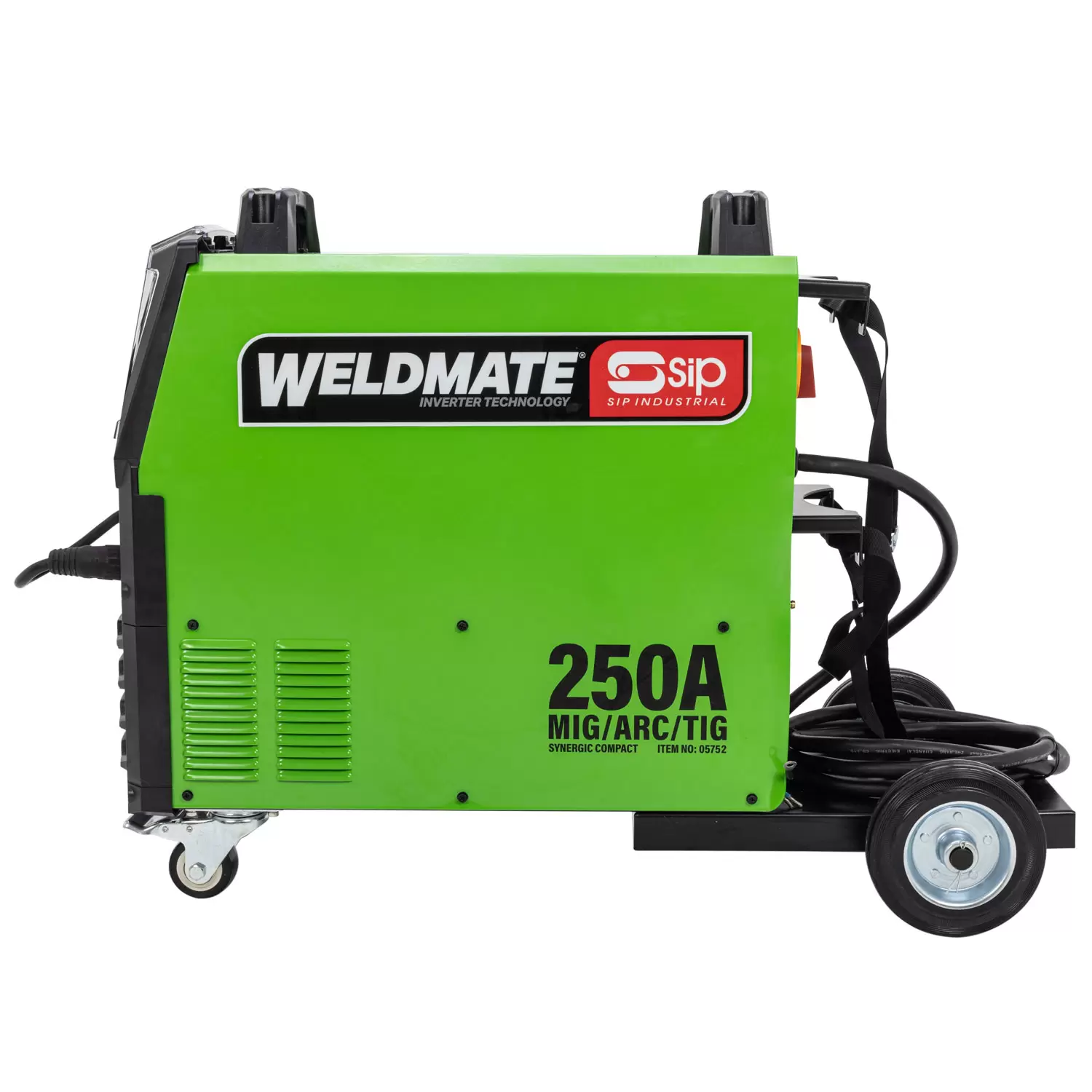

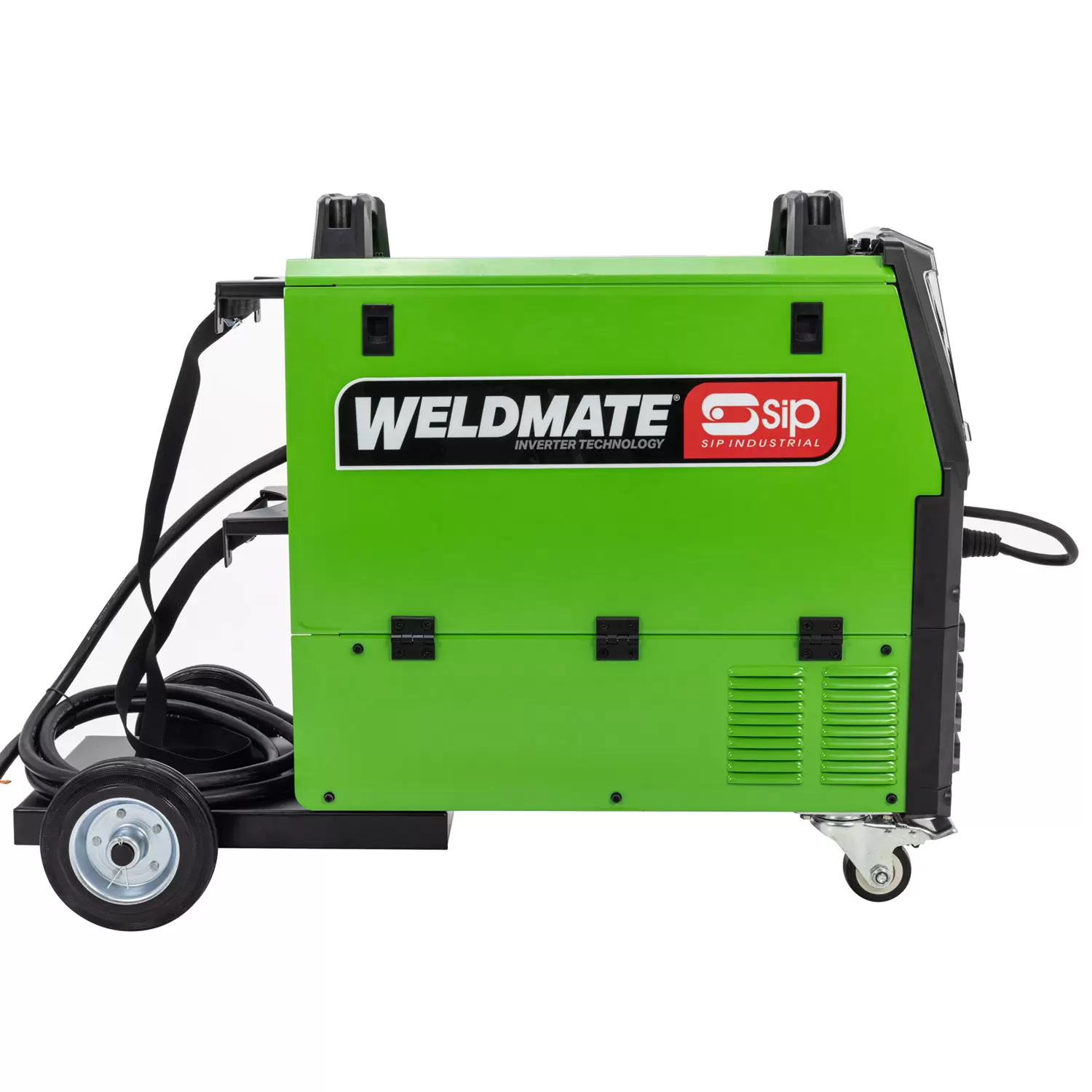

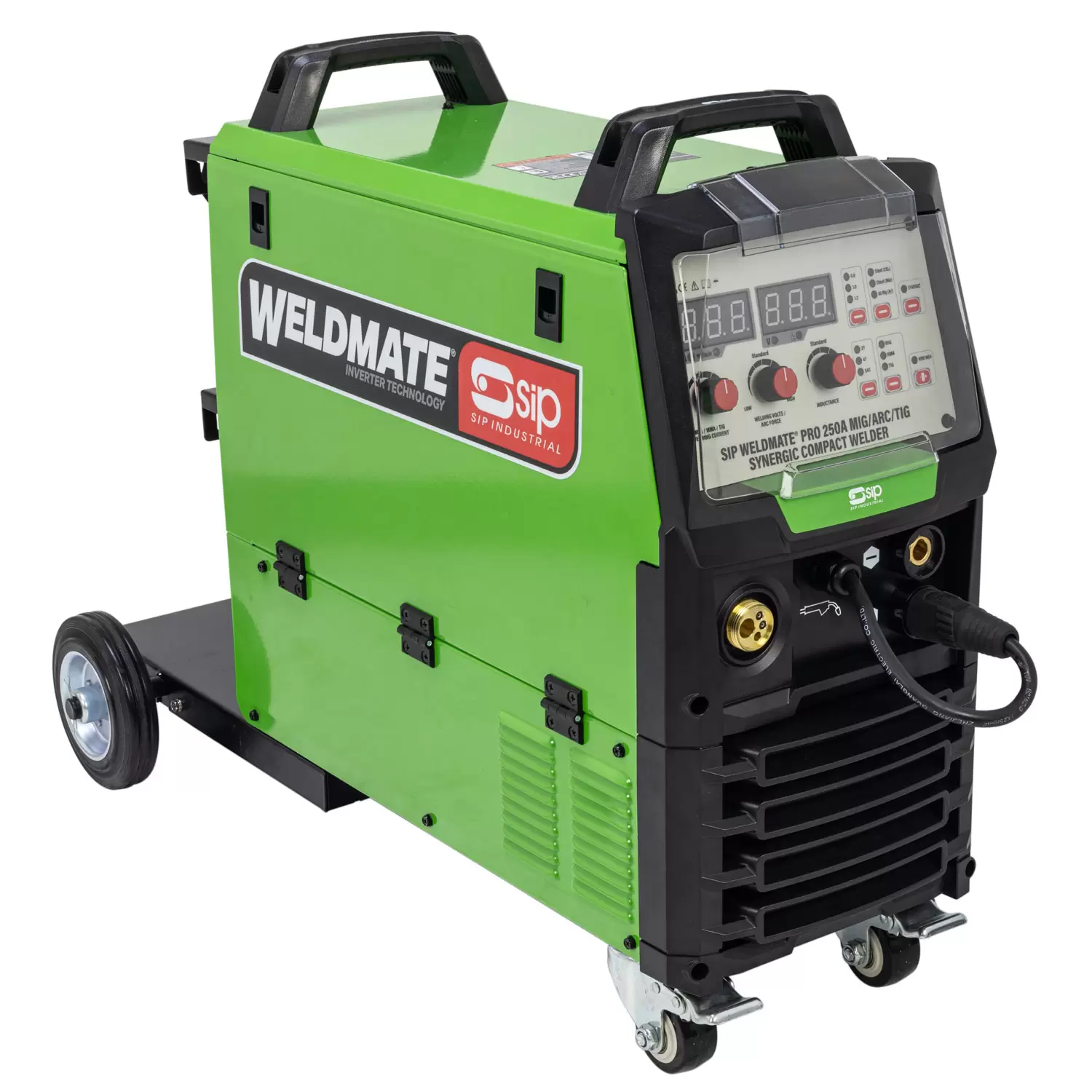

The SIP WELDMATE® PRO 250A MIG/ARC/TIG Synergic Compact Inverter Welder is a multi-process inverter welder specifically designed for use in professional fabrication workshops.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

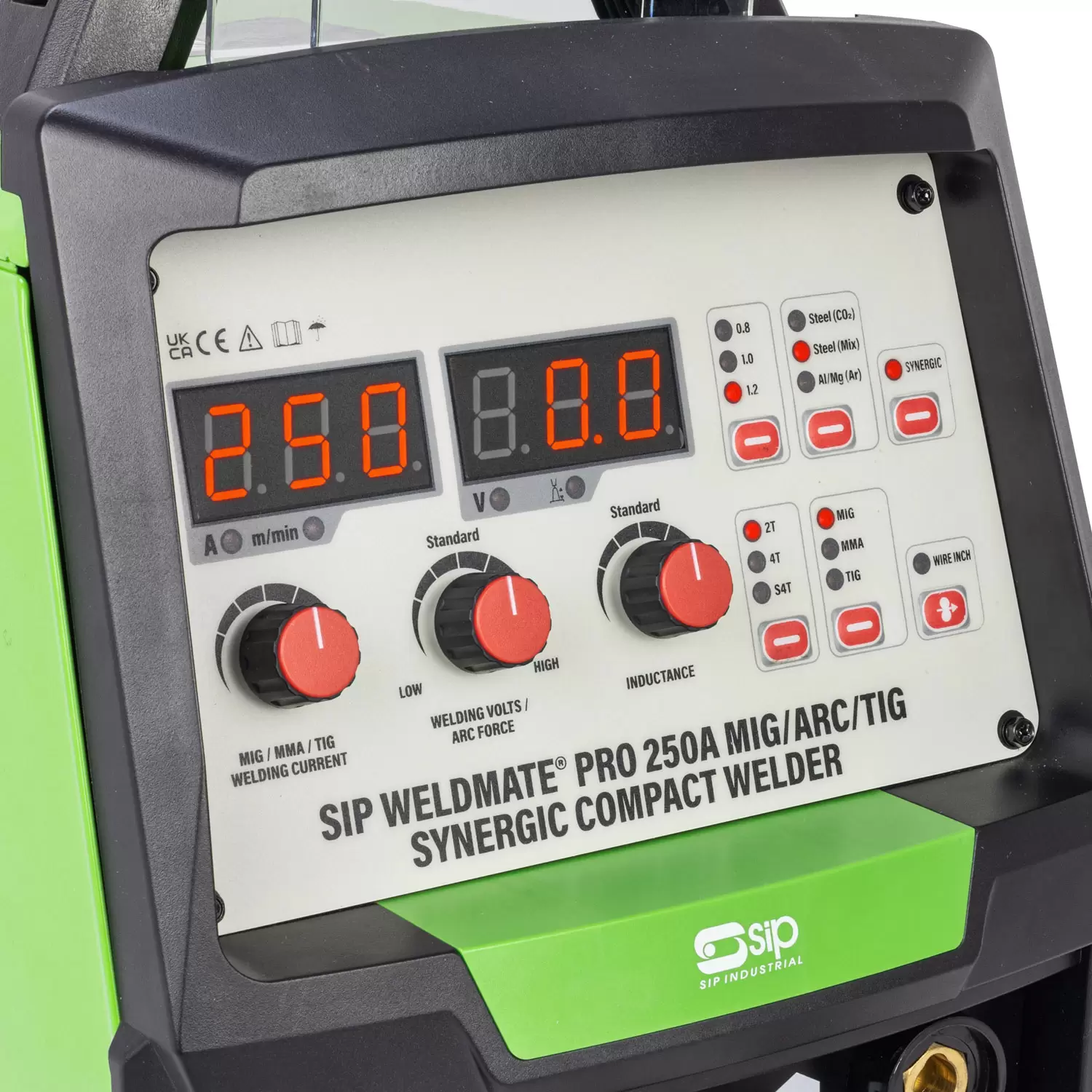

It also includes Pure Synergic Control, which allows users to adjust welding voltage and wire feed speed autonomously. This simplifies the welding process at all skill levels and helps to achieve more consistent and higher quality welds.
Features
• Multi-process MIG/ARC/TIG welder for greater welding flexibility at high duty cycles
• Features Pure Synergic Control for more consistent and higher quality welds
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)

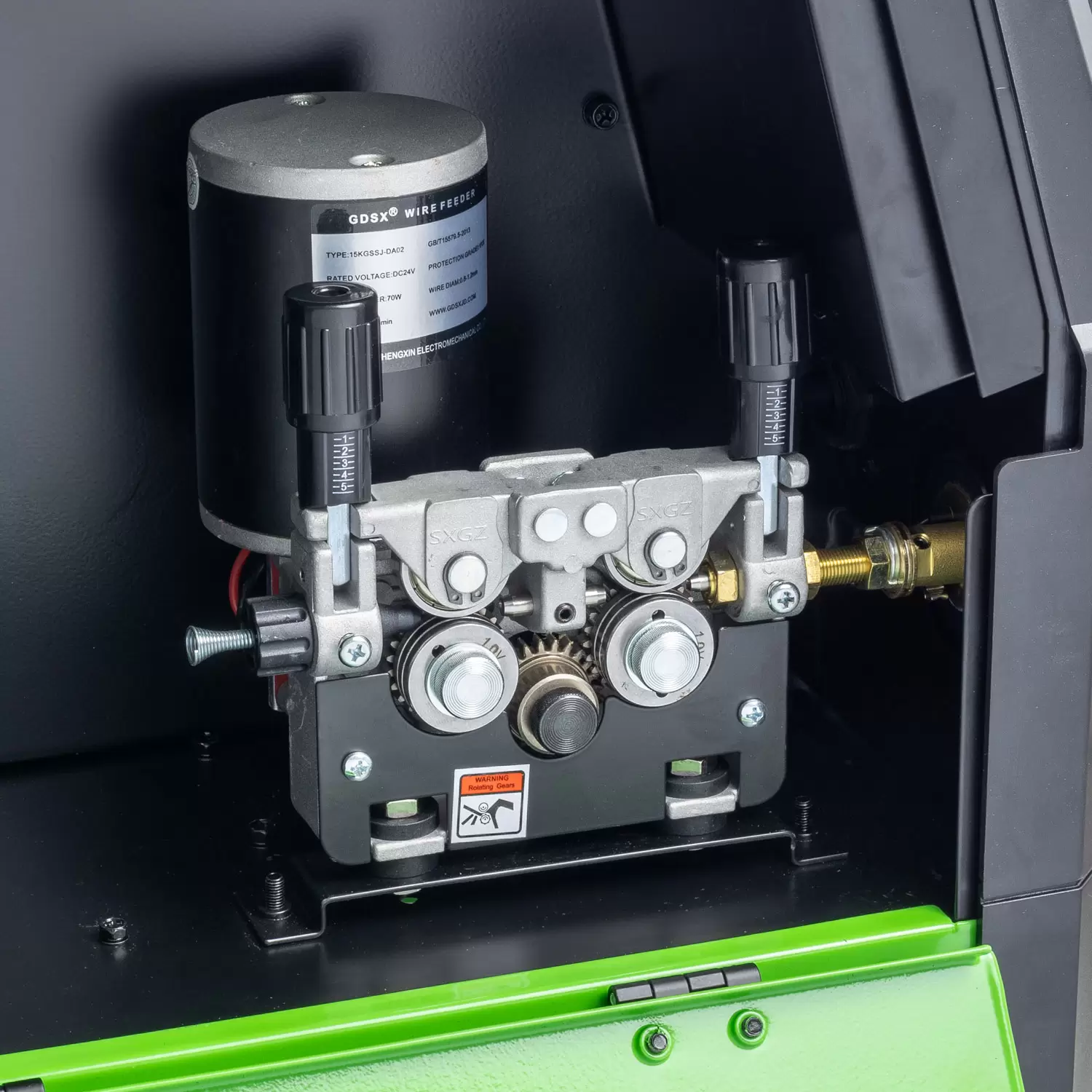

• Heavy-duty cast aluminium 4-roll wire feed drive handles higher feed speeds

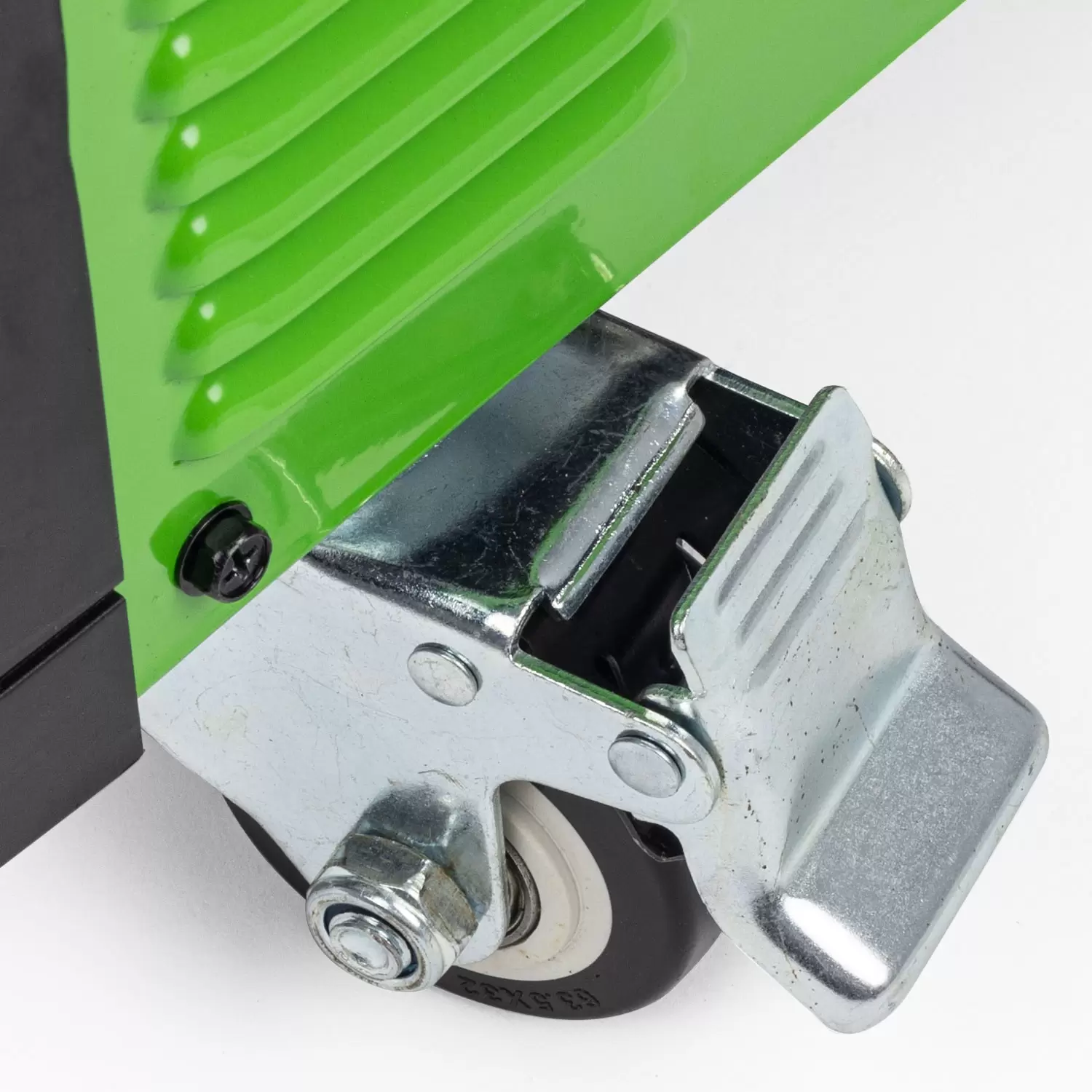

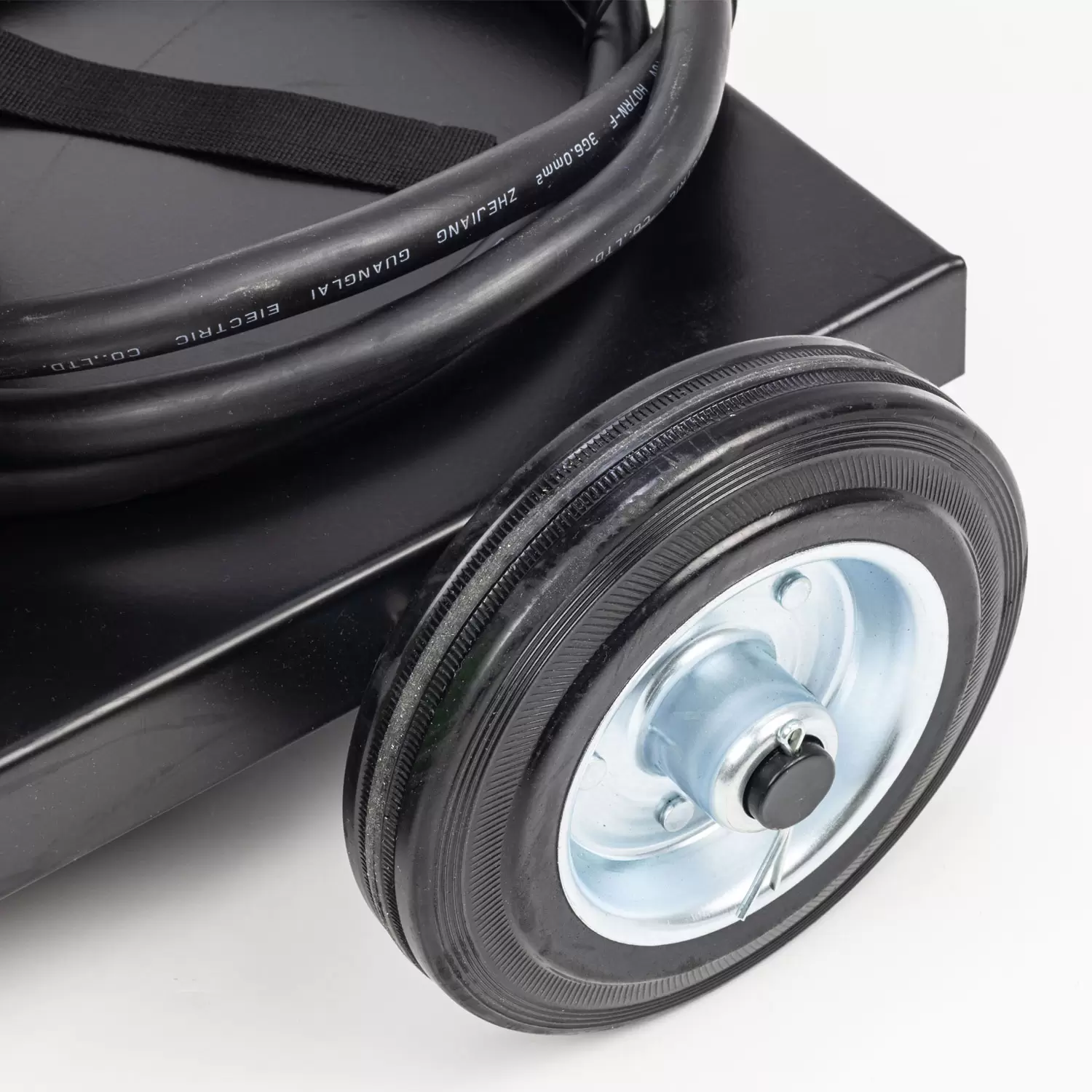

• Wheel-mounted design with lockable front castors for mobility around work area
• Features Pure Synergic Control for more consistent and higher quality welds
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)
• Heavy-duty cast aluminium 4-roll wire feed drive handles higher feed speeds
• Wheel-mounted design with lockable front castors for mobility around work area
Specification
ITEM NO. 05752
Input Supply: 230v (32A)
Welding Process: MIG ARC TIG
Output Voltage: 15.5v - 26.5v 21.2v - 30v 10.4v - 20v
Output Current: 30A - 250A 30A - 250A 10A - 250A
Duty Cycle @ 20°C: 250A @ 80% 250A @ 80% 250A @ 80%
Wire Diameter: ⌀ 0.8mm - 1.2mm
Wire Spool Size: 5kg, 15kg
Welding Material Thickness: 0.8mm - 8.5mm (mild steel) / 2.5mm - 8.5mm (aluminium)
Protection / Insulation 21S / H
Workshopping Says

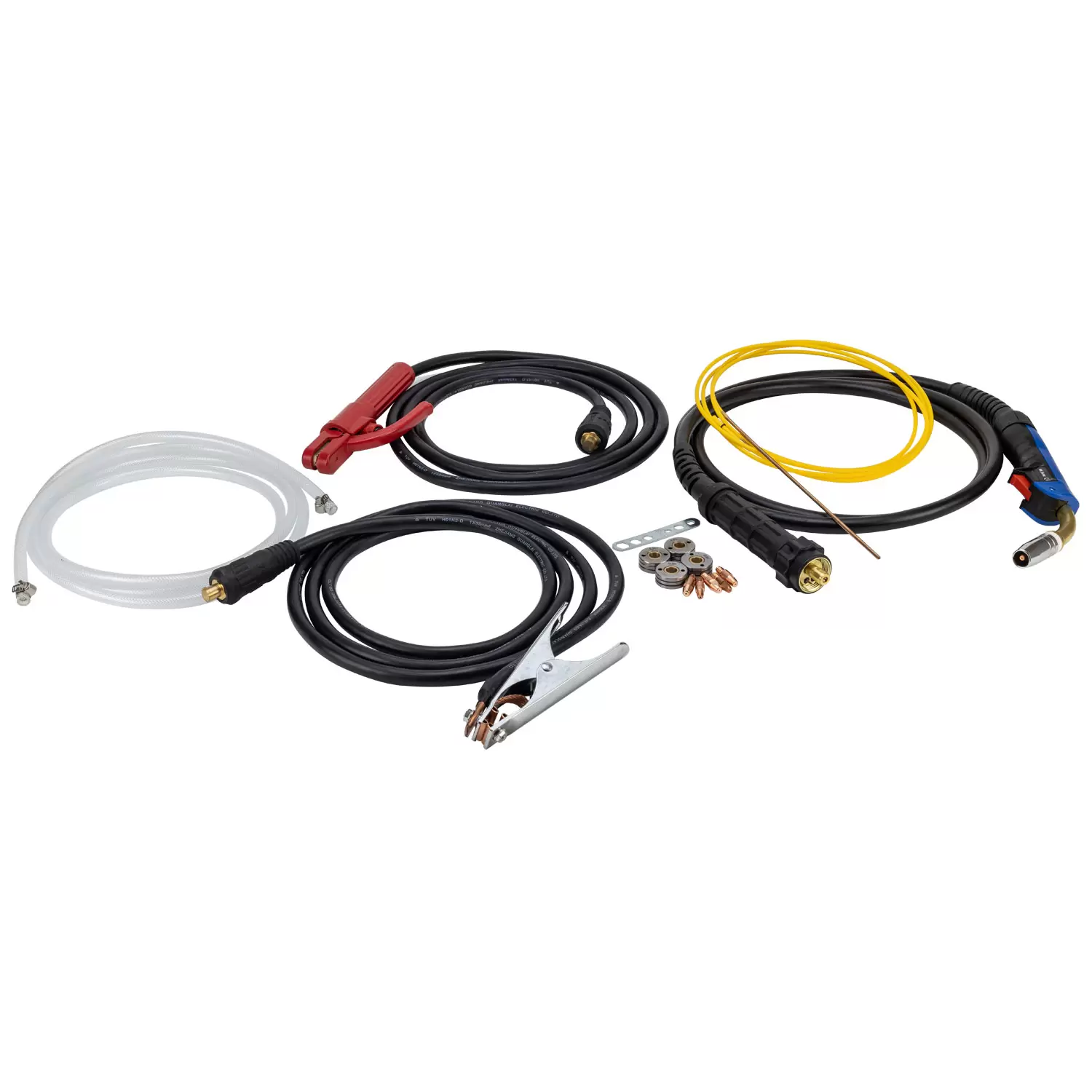

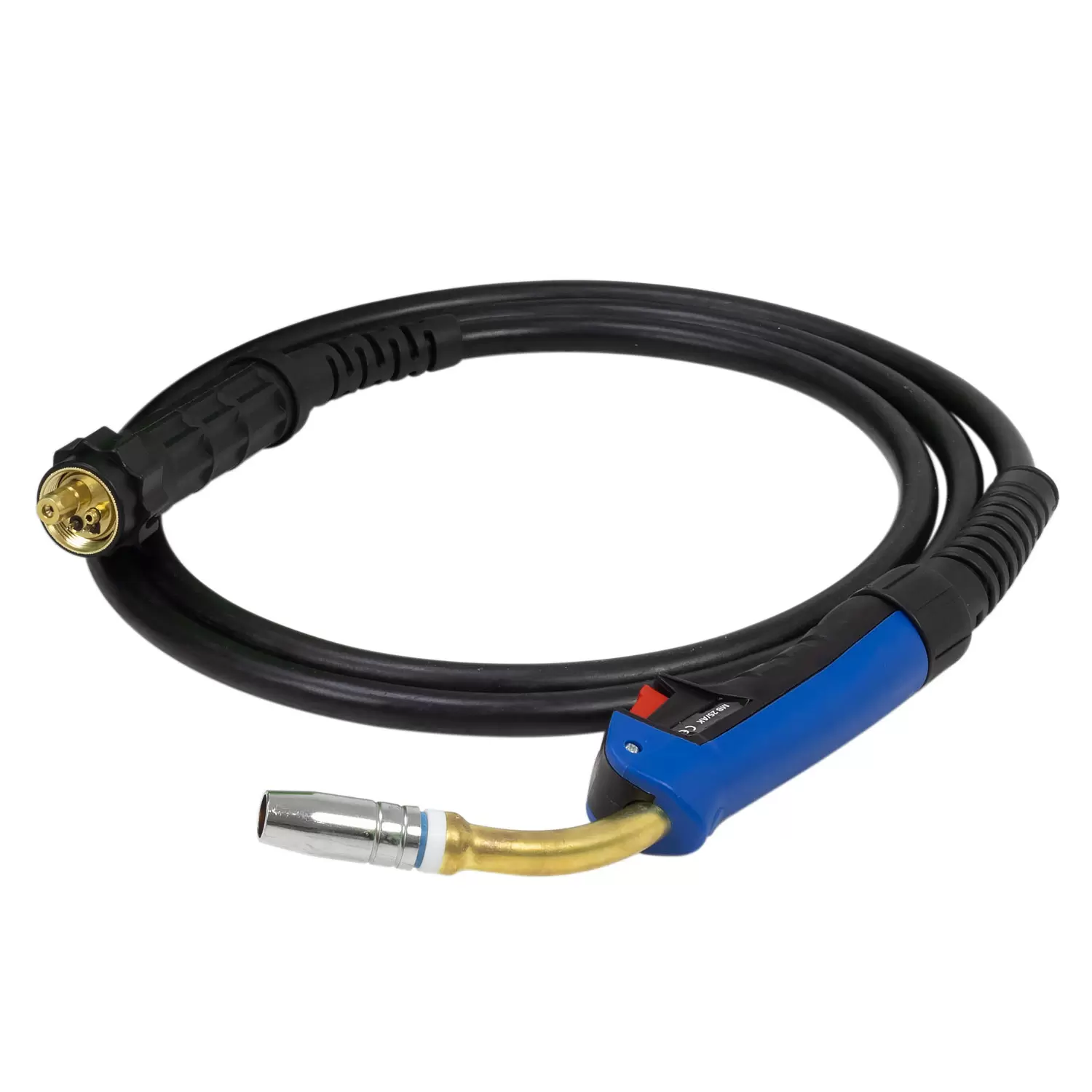

Ideal for use in professional fabrication workshops. Perfect for sheet metal applications. Suitable for MIG/ARC/TIG welding and performs flux-cored welding. Ideal for mild steels and welds *stainless steel and **aluminium. *Using stainless steel welding wire. **Using aluminium welding wire and pure Argon gas. 1x SIP WELDMATE® PRO 250A MIG/TIG/ARC Synergic Compact Inverter Welder (230v/32A), 1x 3mtr Euro MIG torch with mild steel and aluminium wire liners, 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x 3mtr gas hose with clamps, 6x feed rollers, 3x contact tips and 1x torch spanner. TIG torch sold separately (Item 08206A recommended).
