SIP - 25113 - CSW25P Pneumatic Column Spot Welder
SKU: SIP25113
Part Number: 25113
Barcode: 5012713251131
Country of Origin: PT
Weight: 178.00 Kg
Our Price
£4,375.67 (inc VAT) £3,646.39 (ex VAT)
RRP £5,159.99 £4,299.99
Save
£784.32
£653.60
SIP 2-YEAR Warranty included.
Description

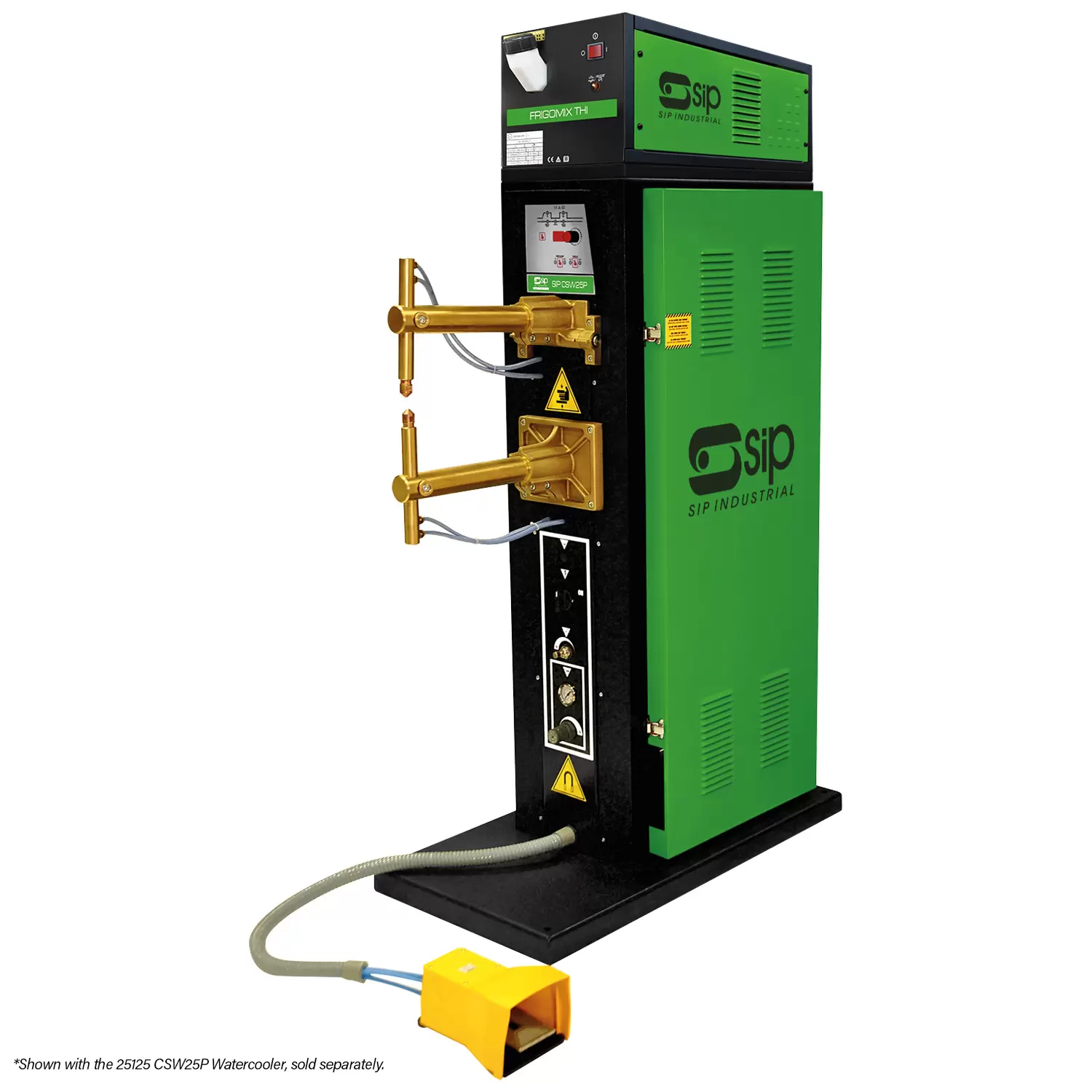

The SIP CSW25P Pneumatic Column Spot Welder offers easy spot welding in a variety of demanding applications, utilising single or double spot welding modes for use on oxidised or coated steels, and a 2-stage pneumatic foot pedal for precise positioning.
Perfect for a variety of trade and professional applications.
Features
• 340mm to 480mm standard welding arm length
• Digital display for welding current and welding time

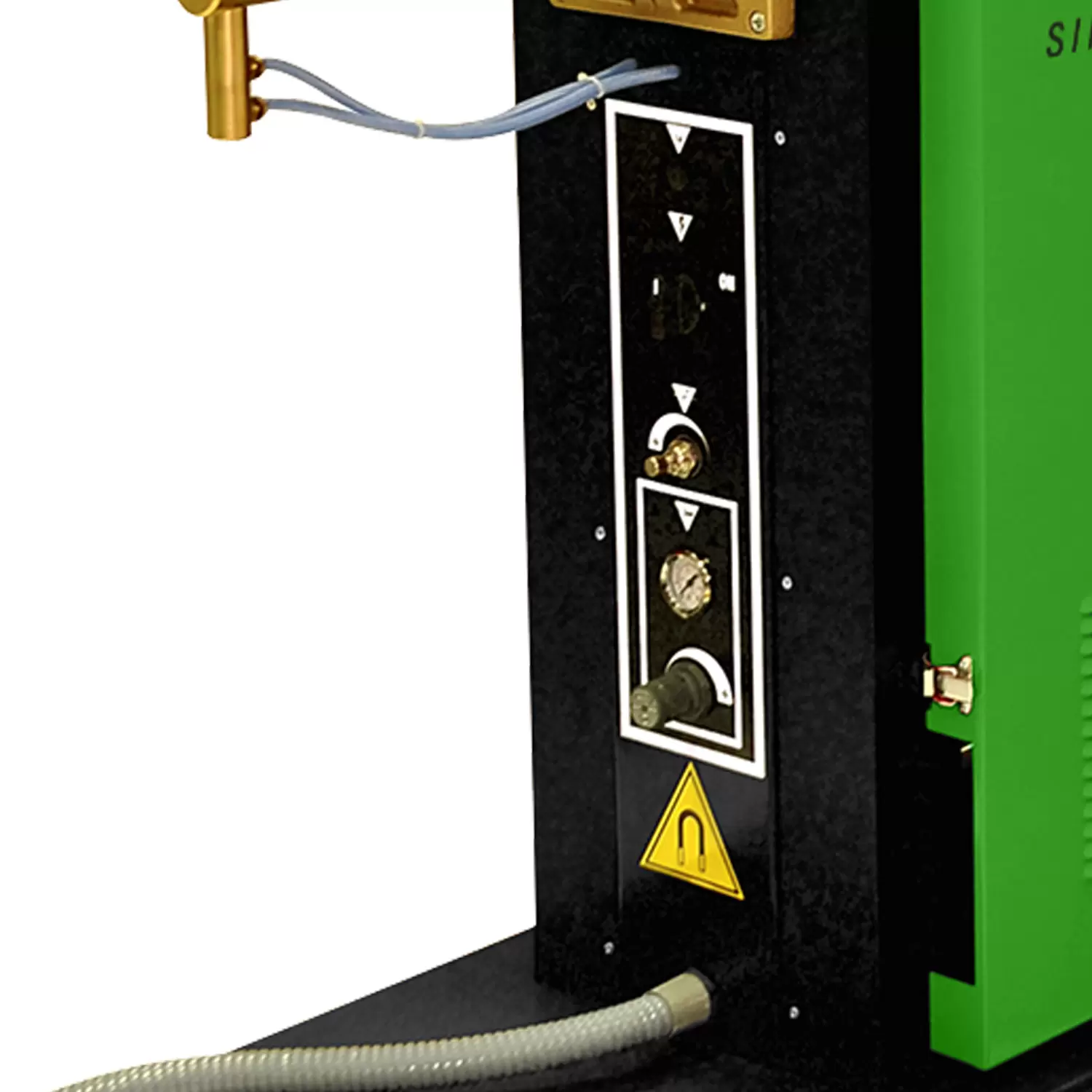

• Adjustable air regulator with dampener for easy control

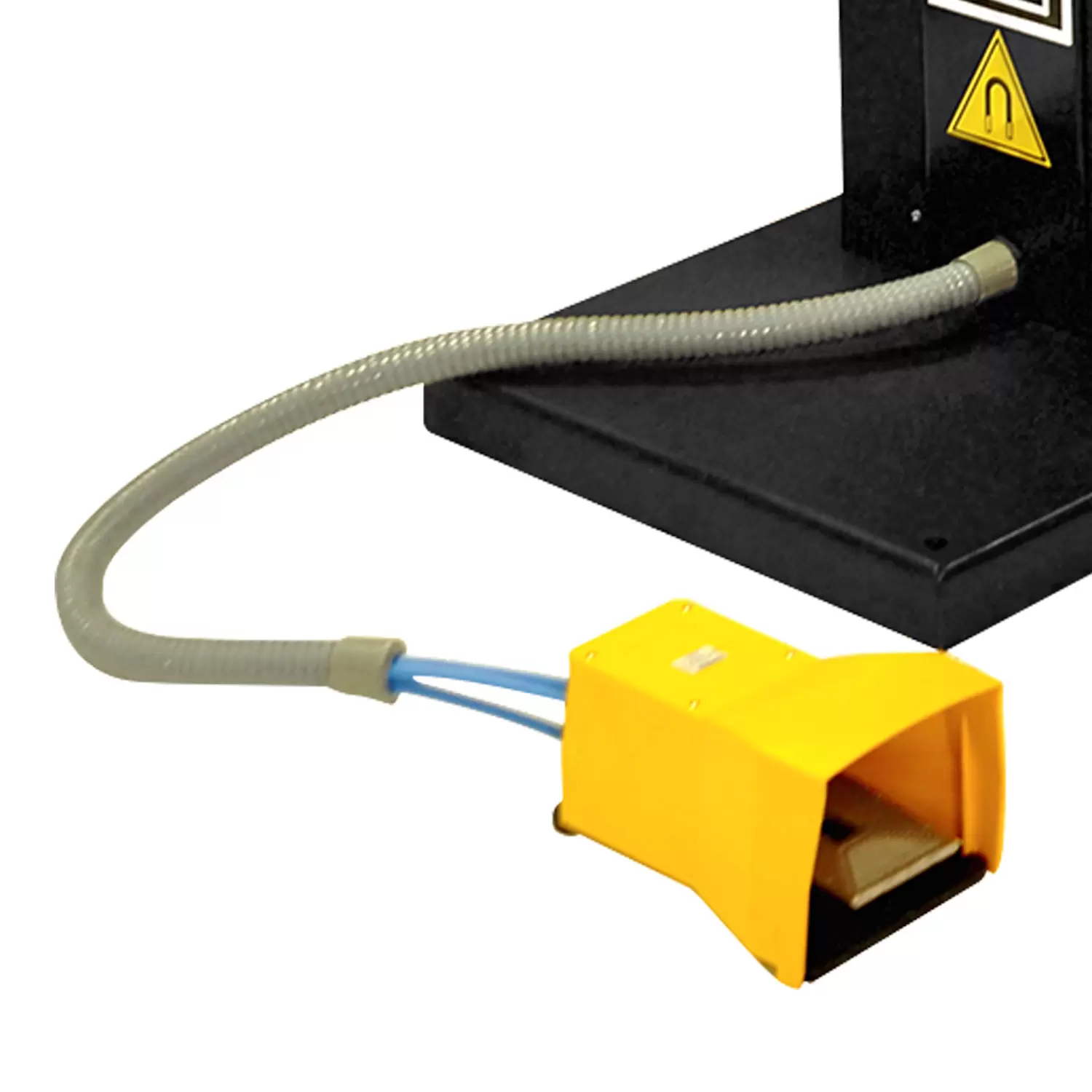

• 2-stage pneumatic foot pedal; precise work positioning
• Digital display for welding current and welding time
• Adjustable air regulator with dampener for easy control
• 2-stage pneumatic foot pedal; precise work positioning
Specification
ITEM NO. 25113
Input Supply: 400v (50A) 1-PHASE
Max. Welding Power: 50kVA
Duty Cycle: 25kVA @ 50%
Mild Steel Capacity: 5+5mm (flat) / 20+20mm (bar)
Stainless Steel Capacity: 3+3mm (flat) / 12+12mm (bar)
No-Load Voltage: 1.4v
Short Circuit Current: 13.8KA
Max. Air Pressure: 70psi (4.8bar)
Water Flow Rate: 4ltr/min

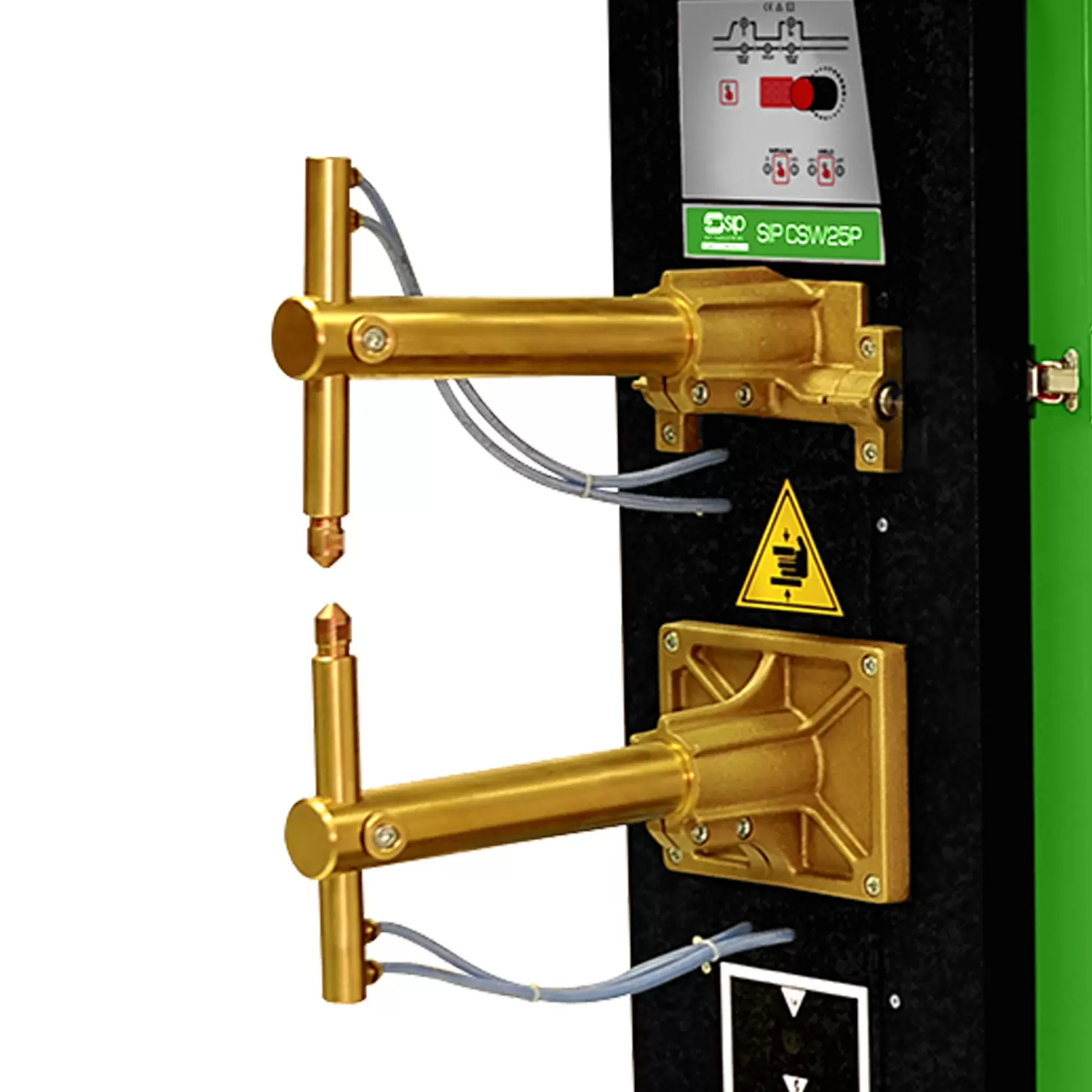

Max. Electrode Force: 204kgF @ 340mm / 140kgF @ 450mm
Distance Between Arms: 200mm (standard) / 320mm (optional)
Arm Length: 340mm to 480mm (standard)
200mm to 1000mm (optional)
Electrode Throat Size: 100mm
Electrode Holder Diameter: Ø 25mm
Electrode Diameter: Ø 20mm
Arm Diameter: Ø 45mm
Noise Level: 70dB(A)
