Home > > Woodworking > SIP - 01938 - 12" x 36" Swivel Head Wood Lathe
SIP - 01938 - 12" x 36" Swivel Head Wood Lathe
SKU: SIP01938
Part Number: 01938
Barcode: 5012713019380
Country of Origin: CN
Weight: 77.00 Kg
Our Price
£592.66 (inc VAT) £493.88 (ex VAT)
RRP £659.99 £549.99
Save
£67.33
£56.11
SIP 2-YEAR Warranty included.
Description
The SIP 12" x 36" Swivel Head Wood Lathe is an ideal solution for those seeking a robust, adaptable lathe to accurately shape, turn, drill and sand pieces to the desired specification.

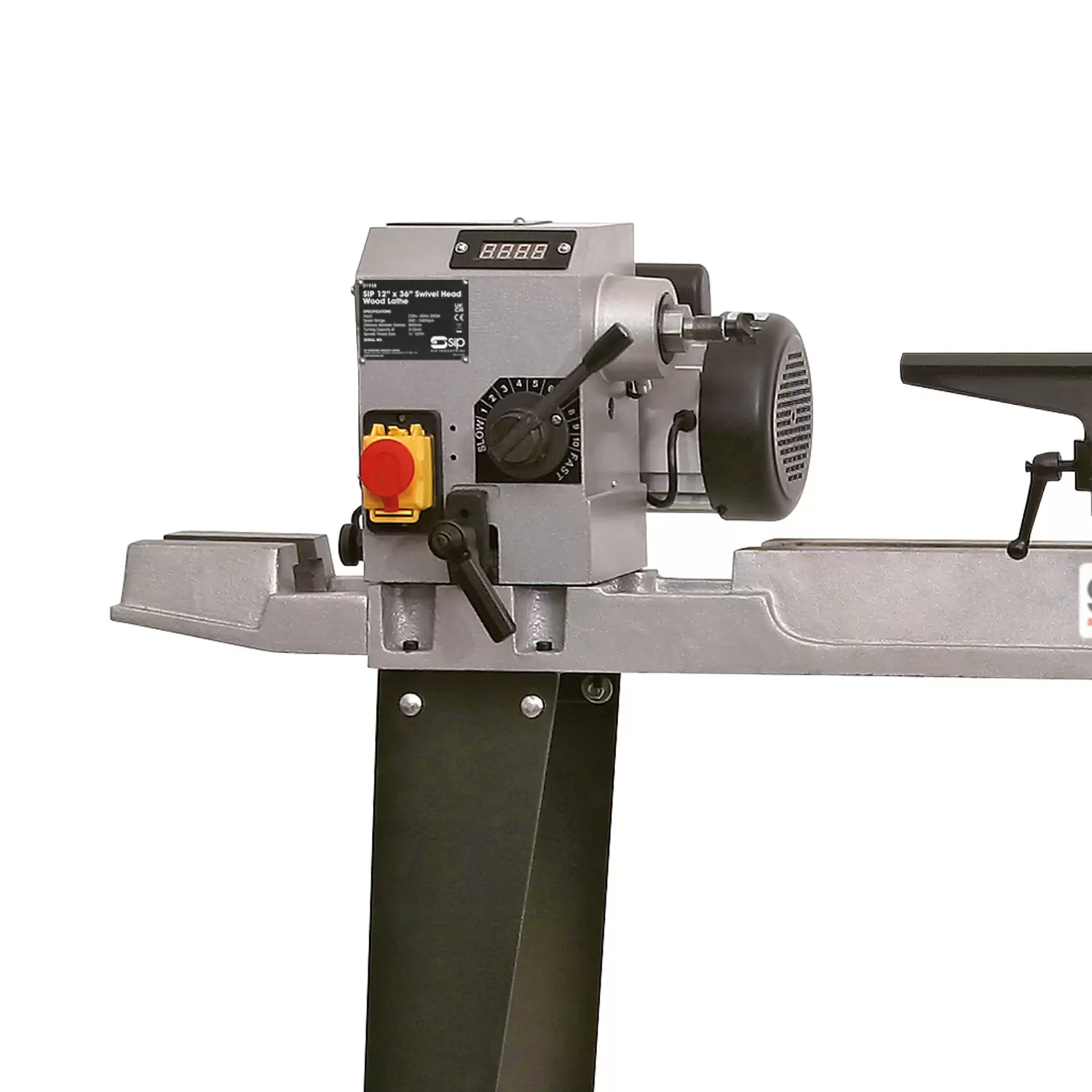

For added functionality, the headstock swivel 360° with four locking positions to allow outboard turning of larger wood materials. The lathe bed, headstock (MT1) and tailstock (MT2) are manufactured from heavy-duty cast iron and mounted on pressed steel legs with cross braces. A hollow tailstock is also fitted for long hole boring.

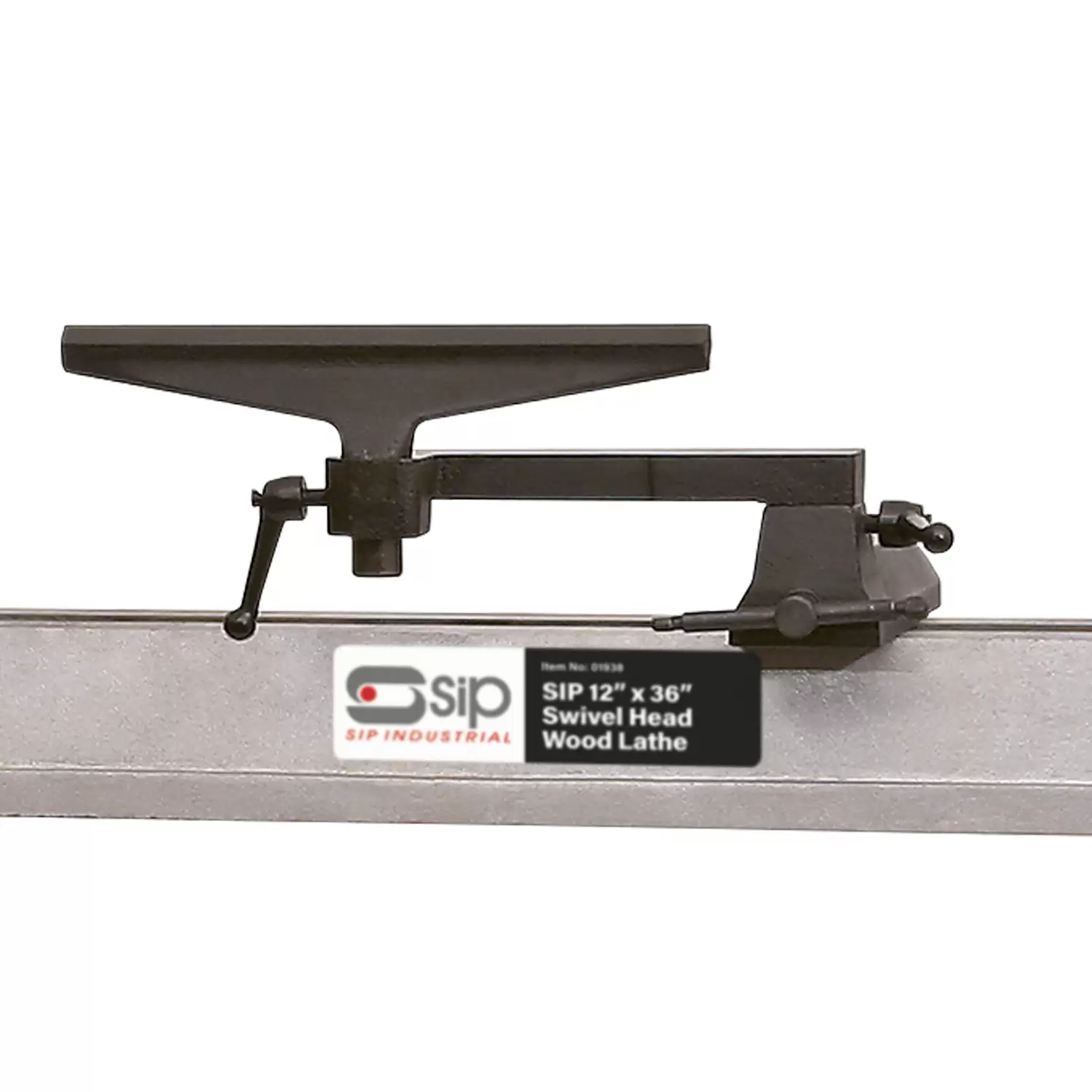

Supplied with tool rest, 6" faceplate, drive and tailstock centres.
Features
• 3/4" x 16TPI spindle thread size for various attachments
• 300mm max. turning diameter (900mm between centres)

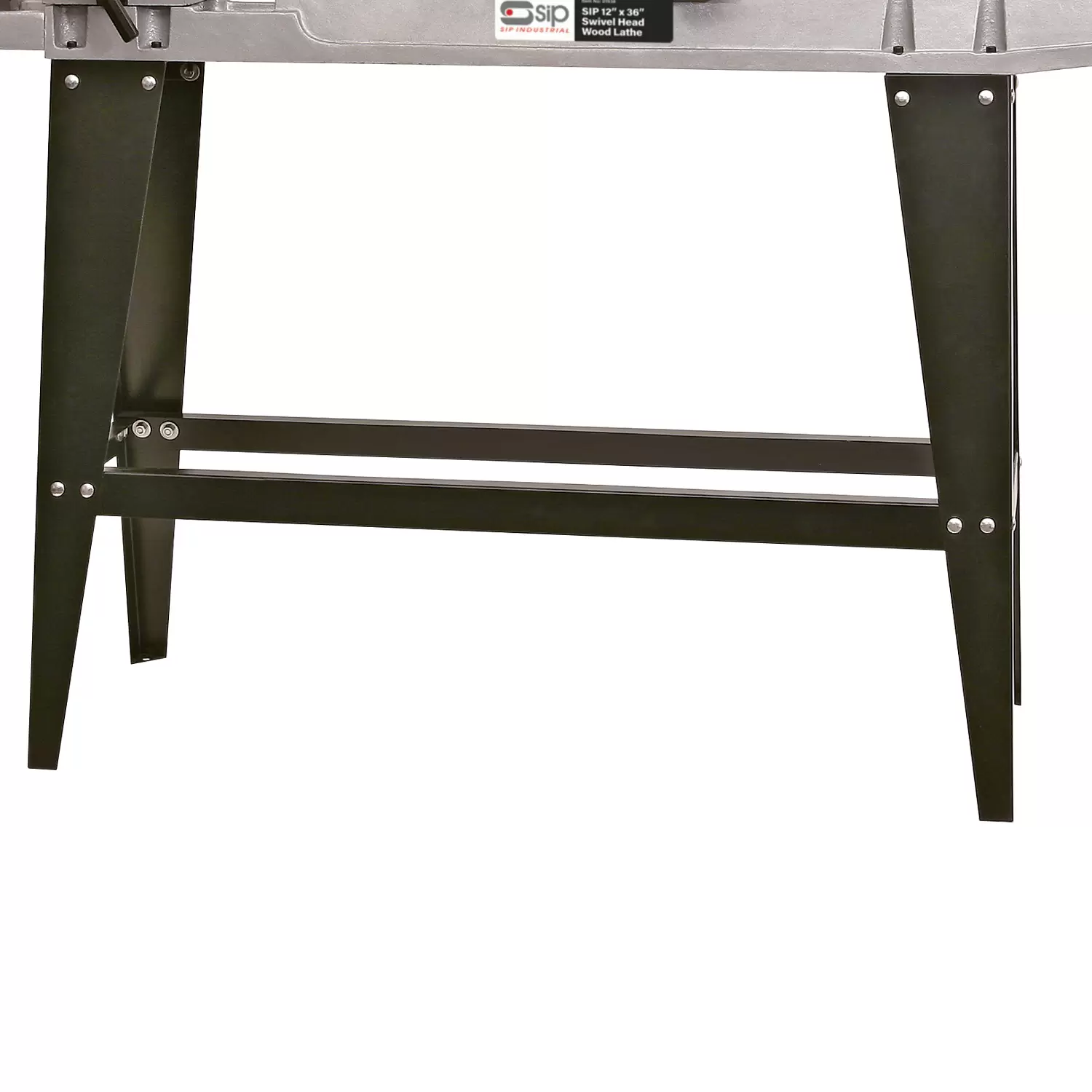

• Pressed steel legs with cross braces and cast iron lathe bed
• Fitted with hollow tailstock suitable for long-hole boring
• 10 setting easy-change speed handle
• 300mm max. turning diameter (900mm between centres)
• Pressed steel legs with cross braces and cast iron lathe bed
• Fitted with hollow tailstock suitable for long-hole boring
• 10 setting easy-change speed handle
Specification
ITEM NO. 01938
Input Supply: 230v (13A)
Motor Power: 550w (0.75hp)
Speed Range: 500rpm - 2000rpm
Distance Between Centres: 900mm (36")
Turning Capacity: 310mm (12")
Spindle Through Hole: 10mm (Drive) / 10mm (Tailstock)
Drive Spur Size: 1 Morse Taper
Tailstock Rotating Centre Size: 2 Morse Taper
Noise Level: 68dB(A)
Workshopping Says
Perfect for turning furniture legs, staircase spindles and bespoke woodwork items. Accurately turns, shapes, drills and sands workpieces to the desired specification.
