Home > > Woodworking > SIP - 01940 - 14" x 43" Swivel Head Wood Lathe
SIP - 01940 - 14" x 43" Swivel Head Wood Lathe
SKU: SIP01940
Part Number: 01940
Barcode: 5012713019403
Country of Origin: CN
Weight: 130.00 Kg
Our Price
£863.99 (inc VAT) £719.99 (ex VAT)
RRP £959.99 £799.99
Save
£96.00
£80.00
SIP 2-YEAR Warranty included.
Description
The SIP 14" x 43" Swivel Head Wood Lathe is ideal for those seeking a robust, adaptable lathe with heavy-duty stability. This crucial woodworking machine tool accurately shapes, turns, drills and sand workpieces to the desired specification.
For added functionality, the headstock swivels 360° with four locking positions to allow outboard turning of larger wood materials, whilst heavy-duty cast iron legs maximise stability. The lathe bed, headstock (MT1) and tailstock (MT2) are also manufactured from heavy-duty cast iron. A hollow tailstock is fitted to allow long hole boring.

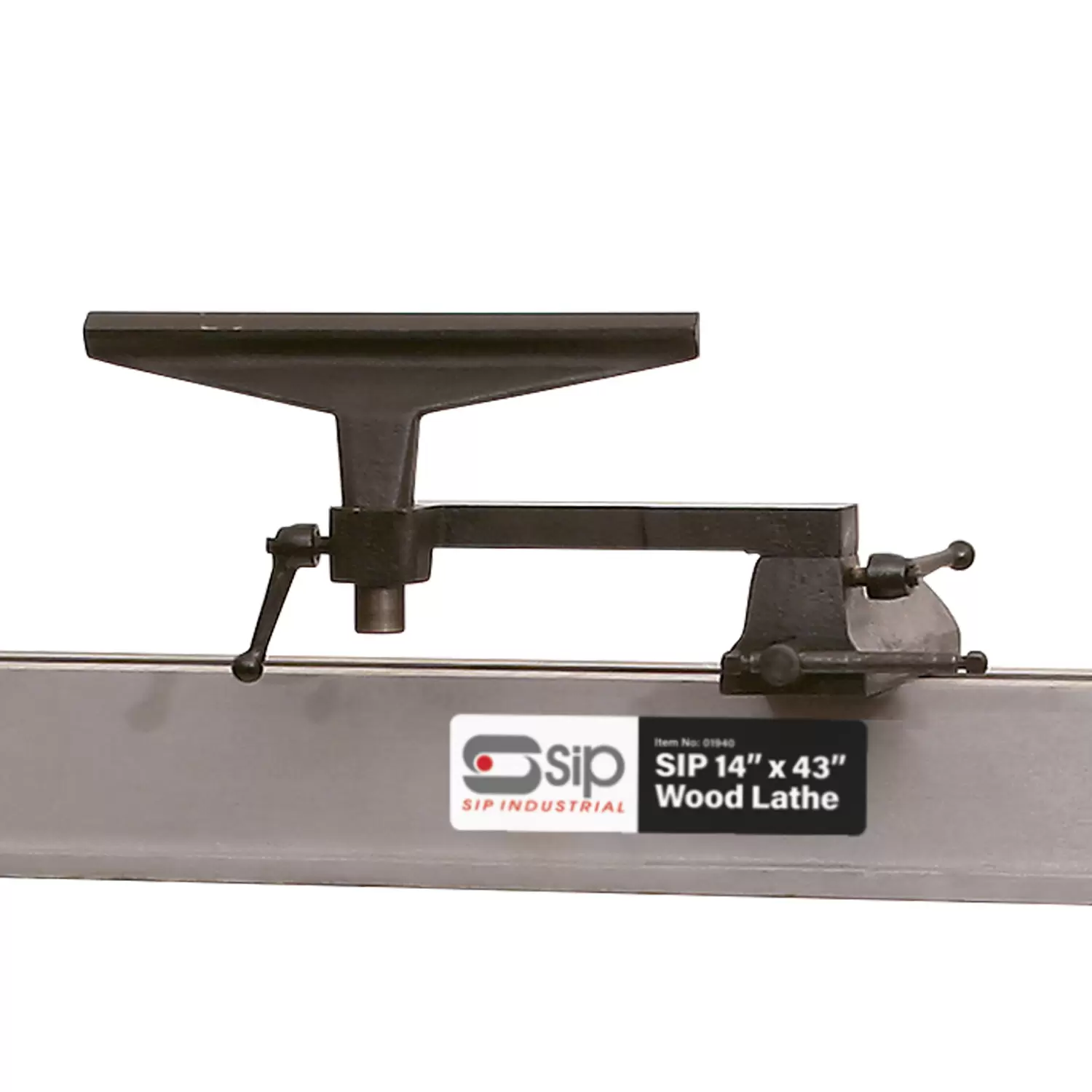

Supplied with tool rest, 6" faceplate, drive and tailstock centres.
Features
• 3/4" x 16TPI spindle thread size for various attachments
• 350mm max. turning diameter (1100mm between centres)
• Heavy-duty cast iron legs and lathe bed for enhanced stability
• Fitted with hollow tailstock suitable for long-hole boring
• 10 setting easy-change speed handle
• 350mm max. turning diameter (1100mm between centres)
• Heavy-duty cast iron legs and lathe bed for enhanced stability
• Fitted with hollow tailstock suitable for long-hole boring
• 10 setting easy-change speed handle
Specification
ITEM NO. 01940
Input Supply: 230v (13A)
Motor Power: 750w (1hp)
Speed Range: 500rpm - 2000rpm
Distance Between Centres: 1100mm (43")
Turning Capacity: 350mm (14")
Spindle Through Hole: 10mm (Drive) / 10mm (Tailstock)
Drive Spur Size: 1 Morse Taper
Tailstock Rotating Centre Size: 2 Morse Taper
Noise Level: 68dB(A)
Workshopping Says
Perfect for turning furniture legs, staircase spindles and bespoke woodwork items. Accurately turns, shapes, drills and sands workpieces to the desired specification.
