In stock
Home > > Workshop & test equipment > Laser - 9371 - Air-Hydraulic Workshop Press 30 Tonne

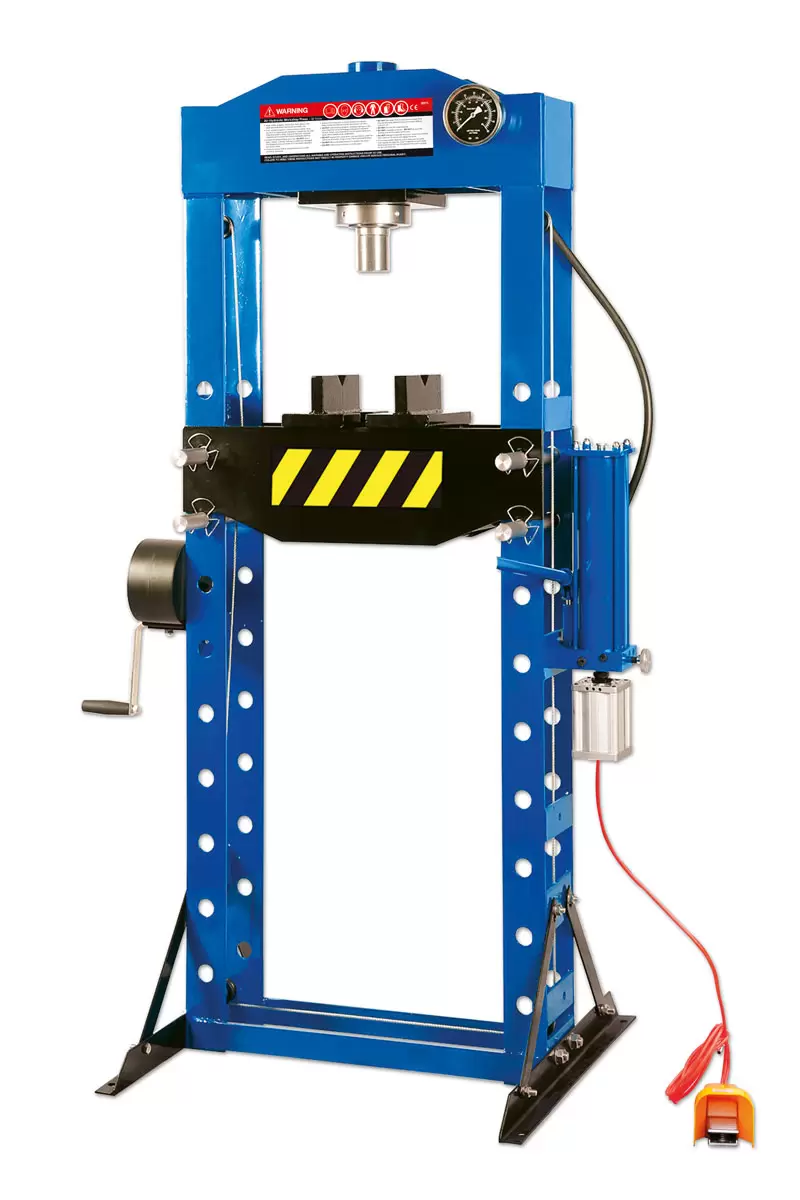

Laser - 9371 - Air-Hydraulic Workshop Press 30 Tonne
SKU: LAS9371
Part Number: 9371
Barcode: 5018341093716
Country of Origin: China
Weight: 206.00 Kg
Our Price
£1,419.22 (inc VAT) £1,182.68 (ex VAT)
RRP £1,581.64 £1,318.03
Save
£162.42
£135.35
Description
A 30 Tonne hydraulic workshop press with air-operated foot control for ease of use, as well as a hand-operated lever for gradual pressure increase and greater control.
Features
Ideal for a wide range of tasks, including removing and replacing bearings, pressing ball joints, pulleys, and pins, as well as straightening metalwork or pressing plates.
Specification
- Piston stroke: 150mm, with an adjustable platform giving total range between 166 to 1,126mm.
- Overall Dimensions: Height: 1,838mm; Base: 780 x 740mm; Press bed width: 730mm. Weight: 130Kg.
- Features an adjustable safety guard & hand-winched press bed (always unload hand-winch onto support pins before using press).
- Foot & hydraulic operation. Uses workshop air, max. pressure 101.5psi. Thread: 1/4" BSP (supplied with a male standard airline adaptor).
- CE approved. 50 Tonne air/hydraulic floor type press is also available, please see Part No. 9372.
Downloads
Description
A 30 Tonne hydraulic workshop press with air-operated foot control for ease of use, as well as a hand-operated lever for gradual pressure increase and greater control.
Features
Ideal for a wide range of tasks, including removing and replacing bearings, pressing ball joints, pulleys, and pins, as well as straightening metalwork or pressing plates.
Specification
- Piston stroke: 150mm, with an adjustable platform giving total range between 166 to 1,126mm.
- Overall Dimensions: Height: 1,838mm; Base: 780 x 740mm; Press bed width: 730mm. Weight: 130Kg.
- Features an adjustable safety guard & hand-winched press bed (always unload hand-winch onto support pins before using press).
- Foot & hydraulic operation. Uses workshop air, max. pressure 101.5psi. Thread: 1/4" BSP (supplied with a male standard airline adaptor).
- CE approved. 50 Tonne air/hydraulic floor type press is also available, please see Part No. 9372.
