Home > Workshop Equipment > Jacking & Lifting > Sealey - PT1000G - Geared Trolley 1 Tonne

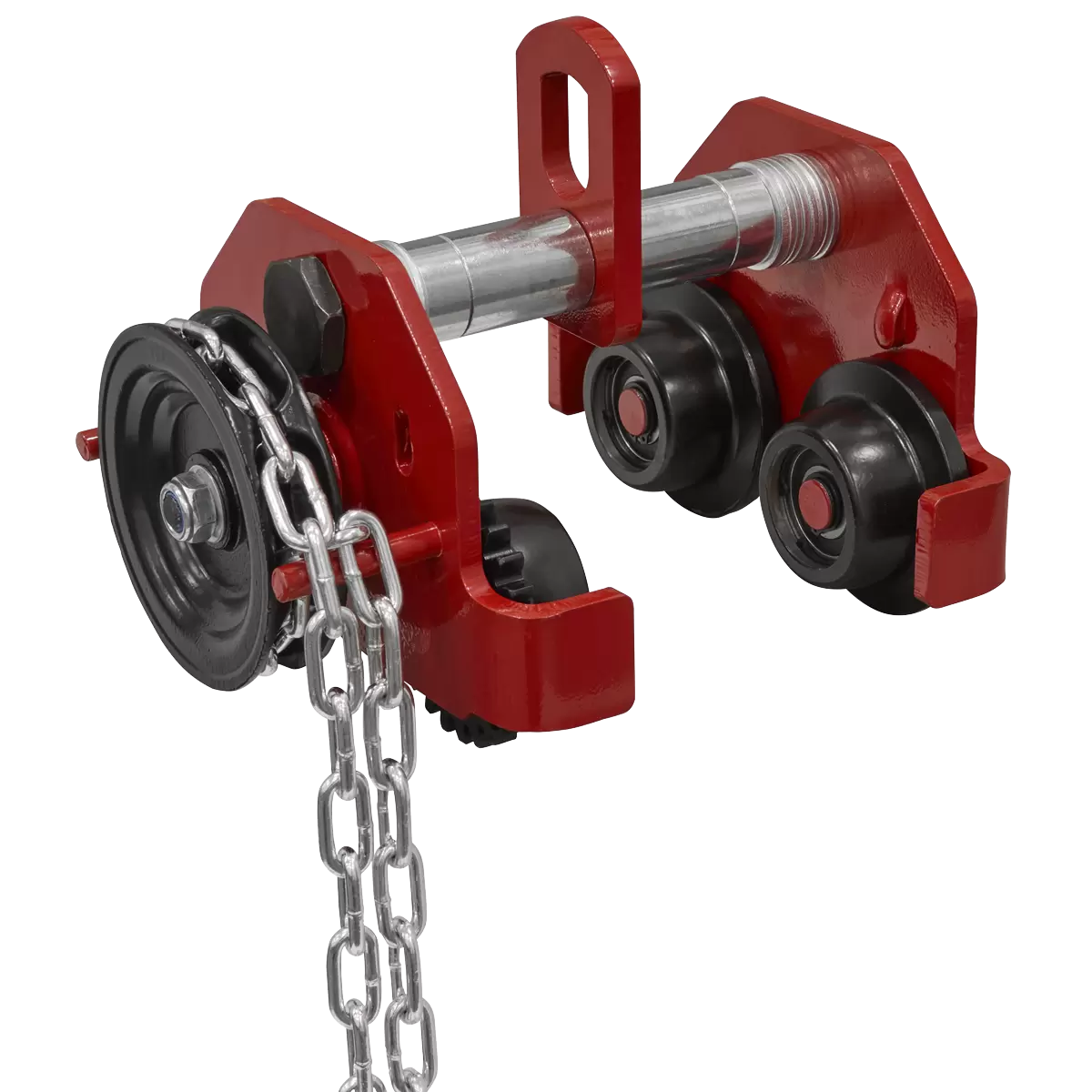

Sealey - PT1000G - Geared Trolley 1 Tonne
SKU: PT1000G
Part Number: PT1000G
Barcode: 5024209546515
Country of Origin: CHN
Weight: 16.72 Kg
Our Price
£166.25 (inc VAT) £138.54 (ex VAT)
RRP £215.94 £179.95
Save
£49.69
£41.41
1 year Warranty included.
Description
Suitable for use with our lever hoists or chain blocks. Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways. Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling. Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.
Features
Model No PT1000G
Brand: Sealey
Nett Weight: 17kg
Capacity: 1000kg
Track Width Adjustable Range: 64-140mm
Minimum Curve Radius: 1000mm
A: 255mm
B: 205mm
C: 135mm
D: 104mm
E: 128mm
Weight: 17kg
Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
Maximum Distance Between Spans: 2500mm
Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
Maximum Distance Between Spans: 6000mm
Refer to catalogue for diagram.:
Brand: Sealey
Nett Weight: 17kg
Capacity: 1000kg
Track Width Adjustable Range: 64-140mm
Minimum Curve Radius: 1000mm
A: 255mm
B: 205mm
C: 135mm
D: 104mm
E: 128mm
Weight: 17kg
Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
Maximum Distance Between Spans: 2500mm
Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
Maximum Distance Between Spans: 6000mm
Refer to catalogue for diagram.:
Specification
Workshopping Says
Warranty Period = 1 year years
Commodity code = 8431100000
Country of Origin = CHN
Downloads
Description
Suitable for use with our lever hoists or chain blocks. Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways. Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling. Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.
Features
Model No PT1000G
Brand: Sealey
Nett Weight: 17kg
Capacity: 1000kg
Track Width Adjustable Range: 64-140mm
Minimum Curve Radius: 1000mm
A: 255mm
B: 205mm
C: 135mm
D: 104mm
E: 128mm
Weight: 17kg
Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
Maximum Distance Between Spans: 2500mm
Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
Maximum Distance Between Spans: 6000mm
Refer to catalogue for diagram.:
Brand: Sealey
Nett Weight: 17kg
Capacity: 1000kg
Track Width Adjustable Range: 64-140mm
Minimum Curve Radius: 1000mm
A: 255mm
B: 205mm
C: 135mm
D: 104mm
E: 128mm
Weight: 17kg
Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
Maximum Distance Between Spans: 2500mm
Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
Maximum Distance Between Spans: 6000mm
Refer to catalogue for diagram.:
Specification
Workshopping Says
Warranty Period = 1 year years
Commodity code = 8431100000
Country of Origin = CHN
