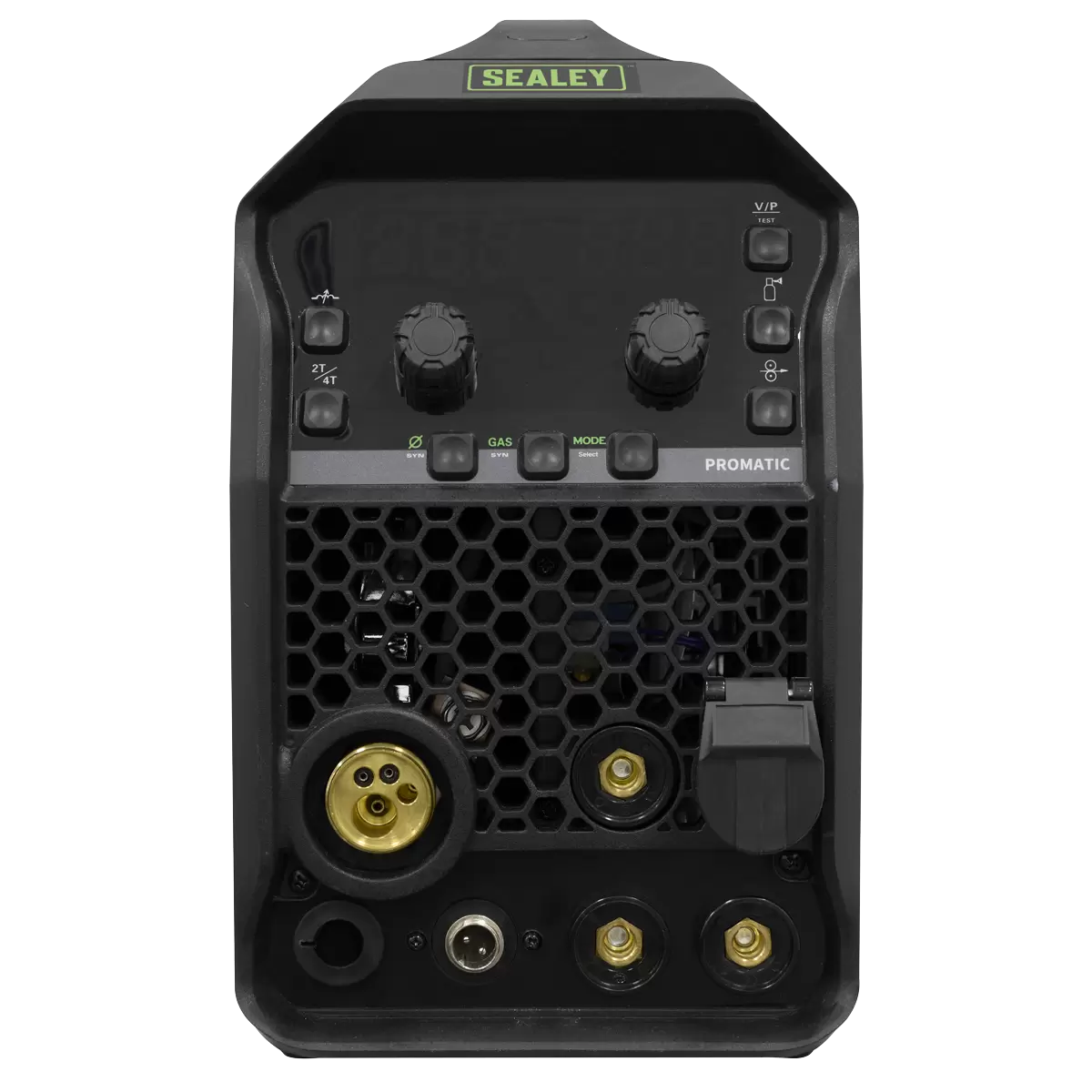

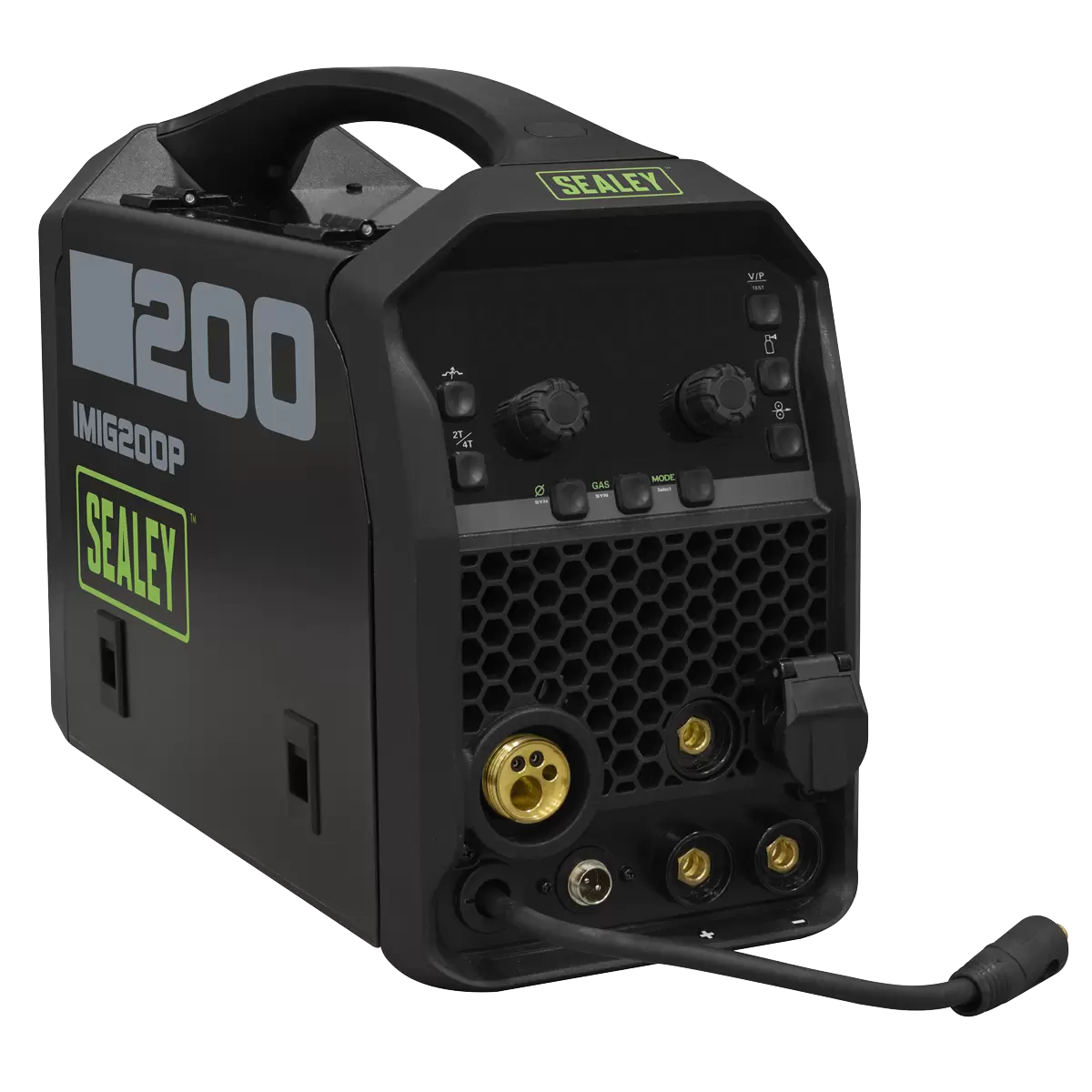

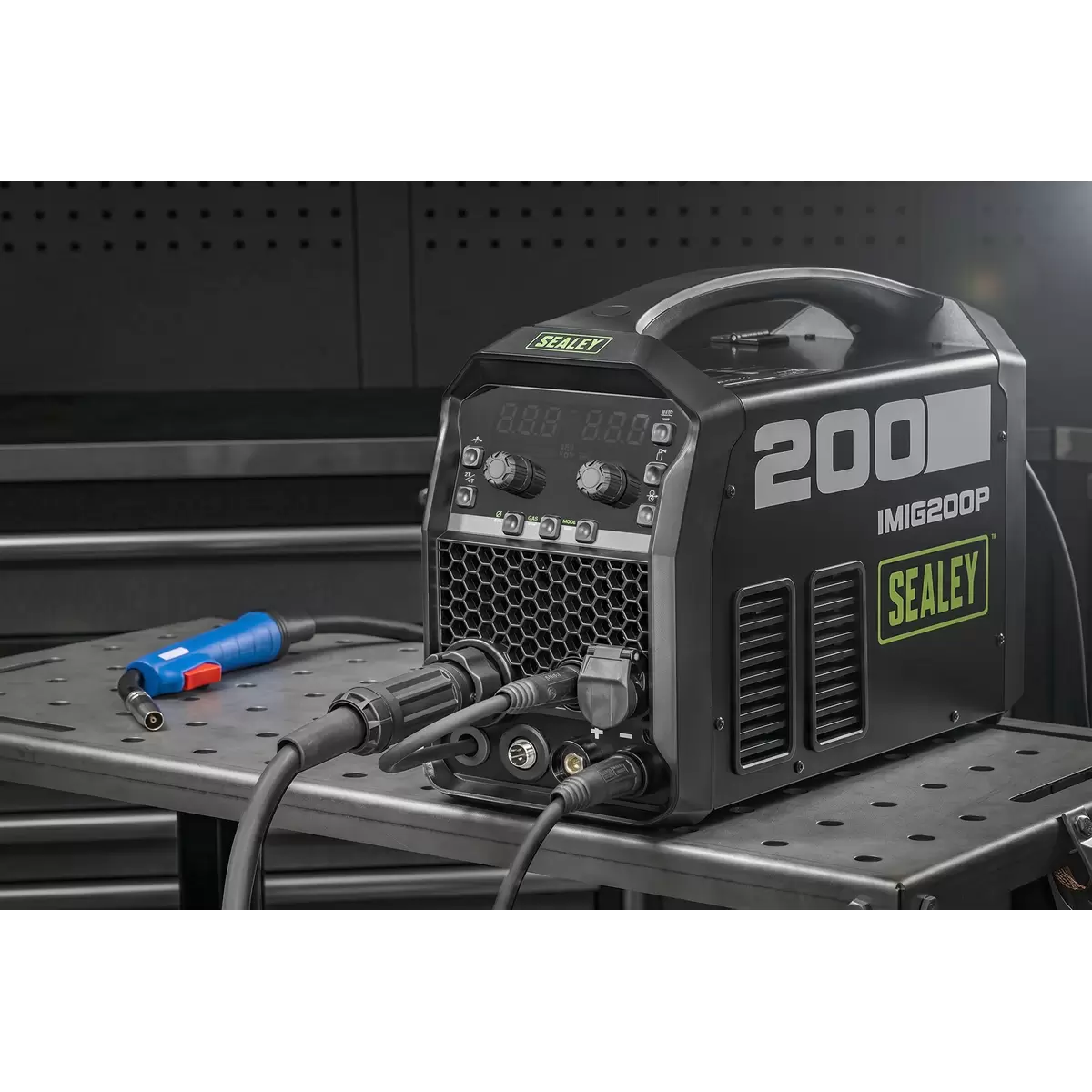

Sealey - IMIG200P - Multi-Process Inverter Welder 200A & Plasma Cutter 40A

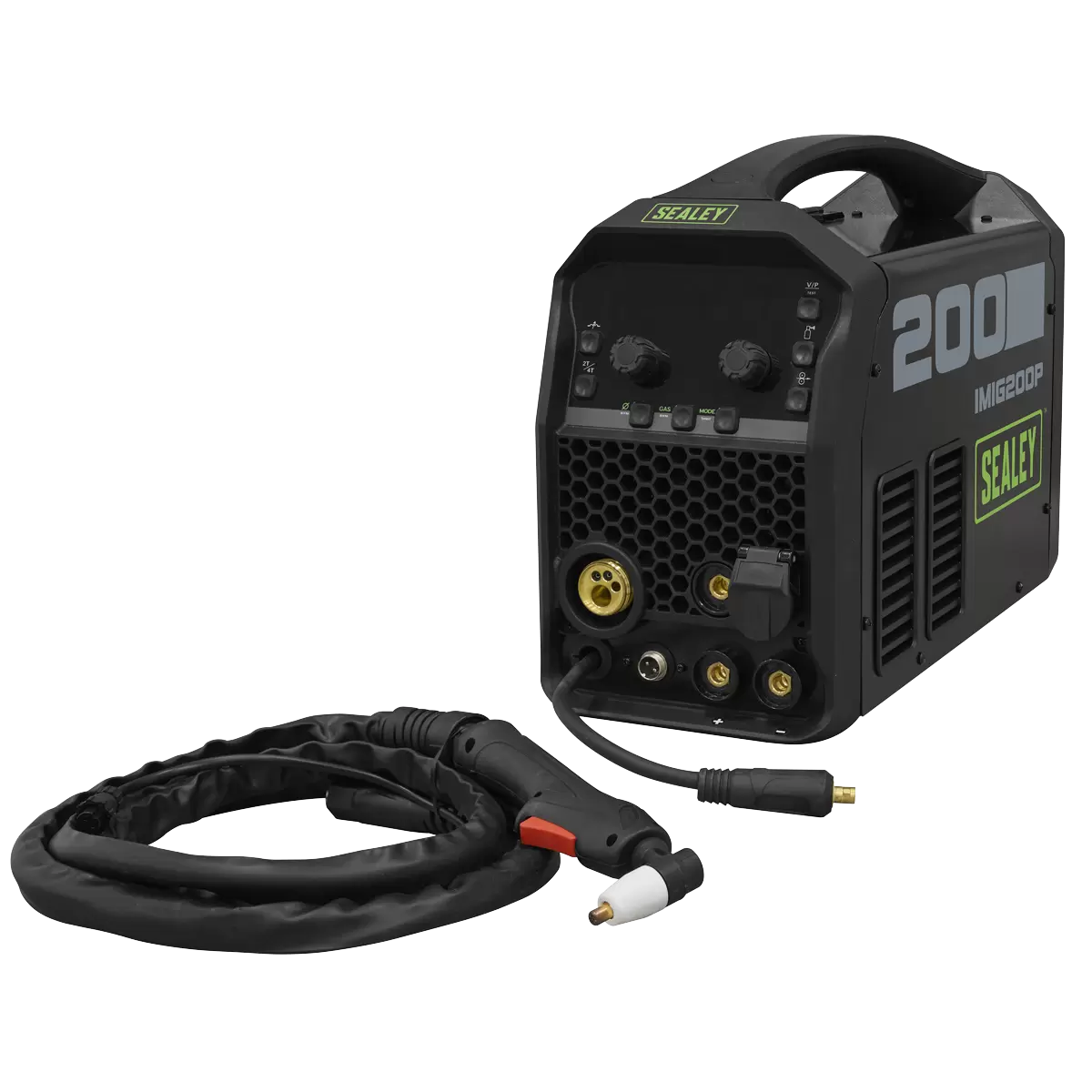

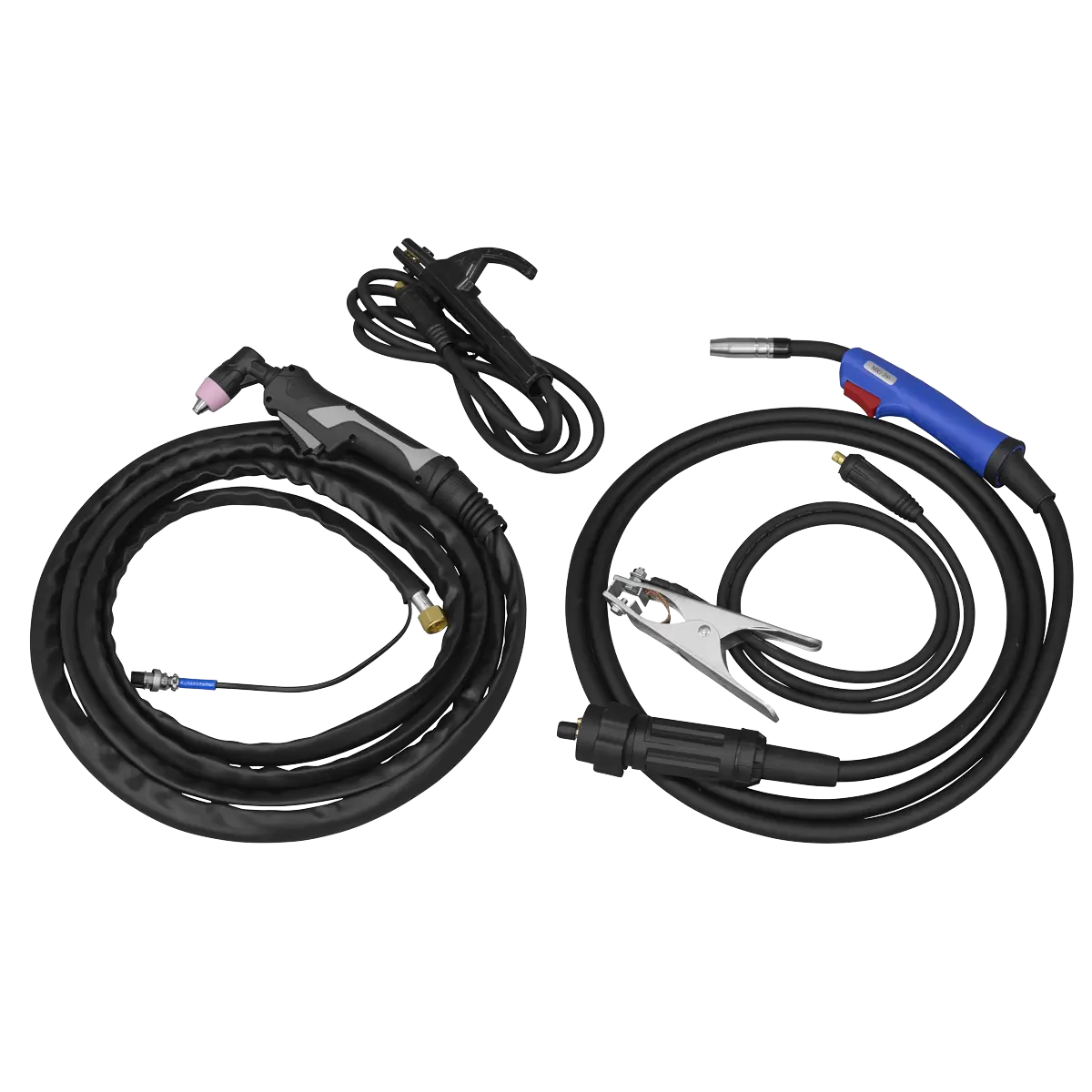

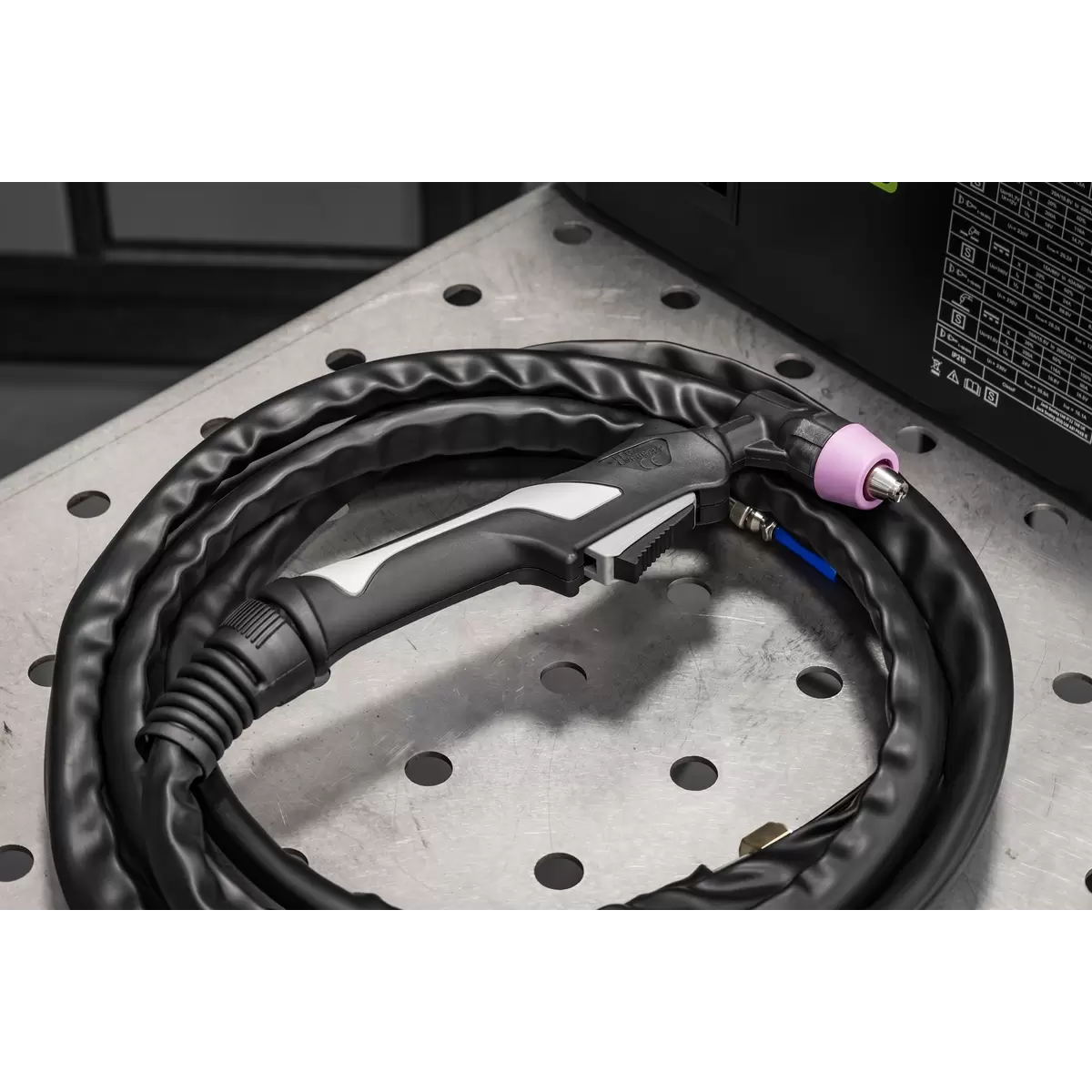

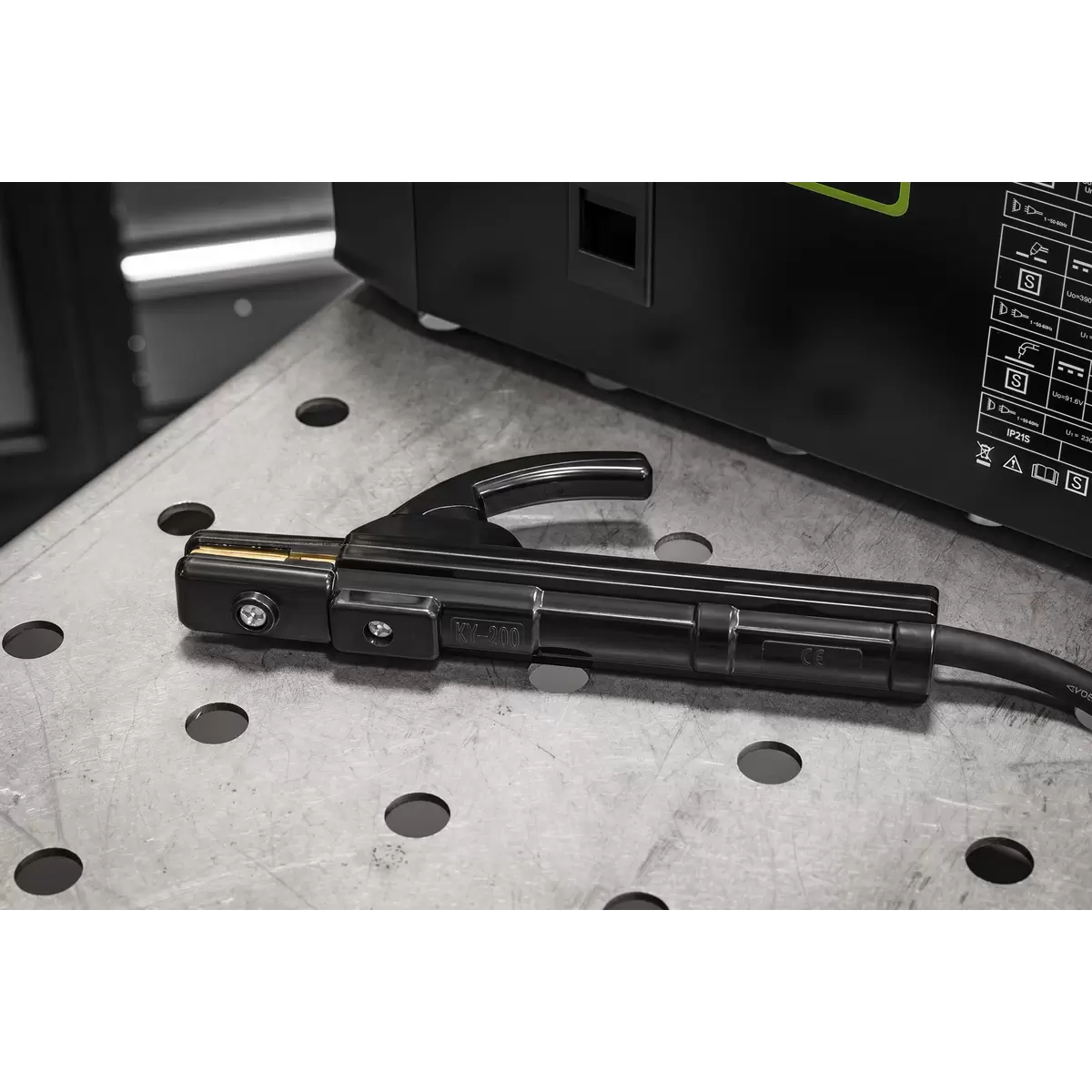

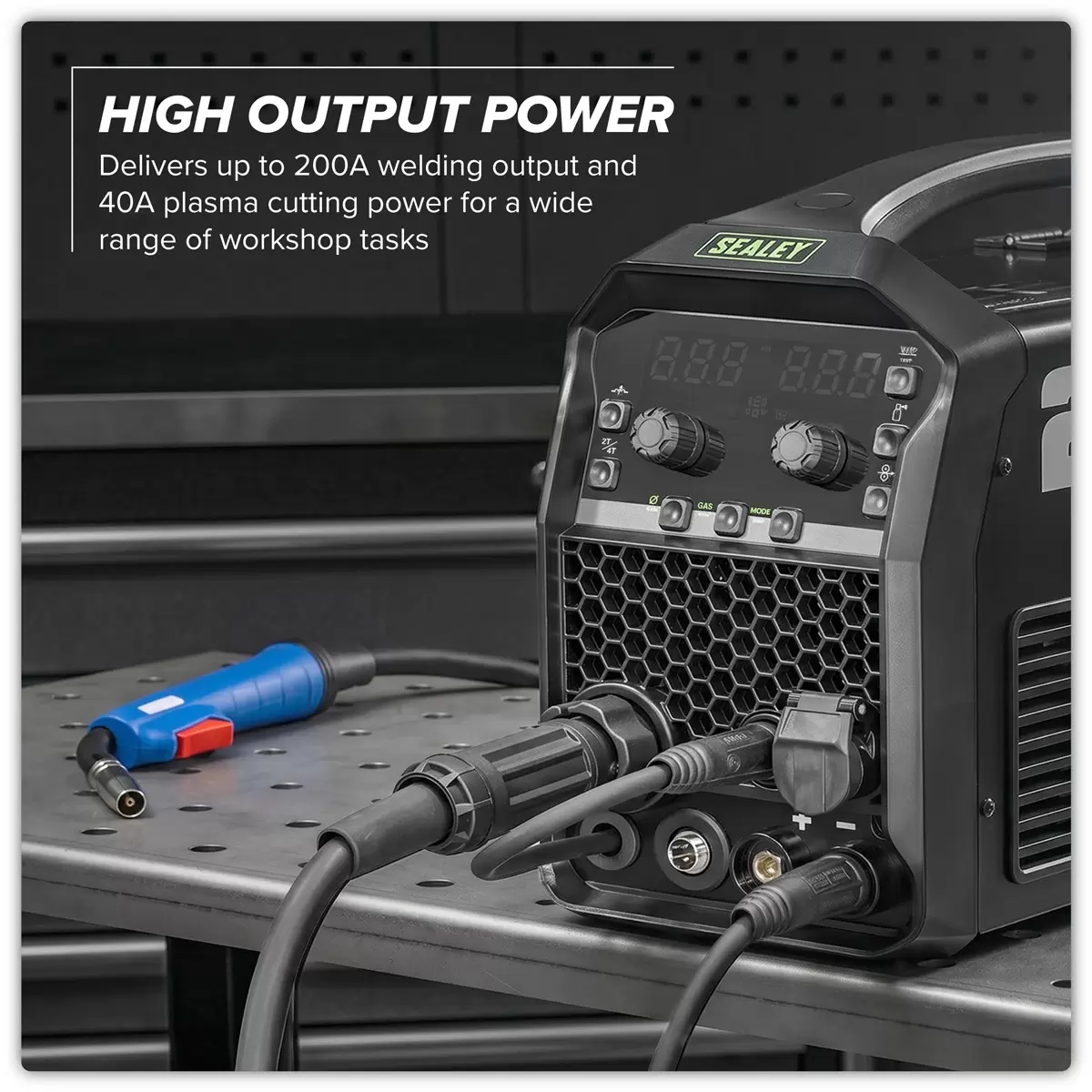

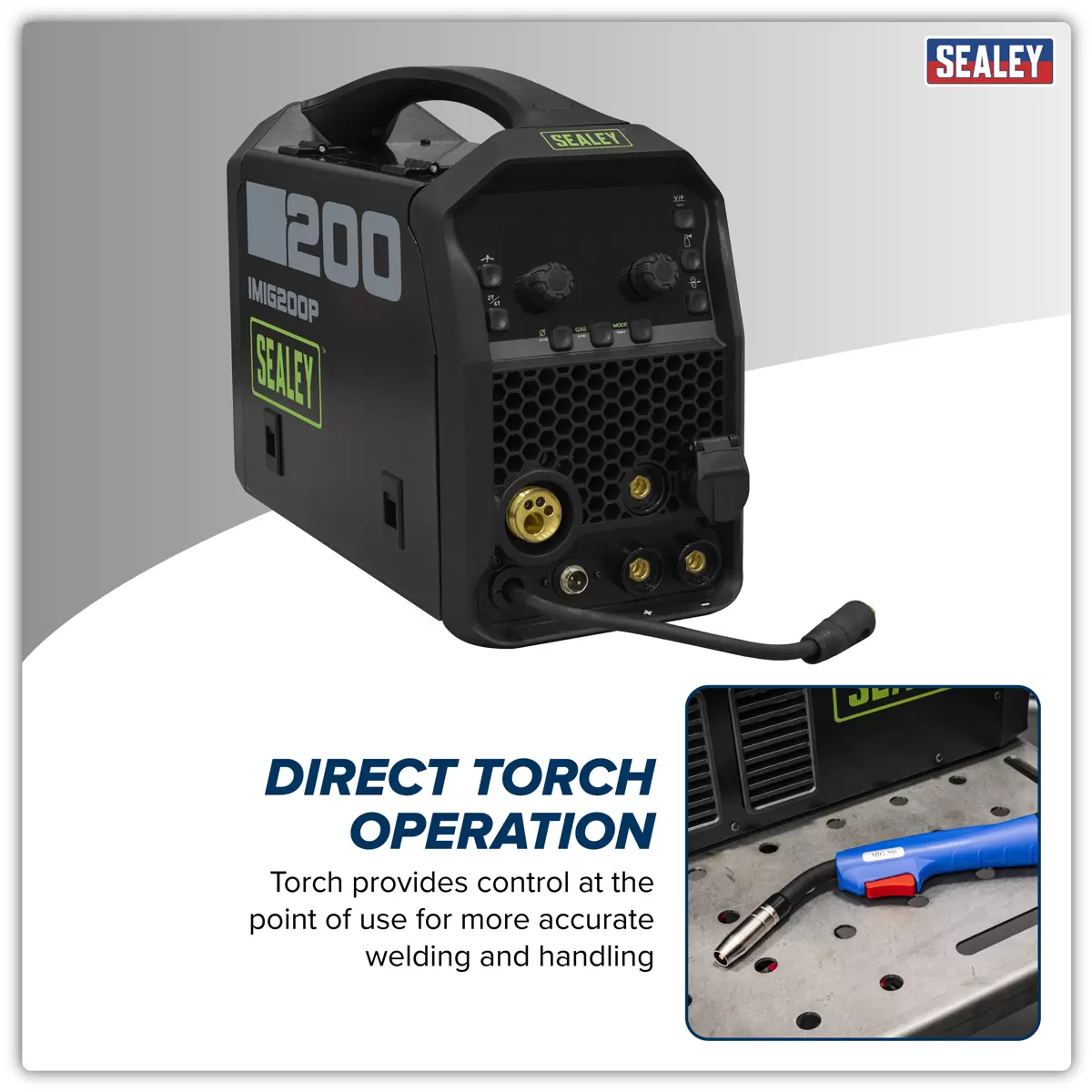

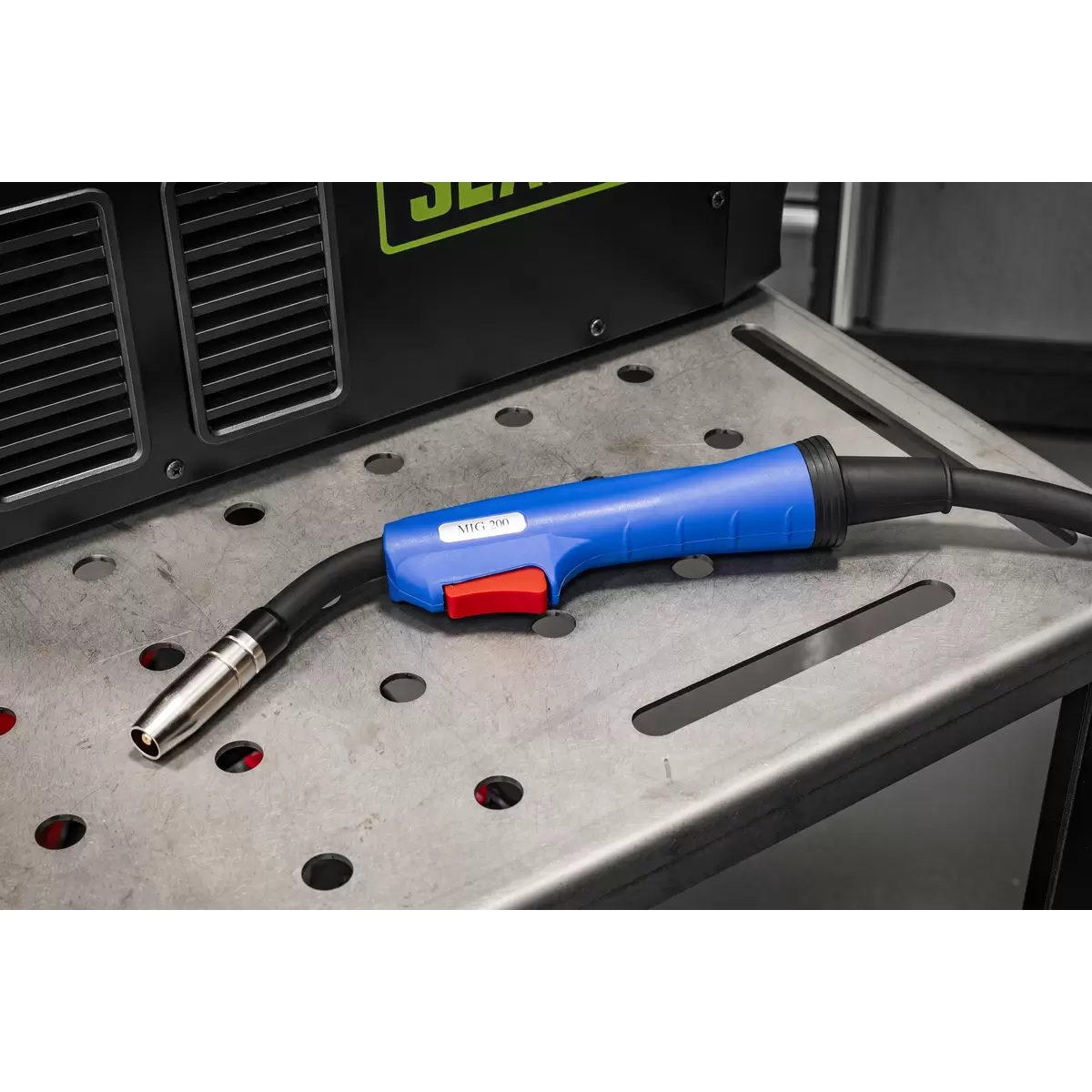

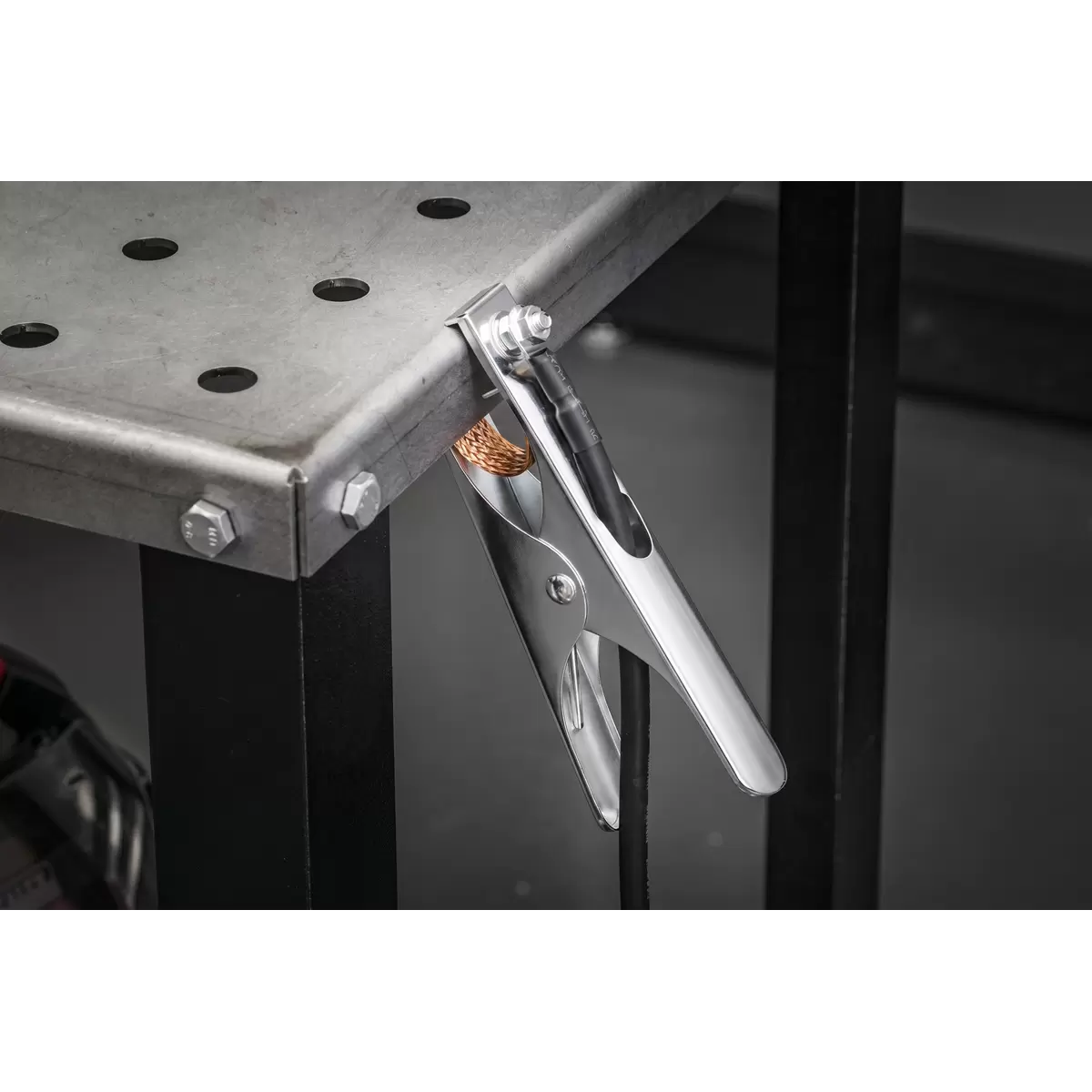

IGBT Inverter multi process welding machine suitable for MIG, TIG, MMA/ARC applications up to 200A as well Plasma cutting at 40A. Gas and Gasless unit which can MIG weld using both Solid wire Ø0.6-1mm and Flux cored wire Ø0.8-1mm at 5kg. Electrode Capacity of Ø1.6 - 5mm. Max cutting capacity of 12mm and clean cutting at 8mm. Featuring hot start, anti-stick, forced air cooling and thermal cut out protection. 2T/4T Torch trigger function allowing greater precision during longer welds. Easy to read digital amp and volumeter display. Supplied with 1.5m earth clamp, 2m electrode holder, 3m MIG torch, 4m cutting torch.

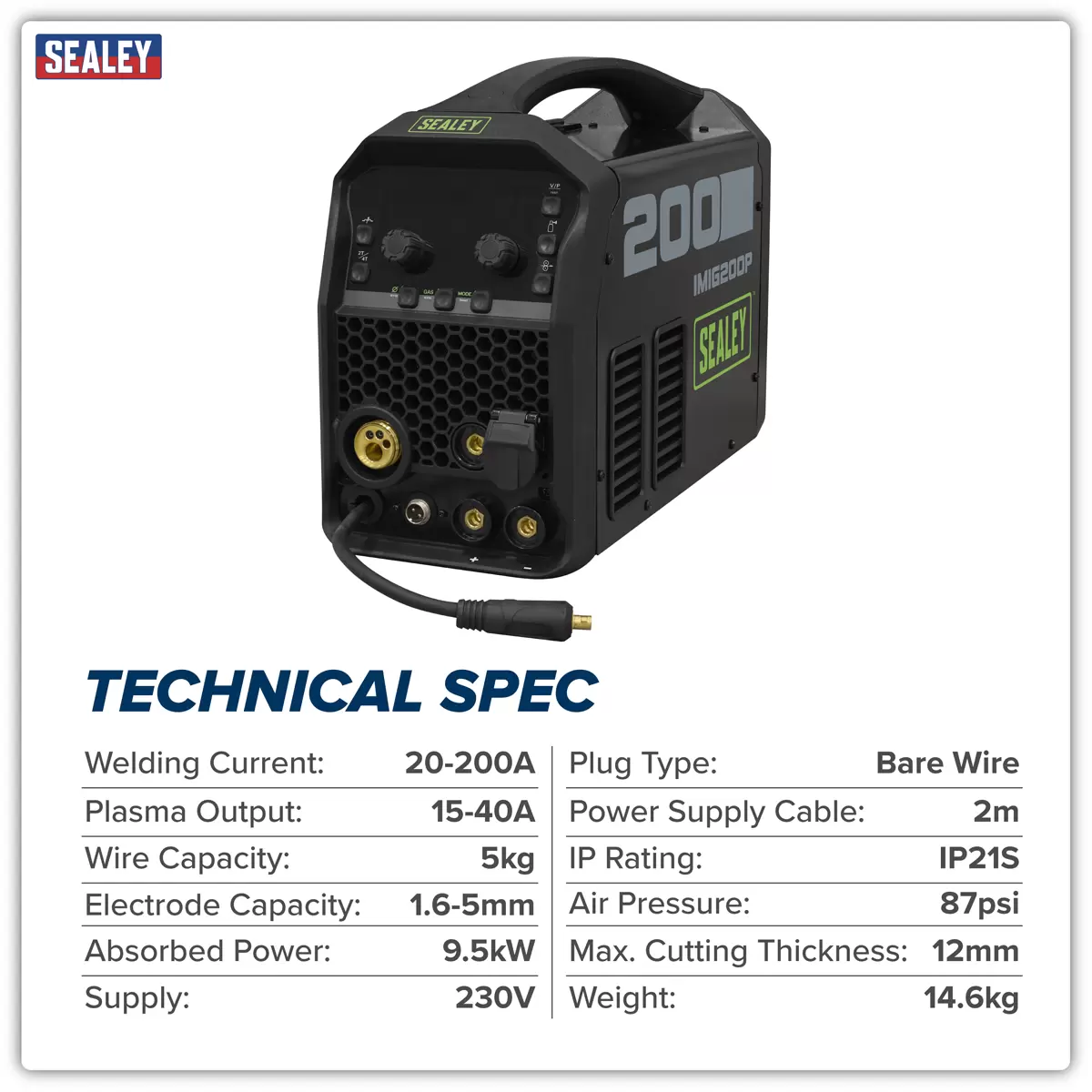

Model No IMIG200P
Brand: Sealey
Nett Weight: 11.1kg
Welding Current: 20-200A
Plasma Output: 15-40A
Duty Cycle: MIG - 20% @ 200A, TIG - 20% @ 200A, MMA - 20% @200A
Wire Capacity: 5kg
Electrode Capacity: 1.6-5mm
Absorbed Power: 9.5kW
Supply: 230V**
Plug Type: Bare Wire
Power Supply Cable length: 2m
IP Rating: IP21S
Weight: 14.6kg
Air Pressure: 87psi
Max. Cutting thickness: 12mm
Clean Cutting Thickness: 8mm
