Laser - 9286 - Oil Service Station Trolley 70L w/o tools
SKU: LAS9286
Part Number: 9286
Barcode: 5018341092863
Country of Origin: China
Weight: 65.00 Kg
Our Price
£741.96 (inc VAT) £618.30 (ex VAT)
RRP £980.10 £816.75
Save
£238.14
£198.45
Description
Suitable for workshops already using a Laser 9127 Oil service station which includes the tools, Laser 9286 offers the same convenient solution without duplicating the tooling.
Features

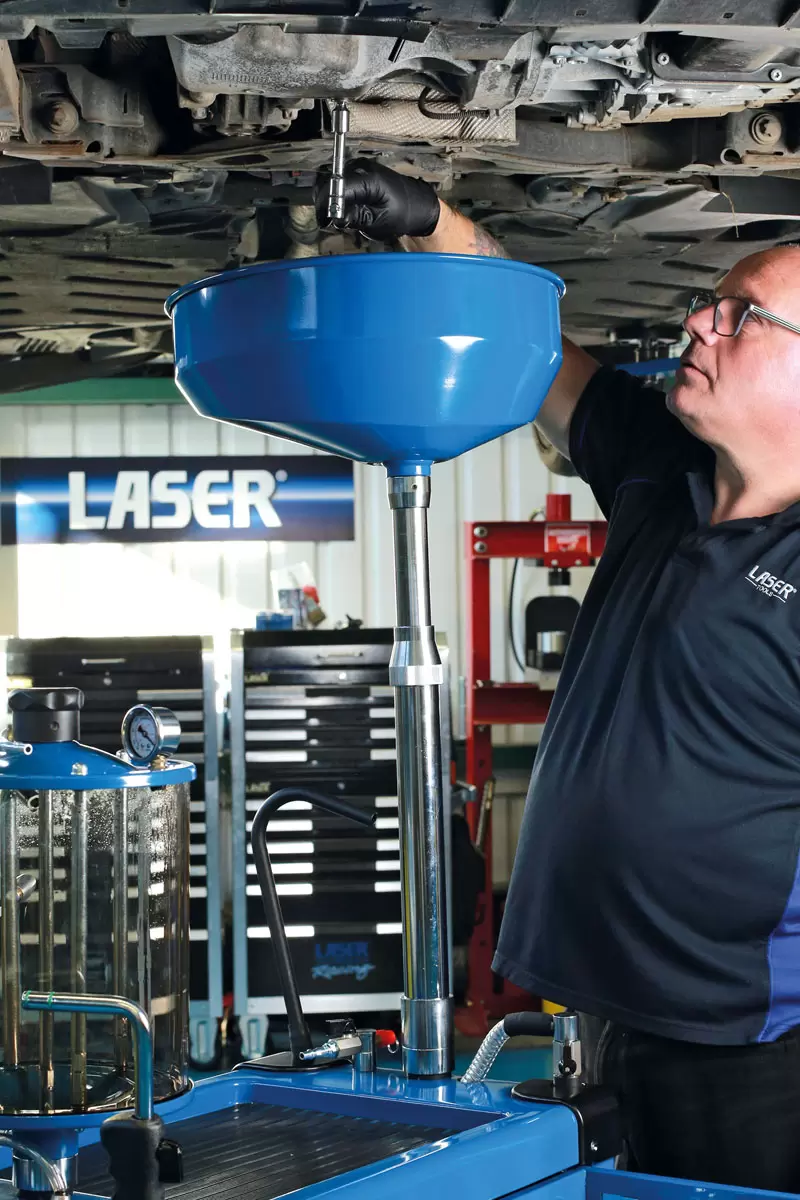

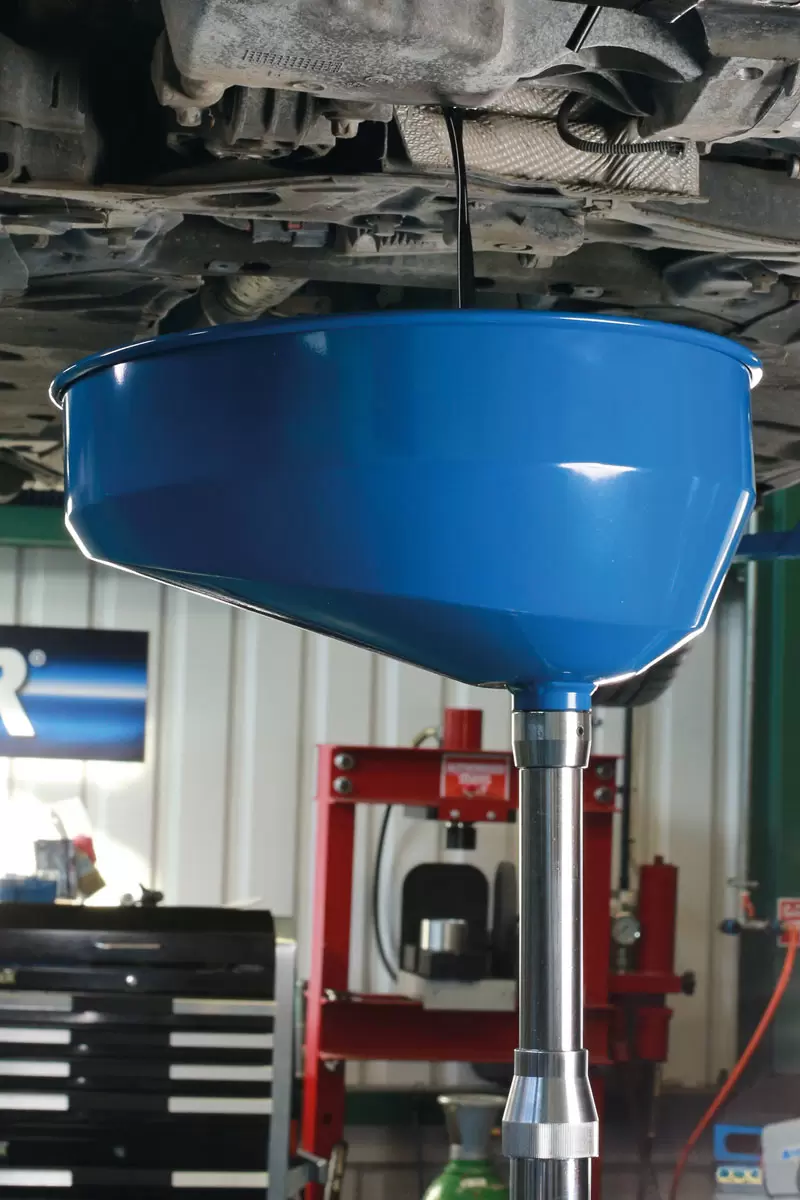

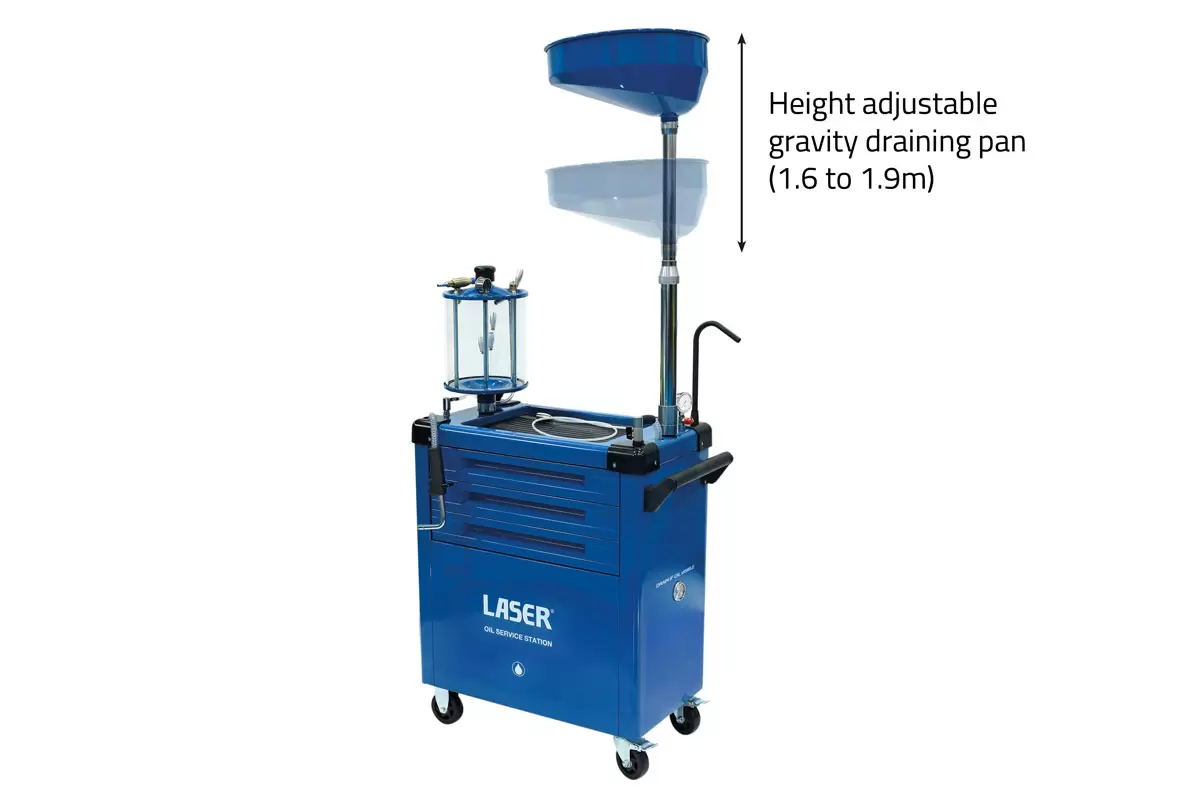

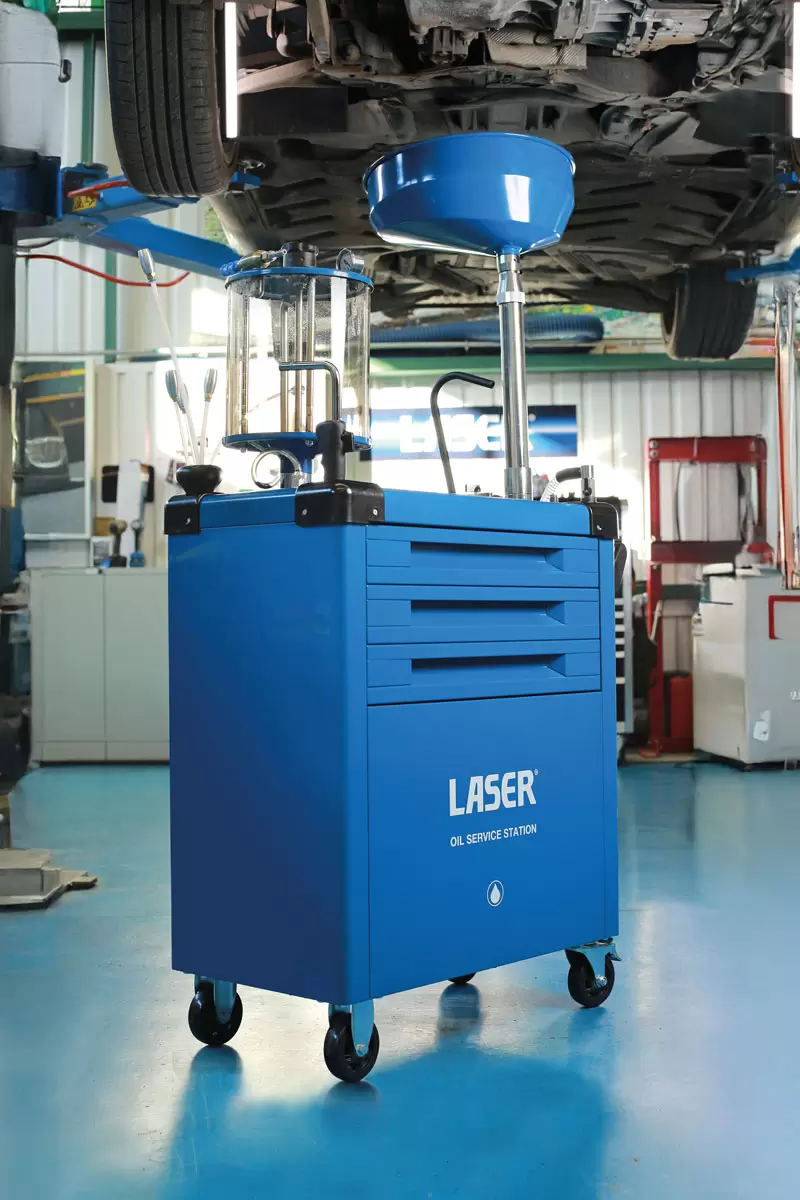

A mobile oil service station that combines a conventional height-adjustable gravity draining pan (1.6 to 1.9m), vacuum draining hopper and waste oil tank into a free standing fully mobile station. Also includes three storage drawers. A foam tray containing sump plug washers, sump plug repair kits, and assorted tools designed to fit in the third drawer is available as an add-on. See Laser Part No. 62984.
Specification

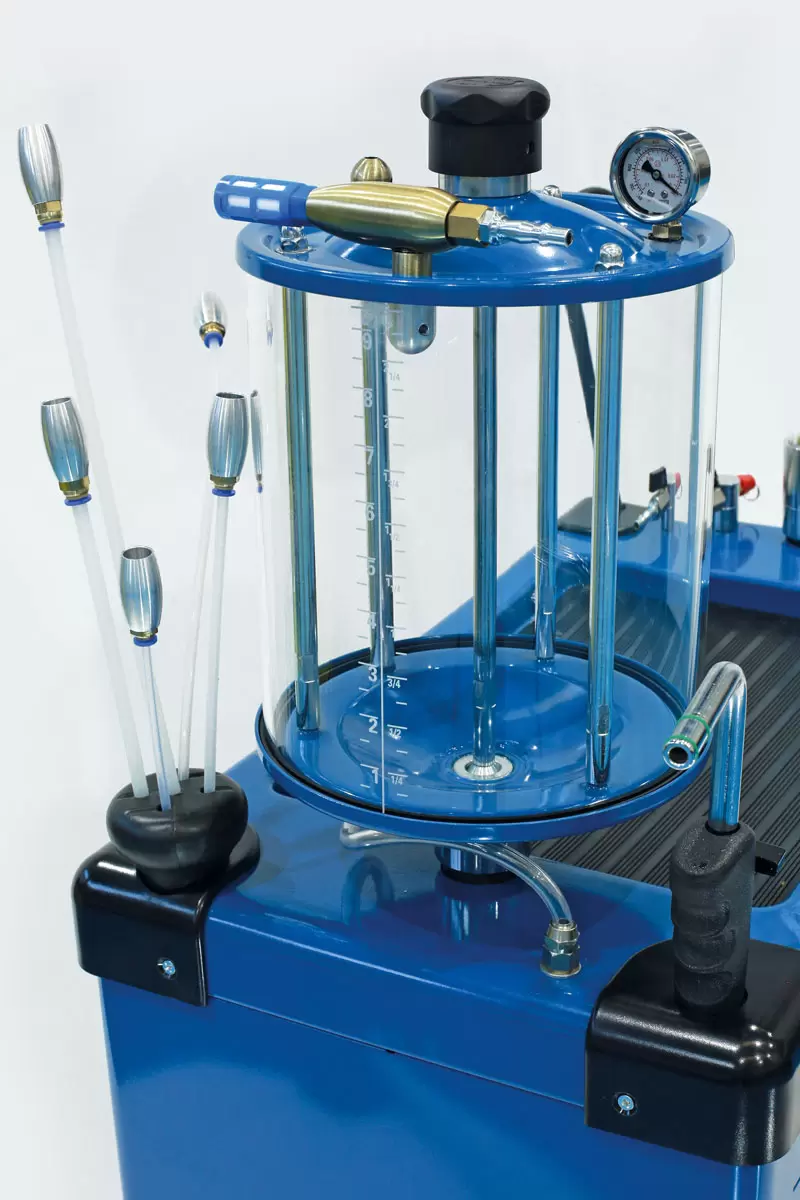

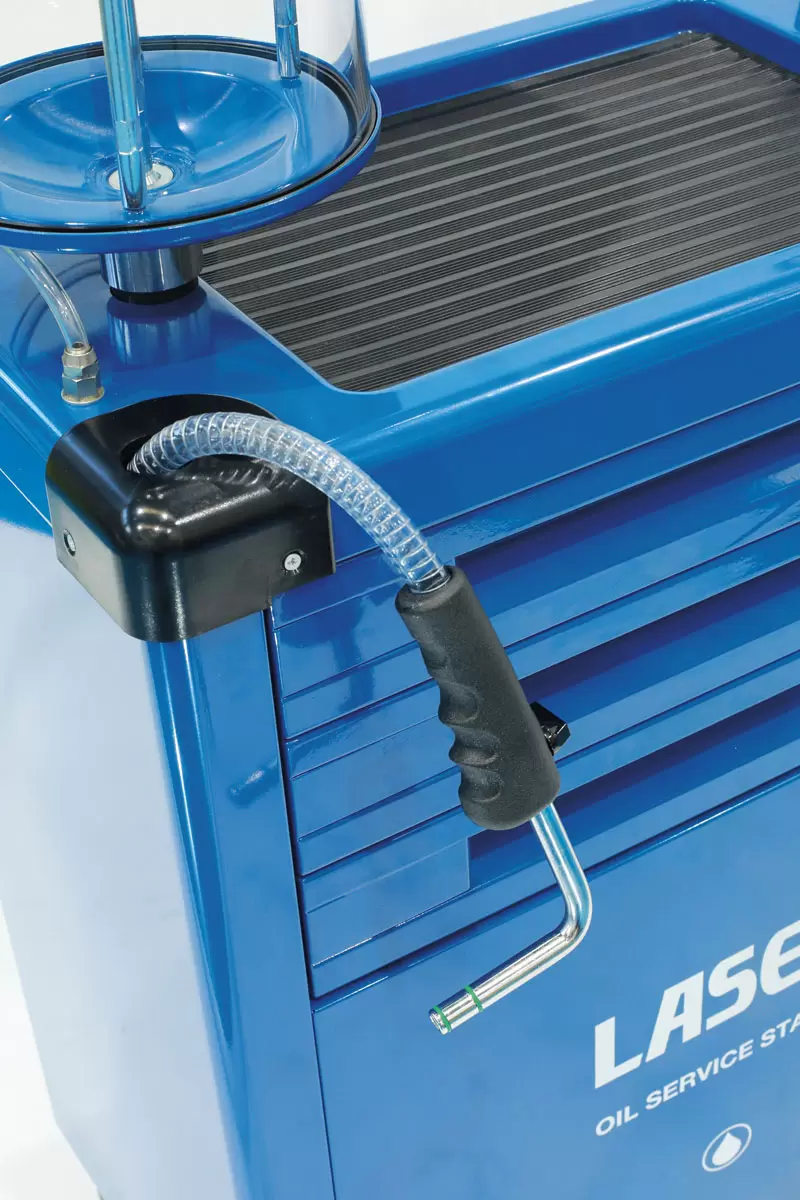

- Maximum storage tank capacity: 70L with sight glass. Catch pan: 10L. Measuring cup (vacuum): 10L. Oil suction tubes: 1x 5mm Ø, 2x 6mm Ø, 2x 8mm Ø x 700mm long.
- Uses workshop air for vacuum extraction & emptying. Air supply 110psi max (8bar).
- Main trolley manufactured from steel. Size (including handle): 843(w) x 405(d) x 890mm(h).
- Features: 4x 4" wheels - 2 fixed & 2 swivel with brakes; 3x drawers for storage.
- Minimum working height: 1585mm. Maximum working height: 1880mm.
Downloads
Description
Suitable for workshops already using a Laser 9127 Oil service station which includes the tools, Laser 9286 offers the same convenient solution without duplicating the tooling.
Features
A mobile oil service station that combines a conventional height-adjustable gravity draining pan (1.6 to 1.9m), vacuum draining hopper and waste oil tank into a free standing fully mobile station. Also includes three storage drawers. A foam tray containing sump plug washers, sump plug repair kits, and assorted tools designed to fit in the third drawer is available as an add-on. See Laser Part No. 62984.
Specification
- Maximum storage tank capacity: 70L with sight glass. Catch pan: 10L. Measuring cup (vacuum): 10L. Oil suction tubes: 1x 5mm Ø, 2x 6mm Ø, 2x 8mm Ø x 700mm long.
- Uses workshop air for vacuum extraction & emptying. Air supply 110psi max (8bar).
- Main trolley manufactured from steel. Size (including handle): 843(w) x 405(d) x 890mm(h).
- Features: 4x 4" wheels - 2 fixed & 2 swivel with brakes; 3x drawers for storage.
- Minimum working height: 1585mm. Maximum working height: 1880mm.
