Laser 7317 Torque Multiplier Adaptor Kit for Ford
SKU: LAS7317
Part Number: 7317
Barcode: 5018341073176
Country of Origin: GB
Weight: 1.82 Kg
Our Price
£87.62 (inc VAT) £73.02 (ex VAT)
RRP £151.94 £126.62
Save
£64.32
£53.60
Description
Torque Multiplier Adaptor Kit - for Ford
Features

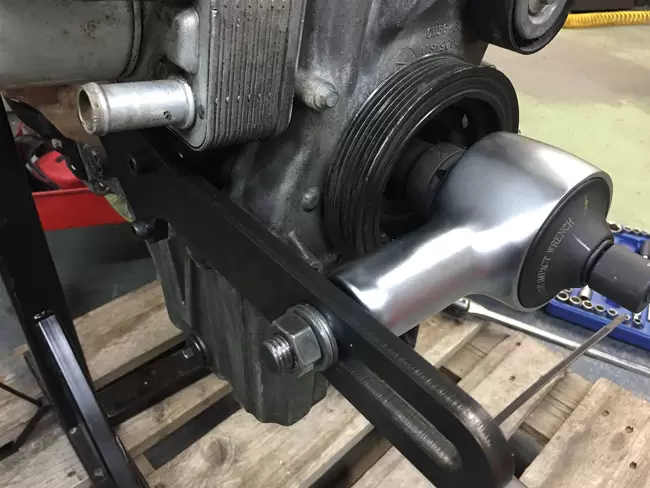

When there is reason to access the front of the Ford 1.1L non-turbo and 1.0L EcoBoost engine – to remove the pulley, when changing the timing belt or front main seal for example - you need to remove the very tight pulley securing bolt. A torque multiplier is essential for this to both undo and retighten the bolt. Laser Tools provides the torque multiplier (part number 7318) and the special adaptor kit (part number 7317) that enables it to be used on the 1.0L Ecoboost engine.
Specification
Applications: Ford B-Max, C-Max, EcoSport, Fiesta, Focus, Grand C-Max, Grand Tourneo Connect, Mondeo, Tourneo Connect, Tourneo Courier, Transit Connect & Transit Courier (from 2012).
Engine codes include: 1.0L EcoBoost M1JA, M1JE, M1JH, SFJA, SFJB, SFJC, SFJD, M1DA, M2DA, M1DD, M2DC, M1JC, M1JJ, P4JA, P4JB, P4JC, P4JD, XMJA, XMJB, XMJC, XMJD, YYJA, YYJB, M2DB, SFDB, M2GA, M2GB, M1CA, M1CB, SFCA, SFCB, SFCC & SFCD.
Equivalent to Ford OEMs 303-1611-01 & 303-1611-02.
Designed to be used in conjunction with Laser Torque multiplier Part No. 7318 only. Use to tighten the crankshaft pulley bolt to the correct torque and angle. For timing tools see Laser Tools Part No. 6828, 6952 & 6291.
Made in Sheffield to an EU Registered Design.
Engine codes include: 1.0L EcoBoost M1JA, M1JE, M1JH, SFJA, SFJB, SFJC, SFJD, M1DA, M2DA, M1DD, M2DC, M1JC, M1JJ, P4JA, P4JB, P4JC, P4JD, XMJA, XMJB, XMJC, XMJD, YYJA, YYJB, M2DB, SFDB, M2GA, M2GB, M1CA, M1CB, SFCA, SFCB, SFCC & SFCD.
Equivalent to Ford OEMs 303-1611-01 & 303-1611-02.
Designed to be used in conjunction with Laser Torque multiplier Part No. 7318 only. Use to tighten the crankshaft pulley bolt to the correct torque and angle. For timing tools see Laser Tools Part No. 6828, 6952 & 6291.
Made in Sheffield to an EU Registered Design.
