Home > Workshop Equipment > Jacking & Lifting > Draper Tools - 93509 - Engine Crane, 1 Tonne
Draper Tools - 93509 - Engine Crane, 1 Tonne
SKU: 93509
Part Number: EC1001-B
Barcode: 5010559935093
Country of Origin: CN
Weight: 50.00 Kg
Our Price
£302.27 (inc VAT) £251.89 (ex VAT)
RRP £369.00 £307.50
Save
£66.73
£55.61
12 months Warranty included.
Description

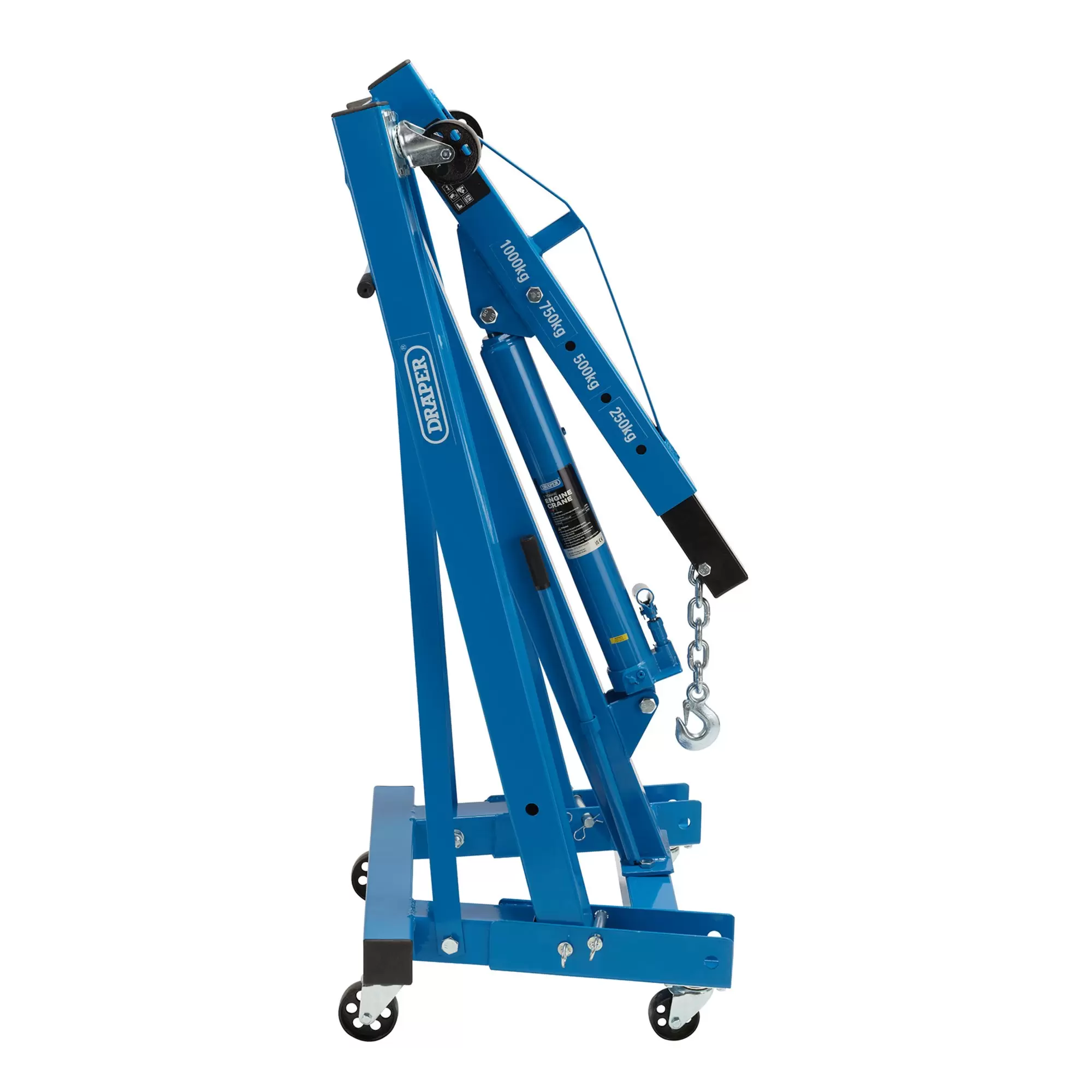

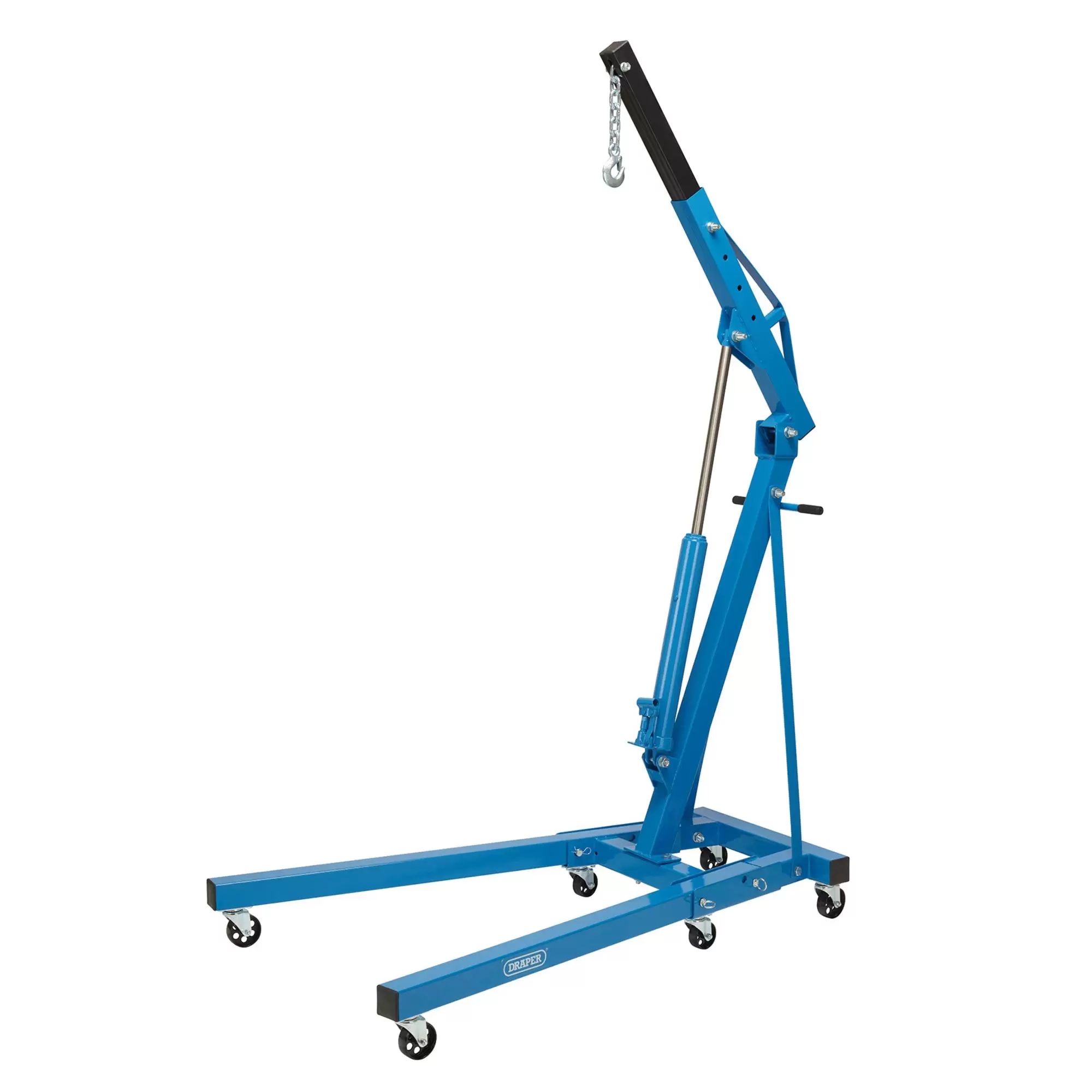

This robust engine crane has a maximum capacity of 1 Tonne. The single piston hydraulic pump ensures rapid lifting of an engine out of its bay with little effort. There are four pre-set jib positions, with a maximum capacity of 250kg when the jib is fully extended. The outrigger legs can be folded to optimise storage workshop space or for easy transportation. There are six robust castor wheels to allow safe and easy mobility. For safety they are twin overload valves to prevent exceeding capacity. This engine crane is compatible with a wide range of load slings and levellers.
Features
Specification
Capacity 1 Tonne
Capacity position 1 1,000kg
Maximum jib length position 1 910mm
Maximum jib height position 1 2,010mm
Capacity Position 2 750kg
Maximum jib length position 2 1,000mm
Maximum Jib height Position 2 1,930mm
Capacity Position 3 500kg
Maximum jib length position 3 1,090mm
Maximum Jib height position 3 1,850mm
Capacity position 4 250kg
Maximum jib length position 4 1,190mm
Maximum jib height position 4 1,780mm
Frame height 1,420mm
Frame length 750mm
Frame width 70mm
Folded dimensions H 1,520 x L 600 x W 1,420mm
Weight 66.90kg
Capacity position 1 1,000kg
Maximum jib length position 1 910mm
Maximum jib height position 1 2,010mm
Capacity Position 2 750kg
Maximum jib length position 2 1,000mm
Maximum Jib height Position 2 1,930mm
Capacity Position 3 500kg
Maximum jib length position 3 1,090mm
Maximum Jib height position 3 1,850mm
Capacity position 4 250kg
Maximum jib length position 4 1,190mm
Maximum jib height position 4 1,780mm
Frame height 1,420mm
Frame length 750mm
Frame width 70mm
Folded dimensions H 1,520 x L 600 x W 1,420mm
Weight 66.90kg
Workshopping Says
Warranty Period = 12 months
Description
This robust engine crane has a maximum capacity of 1 Tonne. The single piston hydraulic pump ensures rapid lifting of an engine out of its bay with little effort. There are four pre-set jib positions, with a maximum capacity of 250kg when the jib is fully extended. The outrigger legs can be folded to optimise storage workshop space or for easy transportation. There are six robust castor wheels to allow safe and easy mobility. For safety they are twin overload valves to prevent exceeding capacity. This engine crane is compatible with a wide range of load slings and levellers.
Features
Specification
Capacity 1 Tonne
Capacity position 1 1,000kg
Maximum jib length position 1 910mm
Maximum jib height position 1 2,010mm
Capacity Position 2 750kg
Maximum jib length position 2 1,000mm
Maximum Jib height Position 2 1,930mm
Capacity Position 3 500kg
Maximum jib length position 3 1,090mm
Maximum Jib height position 3 1,850mm
Capacity position 4 250kg
Maximum jib length position 4 1,190mm
Maximum jib height position 4 1,780mm
Frame height 1,420mm
Frame length 750mm
Frame width 70mm
Folded dimensions H 1,520 x L 600 x W 1,420mm
Weight 66.90kg
Capacity position 1 1,000kg
Maximum jib length position 1 910mm
Maximum jib height position 1 2,010mm
Capacity Position 2 750kg
Maximum jib length position 2 1,000mm
Maximum Jib height Position 2 1,930mm
Capacity Position 3 500kg
Maximum jib length position 3 1,090mm
Maximum Jib height position 3 1,850mm
Capacity position 4 250kg
Maximum jib length position 4 1,190mm
Maximum jib height position 4 1,780mm
Frame height 1,420mm
Frame length 750mm
Frame width 70mm
Folded dimensions H 1,520 x L 600 x W 1,420mm
Weight 66.90kg
Workshopping Says
Warranty Period = 12 months
